1.7.3

Installing a DIMM

Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing
the retaining clips outward.
2. Align a DIMM on the socket such
that the notch on the DIMM
matches the break on the socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the DIMM is
properly seated.
A DDR DIMM is keyed with a notch so that it fits in only one direction.
DO NOT force a DIMM into a socket to avoid damaging the DIMM.
1.8

Expansion slots

To install and configure an expansion card:
1. Install an expansion card following the instructions that came with the
chassis.
2. Turn on the system and change the necessary BIOS settings, if any.
See Chapter 2 for BIOS information.
3. Assign an IRQ to the card. Refer to the tables next page.
4. Install the drivers and/or software applications for the expansion card
according to the card documentation.
1-16

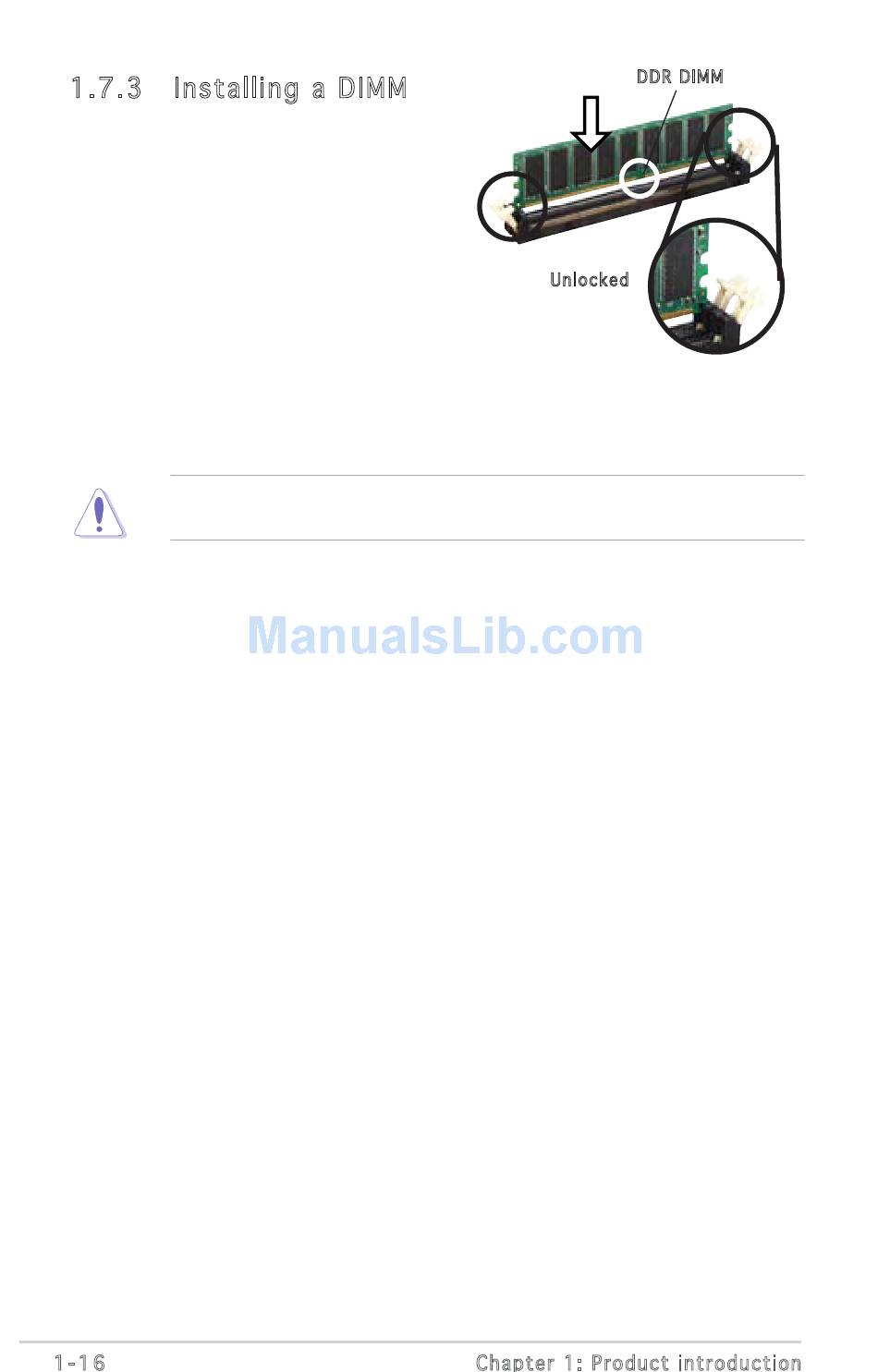

DDR DIMM
Unlocked
Chapter 1: Product introduction
