vCenter Configuration Manager Security Environment Requirements

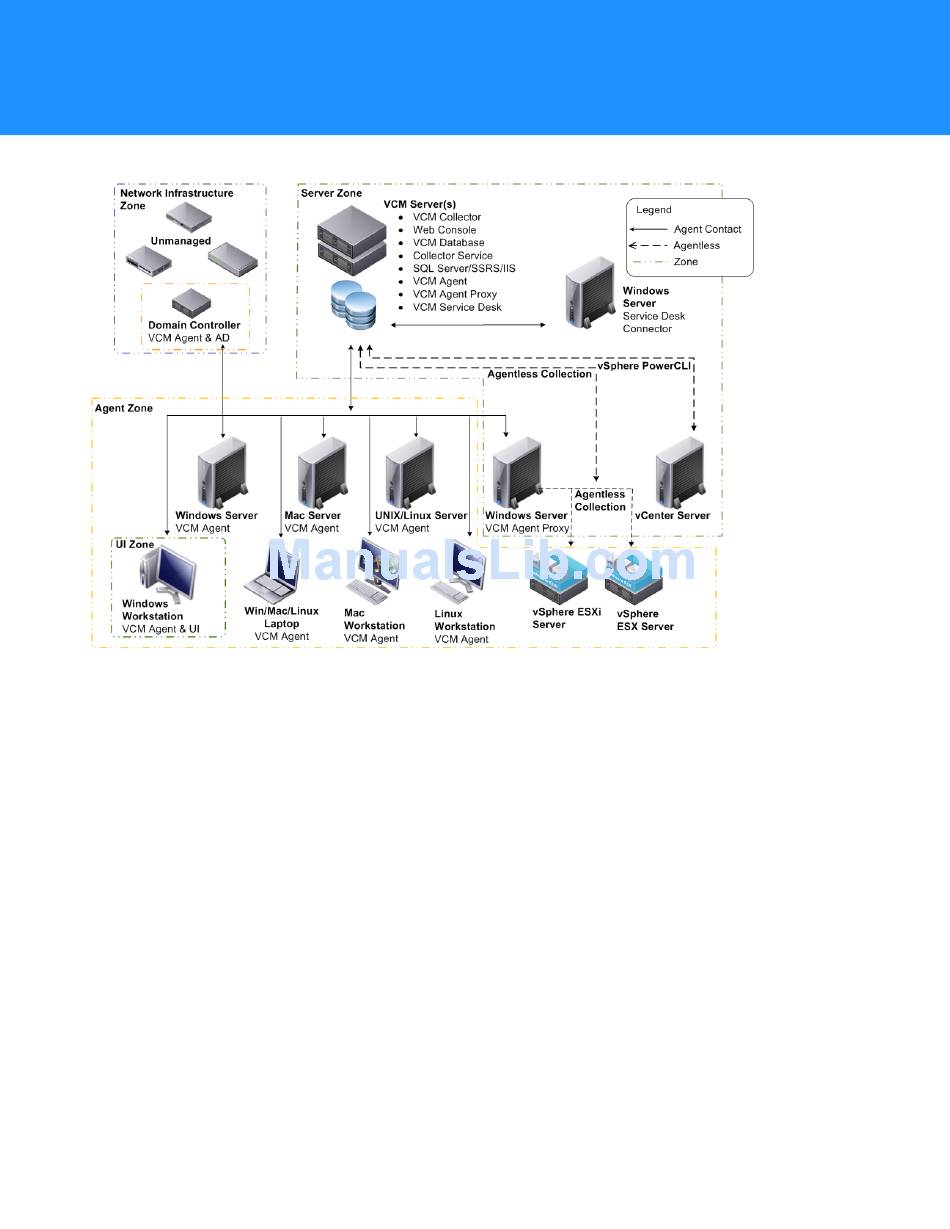

Figure 1: VCM Single Server Installation
As shown in the figure, several VCM services can share a host. In a single-host installation, IIS, the web application,
SQL Server, and the Collector service are installed on a server machine referred to as the "Collector host". There is an
optional split installation configurations where the SQL Server is installed on a database host separate from the
Collector host. However, VMware strongly recommends that you select the default, single machine installation type
because it will be the simplest to administer in the future. A split installation across two machines should be used only
when required by your organization's policy.
Several different types of personnel utilize the five components of VCM. Domain administrators create the accounts
and manage the infrastructure in which VCM runs. The infrastructure includes domain controllers, routers, certificate
servers, SMTP email, domain name service (DNS) and DHCP. A VCM installer loads the VCM software and
configures IIS, SQL server, the Collector, and other services. The installer is also the first VCM administrator and is
responsible for authorizing the other administrators and regular VCM users from the inventory of accounts managed by
the domain administrators. VCM users and administrators log on to VCM and use its web interface to administer
managed machines via the Agents, run Compliance tests, and generate reports. Agents can be installed, upgraded,
and un-installed by either VCM administrators, users or managed machine administrators.
Conceptually, the VCM services, hosts, and personnel can be organized into the following trust zones:
