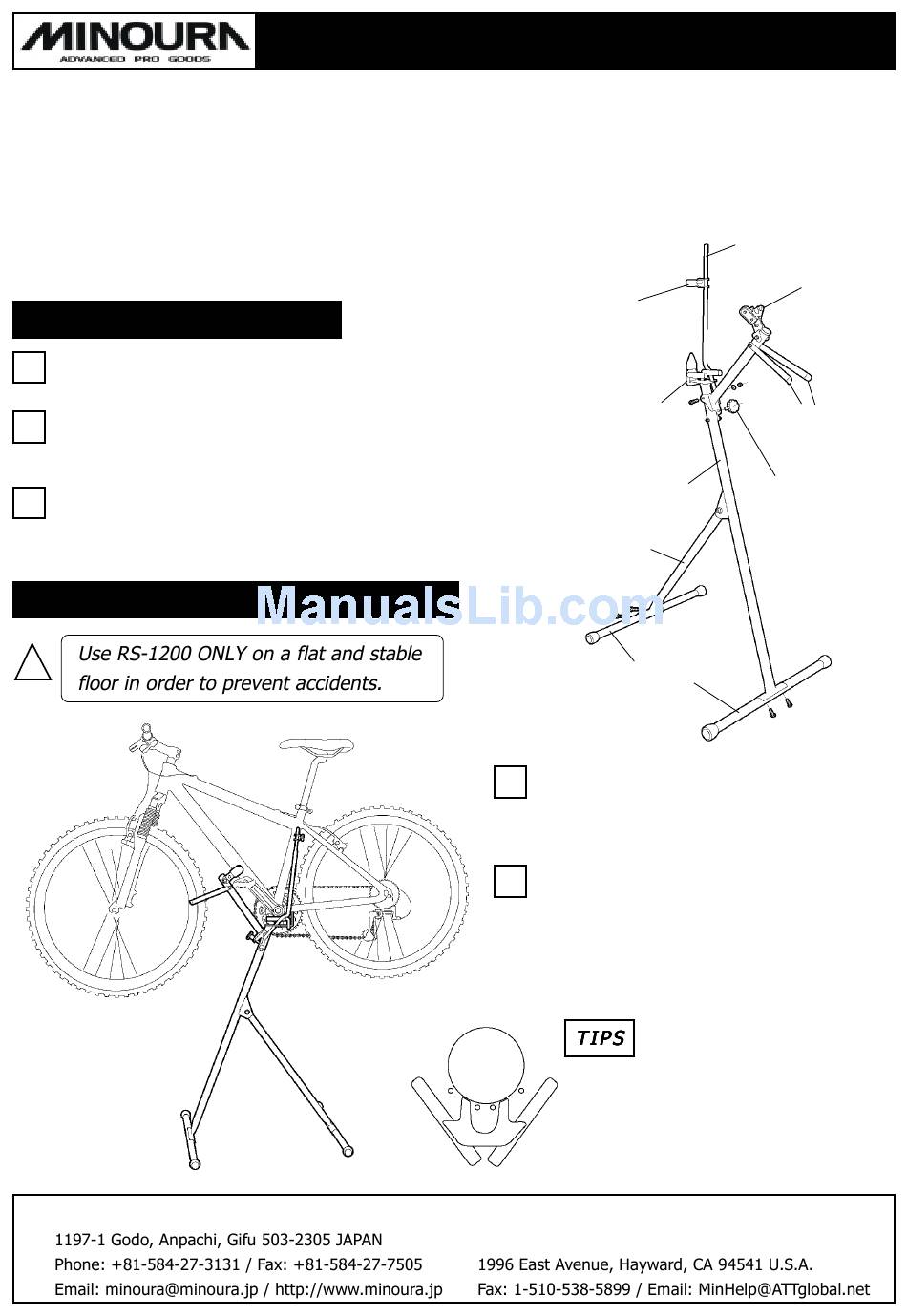

MINOURA RS-1200 Instruction Manual

Thank you for purchasing the Minoura RS-1200 bicycle repair stand.
The RS-1200 is a stand for basic bike maintenance and repair work. It supports your bike at a height that allows
easy access. The bike is supported at 3 positions; the bottom bracket shell, the down-tube and the seat-tube.
The angle of the down-tube support arm and the seat-tube support hook position are adjustable to insure a perfect
fit to your frame. The frame is also foldable for easy storage when it is not in use.
Please read this instructions carefully before use.
HOW TO ASSEMBLE RS-1200 HOW TO ASSEMBLE RS-1200 HOW TO ASSEMBLE RS-1200 HOW TO ASSEMBLE RS-1200 HOW TO ASSEMBLE RS-1200
Install the step-bar tubes to the frame and the leg. (see Fig. A)
1 1 1 1 1
Install the down-tube support arm to the main frame, then screw
2 2 2 2 2
the knob bolt to the hole on the arm bracket.
Open the seat-tube stay and insert the seat-tube support hook
3 3 3 3 3
and plug in the end-cap.
HOW TO MOUNT YOUR BIKE ON RS-1200 HOW TO MOUNT YOUR BIKE ON RS-1200
HOW TO MOUNT YOUR BIKE ON RS-1200 HOW TO MOUNT YOUR BIKE ON RS-1200 HOW TO MOUNT YOUR BIKE ON RS-1200
!
(Fig. B)
MINOURA JAPAN
RS-1200 instructions manual
1 1 1 1 1
2 2 2 2 2
MINOURA NORTH AMERICA
(for North American residents only)
Seat-tube
Support Hook
BB Support
Frame
Leg
Step-bar
Open the seat-tube support arm fully and
set the left side crank arm towards the front
wheel..
Place the BB shell onto the BB support,
lean the bike backward until the seat-tube
touches the hook, then adjust the down-
tube support arm angle by turning the knob
bolt.
If the brake or shifter cable is routed
under or beside the down-tube and is
pinched between the frame and the
bracket, use the supplied adapter.
Seat-tube
Support Arm
Down-tube
Support
Front Wheel
Support Stay
Arm Angle
Adjust Knob
(Fig. A)
