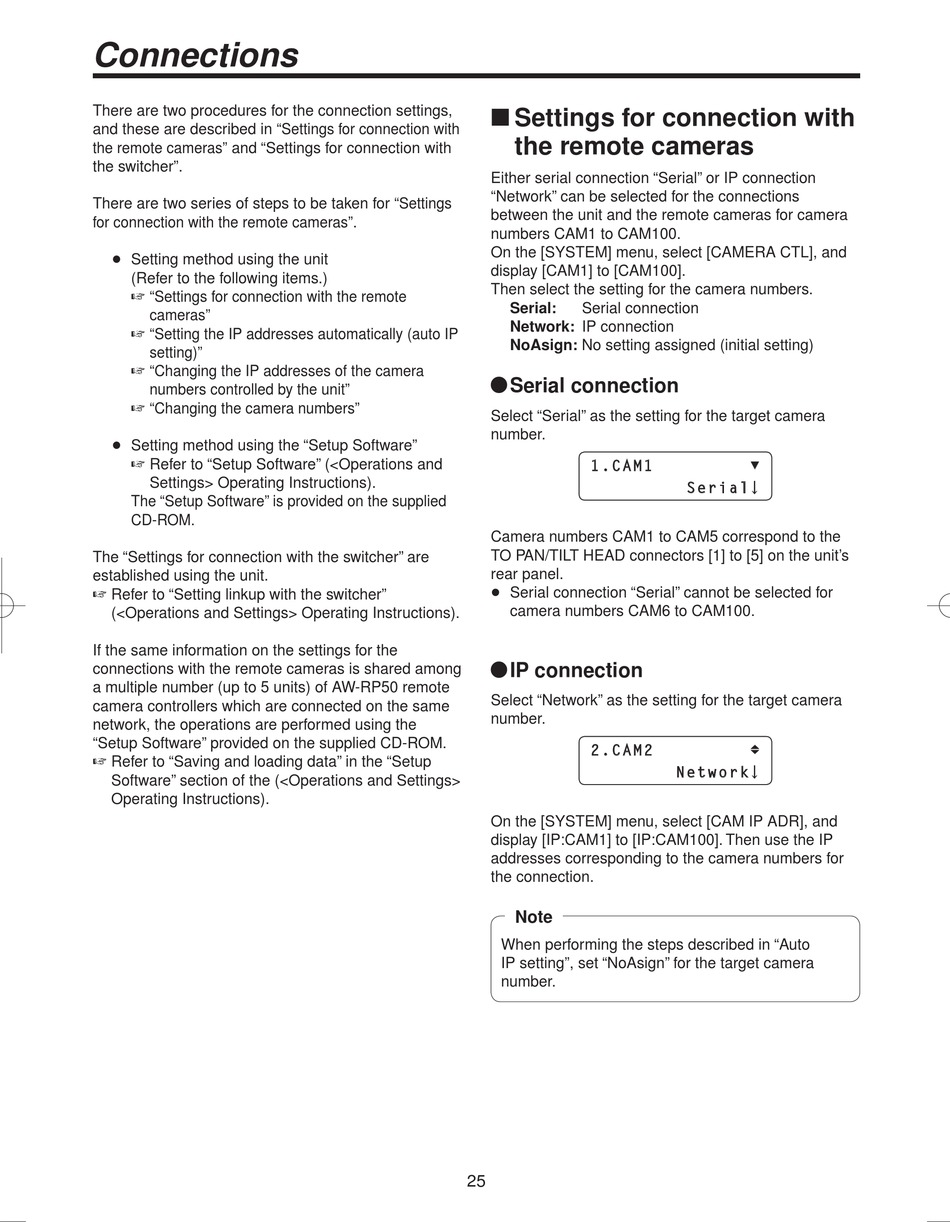

Connections
There are two procedures for the connection settings,
and these are described in "Settings for connection with
the remote cameras" and "Settings for connection with
the switcher".
There are two series of steps to be taken for "Settings
for connection with the remote cameras".
 Setting method using the unit
(Refer to the following items.)
 "Settings for connection with the remote
cameras"
 "Setting the IP addresses automatically (auto IP
setting)"
 "Changing the IP addresses of the camera
numbers controlled by the unit"
 "Changing the camera numbers"
 Setting method using the "Setup Software"
  Refer to "Setup Software" (<Operations and
Settings> Operating Instructions).
The "Setup Software" is provided on the supplied
CD-ROM.
The "Settings for connection with the switcher" are
established using the unit.
 Refer to "Setting linkup with the switcher"
(<Operations and Settings> Operating Instructions).
If the same information on the settings for the
connections with the remote cameras is shared among
a multiple number (up to 5 units) of AW-RP50 remote
camera controllers which are connected on the same
network, the operations are performed using the
"Setup Software" provided on the supplied CD-ROM.
 Refer to "Saving and loading data" in the "Setup
Software" section of the (<Operations and Settings>
Operating Instructions).
 Settings for connection with 
the remote cameras
Either serial connection "Serial" or IP connection
"Network" can be selected for the connections
between the unit and the remote cameras for camera
numbers CAM1 to CAM100.
On the [SYSTEM] menu, select [CAMERA CTL], and
display [CAM1] to [CAM100].
Then select the setting for the camera numbers.
Serial: Serial connection
Network: IP connection
NoAsign: No setting assigned (initial setting)
 Serial connection 
Select "Serial" as the setting for the target camera
number.
1.C AM 1
Camera numbers CAM1 to CAM5 correspond to the
TO PAN/TILT HEAD connectors [1] to [5] on the unit's
rear panel.
  Serial connection "Serial" cannot be selected for
camera numbers CAM6 to CAM100.
 IP connection 
Select "Network" as the setting for the target camera
number.
2. C AM 2
On the [SYSTEM] menu, select [CAM IP ADR], and
display [IP:CAM1] to [IP:CAM100]. Then use the IP
addresses corresponding to the camera numbers for
the connection.
Note
When performing the steps described in "Auto
IP setting", set "NoAsign" for the target camera
number.
