Connections

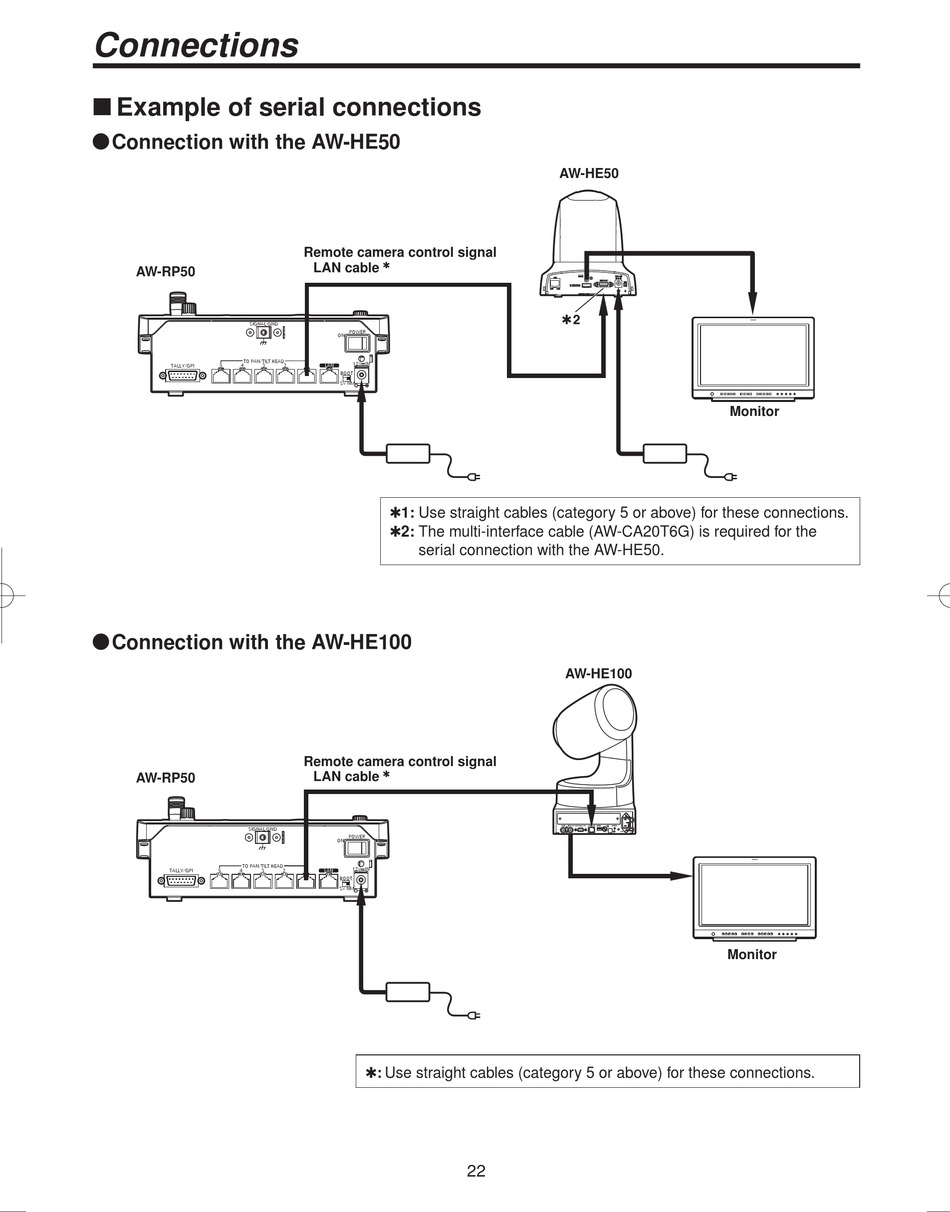

 Example of serial connections 
 Connection with the AW-HE50 
AW-RP50
TO PAN/TILT HEAD
TALLY/GPI 5 4
 Connection with the AW-HE100 
AW-RP50
TO PAN/TILT HEAD
TALLY/GPI 5 4
Remote camera control signal

LAN cable
SIGNAL GND
POWER
ON
12V IN
3 2 1 LAN
BOOT
SV NM
1: Use straight cables (category 5 or above) for these connections.
2: The multi-interface cable (AW-CA20T6G) is required for the
Remote camera control signal

LAN cable
SIGNAL GND
POWER
ON
12V IN
3 2 1 LAN
BOOT
SV NM
: Use straight cables (category 5 or above) for these connections.
AW-HE50
serial connection with the AW-HE50.
AW-HE100
22
2
Monitor
Monitor
