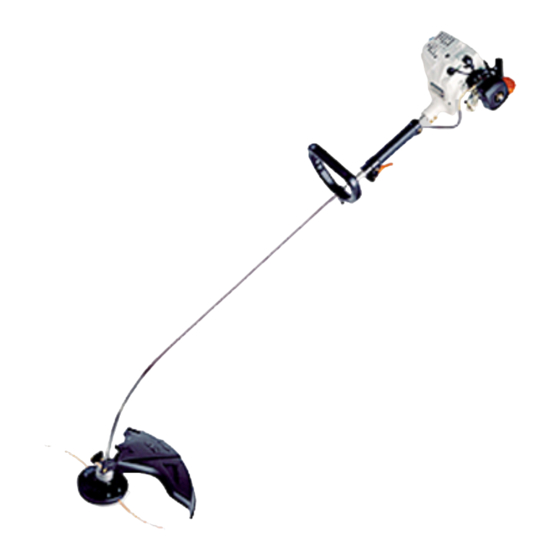

Echo GT-200R - PARTS CATALOG SERIAL NUMBER 10001001- 10999999 Parts Catalog

21.2cc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVAILABLE ATTACHMENTS & ACCESSORIES
Accessories
99944200201
GT Shoulder Harness Kit
Cutting Heads
215311
Maxi-Cut Head
21560040
Echomatic Single Line Head
21560056
2-Line Rapid Loader
2006 ECHO, Incorporated. All Rights Reserved
PARTS CATALOG
GT-200R GRASS
TRIMMER
21.2cc
MODEL: SERIAL NUMBERS
GT-200R: S/N: 10001001- 10999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
99922203366_200R/10
REVISED 08/07/06
