Echo GT-200R - PARTS CATALOG SERIAL NUMBER S65111001001 - S65111999999 Parts Catalog

21.2cc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVAILABLE ATTACHMENTS & ACCESSORIES
Accessories
99944200201
GT Shoulder Harness Kit
Cutting Heads
215311
Maxi-Cut Head
21560040
Echomatic Single Line Head
21560056
2-Line Rapid Loader
2007 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG

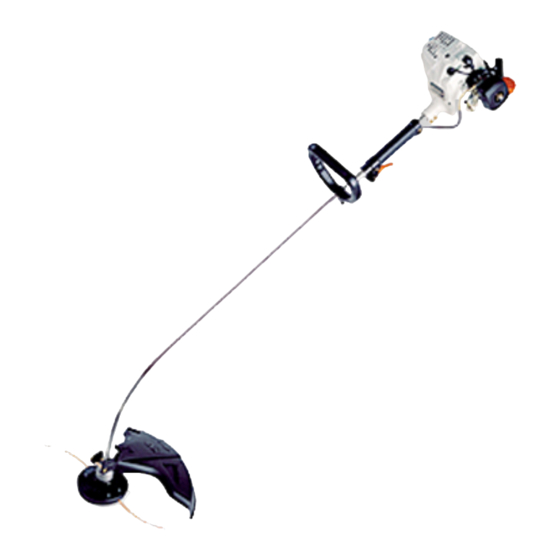

GT-200R Trimmer
MODEL:SERIAL NUMBERS
GT-200R:
S/N: S65111001001 - S65111999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
21.2cc
99922203366_200R/11
REVISED 06/04/07

Advertisement

Table of Contents
loading

Related Manuals for Echo GT-200R - PARTS CATALOG SERIAL NUMBER S65111001001 - S65111999999

Summary of Contents for Echo GT-200R - PARTS CATALOG SERIAL NUMBER S65111001001 - S65111999999

  • Page 1 Echomatic Single Line Head MODEL:SERIAL NUMBERS 21560056 2-Line Rapid Loader GT-200R: S/N: S65111001001 - S65111999999 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922203366_200R/11 REVISED 06/04/07 2007 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...

  • Page 2: Table Of Contents

    Table of Contents Part Number Index Table of Contents Click Any Diagram Desciption Below To Veiw That Diagram. GT-200R S/N: S65111001001 - S65111999999 Cylinder Cover.................................4 Fuel System..................................6 Fan Case, Clutch, Ignition Switch..........................8 Starter -- i-30..................................10 Intake....................................12 Carburetor -- RB-K75..............................14 Exhaust...................................16 Ignition....................................18 Engine, Short Block -- SB1072.............................20 Rapid Loader Head................................22...
  • Page 3 This Page Intentionally Left Blank - 3 -...

  • Page 4: Cylinder Cover

    Table of Contents Part Number Index GT-200R Trimmer Cylinder Cover 99922203366_200R/11 - 4 - REVISED 06/04/07...
  • Page 5 Table of Contents Part Number Index GT-200R Trimmer Cylinder Cover ITEM PART NUMBER DESCRIPTION REMARKS A160000580 COVER, CYLINDER 90025304012 SCREW 4X12 V141000030 PLUG A162000040 GUARD, TOP 90025305016 SCREW 5X16 90016304016 SCREW 4X16 9110704008 SCREW 4X8 89016006361 LABEL, CAUTION - HOT 99922203366_200R/11 - 5 - REVISED 06/04/07...

  • Page 6: Fuel System

    Table of Contents Part Number Index GT-200R Trimmer Fuel System 99922203366_200R/11 - 6 - REVISED 06/04/07...
  • Page 7 Table of Contents Part Number Index GT-200R Trimmer Fuel System ITEM PART NUMBER DESCRIPTION REMARKS A350000690 TANK, FUEL 90060300005 WASHER 5 90016205020 SCREW 5X20 13100455530 FUEL TANK CAP ASY INCLUDES ITEMS 5-6 13105156030 CONNECTOR, FUEL CAP 13101655830 GASKET, FUEL CAP V137000030 GROMMET 13120507320...

  • Page 8: Fan Case, Clutch, Ignition Switch

    Table of Contents Part Number Index GT-200R Trimmer Fan Case, Clutch, Ignition Switch 99922203366_200R/11 - 8 - REVISED 06/04/07...
  • Page 9 Table of Contents Part Number Index GT-200R Trimmer Fan Case, Clutch, Ignition Switch ITEM PART NUMBER DESCRIPTION REMARKS 10150356630 FAN COVER ASY 90014205028 BOLT 5X28 90056550005 NUT 5 16340003460 SWITCH, IGNITION 90016304018 BOLT 4X18 16381044330 BRACKET, SWITCH 17500056830 CLUTCH ASY 99922203366_200R/11 - 9 - REVISED 06/04/07...
  • Page 10 Table of Contents Part Number Index GT-200R Trimmer Starter -- i-30 99922203366_200R/11 - 10 - REVISED 06/04/07...
  • Page 11 Table of Contents Part Number Index GT-200R Trimmer Starter -- i-30 ITEM PART NUMBER DESCRIPTION REMARKS A052000180 STARTER PAWL ASY INCLUDES ITEMS 2-4 P022002100 E-RING P022006510 SPRING, PAWL, RETURN P022006850 PAWL, STARTER A051000740 STARTER ASY INCLUDES ITEMS 6-14 17723661830 SCREW P022008280 PLATE, CAM P022008270...

  • Page 12: Intake

    Table of Contents Part Number Index GT-200R Trimmer Intake 99922203366_200R/11 - 12 - REVISED 06/04/07...
  • Page 13 Table of Contents Part Number Index GT-200R Trimmer Intake ITEM PART NUMBER DESCRIPTION REMARKS 21041752730 WING BOLT 13031306563 LID, AIR CLEANER - GRAY 13031305863 LID, AIR CLEANER - BLACK 13031054130 FILTER, AIR 12901152730 PLATE, PREVENT 90022005065 SCREW 5X65 P021000991 CASE, AIR CLEANER - GRAY P021004480 CASE, AIR CLEANER - BLACK 89012152730...
  • Page 14 Table of Contents Part Number Index GT-200R Trimmer Carburetor -- RB-K75 99922203366_200R/11 - 14 - REVISED 06/04/07...
  • Page 15 Table of Contents Part Number Index GT-200R Trimmer Carburetor -- RB-K75 ITEM PART NUMBER DESCRIPTION REMARKS A021000740 CARBURETOR -- RB-K75 P005001320 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER ASY 12534452130 SCREW, ROTOR COVER P005001330 SCREW, CABLE ADJUST P005001240 SWIVEL P005000190 E-RING P005000100 SCREW, THROTTLE ADJUST...

  • Page 16: Exhaust

    Table of Contents Part Number Index GT-200R Trimmer Exhaust 99922203366_200R/11 - 16 - REVISED 06/04/07...
  • Page 17 Table of Contents Part Number Index GT-200R Trimmer Exhaust ITEM PART NUMBER DESCRIPTION REMARKS V104000510 SHIELD, EXHAUST 14580642030 MUFFLER 14586240630 SCREEN, MUFFLER 90010505055 BOLT 5X55 90060000005 WASHER 14586642031 GASKET, EXHAUST A313000580 GUIDE, EXHAUST 90024204010 SCREW 4X10 Footnotes 1: Also Included In GASKET KIT 99922203366_200R/11 - 17 - REVISED 06/04/07...

  • Page 18: Ignition

    Table of Contents Part Number Index GT-200R Trimmer Ignition 99922203366_200R/11 - 18 - REVISED 06/04/07...
  • Page 19 Table of Contents Part Number Index GT-200R Trimmer Ignition ITEM PART NUMBER DESCRIPTION REMARKS A411000130 COIL, IGNITION 90016204020 BOLT 4X20 15611054930 TUBE 15011244330 BUSHING 15901201620 CAP, SPARK PLUG 15901103432 TERMINAL, SPARK PLUG CAP 15901019830 SPARK PLUG -- BPM-8Y A425000000 CANADA MODELS SPARK PLUG -- BPMR-8Y A409000210 FLYWHEEL...
  • Page 20 Table of Contents Part Number Index GT-200R Trimmer Engine, Short Block -- SB1072 99922203366_200R/11 - 20 - REVISED 06/04/07...
  • Page 21 Table of Contents Part Number Index GT-200R Trimmer Engine, Short Block -- SB1072 ITEM PART NUMBER DESCRIPTION REMARKS SB1072 SHORT BLOCK INCLUDES ITEM 2-17 A130000540 CYLINDER 90016205022 BOLT 5X22 V100000160 GASKET, CYLINDER P021007712 PISTON KIT INCLUDES ITEMS 6-9 A101000090 RING, PISTON 10001311520 PIN, PISTON 10001504630...

  • Page 22: Rapid Loader Head

    Table of Contents Part Number Index GT-200R Trimmer Rapid Loader Head 99922203366_200R/11 - 22 - REVISED 06/04/07...
  • Page 23 Table of Contents Part Number Index GT-200R Trimmer Rapid Loader Head ITEM PART NUMBER DESCRIPTION REMARKS X480000020 TWO LINE RAPID LOADER HEAD INCLUDES ITEM 2-4 P022001090 REPAIR KIT INCLUDES 3 - CAM, SHAFT, SPRING & 6 - SCREW P022001070 COVER, TOP P022001080 EYELET INCLUDES 3 PER PACKAGE...

  • Page 24: Plastic Shield

    Table of Contents Part Number Index GT-200R Trimmer Plastic Shield 99922203366_200R/11 - 24 - REVISED 06/04/07...
  • Page 25 Table of Contents Part Number Index GT-200R Trimmer Plastic Shield ITEM PART NUMBER DESCRIPTION REMARKS 69900452730 SHIELD ASY INCLUDES ITEMS 2-8 69901044330 SHIELD 90001708064 BOLT 1/4-20X2 90003500008 WASHER 1/4 90003300008 WING NUT 1/4-20 69901644330 CUTTER 90023805016 SCREW 5X16 90050000005 NUT 5 99922203366_200R/11 - 25 - REVISED 06/04/07...

  • Page 26: Gear Case

    Table of Contents Part Number Index GT-200R Trimmer Gear Case 99922203366_200R/11 - 26 - REVISED 06/04/07...
  • Page 27 Table of Contents Part Number Index GT-200R Trimmer Gear Case ITEM PART NUMBER DESCRIPTION REMARKS C056000011 GEAR HOUSING ASY INCLUDES ITEMS 2-9 C530000030 CASE, GEAR 90015205025 BOLT 5X25 90024204010 SCREW 4X10 9406006200 BEARING, BALL 6200 C534000340 SHAFT, P.T.O. 90081106200 BEARING, BALL 6200 90070200030 CIRCLIP 30 C535000240...

  • Page 28: Handles, Throttle Cable

    Table of Contents Part Number Index GT-200R Trimmer Handles, Throttle Cable 99922203366_200R/11 - 28 - REVISED 06/04/07...
  • Page 29 Table of Contents Part Number Index GT-200R Trimmer Handles, Throttle Cable ITEM PART NUMBER DESCRIPTION REMARKS 35160044330 FRONT HANDLE ASY INCLUDES ITEMS 2-4 90001708048 BOLT 1/4-20X1-1/2 90003500008 WASHER 90003300008 WING NUT 35121344330 GRIP 90024205025 SCREW 5X25 90050000005 NUT 5 17811005330 SCREW 90056000005 LOCKNUT...

  • Page 30: Main Pipe, Flexible Driveshaft

    Table of Contents Part Number Index GT-200R Trimmer Main Pipe, Flexible Driveshaft 99922203366_200R/11 - 30 - REVISED 06/04/07...
  • Page 31 Table of Contents Part Number Index GT-200R Trimmer Main Pipe, Flexible Driveshaft ITEM PART NUMBER DESCRIPTION REMARKS 61060944330 DRIVESHAFT HOUSING ASY INCLUDES ITEM 2-6 61021744330 LINER 89022809560 LABEL, CAUTION - SPANISH 89031744530 LABEL, CAUTION 89031748731 LABEL, CAUTION CANADA MODELS X505001930 LABEL, HANDLE LOCATION 89015204930 LABEL, ALIGNMENT...

  • Page 32: Model Labels

    Table of Contents Part Number Index GT-200R Trimmer Model Labels 99922203366_200R/11 - 32 - REVISED 06/04/07...
  • Page 33 Table of Contents Part Number Index GT-200R Trimmer Model Labels ITEM PART NUMBER DESCRIPTION REMARKS X547000550 LABEL, MODEL -- GT-200 X547000330 LABEL, MODEL -- GT-200R X543000300 LABEL, MODEL -- GT-200EZR X543000300 LABEL, MODEL -- GT-200i X503001280 LABEL, MODEL -- GT-201 X543000080 LABEL, MODEL -- GT-201R X543000310...

  • Page 34: Gasket Kit

    Table of Contents Part Number Index GT-200R Trimmer Gasket Kit 99922203366_200R/11 - 34 - REVISED 06/04/07...
  • Page 35 Table of Contents Part Number Index GT-200R Trimmer Gasket Kit ITEM PART NUMBER DESCRIPTION REMARKS P021010220 GASKET KIT 99922203366_200R/11 - 35 - REVISED 06/04/07...

  • Page 36: Repower Tune-Up Kit

    Table of Contents Part Number Index GT-200R Trimmer RePower Tune-Up Kit 99922203366_200R/11 - 36 - REVISED 06/04/07...
  • Page 37 Table of Contents Part Number Index GT-200R Trimmer RePower Tune-Up Kit ITEM PART NUMBER DESCRIPTION REMARKS 90074 TUNE-UP KIT 99922203366_200R/11 - 37 - REVISED 06/04/07...

  • Page 38: Tools

    Table of Contents Part Number Index GT-200R Trimmer Tools 99922203366_200R/11 - 38 - REVISED 06/04/07...
  • Page 39 Table of Contents Part Number Index GT-200R Trimmer Tools ITEM PART NUMBER DESCRIPTION REMARKS 89541010630 WRENCH/SCREWDRIVER -- 17X19mm X602000020 WRENCH/SCREWDRIVER -- 17X19mm 89541039131 WRENCH/SCREWDRIVER -- 10X19mm 89541006960 WRENCH/SCREWDRIVER -- 13X19mm X602000031 BOX WRENCH -- 17X14.5mm 89751801131 LOCKING BAR -- 5X120mm 89511200330 SPANNER -- 8X10mm 89512220960...

  • Page 40: Part Number Index

    Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To Veiw The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page ------------------ ..... 13, 15 90001708048 .... P022002100 ....10001311520 ....

  • Page 41: Part Description Index

    Table of Contents Part Number Index Part Description Index Click The Page Number After Any Part Desciption To Veiw The Diagram Containing That Part. BEARING, BALL..21 GASKET KIT..35 PAWL, STARTER..11 BEARING, BALL 6200..27 GASKET, CRANKCASE..21 PIN, METERING LEVER..15 BEARING, NEEDLE..21 GASKET, CYLINDER..21 PIN, PISTON..21 BODY, CARBURETOR..15...
  • Page 42 Table of Contents Part Number Index Part Description Index (continued) SWITCH, IGNITION..9 SWIVEL..15 TANK, FUEL..7 TERMINAL, SPARK PLUG CAP..19 TRIGGER, THROTTLE..29 TUBE..19 TUNE-UP KIT..37 TWO LINE RAPID LOADER HEAD..23 VALVE, INLET NEEDLE..15 VENT ASY..7 WASHER..17, 23, 29 WASHER 1/4..25 WASHER 10..23 WASHER 5..7 WING BOLT..13 WING NUT..29...
  • Page 43 NOTES 99922203366_200R/11 - 43 - REVISED 06/04/07...
  • Page 44 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
