5) Install the Intel RAID SRCU42X Adapter
Select a 3.3 V PCI or PCI-X slot, and align the SRCU42X controller PCI bus connector
to the slot. Press down gently but firmly to ensure that the card is properly seated in the
slot, as shown in Figure 2.2. Then screw the bracket into the computer chassis.

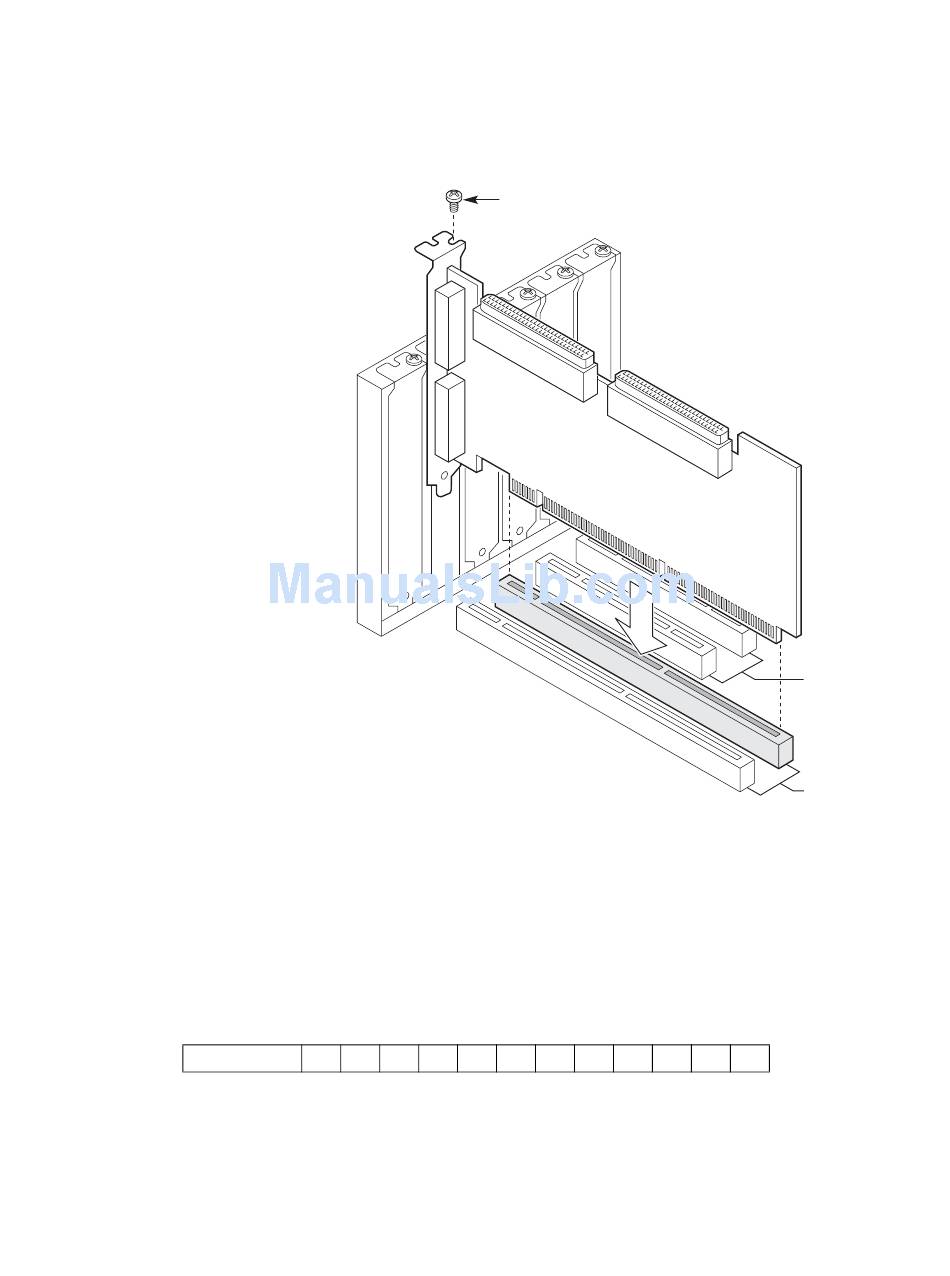

Figure 2.2
Inserting the SRCU42X Adapter Card in a PCI Slot
6) Set the Target IDs.
Set target identifiers (TIDs) on the SCSI devices. Each device in a channel must have a
unique TID. Provide unique TIDs for non-disk devices (CD-ROM or tapes), regardless
of the channel where they are connected. The Intel RAID Controller SRCU42X
automatically occupies TID 7, which is the highest priority. The arbitration priority for a
SCSI device depends on its TID.
Table 2-1
Target ID's
Priority
Highest
TID
7
6
Detailed Installation
Bracket Screw
5
. . .
2
1
0
Lowest
15
14
. . .
9
8
21
32-Bit Slots
64-Bit Slots
TP00423
