Lexicon REFLEX - REV 1 User Manual page 36

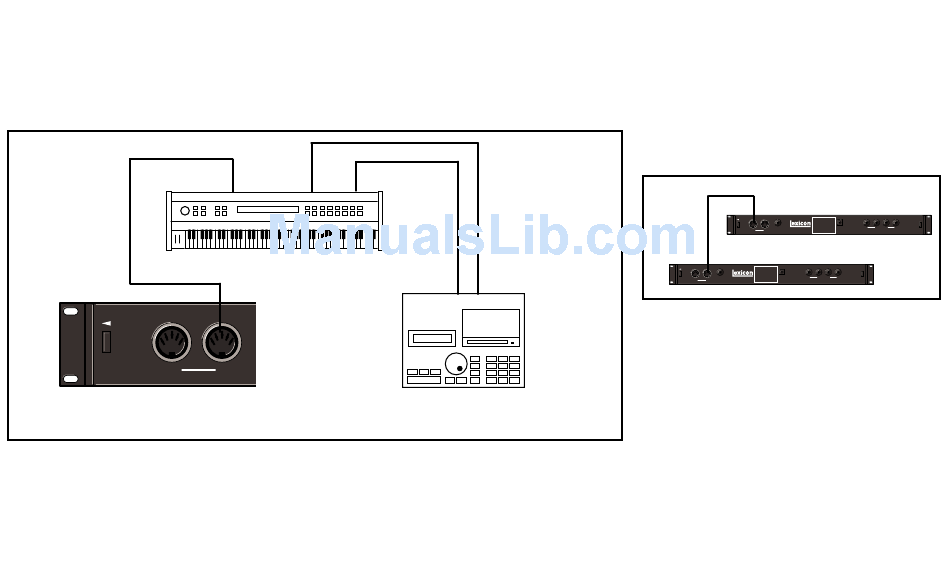

The figure below shows the MIDI connec-
tions for controlling Reflex simultaneously
with MIDI Clocks from a sequencer, and
messages from another MIDI controller.
Note that the controller is set to "local control
off" and the sequencer is set to "echo input."
MIDI Thru
MIDI In
REMOVE
RACK
EAR TO
ACCESS
MIDI
OUT/THRU
JUMPER
OUT/
THRU
MIDI In
MIDI Out
MIDI Instrument
"Local Off"
MIDI
IN
MIDI Out
MIDI In
(MIDI clock)
Sequencer or computer
"Echo Input"
33
Two Reflex units can be slaved together
by connecting a cable from the MIDI OUT
jack of the master to the MIDI IN jack of the
slave. Additional units can be slaved to the
master by setting the MIDI port of one of the
slave units to THRU, then connecting this
port to the MIDI IN port of the next unit. All of
the units must be set to the same MIDI
channel.
MIDI Out
MIDI FOOTSWITCH
THIS DEVICE COMPLIES WITH PART
REMOVE 15 OF THE FCC RULES.
RACK OPERATION IS SUBJECT TO THE
EAR TO FOLLOWING TWO CONDITIONS:
ACCESS (1) THIS DEVICE MAY NOT CAUSE
MIDI HARMFUL INTERFERENCE, AND
BYPASS :TIP (2) THIS DEVICE MUST ACCEPT ANY
OUT/THRU
JUMPER INTERFERENCE RECEIVED<
OUT/ IN STEP :RING INCLUDING INTERFERENCE THAT
THRU COMMON :SLEEVE MAY CAUSE UNDESIRED OPERATION.
MIDI In
POWER OUTPUTS
MIDI FOOTSWITCH
THIS DEVICE COMPLIES WITH PART
REMOVE 15 OF THE FCC RULES. REFLEX
RACK OPERATION IS SUBJECT TO THE LEXICON, INC.
EAR TO FOLLOWING TWO CONDITIONS:
WALTHAM MA 02154
ACCESS (1) THIS DEVICE MAY NOT CAUSE MADE IN U.S.A.
HARMFUL INTERFERENCE, AND P/N 021-10203
MIDI 9V~, 1A,
OUT/THRU BYPASS :TIP (2) THIS DEVICE MUST ACCEPT ANY L R
INTERFERENCE RECEIVED< 50-60Hz
JUMPER STEP :RING (PHONES) (MONO)
OUT/ IN INCLUDING INTERFERENCE THAT
COMMON :SLEEVE MAY CAUSE UNDESIRED OPERATION. USE LEXICON SERIAL #
THRU MSA AC ADAPTER
When connected in this way, the slave
Reflex(s) will be remotely controlled by the
front panel of the master as follows:
• In general, whenever the master's VALUE
knob is used to change a parameter value,
a corresponding parameter change will
occur on the slave(s).
• Loading presets or registers on the master
will cause the slave(s) to load their preset
or register of the same number. (Note: a
slave's register contents will not necessar-
ily be the same as the master's.)
Master
POWER OUTPUTS INPUTS
REFLEX
LEXICON, INC.
WALTHAM MA 02154
MADE IN U.S.A.
9V~, 1A, P/N 021-10203
L R L R
50-60Hz (PHONES) (MONO) (MONO)
USE LEXICON SERIAL #
MSA AC ADAPTER
Slave
INPUTS
L R
(MONO)
