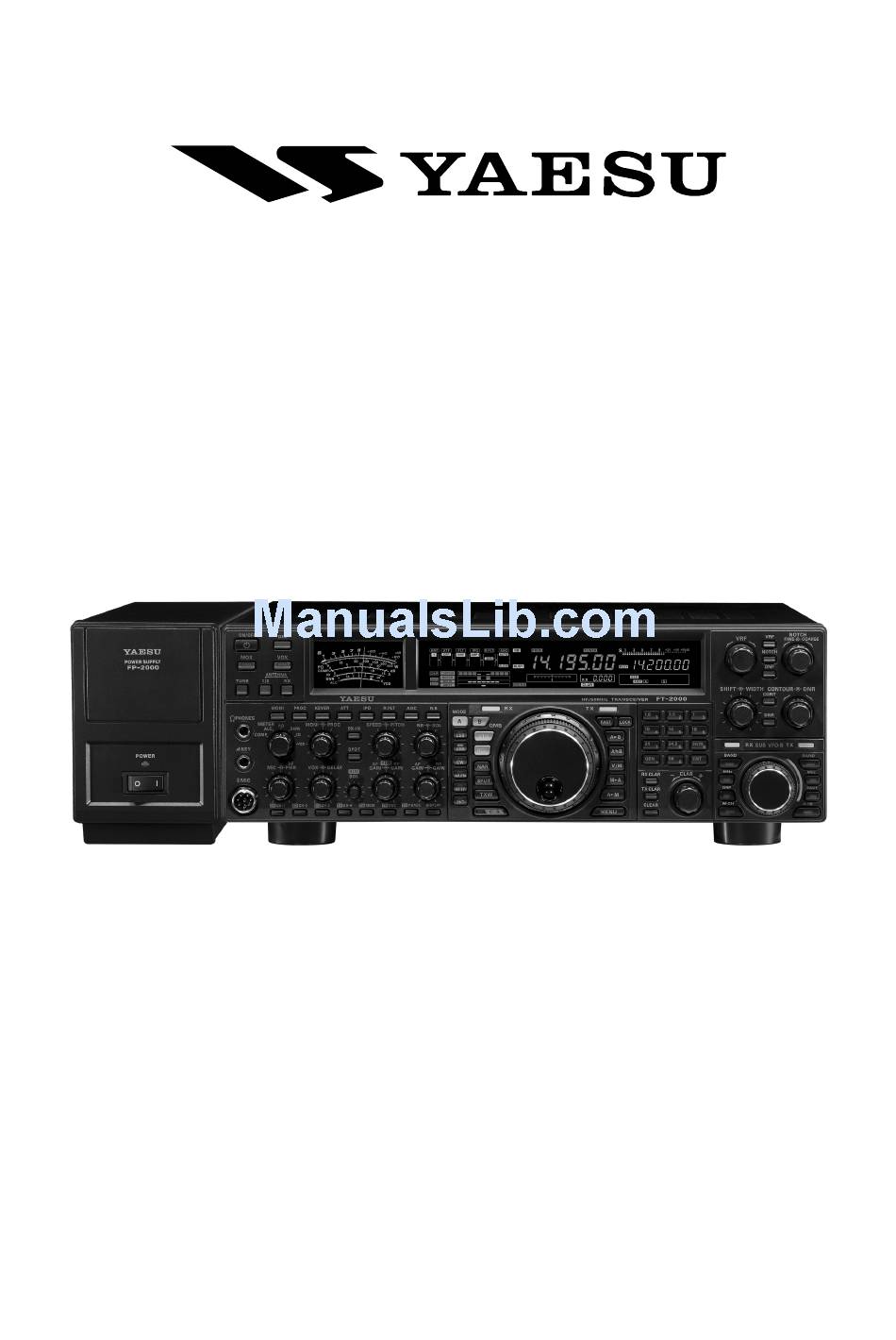

Page of 140
HF/50 MH
T
Z
RANSCEIVER
FT-2000D
O
M
PERATING
ANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD ( AUSTRALIA ) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
Notting Hill 3168, Victoria, Australia

   Summary of Contents for YAESU FT-2000D

  • Page 1

    4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VERTEX STANDARD ( AUSTRALIA ) PTY., LTD.

  • Page 2

    Before using your FT-2000D, be sure to read and follow the instructions in the “Before You Begin” section of this manual.

  • Page 3: Ipo (intercept Point Optimization)

    Congratulations on the purchase of your Yaesu amateur trans- Advanced features include Direct Keyboard Frequency En- ceiver! Whether this is your first rig, or if Yaesu equipment is try and Band Change, Speech Processor, IF Monitor for Voice already the backbone of your station, rest assured that your...

  • Page 4: Table Of Contents

    Using the UP/DOWN switches of the supplied MH-31 Hand Microphone ..49 Receiver Operation (Front End Block Diagram) ... 50 IPO (Intercept Point Optimization) ......51 ATT ................ 51 RF Gain (SSB/CW/AM Modes) ......52 Page 2 FT-2000D O PERATING ANUAL...

  • Page 5: Table Of Contents

    Choosing the Desired Memory Group ... 103 TUNING Group ........... 127 TX AUDIO Group ..........128 TX GNRL Group ..........129 Specifications ............132 Installation of the Optional Filter (YF-122C & YF-122CN) ......... 134 FT-2000D O Page 3 PERATING ANUAL...

  • Page 6

    For 30/20 m Bands FH-2 Remote Control Keypad YF-122C ® Collins CW Filter (500 Hz/2 kHz: –6 dB/–60 dB) YF-122CN ® Collins CW Filter (300 Hz/1 kHz: –6 dB/–60 dB) T9101556 Antenna Rotator Connection Cable Page 4 FT-2000D O PERATING ANUAL...

  • Page 7

    FT-2000D O Page 5 PERATING ANUAL...

  • Page 8

    Hold the Skirt TIGHTEN LOOSEN Page 6 FT-2000D O PERATING ANUAL...

  • Page 9: Full Reset

    [ POWER ] switch, the DMU-2000’s data is also reset when perform the full reset of the FT- 2000D. When the optional RF uTUNE Kit is used, perform the full reset of the FT-2000D after taking the optional RF μTUNE Kit off. FT-2000D O Page 7...

  • Page 10

    Any antenna to be used with the FT-2000D must, ultimately, be fed with 50 Ohm coaxial cable. Therefore, when using a “balanced” antenna such as a dipole, remember that a balun or other matching/balancing device must be used so as to ensure proper antenna performance.

  • Page 11

    NSTALLATION AND NTERCONNECTIONS ROUNDING The FT-2000D transceiver, like any other HF communications apparatus, requires an effective ground system for maxi- mum electrical safety and best communications effectiveness. A good ground system can contribute to station efficiency in a number of ways: It can minimize the possibility of electrical shock to the operator.

  • Page 12

    Please refer to the illustration for the proper connection of the antenna coaxial cables and the FP-2000 Power Supply. Use a short, thick, braided cable to connect your station equipment Be sure that the FT-2000D’s [ POWER ] switch and to the buried ground rod (or alter- the FP-2000’s [ POWER ] switch are both turned native earth ground system).

  • Page 13

    NSTALLATION AND NTERCONNECTIONS ONNECTION OF ICROPHONE AND EADPHONE FT-2000D O Page 11 PERATING ANUAL...

  • Page 14

    NTERCONNECTIONS The FT-2000D includes a host of features for the CW operator, the functions of which will be detailed in the “Operation” section later. Besides the built-in Electronic Keyer, two key jacks are provided, one each on the front and rear panels, for convenient connection to keying devices.

  • Page 15

    Set the “ATT” switch to the “ON” position on the front panel of the VL-1000. The 200-Watt power output from the FT-2000D is far in excess of that which is required to drive the VL-1000 to its full rated output.

  • Page 16

    The TX/RX switching in the linear amplifier is con- trolled by switching components in the transceiver. The relay circuit of the FT-2000D used for this switching is capable of switching AC voltage of 100 Volts at up to 300 mA, or DC voltages or 60 V at 200 mA or 30 V at up to 1 Amp.

  • Page 17

    The μ-TUNE, DMU, and PGM connectors are special connectors for this transceiver. Please do not connect any accessory or other device not specifically approved by Vertex Standard. Failure to observe this precaution may cause damage not covered by the Limited Warranty on this apparatus. FT-2000D O Page 15 PERATING...

  • Page 18

    If the FP-2000 main power switch is not turned one of the antenna tuner’s 100 memories, for instant on, it is not possible to turn on the FT-2000D trans- automatic recall later when the receiver is tuned near ceiver. For more details about the main power the same frequency.

  • Page 19

    Unit is connected, you may use the Audio Scope/ This 8-pin jack accepts input from a microphone uti- Oscilloscope page to help you adjust the setting of lizing a traditional YAESU HF-transceiver pinout. the compression level of the Speech Processor for optimum performance using your voice and micro- DIM Switch phone.

  • Page 20

    When set to AUTO, the SSB bandwidth is 6 kHz, while CW is 3 kHz and FM/RTTY are 15 kHz. On a crowded SSB band, however, you may wish to select the 3 kHz filter, for the maximum possible interference rejection. Page 18 FT-2000D O PERATING ANUAL...

  • Page 21

    This button turns the CW break-in capability on and This control is normally kept fully counter-clockwise off. While the CW break-in is activated, the “ ” (off), except when scanning and during FM operation. icon appears in the display. FT-2000D O Page 19 PERATING ANUAL...

  • Page 22

    Clockwise rotation increases the power out- to prevent the receiver from being restored during word put. Adjust this control for the desired power output spaces at your preferred sending speed. from the FT-2000D. DVICE The Sub band (VFO-B) frequency display will show DVICE...

  • Page 23

    When utilizing the sequential contest number capability of the Contest Keyer, press this key to decrement (back up) the current Contest Number by one digit (i.e. to back up from #198 to #197, etc.). See page 91 for details. FT-2000D O Page 21 PERATING ANUAL...

  • Page 24

    [ MODE ] selection buttons) will select either the Main tion with CAT command) via Menu item “031 GEnE band (VFO-A) or Sub band (VFO-B) for individual CAT IND.” See page 118 for details. bandwidth setting. Page 22 FT-2000D O PERATING ANUAL...

  • Page 25

    “ ” icon appears in the display. [ MENU ] button for two seconds to save any configu- ration changes (momentarily pressing the [ MENU ] button to exit will not save the changes). FT-2000D O Page 23 PERATING ANUAL...

  • Page 26

    RF levels not far re- Pressing this button clears out any frequency offset you moved from the current operating frequency. have programmed into the Clarifier register (thereby setting the offset to “Zero”). Page 24 FT-2000D O PERATING ANUAL...

  • Page 27

    Digital Noise Reduction circuit on and off. When the Digital Noise Reduction is activated, the “ ” icon appears in the display. Adjustment of the Noise Re- duction level is provided by the [ DNR ] knob. FT-2000D O Page 25 PERATING ANUAL...

  • Page 28

    VFO-B ] knob is used for functions associated with the You may disable this feature (displaying the current Main (VFO-A) or Sub (VFO-B) frequency control reg- noise reduction parameter) via Menu item “015 diSP isters. LVL IND.” See page 117 for details. Page 26 FT-2000D O PERATING ANUAL...

  • Page 29

    (Amateur bands) using the [ SUB VFO- button once more causes the Orange lamp to turn off; B ] knob. in this instance, rotation of the [ SUB VFO-B ] knob affects operations associated with the Main band (VFO- FT-2000D O Page 27 PERATING ANUAL...

  • Page 30

    If so, you will need to check the condition of the WIDTH antenna, its coaxial cable, and/or the connectors on the Indicates the bandwidth of the DSP IF filter. cable so as to locate and correct the fault. Page 28 FT-2000D O PERATING ANUAL...

  • Page 31

    This indicator appears when Class-A operation is en- gaged. This indicator appears when the FT-2000D is in the Memory Recall mode. This indicator appears when the FT-2000D is in the Memory Tune mode to indicate that the memory con- tents have been temporarily changed.

  • Page 32

    When setting the Menu items, the Menu item name will appear in this area during setup. When setting the CTCSS frequency for Encoding or Tone Squelch operation, the current tone fre- quency will appear in this area during setup. Page 30 FT-2000D O PERATING ANUAL...

  • Page 33

    If you want to use some special kind of external plied DC Power Cord. This connector provides +13.8 bandpass filter or preamplifier, you may connect it V DC supply voltage for the FT-2000D. – between the RX ANT OUT and RX ANT IN jacks.

  • Page 34

    PTT Jack This 6-pin MINI-DIN Jack accepts a cable connected This RCA input jack may be used to provide manual to a YAESU G-800DXA/-1000DXA/-2800DXA An- transmitter activation using a footswitch or other tenna Rotator (listed models are current as of early switching device.

  • Page 35

    RF μTuning Kit. tion. DMU Jack The relay circuit of the FT-2000D used for this jack is This 8-pin MINI-DIN jack accepts a cable connected capable of switching AC voltage of 100 Volts at up to to an optional DMU-2000 Data Management Unit.

  • Page 36

    Connect this 6-pin connector to the DC 13.8 V Input When turned on, the FP-2000 LED indicator will glow Jack on the FT-2000D, using the supplied DC Power red several seconds later. Cord. The DC output is 13.8 Volts, with maximum If this main switch is not set to the “...

  • Page 37

    If your AC mains power should suffer a significant fluctuation or interruption, we recommend that you go through a complete power-up cycle, in order to ensure that all circuits are properly initialized. To do this, be sure the FT-2000D’s [ POWER ] switch is turned off, then set the FP-2000’s [ POWER ] switch to the “O” position. Now unplug the AC cable from the rear panel of the FP-2000, and wait ten seconds before proceeding with the start-up procedure described on next page.

  • Page 38

    [ RX ] button, its imbedded LED MHz LSB, and normal operation may begin. will glow green; pressing this To turn power off, press and hold in the FT-2000D’s button once more will turn off [ POWER ] switch for one second.

  • Page 39

    If you do not want this frequency shift to ap- pear when changing modes from (for example) USB to CW, use the Menu item “063 A1A FRQDISP,” described on page 122. FT-2000D O Page 37 PERATING ANUAL...

  • Page 40

    ETER VERSION ONLY The FT-2000D includes the capability for transmission and reception on the five spot frequencies assigned to the Ama- teur Service in the United States. To operate on the 5 MHz band: 1. Press the [ V/M ] button once to enter the “Memory”...

  • Page 41

    (VFO-B), however). The four small numbers on the Multi-Display Window show the current Clarifier offset. The Clarifier controls on the FT-2000D are designed to allow you to preset an offset (up to ±9.999 kHz) without actually retuning, and then to activate it via the Clarifier’s [ RX CLAR ] and [ TX CLAR ] buttons. This feature is ideal for following a drifting station, or for setting small frequency offsets sometimes utilized in DX “Split”...

  • Page 42

    “009 diSP DIM VFD” sets the brightness levels of the frequency dis- play (these settings are effective only when the [ DIM ] but- ton is pressed). Page 40 FT-2000D O PERATING ANUAL...

  • Page 43

    OTES FT-2000D O Page 41 PERATING ANUAL...

  • Page 44: Dual Receive

    ECEIVE The FT-2000D is capable of simultaneous reception on the same amateur band, using the Main (VFO-A) and Sub (VFO- B) receivers, in what is called the Dual Receive mode. Especially useful for DX work, here is the operating procedure for Dual Receive operation.

  • Page 45: Using Headphones For Dual Receive, Sideband Diversity Reception

    Although you don’t get the “stereophonic” ef- fect in the monaural mode, the two signals are still mixed, offering the potential for much better copy than in regular AM or even single-sideband ECSS modes. FT-2000D O Page 43 PERATING ANUAL...

  • Page 46: Bandwidth Diversity Reception

    Adjust the [ AF GAIN ] knob(s) to balance the volume of the two receivers. Now try manipulating the [ SHIFT ] and [ WIDTH ] knobs to observe the interesting effects of bandwidth diversity. Page 44 FT-2000D O PERATING ANUAL...

  • Page 47: P.back Feature From The Optional Fh-2 Remote Control Keypad

    ECEIVER Once engaged by the operator, the FT-2000D begins the automatic recording of the last 15 seconds of incoming receiver audio on the Main band (VFO-A). This capability is especially useful for confirming a callsign that may have been difficult to copy due to noise or QRM, etc.

  • Page 48

    Amateur bands that have not been skipped will appear 14 MHz 7 MHz as you scroll through the bands. 18 MHz 14 MHz 21 MHz 21 MHz 24 MHz 28 MHz 28 MHz 50 MHz Page 46 FT-2000D O PERATING ANUAL...

  • Page 49

    PERATION The FT-2000D utilizes a triple band-stack VFO selection technique, that permits you to store up to three favorite frequen- cies and modes onto each band’s VFO register. For example, you may store one frequency each on 14 MHz CW, RTTY, and USB, then recall these VFOs by successive, momentary presses of the [ 14 ] MHz band button.

  • Page 50

    ONTROL UNCTIONS When using a YAESU model G-800DXA, G-1000DXA, or G-2800DXA rotator (not supplied), it is possible to control it from the front panel of the FT-2000D. 1 Press and hold in the [ ENT ] button (one of the [ BAND ] button) for two seconds.

  • Page 51: Keyboard Frequency Entry

    4. Press the [ ENT ] button once more. A short “beep” will confirm that the frequency entry was successful, and the new operating frequency will appear on the Sub (VFO-B) frequency display fields. FT-2000D O Page 49 PERATING ANUAL...

  • Page 52

    LOCK IAGRAM The FT-2000D includes a wide range of special features to suppress the many types of interference that may be encoun- tered on the HF bands. However, real world interference conditions are constantly changing, so optimum setting of the controls is somewhat of an art, requiring familiarity with the types of interference and the subtle effects of some of the controls.

  • Page 53

    IPO should be disabled and the [ ATT ] button should be set to “OFF OFF.” This situation is typical during quiet times on frequencies above 21 MHz, and when using a small or negative-gain receiving antenna on other bands. FT-2000D O Page 51 PERATING...

  • Page 54

    Thereafter, the RF Gain and Attenuator fea- tures may be employed to provide precise, delicate adjustment of the receiver gain so as to optimize per- formance fully. Page 52 FT-2000D O PERATING ANUAL...

  • Page 55

    DX-pedition. The FT-2000D’s VRF system affects the 1.8 - 28 MHz amateur bands only. 1. Press the [ VRF ] button momentarily. The “...

  • Page 56

    A “Roofing Filter,” as its name implies, places a “Roof” over the receiver’s IF system bandwidth. This “Roof” pro- tects the circuitry downstream from the first mixer from interference, just as a roof on a house protects the contents from rain and snow. Page 54 FT-2000D O PERATING ANUAL...

  • Page 57

    Contour filter, the “shoulder” of the passband response may be altered, or components removed from within the passband, allowing the desired signal to rise above the background noise and interference in a manner not obtainable with other filtering systems. FT-2000D O Page 55 PERATING...

  • Page 58

    [ SHIFT ] knob so as to reduce the in- terference level by moving the filter passband so that the interference is outside of the passband. Desired Signal Desired Signal Desired Signal BANDWIDTH BANDWIDTH BANDWIDTH Page 56 FT-2000D O PERATING ANUAL...

  • Page 59: Using If Shift And Width Together

    SSB Mode: 200 Hz ~ 4.0 kHz (2.4 kHz ) CW Mode: 25 Hz ~ 2.4 kHz (2.4 kHz ) RTTY/PKT Modes: 25 Hz ~ 2.4 kHz (500 Hz ) : bandwidth at 12 o’clock position of [ WIDTH ] knob. FT-2000D O Page 57 PERATING ANUAL...

  • Page 60

    The tuning rate for the IF Notch is somewhat slow while you adjust the [ FINE ] knob, so the use of the Waterfall display to confirm proper adjustment is highly recommended. Page 58 FT-2000D O PERATING ANUAL...

  • Page 61

    2. To cancel DNF operation, press the [ DNF ] button once more. The “ ” icon will turn off, confirming that the Digital Notch Filter is no longer in operation. DVICE The Digital Notch Filter affects the Main (VFO-A) band only. FT-2000D O Page 59 PERATING ANUAL...

  • Page 62

    When you press the [ NAR ] button in the FM mode, both the transmit and receive bandwidths are narrowed. When the [ NAR ] button is pressed, the [ WIDTH ] knob no longer functions (except the CW mode). Page 60 FT-2000D O PERATING ANUAL...

  • Page 63

    IF N OISE LANKER PERATION The FT-2000D includes an effective IF Noise Blanker, which can significantly reduce noise caused by automotive ignition systems. Main band ( VFO-A ) NB Operation Main Band ( VFO-A ) “NB” Icon [ NB ] Button Sub Band ( VFO-B ) “NB”...

  • Page 64

    SLOW erally do not recommend any changes to the AGC Menu SLOW selections until you are thoroughly familiar with the per- FAST FAST formance of the FT-2000D. FAST RTTY SLOW ERMINOLOGY PKT ( FM ) FAST...

  • Page 65: Sloped Agc Operation

    In traditional AGC systems, the audio output from the transceiver becomes essentially fixed once the threshold for AGC action is reached (usually several dozen dB above the no-signal noise SLOPED floor). The FT-2000D, however, includes an innovative Sloped AGC sys- tem on the Main band (VFO-A) receiver, that allows the audio volume to NORMAL rise and fall slightly according to signal strength.

  • Page 66

    The transceiver will return to the receive mode. progress. When transmitting in the AM mode, rotate the [ RF PWR ] knob so as to set a maximum (carrier) power output of 50 Watts. Page 64 FT-2000D O PERATING ANUAL...

  • Page 67

    [ MIC ] (gain) knob. Therefore, we recom- trol are provided on the FT-2000D, and you may mend that you make [ MIC ] knob adjustments into a...

  • Page 68

    UNER The Automatic Antenna Tuner (hereinafter referred to as the “ATU”) built into each FT-2000D is crafted to ensure a 50- Ohm load for the final amplifier stage of the transmitter. We recommend that the ATU be used whenever you operate on the FT-2000D.

  • Page 69

    SWR (Post-tuning) Greater than 3:1 The “ ” icon will light up, and tuning settings, if achieved, will not be memorized. Please investigate and resolve the high SWR condition before attempting further operation using this antenna. FT-2000D O Page 67 PERATING ANUAL...

  • Page 70

    The exhaustion of the ATU backup battery of the FT-2000D is a normal “wear and tear” situation, and the loss of the backup voltage is not a “defect” or other condition covered by the Limited Warranty on this product. Accordingly, if you do not feel capable of replacing the battery, and ask a service shop to do so on your behalf, a service fee may apply.

  • Page 71

    (it is calibrated in the default 2.4 kHz bandwidth). FT-2000D O Page 69 PERATING ANUAL...

  • Page 72

    ICROPHONE ODES The FT-2000D includes a unique Three-Band Parametric Microphone Equalizer that provides precise, independent con- trol over the low, mid and treble ranges in your voice waveform. You may utilize one group of settings when the speech processor is off, and an alternate group of settings when the speech processor is on. The speech processor feature is described in the next chapter.

  • Page 73

    ( Mid ) “1” ~ “10” “139 tAUd PE2-BW” ( High ) “1” ~ “10” “142 tAUd PE3-BW” +10dB Parametric Gain 0 dB -10dB -20dB 100 700Hz ~ 700 1500Hz ~ 1500 3200Hz ~ FT-2000D O Page 71 PERATING ANUAL...

  • Page 74

    PEECH ODES The FT-2000D’s Speech Processor is designed to increase “talk power” by increasing the average power output, (via a sophisticated compression technique) and adjusting the audio quality to the menu settings (“134 tAUd PE1 FRQ,” “137 tAUd PE2 FRQ,” “140 tAUd PE3 FRQ”). The result is improved intelligibility when conditions are difficult.

  • Page 75

    NHANCING RANSMIT IGNAL UALITY FT-2000D O Page 73 PERATING ANUAL...

  • Page 76

    CLASS-A O PERATION ( SSB M ISTORTION Class-A operation of the FT-2000D transmitter is provided, yielding ultra-low distortion products during SSB operation. Power output during Class-A operation is 75 Watts. To engage Class-A operation as following: [ MENU ] Button 1.

  • Page 77

    “splatter” and interfere with others, will typically be suppressed 70 dB or more. If you are using a linear amplifier such as the VL-1000, the low distortion produced by the FT-2000D’s transmitter means these intermodulation distortion products will not exist to be amplified by your linear.

  • Page 78: Voice Memory

    ODES You may utilize the Voice Memory capability of the FT-2000D for repetitive messages. The Voice Memory system in- cludes four memories capable of storing up to 20 seconds of voice audio each. The maximum that any memory can hold is 20 seconds.

  • Page 79: Voice Memory Operation From The Optional Fh-2 Remote Control Keypad, Memory Operation

    ODES Voice Memory Operation from the optional FH-2 Remote Control Keypad You may also utilize the Voice Memory capability of the FT-2000D from the optional FH-2 Remote Control Keypad which plugs into the rear panel’s REM jack. When using the FH-2 Remote Control Keypad, you may record five memories with up to 20 seconds of voice audio each.

  • Page 80: Monitor

    Because the Monitor feature utilizes a sampling of the transmitter’s IF signal, it can be very useful for checking the adjustment of the Speech Processor or Parametric Equalizer on SSB, and for checking the general signal quality on AM and FM. Page 78 FT-2000D O PERATING ANUAL...

  • Page 81

    Yaesu transceivers with capa- the small display window. bility similar to that of your FT-2000D. On the DX side As with receiver Clarifier operation, when you turn the of the pile-up, everyone calling precisely on the same CW...

  • Page 82: Vfo Tracking Feature

    REQUENCY PERATION A powerful capability of the FT-2000D is its flexibility in Split Frequency operation, using the Main (VFO-A) and Sub (VFO-B) frequency registers. This makes the FT-2000D especially useful for high-level DX-pedition use, as the Split operation capability is very advanced and easy to use.

  • Page 83: Quick Split Operation

    [ SUB VFO-B ] Knob Main Tuning Dial Knob save the new setting and exit to normal operation. If you only press the [ MENU ] button momentarily to exit, any changes you performed will not be stored. FT-2000D O Page 81 PERATING ANUAL...

  • Page 84

    CW M PERATION The powerful CW operating capabilities of the FT-2000D include operation using both an electronic keyer paddle and a “straight key” or emulation thereof, as is provided by a computer-based keying device. ETUP FOR TRAIGHT TRAIGHT EY EMULATION...

  • Page 85: Full Break-in (qsk) Operation

    You may disable this feature (displaying the key- Full Break-in (QSK) Operation ing speed) via Menu item “015 diSP LVL IND.” As shipped from the factory, the FT-2000D TX/ See page 117 for details. RX system for CW is configured for “Semi-break- When you press either the “Dot”...

  • Page 86: Selecting The Keyer Operating Mode

    (three dots in “E” & “T” length) 4. When you are finished, press and hold in the [ MENU ] button for two seconds to save the new setting and exit to normal operation. Page 84 FT-2000D O PERATING ANUAL...

  • Page 87

    DX station. From the DX side, if a dozen or more operators (also using Yaesu’s SPOT system) all call precisely on the same frequency, their dots and dashes merge into a single, long tone...

  • Page 88

    When the incoming signal pitch tone is properly aligned, the central red marker lights up whether or not CW Reverse is engaged. RX Passband Retune: Shift to Lower Frequency CW Reverse Carrier Zero-In Retune: Shift to Higher Frequency RX Passband Page 86 FT-2000D O PERATING ANUAL...

  • Page 89: Audio Peak Filter

    0 Hz tone). Therefore, the receiver is offset several hundreds of Hz (typically), so as to allow your ear to detect the tone. The BFO offset associated with this tuning (that produces the comfortable audio tone) is called the CW Pitch. FT-2000D O Page 87...

  • Page 90: Message Memory

    EMORY EYER The FT-2000D in capable of the automatic sending of CW messages (as you might do in a contest). Two techniques for message storage are available: you may either send the desired message contents using your keyer paddle (“Message Memory”), or you may input the text characters using the Main Dial Tuning knob and [ SUB VFO-B ] knobs (“Text...

  • Page 91: Transmitting In The Beacon Mode

    Menu item to “OFF.” Press the [ F1 ( CH1 )] ~ [ F4 ( CH-4 )] button, depending on the register into which the Beacon message is stored. Repetitive transmission of the Beacon message will begin. Press one of these keys once more to halt the Beacon transmissions. FT-2000D O Page 89 PERATING...

  • Page 92: Text Memory

    Use the Main Tuning Dial knob to select the last correct letter in the message. Now rotate the [ SUB VFO-B ] knob to select the “}” character; everything after the “}” charac- ter will be deleted. Page 90 FT-2000D O PERATING ANUAL...

  • Page 93: Contest Number Programming

    \ \ \ \ \ < % % % % % , , , , , = = = = = ^ ^ ^ ^ ^ & > _ _ _ _ _ ‘’’ ‘}’ FT-2000D O Page 91 PERATING ANUAL...

  • Page 94

    EMOTE ONTROL EYPAD You may also utilize the CW message capability of the FT-2000D from the optional FH-2 Remote Control Keypad, which plugs into the rear panel’s REM jack. Message Memory Five memory channels capable of retaining 50 characters total are provided (using the PARIS standard for characters and word length).

  • Page 95

    For ease in setting up the keyer memories, we recommend you set Menu item “054 A1A F-TYPE” and/or “056 A1A R-TYPE” to “ACS ACS” (Automatic Character Spacing) while you are programming the keyer memories. FT-2000D O Page 93 PERATING ANUAL...

  • Page 96

    Current Cursor Position Cursor gram the text. LOCK CW Memory Register Number Message DVICE You may also use the Main Tuning Dial knob and the [ SUB VFO-B ] knobs to program the message charac- ters. Page 94 FT-2000D O PERATING ANUAL...

  • Page 97

    (the Menu Mode Setting By pressing the FH-2’s [ DEC ] key momentarily, is set to “tyP2 tyP2 tyP2 tyP2 tyP2”). you may reduce the current Contest Number by one. LOCK FT-2000D O Page 95 PERATING ANUAL...

  • Page 98

    FM is only used in the 28 MHz and 50 MHz Amateur bands covered in the FT-2000D. Please do not use FM on any other bands. Page 96...

  • Page 99

    FM M PERATION EPEATER PERATION The FT-2000D may be utilized on 29 MHz and 50 MHz repeaters. 1. Rotate the Main Tuning Dial knob to the output fre- [ MOX ] Button [ AM/FM ] Button quency (downlink) from the repeater.

  • Page 100

    UICK OINT The FT-2000D’s memory channels store the following data (not just the operating frequency): Frequency Mode Clarifier status and its Offset Frequency...

  • Page 101

    If you do not over-write the contents of the current memory channel, the original contents will not be disturbed by the initiation of Memory Tune operation. FT-2000D O Page 99 PERATING ANUAL...

  • Page 102: Memory Storage, Memory Channel Recall

    PERATION The Standard Memory of the FT-2000D allows storage and recall of up to 99 memories, each storing frequency, mode, and a wide variety of status information detailed previously. Memories may be grouped into as many as six Memory Groups, and additionally you get nine pairs of band-limit (PMS) memories along with five QMB (Quick Memory Bank) memories.

  • Page 103: Checking A Memory Channel's Status, Erasing Memory Channel Data

    After erasure, only the memory channel number will remain; the frequency data will disappear from the dis- play. If you make a mistake and wish to restore the memory’s contents, just repeat steps (1) through (3) above. FT-2000D O Page 101 PERATING ANUAL...

  • Page 104: Moving Memory Data To The Main Band (vfo-a), Memory Tune Operation

    Because the “Memory Tune” mode so closely resembles the VFO mode, be sure that you have the FT-2000D operating in a control mode compatible with your software’s requirements. Use the VFO mode if you’re not sure.

  • Page 105: Memory Groups, Memory Group Assignment, Choosing The Desired Memory Group

    [ GRP ] or [ M CH ] button again. If no channels have been assigned to a particular Memory Group, you will not have access to that Group. FT-2000D O Page 103 PERATING...

  • Page 106

    The FT-2000D includes the capability for transmission and reception on 5167.5 kHz under such emergency conditions via the Menu system. To activate this feature: 1.

  • Page 107

    EMORY CANNING You may scan wither the VFO or the memories of the FT-2000D, and the radio will halt the scan on any station with a signal strong enough to open the receiver’s squelch. VFO S CANNING 1. Set the VFO to the frequency on which you would like to begin scanning.

  • Page 108

    5Sec” setting 5Sec 5Sec 5Sec will cause the scanner to resume scanning after five seconds; you may change it, however, to resume only after the carrier has dropped out, if you like See page 119. Page 106 FT-2000D O PERATING ANUAL...

  • Page 109: Memory Scan

    9. If you press the microphone’s PTT switch during scan- ning, the scanner will halt at once. Pressing the PTT switch during scanning will not cause transmission, however. FT-2000D O Page 107 PERATING ANUAL...

  • Page 110: Packet Operation, Basic Setup

    ACKET PERATION Packet operation is easily accomplished on the FT-2000D by connecting your TNC (Terminal Node Controller) to the transceiver, per the illustration. “Packet” operation also applies to SSB-based AFSK data modes, such as PSK31, etc. DATA DATA PACKET ②...

  • Page 111

    UICK OINT knob to reduce the transmitter power to 1/2 ~ 1/3 of its In the FT-2000D, “RTTY” is a mode defined as being an normal maximum. “FSK” mode, whereby the closing and opening of a key- ing line (to ground) causes the Mark/Space tones to alter- nate.

  • Page 112

    AFSK-B ISCELLANEOUS ASED ODES The FT-2000D may also be used for a host of other SSB-based Data modes. Please set up your system using the illustration as a guideline. LINE IN or MIC IN LINE OUT or MIC OUT COM PORT PACKET ②...

  • Page 113

    You may set up the frequency display so that it shows the actual band on which your transverter is operating (instead of the “IF” used by the transverter, which is the 28 MHz band on your FT-2000D). Example: Setting up the FT-2000D display for use with a 144 MHz Transverter 1.

  • Page 114: Menu Mode Reset

    The Menu system of the FT-2000D provides extensive customization capability, so you can set up your transceiver just the way you want to operate it. The Menu items are grouped by general utilization category, and are numbered from “001 AGc...

  • Page 115

    –1000 ~ +1000 Hz (20 Hz/step) 0 Hz MODE-AM 052 A3E MICGAIN Ur (VR) / 0 ~ 100 MODE-AM 053 A3E MIC SEL Frnt / dAtA / PC Frnt : Requires optional DMU-2000 Data Management Unit. FT-2000D O Page 113 PERATING ANUAL...

  • Page 116

    StP(STEEP) / nEd(MEDIUM) / GEnt(GENTLE) nEd (MEDIUM) RX DSP 106 rdSP SSB NAR 200 / 400 / 600 / 850 / 1100 / 1350 / 1500 / 1800 Hz 1650 / 1800 / 1950 / 2100 / 2250 Hz Page 114 FT-2000D O PERATING ANUAL...

  • Page 117

    20 / 50 / 100 / 200 W 100 W TX GNRL 148 tGEn VOX SEL nic (MIC) / dAtA nic (MIC) TX GNRL 149 tGEn EMRGNCY EnA (ENABLE) / diS (DISABLE) diS (DISABLE) : Requires optional DMU-2000 Data Management Unit. FT-2000D O Page 115 PERATING ANUAL...

  • Page 118

    Available Values: 0 / 90 / 180 / 270° Default Setting: 0° 013 diSP RTR ADJ Function: Adjusts the indicator needle precisely to the starting point set in menu item “012 diSP RTR STU.” Available Values: –30 ~ 0° Default Setting: 0° Page 116 FT-2000D O PERATING ANUAL...

  • Page 119

    2. Available Values: tyP1 / tyP2 Default Setting: tyP2 tyP1: You may enter the CW message from the front panel’s Function Keys. tyP2: You may enter the CW message from the CW keyer. FT-2000D O Page 117 PERATING ANUAL...

  • Page 120

    Available Values: On / OFF Default Setting: OFF 033 GEnE Q SPLIT Function: Selects the tuning offset for the Quick Split fea- ture. Available Values: –20 ~ 0 ~ +20 kHz (1 kHz Step) Default Setting: +5 kHz Page 118 FT-2000D O PERATING ANUAL...

  • Page 121

    Do not perform this Menu item unless you have a high- justment has no effect. performance frequency counter. Perform this Menu item after aging the transceiver and frequency counter suffi- ciently (at least 30 minutes). FT-2000D O Page 119 PERATING ANUAL...

  • Page 122

    Default Setting: 0 Hz 051 S-iF PKT-USB Function: Sets the center frequency of the Sub band (VFO- B) receiver’s IF filter in the Packet (USB) mode. Available Values: –1000 ~ +1000 Hz (20Hz/step) Default Setting: 0 Hz Page 120 FT-2000D O PERATING ANUAL...

  • Page 123

    Default Setting: nor tronic keyer. nor: Tip = Dot, Ring = Dash, Shaft = Ground Available Values: (1:) 2.5 ~ 4.5 rEU (REV): Tip = Dash, Ring = Dot, Shaft = Ground Default Setting: 3.0 FT-2000D O Page 121 PERATING ANUAL...

  • Page 124

    Available: –3000 ~ +3000 Hz (10 Hz/step) Default: 0 Hz 073 dAtA PKT SFT Function: Sets the carrier point during the SSB packet operation. Available: –3000 ~ +3000 Hz (10 Hz/step) Default: 1000 Hz (typical center frequency for PSK31, etc.) Page 122 FT-2000D O PERATING ANUAL...

  • Page 125

    Function: Sets the magnitude of the repeater shift on the 50 MHz band. Function: Selects the Mark tone for RTTY operation. Available Values: 0 ~ 4000 kHz (10 kHz/step) Available Values: 1275 / 2125 Hz Default Setting: 1000 kHz Default Setting: 2125 Hz FT-2000D O Page 123 PERATING ANUAL...

  • Page 126

    Available Values: –200 Hz ~ +200 Hz (10 Hz/step) Default Setting: 0 Hz 089 J3E SUSB CR Function: Adjusts the receiver carrier point for Sub band’s (VFO-B) USB mode. Available Values: –200 Hz ~ +200 Hz (10 Hz/step) Default Setting: 0 Hz Page 124 FT-2000D O PERATING ANUAL...

  • Page 127

    Function: Selects the passband of the DSP filter for the CW “Narrow” mode. Available Values: 25 / 50 / 100 / 200 / 300 / 400 / 500 / 800 / 1200 / 1400 / 1700 / 2000 Hz Default Setting: 500 Hz FT-2000D O Page 125 PERATING ANUAL...

  • Page 128

    GENTLE Spectrum Scope while monitoring on the 30 m amateur band. DSP F ILTER ASSBAND Available Values: (1)0.100 - (1)0.149 MHz (1 kHz steps) Default Setting: (1)0.100 MHz SHARP SOFT DSP F ILTER HAPE Page 126 FT-2000D O PERATING ANUAL...

  • Page 129

    “ON” (a “d d d d d ” notation will replace the “E E E E E ” notation). Repeat the same procedures to cancel the setting (skipped “Off”: “d d d d d ” notation appears). FT-2000D O Page 127 PERATING...

  • Page 130

    Available Values: 1 ~ 10 Function: Adjusts the Q-factor of the low range of the Default Setting: 10 parametric microphone equalizer when the speech proces- sor is activated. Available Values: 1 ~ 10 Default Setting: 2 Page 128 FT-2000D O PERATING ANUAL...

  • Page 131

    Default Setting: 0 142 tAUd PE3 BW Function: Adjusts the Q-factor of the high range of the parametric microphone equalizer when the speech proces- sor is activated. Available Values: 1 ~ 10 Default Setting: 1 FT-2000D O Page 129 PERATING ANUAL...

  • Page 132

    “P-1” and “01 (or 1-01).” MPORTANT The use of this frequency is restricted to stations operat- ing in or near Alaska, and only for emergency purposes (never for routine operations). See §97.401(c) of the FCC’s regulations for details. Page 130 FT-2000D O PERATING ANUAL...

  • Page 133

    FT-2000D O Page 131 PERATING ANUAL...

  • Page 134

    Maximum Power Consumption (approx.): 720 VA Maximum Output Current: 50 V: 12 A, 13.8 V: 6 A Case Size (WxHxD): 3.9” x 5.3” x 13.8” (100 x 135 x 350 mm) Weight (approx.): 7.9 lb (3.6 kg) Page 132 FT-2000D O PERATING ANUAL...

  • Page 135

    4 to 8 Ohms (4 Ohms: nominal) Conducted Radiation: Less than 4000 μμW Specifications are subject to change, in the interest of technical improvement, without notice or obligation, and are guaranteed only within the amateur bands. FT-2000D O Page 133 PERATING ANUAL...

  • Page 136

    7. Filter installation is now complete. Now you must en- able the newly-installed filter, using the Menu. IGURE 8. Connect the two DC cables to the FT-2000D rear panel, and then connect the AC cable to the AC jack on the FP-2000 rear panel.

  • Page 137

    FT-2000D O Page 135 PERATING ANUAL...

  • Page 138

    Page 136 FT-2000D O PERATING ANUAL...

  • Page 139

    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 140

    Copyright 2009 Printed in Japan VERTEX STANDARD CO., LTD. All rights reserved No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD.
