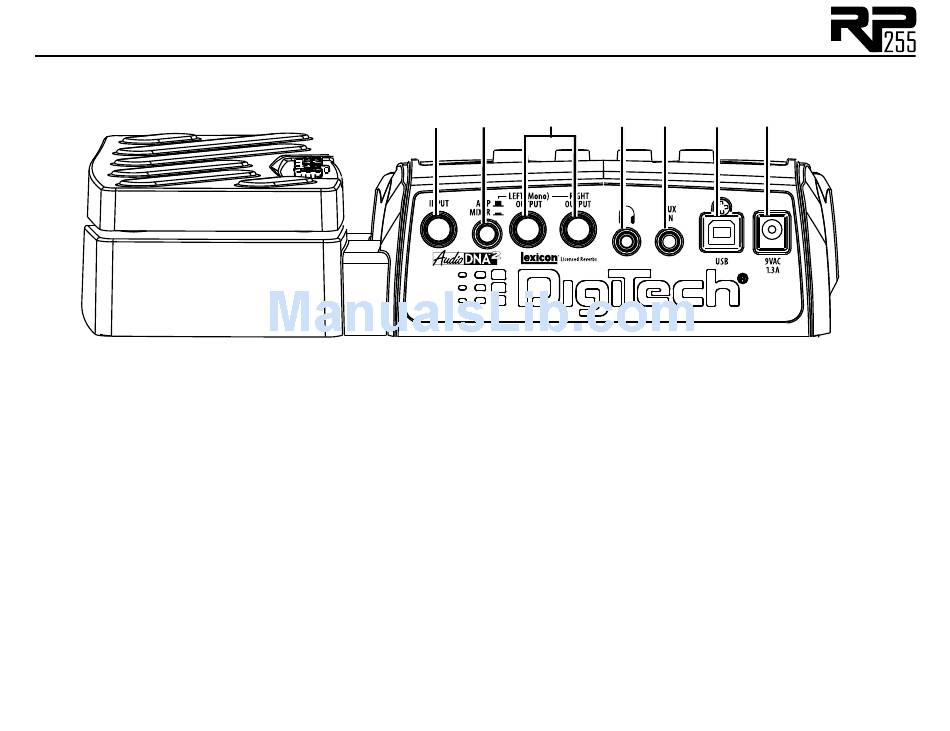

Rear Panel

1 2 3 4 5 6 7
1. Input
Connect your instrument to this high-impedance TS input.
2. Amp / Mixer
This button optimizes the RP255's outputs for use when plugged into a guitar amp or a mixer/
recording device. When set to Mixer ("In" position), speaker compensation is turned on and the
outputs are optimized for connecting to a mixer, recording device or headphones. When set to
Amp ("Out" position), the outputs are optimized for running directly in to the input of a guitar
amp.
3. Left (Mono) and Right Outputs
Connect the Left (Mono) output to the input of a single amplifier (or mixer input) for mono
operation. Connect the Left and Right outputs to the inputs of 2 amplifiers (or 2 mixer channels)
for stereo operation.
