Studio Quad V2 User's Manual
REAR PANEL CONNECTIONS

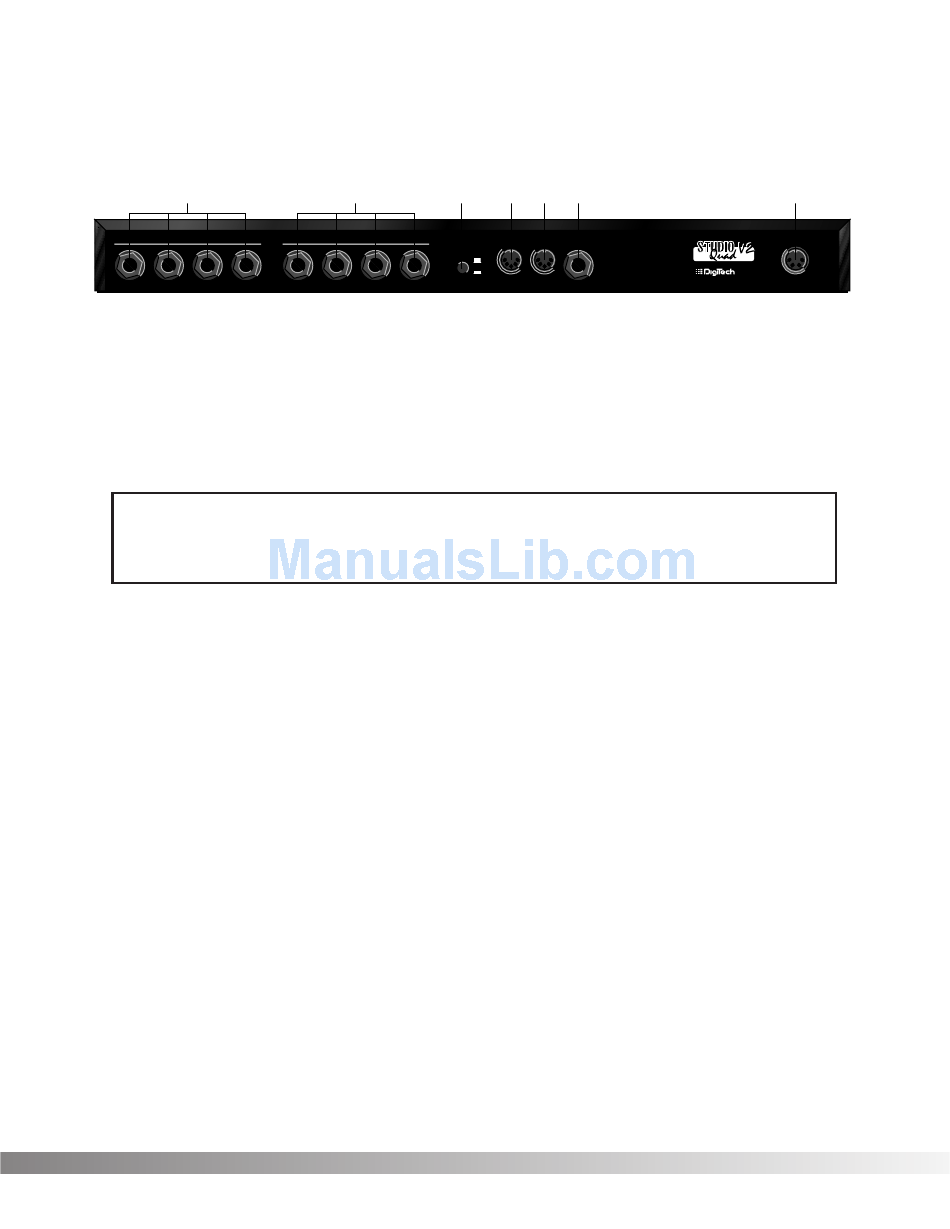

The layout of the Studio Quad V2's simple and straightforward rear panel is illustrated in Figure 1-2.
1
INPUTS
1 2 3
1) AUDIO INPUTS - These four 1/4" inputs can be used for several different combinations of input configura-
tions. The Input Configuration module of each Program defines how each Input is used. See pg. 11 for more info.
2) AUDIO OUTPUTS - The Studio Quad V2's outputs can also be configured in many different ways. These set-
tings are found in the Output Configuration module of each Program. See pg. 11 for more info.
3) OUTPUT LEVEL SWITCH - Selects whether the signal is nominally output at line level (-10 dB) or at profes-
sional level (+4).
WARNING: Make sure the Studio Quad V2's audio levels are all down before changing the setting of this switch.
Also, be sure you know which setting is best for your particular equipment setup, as setting this switch to +4 can
overload the inputs of some line-level equipment. DigiTech is not responsible for any
damage to speakers or components due to misuse of this switch.
4) MIDI IN - MIDI data is received at this port. When MIDI data is received, the MIDI indicator in the display flash-
es on and off.
5) MIDI OUT / THRU - Merges MIDI data generated by the Studio Quad V2 with MIDI data received at the input.
Please see pg. 31 for more information.
6) FOOTSWITCH - This jack allows connection of the DigiTech FS300 3-button footswitch or any shorting-type
footswitch. If using the DigiTech FS300, button 1 increments through Programs, button 2 decrements through
Programs, and button 3 bypasses the Studio Quad V2's effects. When using any other single momentary switch
device, the switch acts as a Bypass.
NOTE: The footswitch must be plugged in on power up in order for the Studio Quad V2 to detect which type
of switch is being used.
7) POWER INPUT - Connect the included power supply to this jack. It is a 4-pin DIN connector. Use only the
DigiTech PS0920 power supply with the Studio Quad V2.

MAKING CONNECTIONS

Because of its flexibility, the Studio Quad V2 can be connected in several different ways to meet the requirements of
specific applications. The following diagrams offer some ways the Studio Quad V2 can be connected.
IN LINE
The Studio Quad V2 can be connected between a line level instrument output (such as keyboards, recording decks,
etc.) and a line level input (such as mixing console inputs). This method is called the "in-line" method because the
Studio Quad V2 is connected directly in the audio path of the source. When you use the in-line method, the master
wet-to-dry effects mix is controlled from the Studio Quad V2 operating system. Cable routings for this method look
like Figure 1-3:
2
OUTPUTS
4 1 2 3 4
Figure 1-2 Rear Panel
3 4 5 6
+4
-10
MIDI MIDI OUT/
OUTPUT LEVEL IN THRU FOOTSWITCH
5
7
POWER
9VAC 2.2A
USA
MANUFACTURED IN THE BY
SALT LAKE CITY, UTAH
Section 1 - Setting Up
