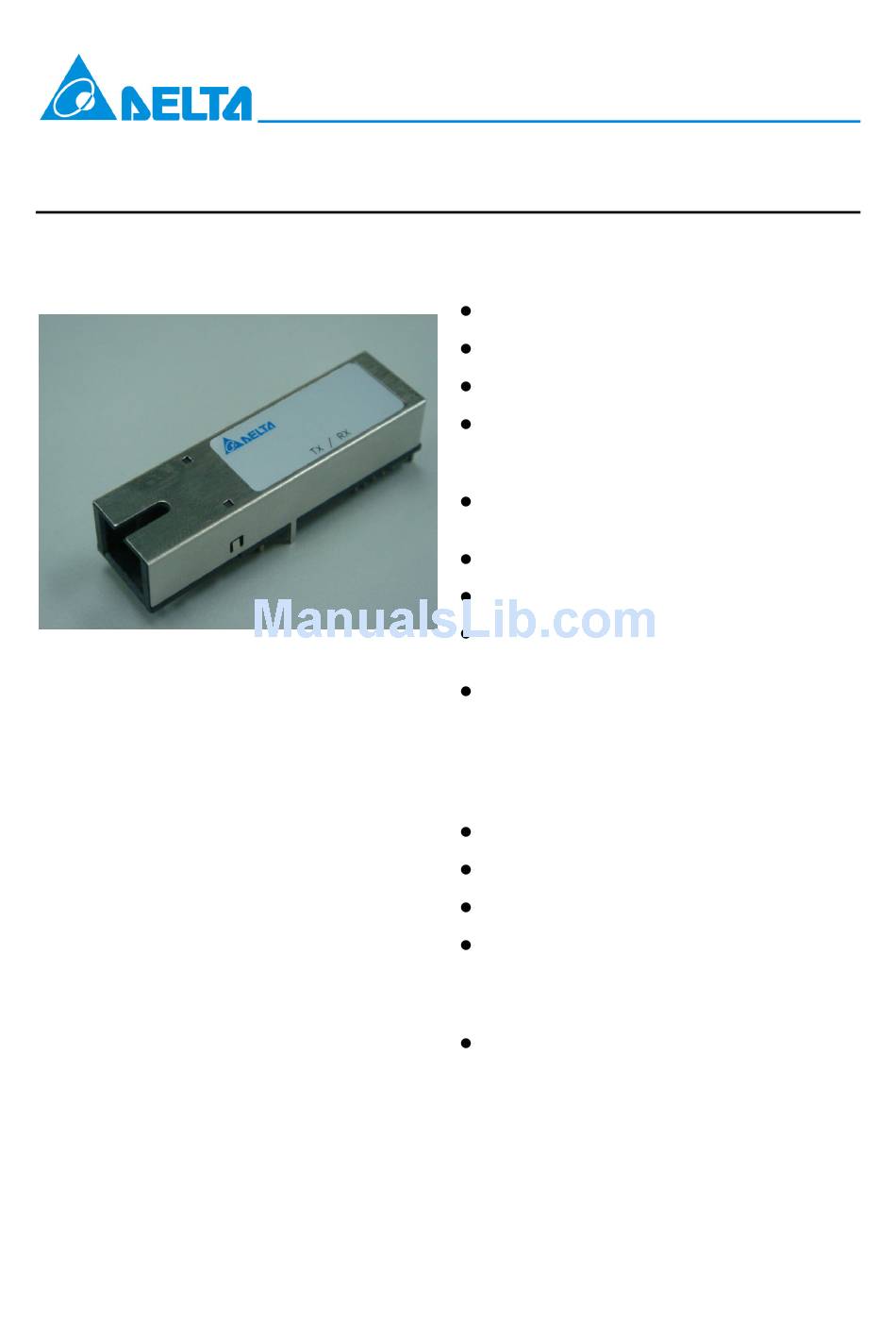

1.25Gbps Upstream/1.25Gbps Downstream
GE-PON ONU Transceiver
Description
DELTA's
GE-PON
OPEP-33-A4K1R is designed for Gigabit Ethernet
Passive Optical Network transmission.
The module is contained in a 2x5 SFF
package with standard SC receptacle connector.
The module consists 1310nm DFB laser,
InGaAs PIN, Preamplifier and WDM filter in a
high-integrated
optical
receives up to 1.25Gbps of continuous data at
1490nm, and transmits 1.25Gbps of burst-mode
data at 1310nm.
DELTA ELECTRONICS, INC.
ONU
transceiver
sub-assembly,
and
FEATURES
RoHS compliant
IEEE802.3ah Gigabit Ethernet compliant
2x5 pin SFF package with SC Receptacle
1310nm Burst Mode 1.25Gbps transmitter,
and 1490nm Continuous Mode 1.25Gbps
receiver
Integrated with WDM filter to cut 1550nm and
1650nm optical signal off
Single +3.3V power supply
LVPECL electrical signal interface
LVTTL Bias Control input and Rx Signal
Detect output
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
IEEE 802.3ah 1000BASE-PX20-U
GE-PON ONU
Burst Mode Application
FTTx WDM Broadband Access
OPEP-33-A4K1R data link up to 20km in
it
9/125um single mode fiber.
1
OPEP-33-A4K1R
Revision: S0
06/01/2007
www.deltaww.com
