10GBASE-SR XFP Optical Transceiver
Description

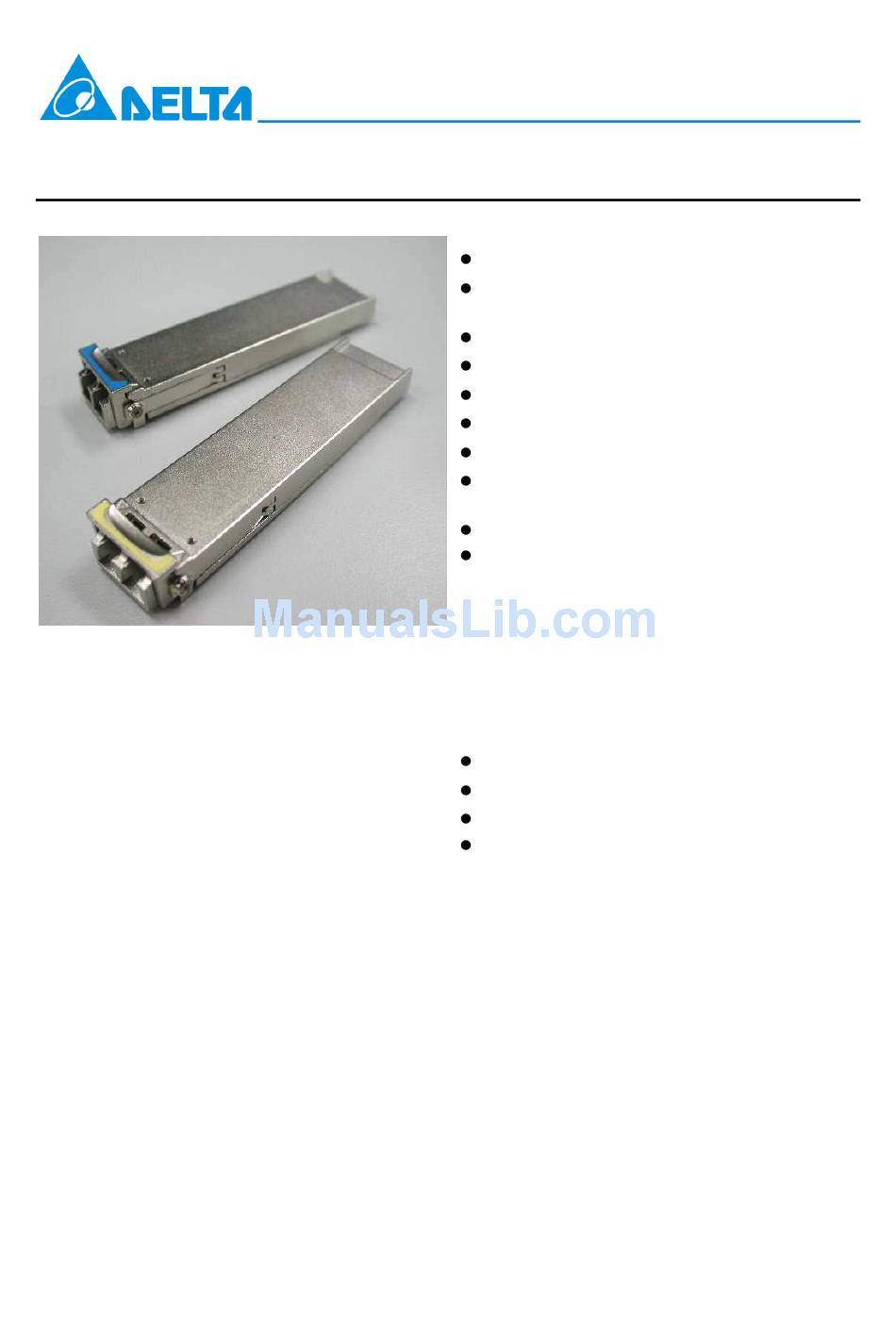

The TSP-10G3A1EER is a hot pluggable
10Gbps small form factor transceiver module
integrated with the high performance 850nm
VCSEL transmitter, high sensitivity PIN receiver
and signal conditioner for 10Gbps applications.
It
is
compliant
Multi-source Agreement (MSA).
The TSP-10G3A1EER is designed to be
compliant with INF-8077i XFP Multi-source
Agreement (MSA) with five digital monitoring
functions: Temperature, Vcc, Tx optical power,
TX laser bias current and RX received optical
power.
DELTA ELECTRONICS, INC.
with
the
INF-8077i
FEATURES
RoHS compliant
850nm Vertical Cavity Surface Emitting Laser
(VCSEL) light source
Standard LC duplex fiber-optic connector
Compliant with XFP MSA
2
I
C for integrated Digital Optical Monitoring
Power consumption <1.37 W
User friendly Plug-and-play style "Hot Swap"
Small footprint which enables high board
density
XFI high speed I/O electrical interface
Integrated signal conditioner to extend
200mm FR4 PCB trace signaling
Application
10G LAN switch
10G Ethernet switch/router
10G Fiber channel
SAN applications
XFP
1
TSP-10G3A1EER
Revision: S3
04/10/2007
www.deltaww.com

Advertisement

Table of Contents
loading

Summary of Contents for Delta 10GBASE-SR XFP Optical Transceiver TSP-10G3A1EER

  • Page 1 INF-8077i XFP Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, TX laser bias current and RX received optical power. DELTA ELECTRONICS, INC. FEATURES RoHS compliant 850nm Vertical Cavity Surface Emitting Laser (VCSEL) light source...
  • Page 2: Absolute Maximum Ratings

    1. Non-condensing 2. The data rate of input data is 10.3125Gb/s 3. Input voltage swing (differential) measured peak-to-peak 4. Output voltage swing (differential) measured peak-to-peak ASIC / SerDes 10Gbps XFI electrical signal DELTA ELECTRONICS, INC. Symbol Symbol 3.135 4.75 VCC3...
  • Page 3 852 to 854 -4.3 854 to 856 -4.3 856 to 858 -4.3 858 to 860 -4.3 DELTA ELECTRONICS, INC. =0 ºC to 70 ºC) Symbol 10.3125 λ Compliant with Minimum OMA relation table ORLT {0.25, 0.40, 0.45, 0.25, 0.28, 0.40}...
  • Page 4 When the terminal is viewed from the optical path, the reflection toward the optical path of the optical signal with a central wavelength of 840nm to 860nm transmitted to terminal. DELTA ELECTRONICS, INC. Triple tradeoff curve =0 ºC to 70 ºC) Symbol 10.3125...
  • Page 5 Deterministic Jitter Total Jitter Eye Mask Notes: 1. Includes jitter transferred from the optical receiver during any valid operational input condition. XFI Module Receiver Differential Output Compliance Mask DELTA ELECTRONICS, INC. Symbol XFI Termination and AC Coupling TSP-10G3A1EER Units Notes 0.18...
  • Page 6: Pin Description

    TSP-10G3A1EER 6. Pin Description XFP Host Board Connector Pad Layout (Top View) Recommended Host Board Supply Filtering Network Revision: S3 04/10/2007 www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 7 RefCLK+ CML-I CML-I Notes: 1. Module ground pins Gnd are isolated from the module case and chassis ground within the module. DELTA ELECTRONICS, INC. Module Electrical Pin Function Definition Name/Description Module Ground Optional -5.2V Power Supply --Not Required Module De-select; When held low allows module to respond to 2-wire serial interface Interrupt Bar;...
  • Page 8 4 TX_DIS TX_DIS is an input pin. When TX_DIS is asserted High, the XFP module transmitter output must be turned off. The TX_DIS pin must be pulled up to VCC3 in the XFP module. Revision: S3 04/10/2007 www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 9 The host is expected to clear this interrupt before releasing the module from the power down mode. The transition from power down mode to normal mode will trigger a reset of the module and result in a 2nd module reset and a 2nd reset completion interrupt to the host Revision: S3 04/10/2007 www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 10 The lower memory table (Byte 0~127) is for digital diagnostics and control functions. Besides, it has been allocated three upper memory tables for serial ID, user writable and vendor specific functions. The detail definition of memory content is listed as following table. Revision: S3 04/10/2007 www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 11 TSP-10G3A1EER 9. Mechanical Outline Dimensions Transmitter Wavelength / Application Latch Color Identifier Beige 850nm / SR W eek (52W eeks/Year) : 1月 2日 =01 Revision: S3 04/10/2007 www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 12: Regulatory Compliance

    Laser Eye Safety Component Recognition UL/CSA Appendix A. Document Revision Version No. Date 2006-04-25 2006-08-25 2007-01-04 2007-04-10 DELTA ELECTRONICS, INC. Reference MIL-STD-883E Method 3015.7 EIA-JESD22-A114 IEC/EN 61000-4-2 IEC/EN 61000-4-2 IEC/EN 61000-4-3 FCC Part 15 Class B EN 55022 Class B (CISPR 22A) FDA 21CFR 1040.10, 1040.11...
