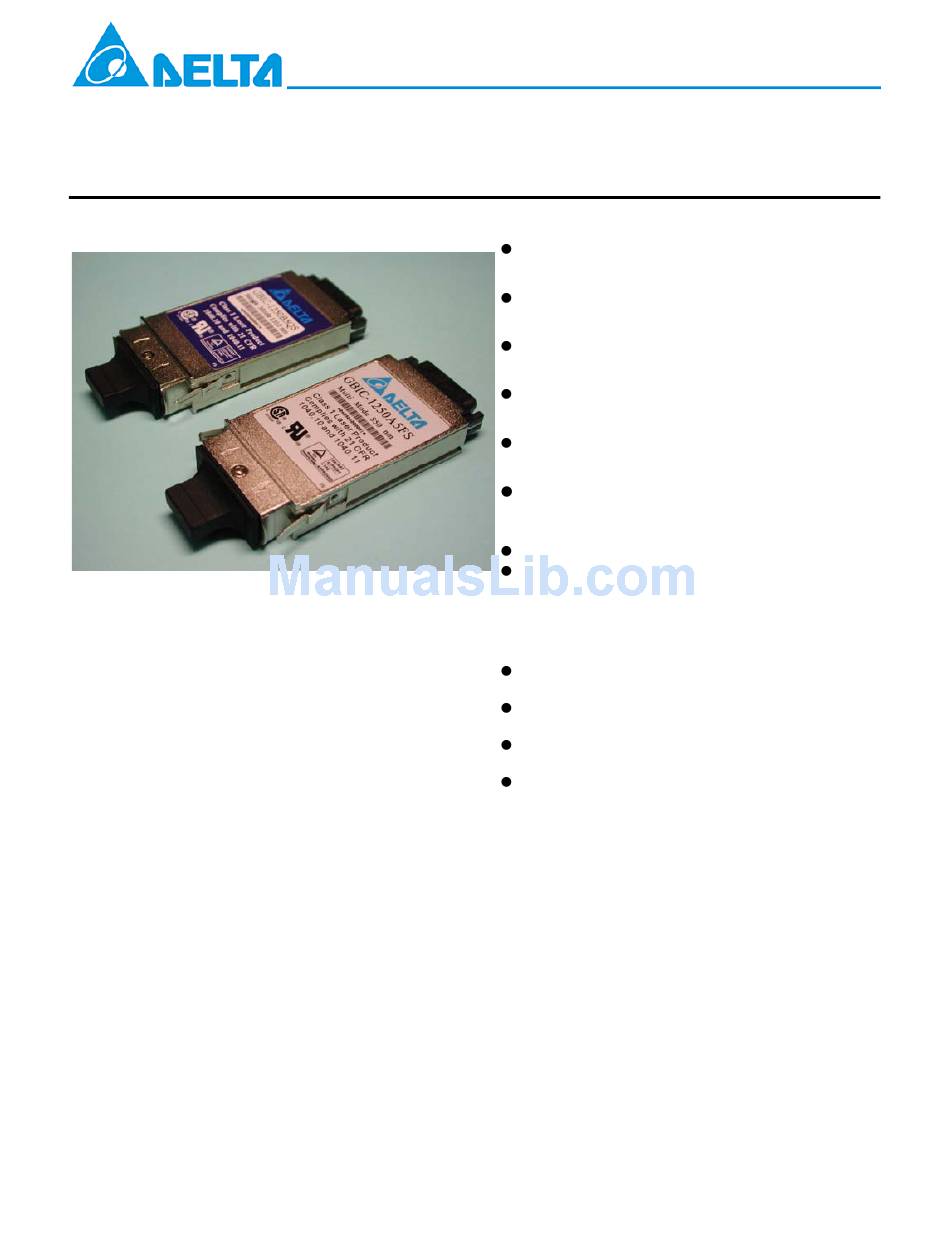

RoHS Compliant 1250Mbps
Transceiver Module for Gigabit Ethernet
Description
The GBIC-1250B5QR is compliant with GBIC interface
converters specification Rev. 5.4. as well as Gigabit
Ethernet standard as specified in IEEE 802.3.
Delta's GBIC transceiver family uses a 20-pin connector
to allow hot plug capability. The system designer can
make configuration changes or maintenance simply by
plugging in different type of converters without removing
the power supply from the host system.
DELTA ELECTRONICS, INC.
Gigabit Interface Converters (GBIC)
Features
Compliant with Gigabit Interface
Converter (GBIC) Revision 5.4
Compliant with proposed specifications
for IEEE 802.3z/Gigabit Ethernet.
GBIC-1250B5QR compliant with the
1.0625GBd FC-PI 100-SM-LC-L Rev.13
Dual 5V and 3.3V Power Supply
Operation
TTL Logic TX_DISABLE / TX_FAULT /
RX_LOS functions
Class 1 Laser Product Compliant with
the Requirements of IEC 60825-1 and
IEC 60825-2
Hot-Pluggable
RoHS Compliant per Directive
2002/95/EEC
Applications
1.25 Gigabit Ethernet
Fiber Channel
Switch to Switch Interface
File server interface
Performance
GBIC-1250B5QR:
1310 FP laser, up to 10km in SMF
1
GBIC-1250B5QR
GBIC-1250B5QR (10km)
www.deltaww.com
2008/01
Rev. 0A

Advertisement

Table of Contents
loading

Related Manuals for Delta GBIC Interface Converters GBIC-1250B5QR

Summary of Contents for Delta GBIC Interface Converters GBIC-1250B5QR

  • Page 1 The system designer can make configuration changes or maintenance simply by plugging in different type of converters without removing the power supply from the host system. DELTA ELECTRONICS, INC. Gigabit Interface Converters (GBIC) GBIC-1250B5QR (10km) Features Compliant with Gigabit Interface Converter (GBIC) Revision 5.4...

  • Page 2: Absolute Maximum Ratings

    1. Internally AC coupled and terminated to 150Ohm differential load. 2. Pull up to V on host Board 3. Internally AC coupled, but requires a 150Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values. DELTA ELECTRONICS, INC. Symbol Min. Typ. Max. Symbol Min.

  • Page 3: Optical Characteristics

    Signal Detect- Deassert GBIC-1250B5QR Signal detect- Hysteresis Note: 1. The sensitivity is provided at a BER of 1×10 -1 PRBS and ER=9dB. 2. These are 20%~80% values. DELTA ELECTRONICS, INC. =4.75V to 5.25V, Data Rate=1250Mb/sec, PRBS=2 Symbol Min. Typ. -9.5 λ...

  • Page 4: Pin Out Table

    GBIC module definition and presence, bit 1,4.7 K to 10 K Ohm MOD_DEF(1) pullup to VDDT on host GBIC module definition and presence, bit 2,4.7 K to 10 K Ohm MOD_DEF(2) pullup to VDDT on host DELTA ELECTRONICS, INC. Sequence Sequence Pin# Name/Function GBIC-1250B5QR...
  • Page 5 GBIC-1250B5QR Recommend Circuit Schematic 2008/01 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 6 TX_DISABLE time to t_rest start reset RX_LOS assert delay t_loss_on RX_LOS negate delay t_loss_off DELTA ELECTRONICS, INC. MOD_DEF(2) Interpretation by host Reference Pin 6 GBIC not present clause Copper Style 1 or Style 2 connector, 1.0625 Gbd, 100-TW-EL-S or 100-TP-EL-S, active TTL LOW inter-enclosure connection and IEEE802.3...
  • Page 7 GBIC-1250B5QR GBIC timing parameters: 2008/01 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 8 Byte 63 (CS1): Check sum of bytes 0-62. Byte 68-83 (SN): Serial number. Byte 84-91 (DC): Date code. Byte 95 (CS2): Check sum of bytes 64-94. DELTA ELECTRONICS, INC. DC Note 3 CS1 Note 1 SN Note 2 CS2 Note 4...
  • Page 9 GBIC-1250B5QR Package Outline Drawing GBIC-1250B5QR 2008/01 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.

  • Page 10: Regulatory Compliance

    IEC 801.2 Duplex SC Receptacle (#4) Electrostatic Discharge to MIL-STD-883C the Electrical Pins Method 3015.4 EIAJ#1988.3.2B Version 2, Machine model DELTA ELECTRONICS, INC. Reference Qty’ (1) Satisfied with electrical characteristics of product spec. (2) No physical damage GBIC-1250B5QR Evaluation 2008/01 Rev.

  • Page 11: Available Products

    GBIC-1250D5MR: Dual supply voltage (3.3/5V), 1550nm DFB-LD, SMF 40km. GBIC-1250D5WR: Dual supply voltage (3.3/5V), 1550nm DFB-LD, SMF 70km. GBIC-1250D5RR: Dual supply voltage (3.3/5V), 1550nm DFB-LD, SMF 80km.. GBIC-1250D5VR: Dual supply voltage (3.3/5V), 1550nm DFB-LD, SMF 100km. DELTA ELECTRONICS, INC. GBIC-1250B5QR X3: Distance: F: 500m...
