Connecting the System

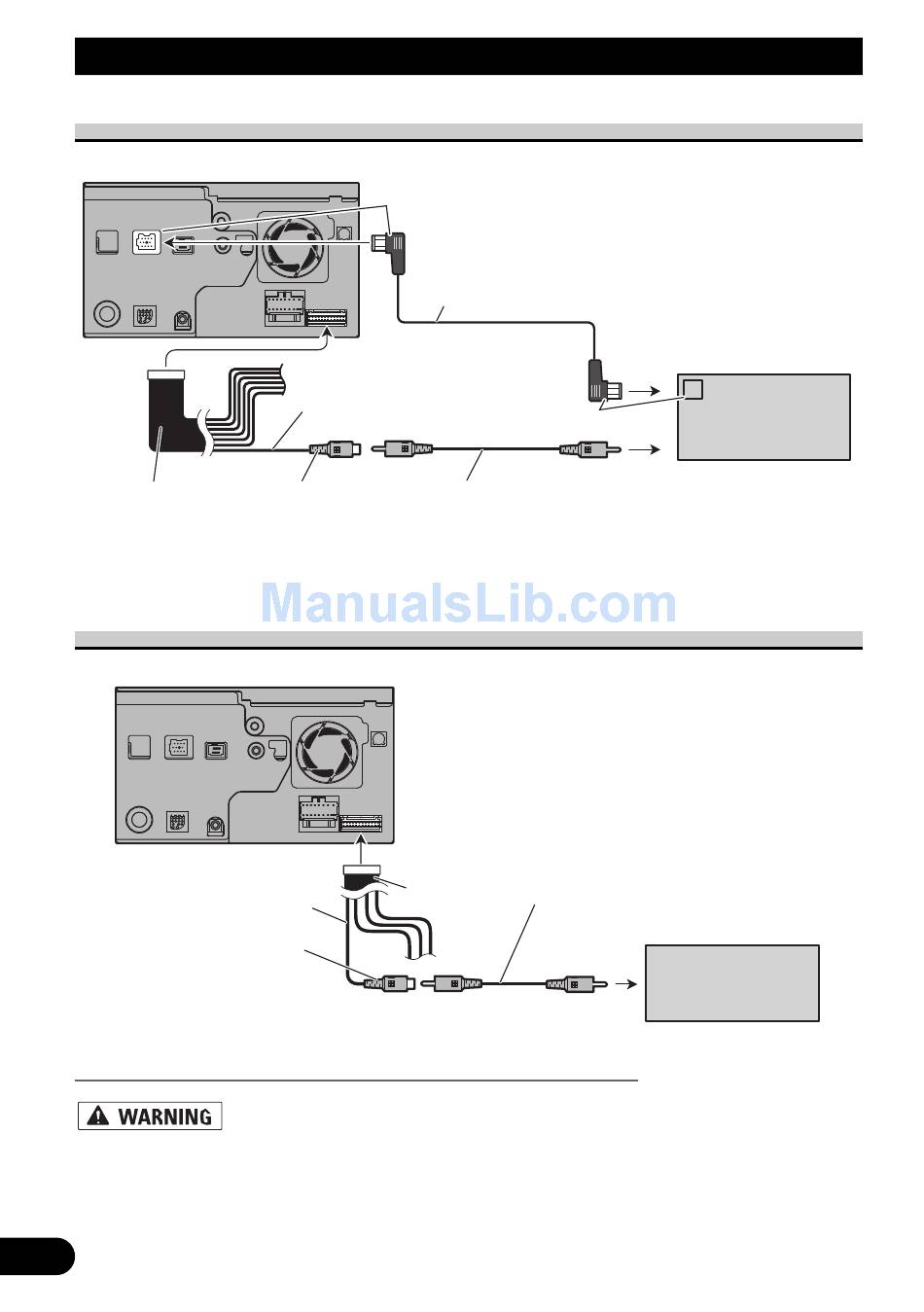

When connecting the external unit featuring video source
The navigation unit
RCA connector
• It is necessary to set "AV-1 Input" in "System" to "EXT" when connecting the external
video component. (For details, refer to the Operation Manual.)

When connecting the rear display

The navigation unit
15 cm (5-7/8 in.)

When using a rear display connected to rear video output

NEVER install the rear display in a location that enables the driver to watch the
video source while driving.
This navigation system's rear video output is for connection of a display to enable passen-
gers in the rear seats to watch the video source.
17
Blue
10
20 cm (7-7/8 in.)
Yellow
(VIDEO INPUT)
10
RCA connector
Yellow
(REAR
MONITOR
OUTPUT)
IP-BUS cable (sold separately)
To IP-BUS output
Black
To video output
RCA cable
(sold separately)
RCA cables
(sold separately)
To video input
Pioneer external unit
(sold separately)
Rear display with
RCA input jacks
