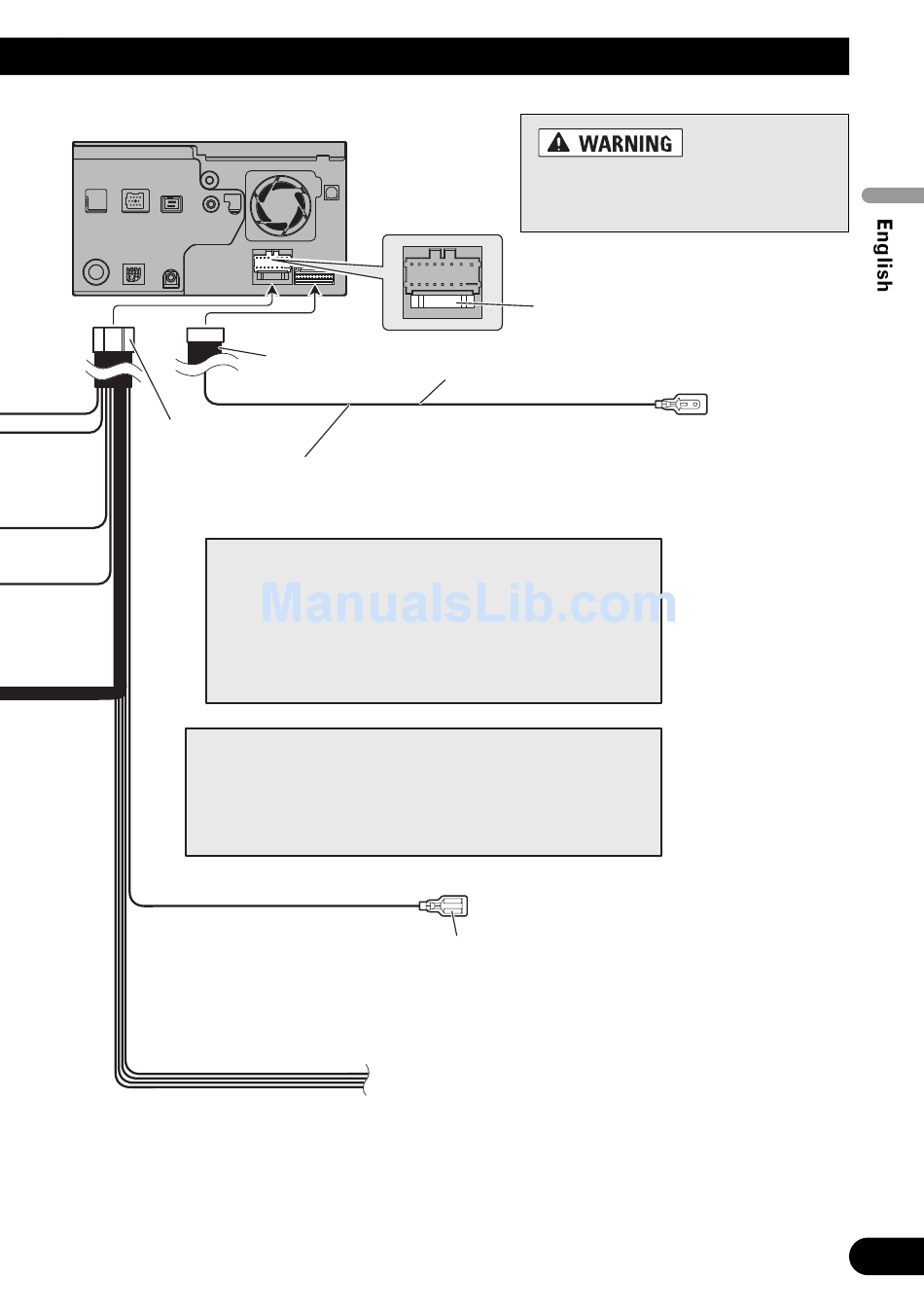

The navigation unit
10
RCA connector
Power cord
Yellow/black
If you use an equipment with mute function, connect that
equipment to the Audio Mute lead. If not, keep the Audio Mute
lead free of any connections.
Note:
Audio source will be set to mute or attenuate, while the
following sounds will not be muted or attenuated. For details,
see the Operation Manual.
- voice guidance of the navigation
- incoming Ringtone and incoming voice of the cellular
phone that is connected to this navigation system via
Bluetooth wireless technology
Note:
The antenna will automatically retract, yet the timing varies
depending on the setting. (Refer to page 5.)
For more detailed information on changing the "ANT CTRL"
mode, refer to "Switching the antenna control setting" in the
Operation Manual.
When replacing the fuse, be sure to
only use a fuse of the rating prescribed
on this product.
10
FUSE (10A)
26 cm (10-1/5 in.)
Blue
To Auto-antenna relay control terminal.
If the vehicle has a glass antenna, connect to
the antenna booster power control terminal
(max. 300 mA 12 V DC).
For information on other leads
See Page 11.
10
