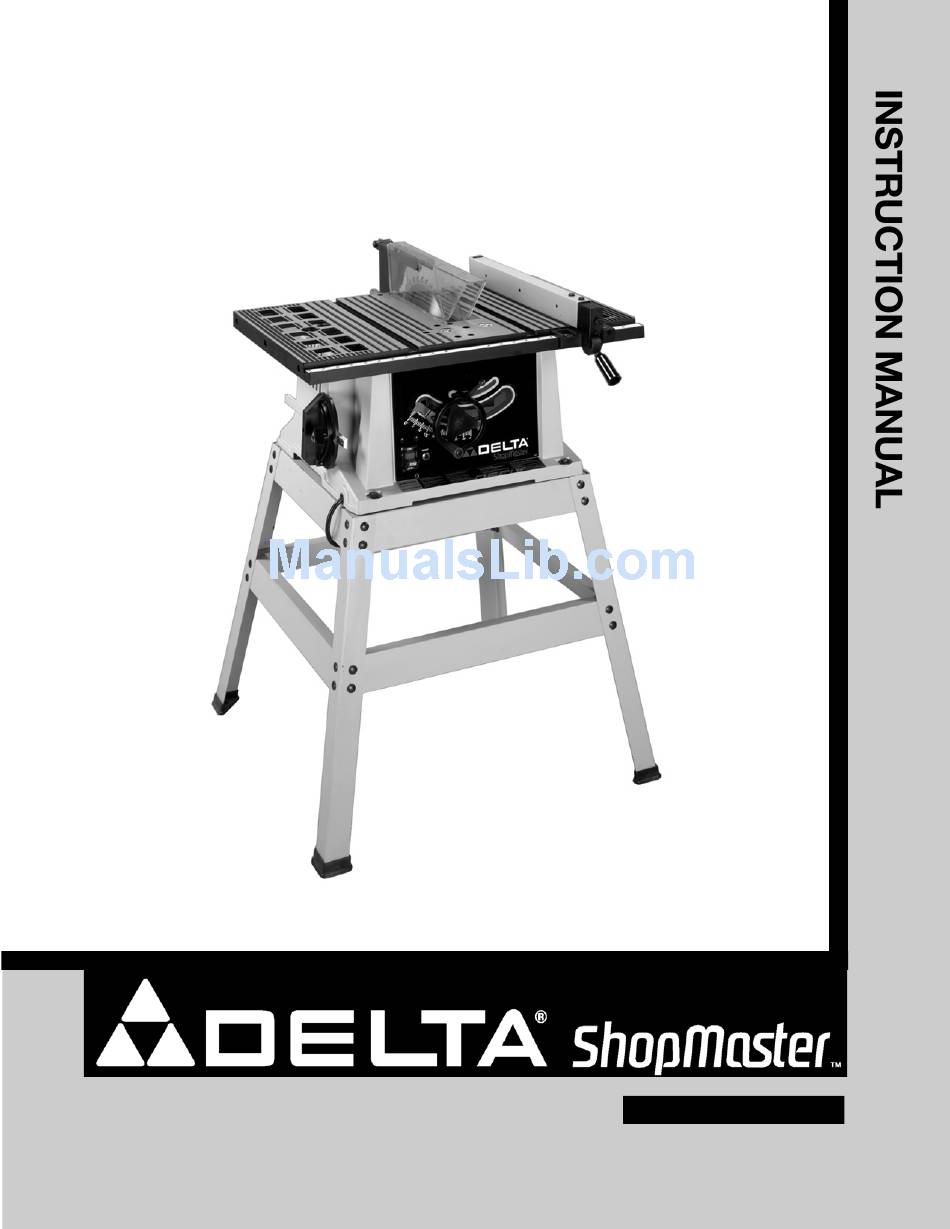

10" Motorized
Bench Saw
(Model TS200, Model TS200LS)
Model TS200LS
Shown
PART NO. A05738 - 05-19-05
Copyright © 2005 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 27
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call
Advertisement
Table of Contents
Related Manuals for Delta ShopMaster TS200
Summary of Contents for Delta ShopMaster TS200
- Page 1 (Model TS200, Model TS200LS) Model TS200LS Shown PART NO. A05738 - 05-19-05 Copyright © 2005 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 27 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).
-
Page 2: Table Of Contents
NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery and we have advised you. -
Page 3: Safety Guidelines
SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 4: General Safety Rules
13. USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by IMPORTANT SAFETY INSTRUCTIONS Delta may cause damage to the machine or injury to the user. 14. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to PROTECTION. -
Page 5: Additional Specific Safety Rules
15. NEVER have any part of your body in line with the path of the saw blade. 16. NEVER REACH AROUND or over the saw blade. 17. NEVER attempt to free a stalled saw blade without first turning the machine “OFF”. 18. PROPERLY SUPPORT LONG OR WIDE workpieces. -
Page 6: Power Connections
POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug. -
Page 7: Functional Description
Delta ShopMaster Model TS200LS is a 10" Table Saw designed to give high quality performance with depth of cut capacity up to 3" (76mm) at 90° and 2" (51mm) at 45° for clean cutting of standard stock sizes. Delta ShopMaster Model TS200LS includes the saw with a 13 amp 120V motor, a metal stand, rip fence, miter gage, see-through blade guard with splitter and anti-kickback fingers, a 10”... - Page 8 11. Blade Wrench STAND FOR MODEL TS200LS ONLY (Fig. 4) 1. Leg (4) 2. 3/8” Flat Washer for Mounting Saw to Stand & for Assembling Stand (24) 3. Foot (4) 4. M8x1.25 Hex Nut for Mounting Saw to Stand & for Assembling Stand (20) 5.
-
Page 9: Unpacking/Cleaning
ASSEMBLY TIME ESTIMATE - 1 hour ELEVATING AND SUPPORTING SURFACES FOR A SAW WITH NO STAND THE SAW MUST BE PROPERLY SECURED TO A SUPPORTING SURFACE. ALSO, FAILURE TO PROVIDE A SAWDUST FALL-THROUGH AND REMOVAL HOLE WILL ALLOW SAWDUST TO BUILD UP AROUND THE MOTOR, CAUSING A POSSIBLE FIRE HAZARD AND/OR MOTOR DAMAGE. - Page 10 3. Stand the saw upright, as shown in Fig. 4D (Saw is shown fully assembled here). 4. Push down on top of the saw so that the legs of the stand adjust to the surface of the floor. Tighten all hardware securely.
-
Page 11: Attaching Blade Guard/Splitter Assembly
SOURCE. PROPERLY ALIGN THE BLADE GUARD AND SPLITTER ASSEMBLY WITH THE SAW BLADE TO PREVENT KICKBACK. 1. Position the blade 90 degrees to the table and lock in place. 2. Fasten the splitter support bracket (A) Fig. 9 to the splitter bracket (B) using two 1/4-20x1/2"... - Page 12 (P) and the 1/4" external tooth lockwasher (R) on the screw (G). Position the recessed end (E) Fig. 11 of the splitter bracket (B) against the end of the pivot rod (F), and fasten using the assembly in STEP 3. NOTE: Loosely tighten the hardware for further adjustment.
-
Page 13: Miter Gauge
(H). 8. Use a straight edge to see if the splitter (H) Fig. 16 is aligned with the saw blade (R). If an adjustment is necessary, the splitter (H) can be moved left or right and rotated. -
Page 14: Assembling Rip Fence
(D). 3. The rip fence is usually set up on the right hand side of the saw table. Lift the lock handle (B) Fig. 26 and position the fence on the table. Push down on the handle (B) Fig. 26 to lock the fence in place. -
Page 15: Operation
STARTING AND STOPPING SAW The on/off switch (A) Fig. 27 is located on the front of the saw cabinet. To turn the saw “ON”, move the switch (A) up to the “ON” position. To turn the saw “OFF”, move the switch (A) down to the “OFF” position. -
Page 16: Blade Tilt Adjustment
(A) MUST BE LOCKED DURING ALL CUTTING OPERATIONS. 90 AND 45 DEGREE POSITIVE STOP ADJUSTMENTS Your saw is equipped with positive stops for rapid and accurate positioning of the saw blade at 90 and 45 degrees to the table. DISCONNECT MACHINE FROM POWER SOURCE. -
Page 17: Table Insert Adjustment
3. The saw blade is set parallel to the miter gauge slot at the factory. The fence must be parallel to the miter gauge slot to do accurate work and to prevent kickback when ripping. -
Page 18: Adjusting Blade Parallel To Miter Gauge Slots
1. Raise the blade to its highest position and adjust the blade so that it is 90 degrees to the table. 2. Select a tooth on the saw blade that is set to the left. Mark this tooth with a pencil or marker. -
Page 19: Changing The Blade
The following information describes the safe and proper method for performing the most common sawing operations. THE USE OF ATTACHMENTS AND ACCESSORIES NOT RECOMMENDED BY DELTA MAY RESULT IN THE RISK OF INJURY TO THE USER OR OTHERS. - Page 20 THE SAW BLADE GUARD MUST BE USED. ON DELTA SAWS, THE GUARD HAS ANTI- KICKBACK FINGERS TO PREVENT KICKBACK AND A SPLITTER TO PREVENT THE WOOD KERF FROM CLOSING AND BINDING THE BLADE.
- Page 21 3. If the ripped work is less than 6 inches wide, a push stick should always be used to complete the feed, as shown in Fig.
- Page 22 2. Attach the dado head set (D) Fig. 47, to the saw arbor. NOTE: THE OUTSIDE ARBOR FLANGE CAN NOT BE USED WITH THE DADO HEAD SET, TIGHTEN THE ARBOR NUT AGAINST THE DADO HEAD SET BODY.
-
Page 23: Constructing A Push Stick
CONSTRUCTING A PUSH STICK When ripping work less than 4 inches wide, a push stick should be used to complete the feed and could be easily made from scrap material by following the pattern shown in Fig. 48B. -
Page 24: Troubleshooting
1300 Sumner Avenue Cleveland, OH 44115-2851 www.powertoolinstitute.com For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582). Fig. 49 TROUBLESHOOTING Fig. 50... -
Page 25: Maintenance
Two Year Limited New Product Warranty Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. - Page 26 NOTES...
- Page 27 Phone: (604) 420-0102 Fax: (604) 420-3522 The following are trademarks of PORTER-CABLE • DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les marques suivantes sont des marques de fabriquant de la PORTER-CABLE • DELTA): Auto-Set Contractor’s Saw II™, Delta ®...
