2.7.1 Server Board Connector and Component Layout

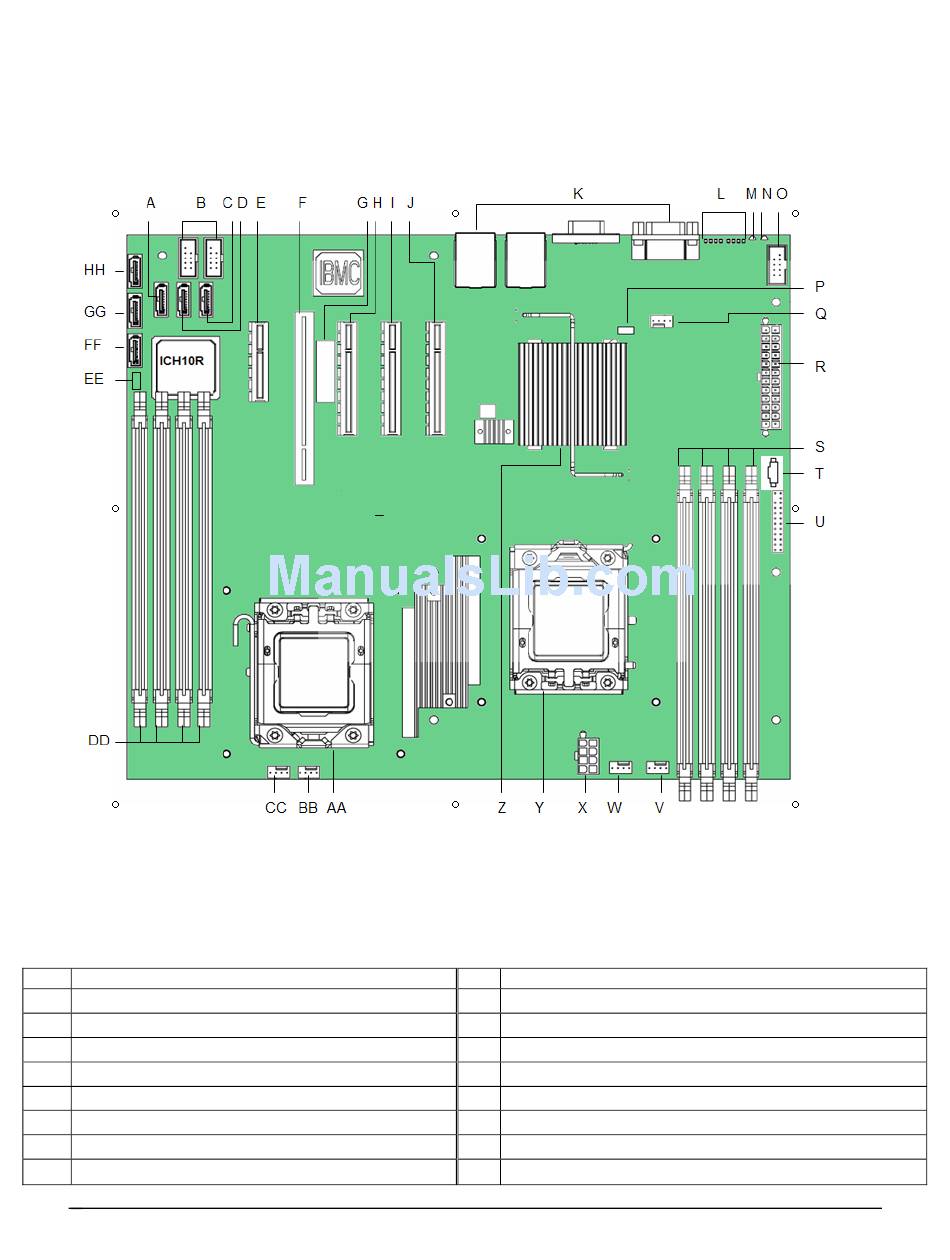

The following figure shows the board layout of the server board. Each connector and major
component is identified by a number or letter, and is described in Table 4..
A SATA 3
C SATA 5
E Slot 3, PCI Express* x4
®
G Intel RMM3 slot
I Slot 6, PCI Express* x8 (Riser card)
K Back panel I/O ports
M Status LED
O External Serial B header
8
®
Figure 5. Intel

Table 4. Board Layout reference

Description
Intel order number: E80367-002
®
Intel
Server Board S5500BC Layout
B Internal dual port USB2.0 header
D SATA 4
F Slot 4, PCI 32-bit/33 MHz
H Slot 5, PCI Express* x8
J Slot 7, PCI Express* x8
L Diagnostic LEDs
N ID LED
P SATA Key
