Attaching Child Seat Using The "Isofix" System - Skoda OCTAVIA - 05-2005 Manual

210 Transporting children safely
Attaching child seat using the "ISOFIX"
system
There are two fixing eyes* between the backrest and the seat of
the front passenger for fixing the "ISOFIX" system child seat in
place. The locking eyes on the rear outside rear seats are located
below the upholstery. The places are marked with -ISOFIX-.
Install child seat
– Open the zip fasteners between the seat and the backrest of
the rear outside seat.
– Insert the mounting funnels
between the backrest and seat cushion
– Push the notched arms of the child seat over the mounting
funnels into the locking eyes, until it is heard to lock
– Pull on both sides of the child seat!

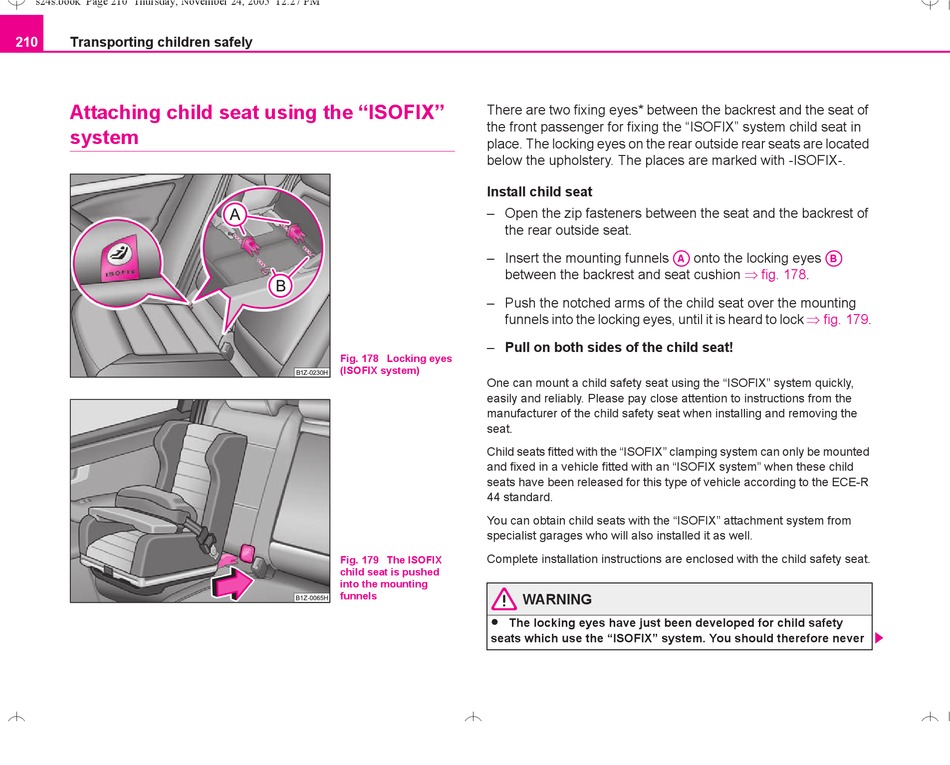

Fig. 178 Locking eyes
(ISOFIX system)
One can mount a child safety seat using the "ISOFIX" system quickly,
easily and reliably. Please pay close attention to instructions from the
manufacturer of the child safety seat when installing and removing the
seat.
Child seats fitted with the "ISOFIX" clamping system can only be mounted
and fixed in a vehicle fitted with an "ISOFIX system" when these child
seats have been released for this type of vehicle according to the ECE-R
44 standard.
You can obtain child seats with the "ISOFIX" attachment system from
specialist garages who will also installed it as well.
Complete installation instructions are enclosed with the child safety seat.
Fig. 179 The ISOFIX
child seat is pushed
into the mounting
funnels
•
The locking eyes have just been developed for child safety
seats which use the "ISOFIX" system. You should therefore never
A
onto the locking eyes
A
WARNING
A
B
⇒ fig.
178.
⇒ fig.
179.
