Morphy Richards IBCR1909 Operating Instructions

2 Band Alarm
Clock Radio
CR1909 OPERATING INSTRUCTIONS
Electrical requirements
Check the voltage on the rating plate of your clock radio corresponds with
your house electricity supply which must be A.C. (Alternating current).
For clock radios with a fitted plug.
If the socket outlets in your home are not suitable for the plug supplied with
this appliance the plug should be removed and the appropriate one fitted.
IMP0RTANT : THE PLUG REMOVED FROM THE MAINS LEAD, IF SEVERED,
MUST BE DESTROYED AS A PLUG WITH A BARED FLEXIBLE CORD IS
HAZARDOUS IF ENGAGED INTO A LIVE SOCKET OUTLET.
Should the fuse in the 13 amp plug require changing a 3 amp BS1362 fuse
must be fitted.
Battery back-up facility
(unit will work without a battery being fitted)
Your alarm clock radio is equipped with a battery back-up facility.
1 Remove the battery compartment cover (located underneath the unit) by
pushing in the clip and lifting off.
2 Insert a battery size 9 volts PP3/6LR61 (Ensure batteries are inserted correctly)
3 Replace the battery compartment cover.
Should a power interruption occur the clock will continue to run, however, time
keeping will not be accurate. The display will be extinguished to conserve battery
life but the memory will retain details of the clock time and alarm settings.
If the optional battery is not installed in case of the AC power failure the display
will blink to indicate the power was interrupted. You will need to reset the clock
and alarm.
Battery back-up is designed to operate for a short period only.
If the unit is not to be used for a prolonged period, remove the battery to
avoid battery leakage.
In the interests of environmental safety : dispose of batteries safely.
P.3

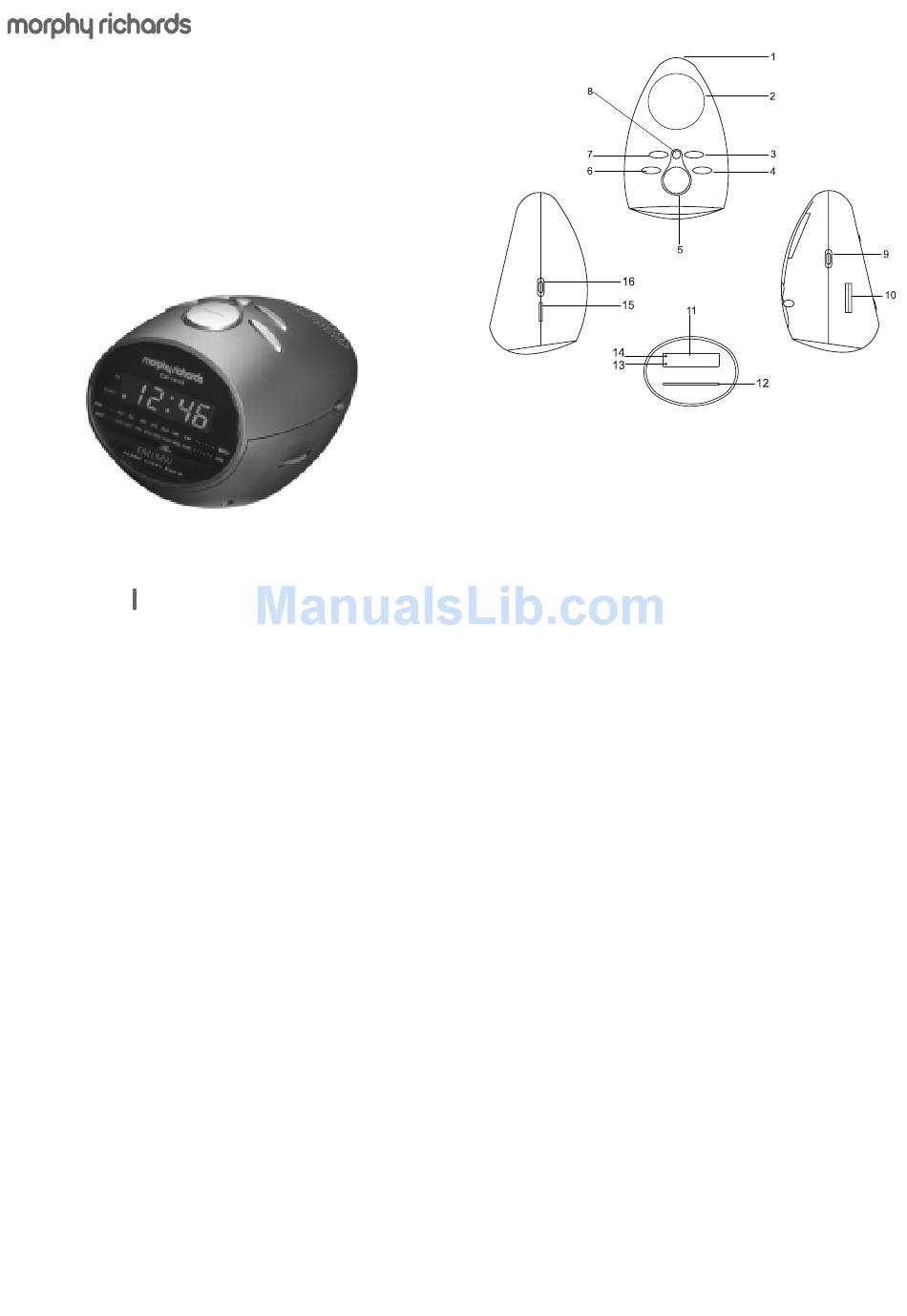

Illustration
Location of controls
1 FM wire aerial
2 Speaker
3 Minute button
4 Time button
5 Snooze button
6 Sleep button
7 Hour button
8 Alarm button
Switching on, and setting the clock time
Before any alarm functions can be used on your alarm clock radio you
must first set the clock to the correct time.
1 Place the unit on a flat surface. Plug the mains plug into the wall socket and
switch on the wall socket.
2 The clock LED display (11) will flash.
3 Press and hold the TIME button (4) and simultaneously hold down the hour
button (7) or the minute button (3). The LED clock display (11) will fast
forward the minutes and hour segments. Release all buttons when the correct
time is set.
4 The PM indicator (14) will illuminate to indicate 12.00 midday has been
reached.
Radio operation
FM wire aerial
To obtain the maximum FM reception fully extend the wire FM aerial (1) (which is
located at the rear of the unit) and alter the direction of the wire for best results.
The aerial for the MW waveband is located inside the unit. To obtain the
maximum MW reception rotate the clock radio.
1 Slide the FUNCTION SELECTOR switch (16) to the 'ON' position.
2 Adjust the VOLUME control (15) to a suitable level.
3 Set the BAND SELECTOR switch (9) to either MW or FM as desired.
4 Slowly adjust the TUNING control (10) to select your desired station.
5 To switch off the radio, slide the FUNCTION SELECTOR switch (16) to the
'OFF' position.
9 Band selector switch
10 Tuning control
11 Clock led display
12 Dial scale with pointer
13 Alarm indicator
14 PM indicator
15 Volume control
16 Function selector switch
P.2
P.4
