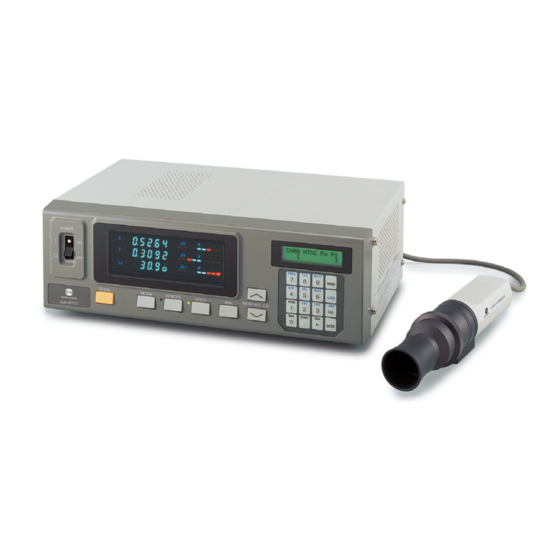

DISPLAY COLOR ANALYZER Select the probe among the following four types. CA-210 For LCD flicker measurement, use the LCD Flicker Measuring Probe or Small LCD Flicker Measuring Probe (see other side). � CA-PU12 Universal Measuring Probe (Measurement area φ27 mm / Cable length: 2 m) �... -
Page 3: System Diagram
Optical System Features The CA-210 uses a special optical system suitable for providing CA-210 optical system measurements of LCD panels. Objective lens Optical fiber block Sensor The main components of the optical system are the objective lens, optical fiber block, on-chip lenses, and sensor. The light from the light source is focused onto the receiving window of the optical fiber block. -
Page 4: Measuring Probe
(∗1) Measurements of displays using certain control methods are not possible. For Standard LCD flicker details of measurement compatibility, contact your nearest Minolta representative. measurements measurements Examples for which measurement is not possible: • Displays which use PWM, etc. for control of emission intensity. - Page 5 (R, G and B). Since the matrix correction factor obtained from Minolta's calibration standard has been set, measured values Gamma Adjustment System...
- Page 6 Main body: 3.58 kg, Probe: 520 g Main body: 3.58 kg, Probe: 540 g ∗1 : The chromaticity and luminance are measured under Konica Minolta’s condition (standard LCD(6500 K, 9300 K) is used). • Specifications are subject to change without notice. ∗2 : The luminance for monochrome is measured when the reading of luminance for white is 160 cd/m ∗3...
