Owner's Manual
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT
NOTES" (p. 3–4; p. 5–6).
These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your
new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a
convenient reference.
Copyright © 2007 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of
ROLAND CORPORATION.
Advertisement
Table of Contents
Related Manuals for Edirol M-10DX

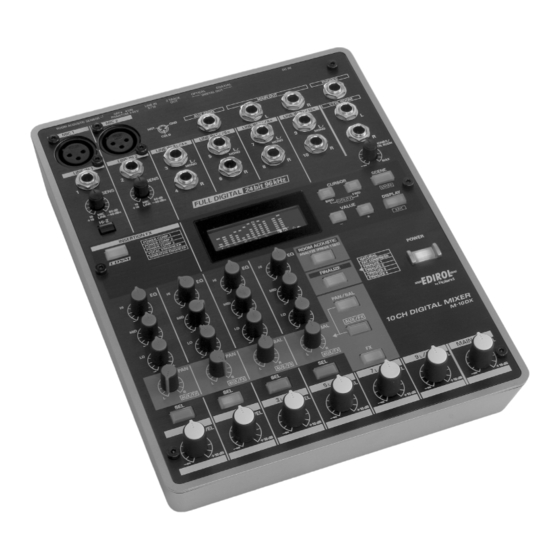

Summary of Contents for Edirol M-10DX

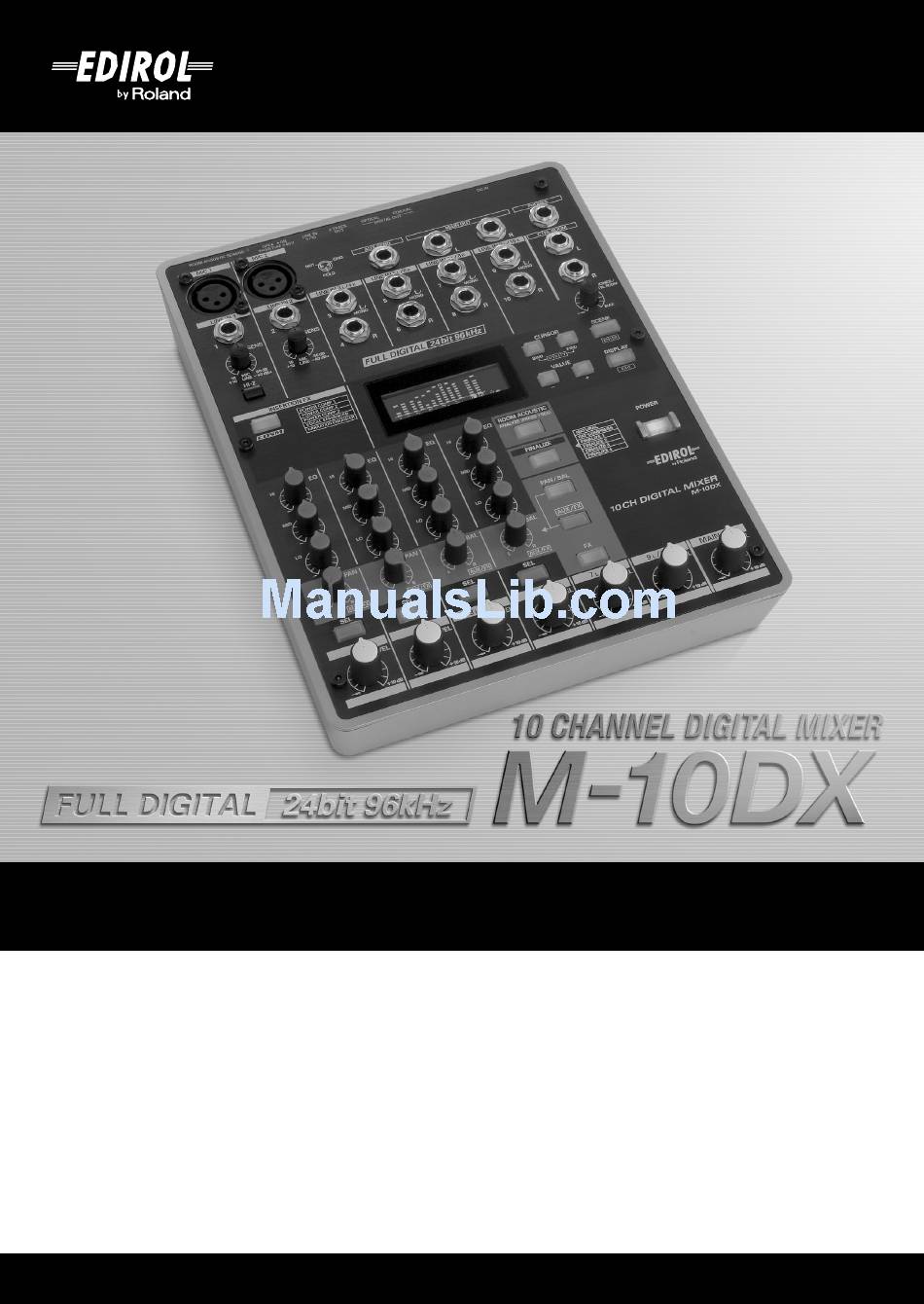

- Page 1 Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference. Copyright © 2007 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of...
- Page 2 For the U.K. IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE. BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
-
Page 3: Using The Unit Safely
Refer • This unit, either alone or in combination with an all servicing to your retailer, the nearest Roland amplifier and headphones or speakers, may be Service Center, or an authorized Roland capable of producing sound levels that could cause distributor, as listed on the “Information”... - Page 4 • Before using the unit in a foreign country, consult • Avoid using new batteries together with used with your retailer, the nearest Roland Service ones. In addition, avoid mixing different types Center, or an authorized Roland distributor, as of batteries.
-
Page 5: Important Notes
352a • This device may interfere with radio and television that it may not be possible to restore the data, and Roland reception. Do not use this device in the vicinity of such assumes no liability concerning such loss of data. - Page 6 When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page. Unsuitable places for connection •...
-
Page 7: Table Of Contents
Contents USING THE UNIT SAFELY ..........3 IMPORTANT NOTES ........... 5 Main features............9 Block diagram............10 Names of things and what they do ......12 Front panel .........................12 Rear panel........................15 Installing batteries .....................16 Basic use ..............17 Main connections.......................17 Example 1) Simple PA....................... - Page 8 Adjusting the brightness of the screen (LCD Contrast) ..........37 Adjusting the brightness of the backlight (LCD Backlight)......... 37 Reducing the battery consumption (LCD Power Save) ..........37 Specifying the M-10DX’s sampling frequency (Sample Freq)........38 Selecting the Room Acoustic Sensor (RAC Source) ............38 Specifying the frequency range analyzed by Room Acoustic Auto Control (RAC Freq >= / RAC Freq <=) .....
-
Page 9: Main Features
Two-way power for operation anywhere The M-10DX can be powered using the included AC adaptor, or using batteries (eight AA batteries). If you use batteries, you’ll be able to set up your system anywhere, including outdoors. -
Page 10: Block Diagram
Block diagram PHANTOM POWER INSERT MIC IN LINE IN REC OUT 1 MONO CHANNEL 1 – 2 ( 1 OF 2 ) REC OUT 2 FREQ STEREO CHANNEL 3/4 – 5/6 ( 1 OF 2 ) LINE IN L LINE IN R STEREO CHANNEL 7/8 FREQ LINE IN L... - Page 11 LEVEL METER 2 TRACK OUT L MAIN OUT L G-EQ MAIN ROOM FINALIZE MAIN MIX LEVEL ACOUSTIC 2 TRACK OUT R CONTROL MAIN OUT R COAX OUT REC OUT 1 From OPTICAL OUT REC OUT 2 REC OUT to D-OUT ( UTIL ) CONTROL ROOM L...
-
Page 12: Names Of Things And What They Do
Names of things and what they do Front panel 4. EQ Knobs (HI, MID, LOW) M-10DX_Front.eps Provide for three-band equalization, with high, mid, and low frequency controls for each channel. The corresponding frequency range will be boosted when you turn a knob toward the right, be cut when you turn it toward the left, and made flat when the knob is in the center (U) position. -
Page 13: Power Switch
12. ROOM ACOUSTIC Button Allow you to localize a mono input signal between L and R. The output from the M-10DX’s MAIN OUT jacks or The signal will be located in the center when a knob is in the CONTROL ROOM jacks can be automatically adjusted to ) position. - Page 14 Names of things and what they do The DISPLAY button’s light will go out when you press M-10DX-Front-2.eps another button to switch to something other than the level meter screen. From any screen, you can press the DISPLAY button to access the level meter screen.
-
Page 15: Phones Jack
For details on the specifications for your mic, refer to the instruction manual that came with the mic you’re using. * The M-10DX’s phantom power: (per channel) DC 48 V, 5 mA Max 34. ROOM ACOUSTIC SENSOR 29. -
Page 16: Installing Batteries
• Do not mix new batteries with used batteries nor mix batteries of differing types. • If you will not be using the M-10DX for an extended time, we recommend that you remove the batteries to prevent leakage or other accidents. -
Page 17: Basic Use
Basic use Main connections To prevent malfunction and/or speaker damage, you must turn down the volume on all equipment and switch off their power before making connections. Example 1) Simple PA fig.Connection-1 Monitor speaker Monitor speaker CD player or other audio device Included AC adaptor Power amp... -
Page 18: Example 2) Computer Music
If you’re connecting a condenser mic that requires phantom power, turn the [PHANTOM] switch on. Change the system settings so that the channel 1 and 2 pre-fader signals (i.e., from before passing through the channel LEVEL knob) will be output from the M-10DX’s DIGITAL OUT (p. 38). -
Page 19: Example 3) Editing Sound For Video
Basic use Example 3) Editing sound for video fig.Connection-2 LINE OUT Video recorder (master) Portable recorder (R-4 Pro) Stereo Condenser mic headphones (narration) Powered monitor Video recorder 1 Video recorder 2 Video recorder 3 If you connect a condenser mic that does not require phantom power, turn the [PHANTOM] switch off. -
Page 20: Turning The Power On
Set the MAIN MIX LEVEL knob and PHONES/ turn off the power. CTRL ROOM knob to the “-∞” position. • The M-10DX’s MAIN MIX LEVEL knob has been set to * Minimize the MAIN MIX LEVEL and PHONES/CTRL the “-∞” position. -
Page 21: Basic Operation
Basic use Basic operation fig.Basic-Operation When you’ve finished adjusting the level of all connected devices, raise the MAIN MIX LEVEL knob until the overall volume is at an appropriate level. If you want to listen to the sound through headphones or monitors connected to the CONTROL ROOM jacks, use the PHONES/CTRL ROOM knob to adjust the volume. -
Page 22: Advanced Use
Advanced use Making detailed equalizer settings In addition to adjusting the equalizer’s high, mid, and low-frequency levels, you can also change its Mid Q and the frequency of each band. fig.EQ-01 Press the [SEL] button several times for the channel whose equalizer settings you want to edit, until the equalizer screen appears. -
Page 23: Using The Dedicated Vocal/Narration Effect (Insert Effect)
Advanced use Using the dedicated vocal/narration effect (Insert Effect) The M-10DX provides five types of dedicated vocal/narration insert effects based on COSM technology. These effects can be applied directly to channels 1 and 2. You can edit the settings of the insert effect to obtain the result that’s appropriate for your input source or situation. -
Page 24: Editing The Effect Settings
Advanced use Editing the effect settings fig.INSFX-01 Press the [INSERTION FX] button so it’s lit, turning the insert effect on. The insert effect screen will appear. * If a different screen is shown even though the [INSERTION FX] button is lit, pressing the [INSERTION FX] button will display the insert effect screen. -
Page 25: List Of Effects
Advanced use List of effects ■ Power Cmp1 This controls a COSM effect that simulates a vacuum tube amp, and a compressor. It boosts thin sounds that are lacking in low range, giving them greater weight and power. ■ Power Cmp2 This controls a COSM effect that simulates a vacuum tube amp, and a compressor. - Page 26 Advanced use ■ Vocal Enh. (Vocal Enhancer) This effect controls a four-band equalizer to give the voice brightness and clarity. It works on the basic components of a voice as well as the components that define its character, boosting or reducing these components.
-
Page 27: Selecting The Effect Type
Advanced use Applying echo/reverb (FX) As effects that process the output signal, the M-10DX provides two types of echo and five types of reverb. You can edit the parameters of the echo/reverb effect to your needs and taste. Use the AUX/FX knobs to adjust the depth of echo/reverb for each input (p. 12). -
Page 28: List Of Effects
Advanced use List of effects ■ SHORT ECHO This is an echo effect that repeats the sound at short intervals. Parameter Range Explanation DELY 10–200 (ms) Adjusts the spacing of the repetitions. REPT 0.0–6.0 (s) Adjusts the length (time) of the repetitions. ■... -
Page 29: Adjusting The Output Signal Appropriately For Your Environment (Room Acoustic Control)
At the touch of a single button, this function performs the following operations: (1) Outputs a test signal from the M-10DX, and plays this signal through the connected monitors. (2) Detects the sound played by the monitors with the Room Acoustic Sensor, and analyzes its frequency response. - Page 30 Advanced use Using the MAIN MIX LEVEL knob and the volume controls of your amp or speakers, adjust the volume of the sound from the speakers so it’s at a suitable level. Adjust the volume as you would for normal playback when listening to the music. If the speaker volume is too high the test signal will be produced at a loud volume, and if the volume is too low the sensor will be unable to detect the test signal.
- Page 31 Advanced use fig.RAC-04 Press the CURSOR [BWD] [FWD] buttons to move the cursor to the amplitude of the response curve. Use the VALUE [-] [+] buttons to adjust the amplitude of the response curve. * If you’ve selected FLAT as the response curve, you won’t be able to adjust the amplitude. Range 70–100–130% If the [ROOM ACOUSTIC] button is lit, you can hold down the [DISPLAY] button and press the [ROOM...
- Page 32 When the adjustment has been completed, the input channels will be unmuted, and the M-10DX will return to normal operation. Listen to the adjusted sound. The frequency response curve and its amplitude is stored together with the adjustment results (graphic equalizer settings) as a set.
-
Page 33: Manual Adjustment
Advanced use Manual adjustment Depth of the adjustment results Use the CURSOR [BWD] [FWD] buttons to move the cursor to the percentage indication, and use the VALUE [-] [+] buttons to change the percentage by which the results of the automatic adjustment will be applied. -
Page 34: Creating A Well-Balanced Sound (Finalize)
This process is called “finalizing,” and is done using a multi-band compressor and an enhancer. The M-10DX provides six types of Finalize effects. You can adjust the Finalize settings to create the result that’s suitable for your needs. -
Page 35: List Of Effects
Advanced use List of effects ■ Natural This effect adds a natural finish that does not impair the original character of the sound. Parameter Range Explanation CROSS 10.0–14k (Hz) Specifies the frequency at which the low and high ranges will be divided. Lowers the threshold of the multi-band compressor (the volume at which the compressor begins to apply), and simultaneously raises the volume. -
Page 36: Saving And Calling Up Mixer Settings (Scenes)
Advanced use Saving and calling up mixer settings (Scenes) The M-10DX lets you save eight different sets of mixer settings including the effects. Each set of mixer settings is called a “scene,” and can be called up instantly whenever needed. -
Page 37: Other Functions
You can change various system settings in order to perform Range mixing operations more conveniently and efficiently. 0–19 You can also restore the settings of the M-10DX to their original state. Adjusting the brightness of the backlight (LCD Backlight) Basic procedure You can adjust the brightness of the display backlight. -
Page 38: Specifying The M-10Dx's Sampling Frequency (Sample Freq)
1. If you fail to disconnect (Battery) the mic, a feedback loop may occur, possibly damaging your speakers. If you’re operating the M-10DX on batteries, you must specify the type of batteries you’re using. Setting Explanation Built-in Use the sensor built into the M-10DX. -
Page 39: Initializing The Settings (Initialize)
Use the CURSOR [BWD] [FWD] buttons to After the factory reset is completed, the level meter select the settings you want to initialize. screen will appear. Setting Explanation All settings of the M-10DX * Except for UTILITY settings Insert effect (*) Echo/reverb (*) Graphic equalizer/ GEQ/RAC... -
Page 40: Troubleshooting
❏ Is the AC adaptor connected to the DC IN jack? If the AC adaptor’s plug is connected to the DC IN jack, the M-10DX cannot operate on batteries even if batteries are installed. Unplug the AC adaptor if you want use batteries. - Page 41 3. Lower the volume ❏ Is an audio device connected to the M-10DX? If the input and output of the audio device are both connected to the M-10DX, the signal may be creating a feedback loop. Please check the connections.
-
Page 42: Phantom Power
Troubleshooting Volume of a device connected to the LINE IN jacks is too low ❏ Could you be using a connection cable that contains a resistor? Use a connection cable that does not contain a resistor. Can’t hear the sound from a mic connected to a MIC connector (1–2) ❏... -
Page 43: Main Specifications
Main specifications M-10DX Number of Input Channels 10 channels Sample Rate: 44.1/48.0/96.0 kHz AD/DA Conversion Signal Processing: 24 bits 96.0 kHz: 20 Hz to 40 kHz (+3/-3 dB) Frequency Response 48.0 kHz: 20 Hz to 22 kHz (+3/-3 dB) 44.1 kHz: 20 Hz to 20 kHz (+3/-3 dB) MAIN MIX LEVEL knob = -∞, Channel LEVEL knobs = -∞... - Page 44 Main specifications Room Acoustic Control (built-in microphone) Finalize: Enhancer/Multi-band Compressor-Limiter DSP processing Insertion effects: Power compressor/Vocal enhancer/Narration enhancer Echo/Reverb: Short echo/Echo/Room reverb/Small hall reverb/Large hall reverb DC 9 V (AC adaptor), Power Supply Alkaline dry battery LR6 (AA) type x 8 or Nickel metal-hydride battery (HR15/51) x 8 950 mA * Expected battery life under continuous use: Current Draw...
-
Page 45: Index
Index Numerics 2 TRACK OUT ................15 Factory Reset ................39 FAT Comp ..................35 Final ....................35 FINALIZE ................13, 34 Alkaline ..................38 Finalize ................... 34, 39 ALL ....................39 FLAT ..................... 30 ATTACK ..................26 FWD ....................14 AUX SEND .................. - Page 46 Index Narration ..................26 UTILITY ..................37 Natural ..................35 Nickel Metal-Hydride ............16, 38 Ni-MH ..................38 VALUE ..................14 NS .................... 25–26 Vocal Enh..................26 Vocal Enhancer ................26 P.DLY .................... 28 PAN ..................13, 21 WARMY ..................30 PAN/BAL ..................
- Page 47 For EU Countries...
- Page 48 Information When you need repair service, call your nearest EDIROL/Roland Service Center or authorized EDIROL/Roland distributor in your country as shown below. IRELAND HONG KONG BRAZIL TRINIDAD MIDDLE EAST Roland Ireland Parsons Music Ltd. Roland Brasil Ltda. AMR Ltd G2 Calmount Park, Calmount...
