Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Edirol Manuals
  4. Music Mixer
  5. M-16DX
  6. Workshop manual

Edirol M-16DX Workshop Manual

16-channel digital mixer m-16dx effects
Hide thumbs Also See for M-16DX:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Workshop Manual, Owner's Manual
Workshop
M-16DX
16-Channel Digital Mixer
The M-16DX Effects
© 2008 Roland Corporation U.S.
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of Roland Corporation U.S.
M16DXWS14
1

Advertisement

loading

Related Manuals for Edirol M-16DX

Summary of Contents for Edirol M-16DX

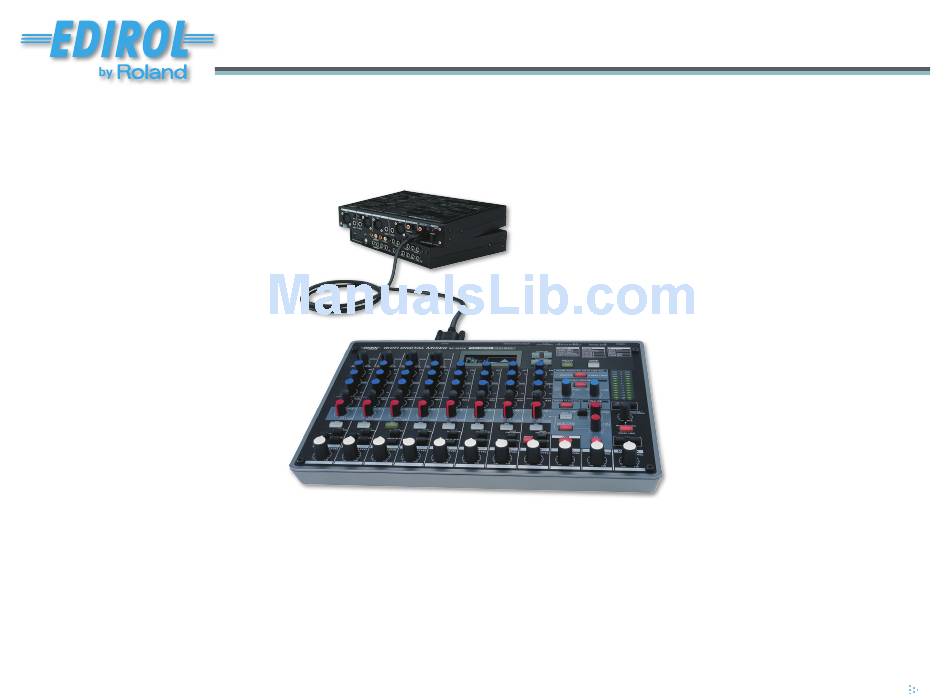

  • Page 1 Workshop M-16DX 16-Channel Digital Mixer The M-16DX Effects © 2008 Roland Corporation U.S. All rights reserved. No part of this publication may be reproduced in any form without the written permission of Roland Corporation U.S. M16DXWS14...
  • Page 2 The M-16DX offers onboard digital effects you’re likely to find explanatory sections, click here. useful no matter how you’re using the M-16DX. It’s also easy to apply external effect processing to your M-16DX audio signals. This booklet discusses the Loop Effects use of both internal and external effects with the M-16DX.

  • Page 3: Insert Effects

    In the M-16DX, signals are sent to the original signal altogether.
  • Page 4 Why Use Effects? Working with The M-16DX’s Internal Effects The M-16DX can be used in a variety of situations, and effects can often play Selecting and Editing Internal Effects a key role. Whether you’re selecting and/or editing an internal loop or an insert effect Recording In a DAW on the M-16DX, the process is essentially the same.
  • Page 5 MIX LEVEL knob to add the output of the loop effect, simply press the button again to turn it back on. effect into the M-16DX’s main mix. Press the FX button so it lights—thus turning on the loop effect—and select the desired echo or When you’re done adding the loop effect to your channels’...

  • Page 6: Using Insert Effects

    Using Insert Effects Echo This effect creates a long repeating delay/echo. To insert an effect on Input Channel 1 and/or 2: Press the INSERT FX•COSM button so it lights— Parameter: This parameter thus turning on the insert effect—and select TIME sets the length of time the delay the desired effect, as described earlier.
  • Page 7 Power Cmp2 Vocal Enh. Power Cmp3 is for vocals, making them tighter and more up-front. This effect provides a four-band EQ for clarifying a vocal signal and bringing it forward in a mix. Parameter: This parameter Parameter: This parameter sets the threshold below which unwanted, range: -90 to -440dB quieter sounds are cut in volume to sets the threshold below which unwanted...
  • Page 8 Here’s how to set up your external effect loop using Aux 1: You may want to use external effects with the M-16DX if you have an external Connect the AUX SEND 1 jack on the rear panel of the M-16DX’s I/O device that offers effects the M-16DX doesn’t have onboard.
  • Page 9 Channel 15/16’s LEVEL knob. If Your External Effect Has Digital Connectors Since the M-16DX’s DIGITAL OUT jacks carry the entire main mix, you can use an digital external effect processor for the adding of mastering effects to the...
