ERROR MESSAGES FOR CONNECTED i.LINK
DEVICES
"LOOP CONNECT"
This message is displayed if the i.LINK device is
connected in a loop. Connect the device so that
the connection does not form a loop.
"NODE OVER"
This message is displayed if more than 63
i.LINK devices are connected to the SR9600,
including the SR9600. Limit connections to 63 a
maximum devices including the SR9600.
"HOP OVER"
This message is displayed if more than 17
i.LINK devices are connected in a daisy chain.
Keep daisy chain connections to a maximum 17
devices.
"BUS FULL"
This message is displayed if too many devices
are outputting signals on the i.LINK bus. Either
shut off power or disconnect unused devices.
"CANNOT LINK"
This message is displayed if the SR9600 cannot
connect to an i.LINK device or if an unconnected
device is selected as the input source.
Disconnect and reconnect the i.LINK cable, or
shut power to the SR9600 off and turn it back on.
M E S S A G E S W H E N A N i . L I N K D E V I C E I S
CONNECTED
"LINK CHECK"
This message is displayed while the SR9600
c h e c k s f o r c h a n g e s i n i . L I N K d e v i c e
connections.
"NO SIGNAL"
This message is displayed if a signal not
supported by the SR9600 is input.

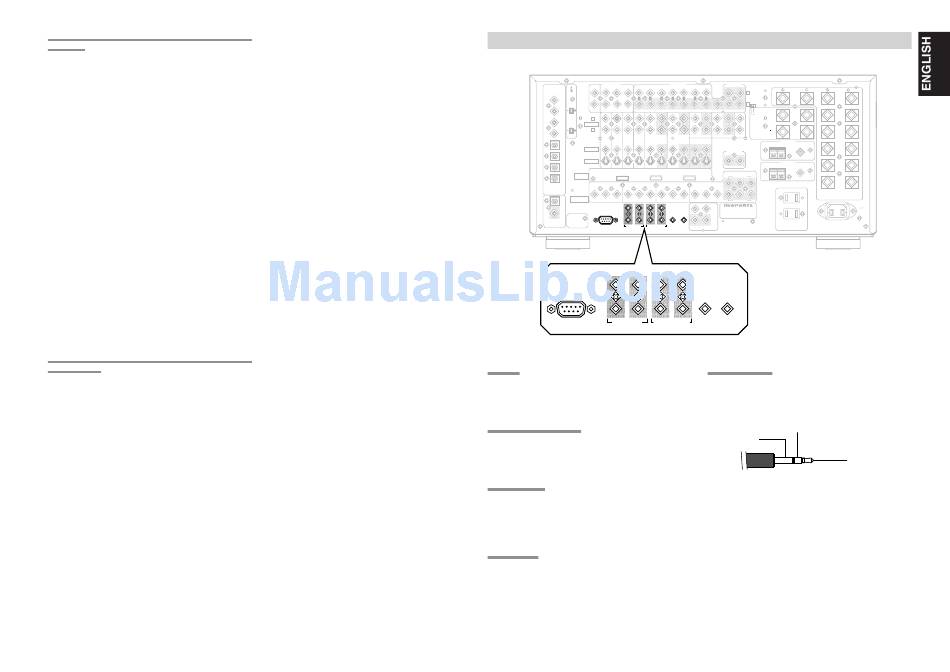

CONNECTING OTHER EQUIPMENT

7.1CH IN
L SL SBL C L R SL
DIGITAL
IN
(AUDIO)
1
S400
SR SBR SW
2 R
(AUX 2)
L
3
AUDIO
S400
R
4
DVD LD TV DSS VCR-1
IN OUT
5
VIDEO
6
S-VIDEO
7
INPUT-1 INPUT-2
(DVD) (DSS)
HDMI
Ver 1.1
8
INPUT-1 (DVD) INPUT-2 (DSS) INPUT-3 (VCR-1)
COMPONENT
OPT VIDEO Y C B / C R / Y C B / C R / Y
P B P R P B P R
1 1 3 3 1 1 3 3
COAX
2 2 4 4 2 2 4 4
DIGITAL
OUT
USB AUDIO RS232C RS232C DC OUT DC OUT EMITTER OUT EMITTER OUT
1 3 1
2 4 2
RS232C DC OUT EMITTER OUT
RS232C
Connect an external control device or other device
for servicing. (Use a straight cable for the
connection.)
DC OUT (DC TRIGGER)
External devices can be controlled from the
SR9600 by connecting them to the DC OUT
terminal (12 V).
EMITTER OUT
Outputs the remote control signal input to the IR
RECEIVER IN terminals. External components
can be controlled by connecting them to the
EMITTER OUT terminal.
FLASHER IN
This receiver can be controlled by connecting a
control box or other control device to this receiver.
MAIN IN MULTI OUT
SR SBL SBR C A B
L
FRONT A
CENTER
LEFT
R
SPEAKER C
PRE OUT SW AUDIO
ON SURR.BACK
FRONT A
OFF /MULTI SPK.
/SPK. C RIGHT
LEFT
SURR.BACK FRONT B
/MULTI SPK.
LEFT
/SPK. C
IN TAPE OUT IN CD-R / MD OUT CD RIGHT
VCR-2 / DVD-R MONITOR OUT
TUNER-1
IN OUT 1 2
AM GND FM(75Ω)
FRONT B
RIGHT
MULTI OUT
A B
TUNER-2
SURR.
AM GND FM(75Ω)
VIDEO LEFT
OUTPUT
Y C B / C R /
P B P R
OUTPUT-1
SURR.
RIGHT
INPUT-4 (VCR-2 / DVD-R) CLASS 2 WIRING
SWITCHED 1A 120W MAX SPEAKER SYSTEMS
FRONT A OR B, CENTER, SURR,
SURR BACK : MINIMUM 6 OHMS
FRONT A AND B : MINIMUM 8 OHMS
C B / C R / Y C B / C R /
P B P R P B P R OUTPUT-2
UNSWITCHED 1A 120W MAX
IN
IR IR MODEL NO. SR9600
FLASHER RECEIVER FLASHER RECEIVER
IN IN IN IN
OUT
AC 120V 60H Z
RC-5 MULTI RC
AC OUTLETS
3
IR
FLASHER RECEIVER
IN IN
4
IR RECEIVER IN
This receiver can be operated by remote control
without using the internal IR receiver, by
connecting an external IR receiver.
GND
+12V
An IR receiver is connected as shown above.
Caution:
Wrongly connecting an IR receiver or connecting
an IR receiver of the wrong voltage can damage
the SR9600, therefore do not do this.
AC IN
