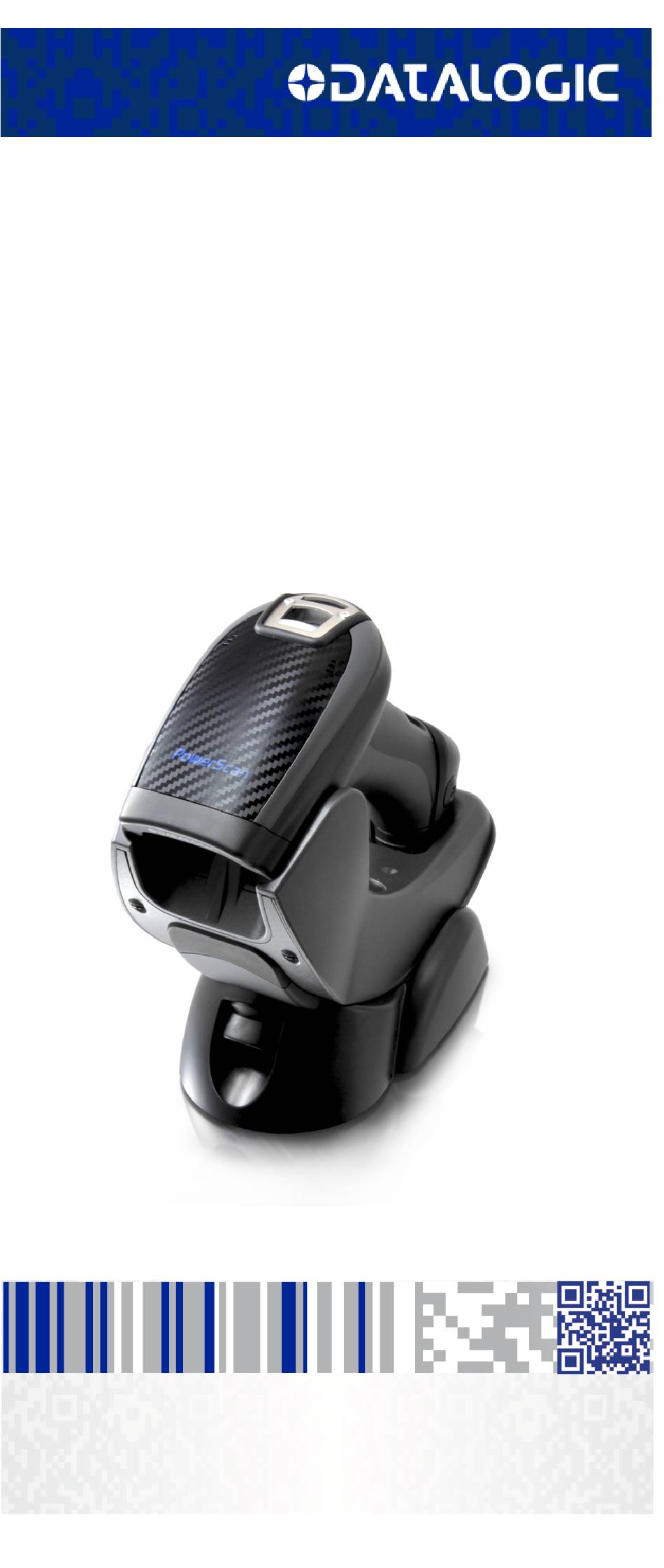

- Page 1 PowerScan™ Retail PBT9501-RT Industrial Cordless Handheld Area Imager Bar Code Reader Quick Reference Guide...
- Page 2 Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page. Disclaimer...
-
Page 3: Table Of Contents
Resetting Product Defaults ..........6 Set Date and Time ................7 Linking the Reader ................8 Link Datalogic RF Devices to Base......8 Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode ..............8 Linking to a Bluetooth Adapter in HID mode..... 9 Variable PIN Code ............ - Page 4 NOTES PowerScan™ Retail PBT9501-RT...
-
Page 5: End User Software License Agreement (Eula)
Software and Documentation by Datalogic IP Tech S.r.l. and its subsid- iaries and affiliates ("Datalogic") to the entity or person who has pur- chased or otherwise acquired a Datalogic Product ("End User"). For... - Page 6 Datalogic Product absent such agreement shall be null and void. 3.3 End User may obtain support for Software from Datalogic at Data- logic' s standard support fees and under Datalogic's standard sup- port terms and conditions in effect at the time the support is requested.
- Page 7 8. Limitation Of Liability DATALOGIC SHALL NOT BE LIABLE FOR ANY CLAIMS AGAINST END USER BY ANY OTHER PARTY. IN NO EVENT SHALL DATALOGIC' S LIABIL- ITY FOR DAMAGES, IF ANY, WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE PRICE OR FEE PAID BY END USER FOR THE DATALOGIC PRODUCT.
- Page 8 Technical Data and Computer Software clause at DFARS 252.227- 7013(c)(1)(ii), whichever is applicable. 9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S. export control laws, and with the English language version of this Agree- ment.
-
Page 9: Software Product Policy
Italian Court of Bologna shall have exclusive jurisdiction over all matters regarding this Agree- ment, except that Datalogic shall have the right, at its absolute dis- cretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located. - Page 10 Software Product Policy NOTES viii PowerScan™ Retail PBT9501-RT...
-
Page 11: Description
PowerScan™ PBT9501-RT Description The PowerScan™ Retail 9501 series is the first handheld scanners family on the market capable of reading digital watermarks, including Digimarc® Barcode. The Power- Scan™ PBT9530-RT is a feature-rich and rugged area imager reader. It is offered in several different models to better fit the different needs of each customer. -
Page 12: Using The Powerscan™ Pbt9501-Rt
USA Driver License USA Driver PDF417 barcodes. This feature can be enabled License Parsing using either Datalogic Aladdin™ or the barcodes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website. Using the PowerScan™ PBT9501-RT The PowerScan™... -
Page 13: Installing The Battery Pack
Always charge the battery at 32° – 104°F (0° - 40°C) tem- perature range. Use only the authorized power supplies, battery pack, char- gers, and docks supplied by your Datalogic reseller. The use CAUTION of any other power supplies can damage the device and void your warranty. - Page 14 Installing the Battery Pack As with other types of batteries, Lithium-Ion (LI) batteries will lose capacity over time. Capacity deterioration is noticeable after one year of service whether the battery is in use or not. It is difficult to precisely predict the finite life of a LI battery, but cell manufacturers rate them at 500 charge cycles.
-
Page 15: Charging The Batteries
Installing the Battery Pack Charging the Batteries Once the BC 90x0-BT is powered, you can charge the reader' s ™ batteries. Place the PowerScan PBT9501 into the BC 90x0- BT cradle. The Reader LED on the cradle/battery charger turns red. The battery is completely charged when the Reader LED on the cradle/battery charger turns green. -
Page 16: Programming
Programming Programming The reader is factory-configured with a set of standard default features. Customize your reader through use of the programming bar codes available in the PowerScan™ PBT9501-RT. Check the corresponding features section for your interface, and also the Data Editing and Symbolo- gies chapters of the PRG. -
Page 17: Set Date And Time
Set Date and Time Set Date and Time 1. Scan the Enter/Exit Programming barcode below to set date and time. ENTER/EXIT PROGRAMMING MODE 2. Scan the Set Date barcode + six digits for Year, Month and Day (YYMMDD) from the Hex-Numeric Keypad on page Set Date... -
Page 18: Linking The Reader
3. Use the host computer’s Bluetooth manager to “Dis- cover new devices” and select "Datalogic Scanner." If you receive an error message, it may be necessary to disable security on the device. -
Page 19: Linking To A Bluetooth Adapter In Hid Mode
Link to PC in HID label below.. 3. Use the host computer’s Bluetooth manager to “Dis- cover new devices” and select "Datalogic Scanner." If you receive an error message, it may be necessary to disable security on the device. 4. Use a text editor to see incoming data on the port designated by the computer's Bluetooth manager. -
Page 20: Hid Country Mode
HID Country Mode HID Country Mode When the Reader is connected with a Bluetooth Adapter in HID mode, you may want to set the country for which your PC is localized. In order to do that, read one of the configuration command labels below. - Page 21 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary Country Mode = Italy Country Mode = Japanese 106-key Country Mode = Lithuanian Quick Reference Guide...
- Page 22 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Norway Country Mode = Poland Country Mode = Portugal Country Mode = Romania Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland PowerScan™ Retail PBT9501-RT...
-
Page 23: Hid Caps Lock State
HID Caps Lock State HID Caps Lock State This option specifies the format in which the reader sends character data. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable HID Alt Mode Read the configuration command label below for the HID Alt Mode feature. -
Page 24: Power Off
Power Off Power Off Scan the bar code below to shut off power to the BT hand- held until the next trigger pull. PowerOff Reading Parameters Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. -
Page 25: Digital Watermark Reading
Reading Parameters Medium (500 ms) Long (800 ms) Digital Watermark Reading ENTER/EXIT PROGRAMMING MODE Disable Enable Quick Reference Guide... -
Page 26: Operating Mode
Operating Mode Operating Mode Scan Mode The imager can be set to operate in one of several scan- ning modes. See the PRG for more information and set- tings for any of the options: Trigger Single (Default) — When the trigger is pulled, scan- ning is activated until one of the following occurs: •... - Page 27 Operating Mode Operating Mode (continued) ENTER/EXIT PROGRAMMING MODE Scan Mode = Trigger Single Scan Mode = Trigger Pulse Multiple Scan Mode = Trigger Hold Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Quick Reference Guide...
-
Page 28: Motion Aiming Control
Pick Mode Motion Aiming Control This feature configures the ability of the scanner to Enable/Disable the Aiming system when motion is detected (Motionix™ motion-sensing technology). Scan the Enter/Exit Programming bar code above, then either of the bar codes below. Motion Aiming Control = Enable Motion Aiming Control = Disable Pick Mode... -
Page 29: Multiple Label Reading
Technical Specifications Multiple Label Reading The reader offers a number of options for multiple label reading. See the PRG or software configuration tool for descriptions of these features and programming labels. Technical Specifications The following tables contain Physical and Performance Characteristics, User Environment and Regulatory infor- mation. - Page 30 Technical Specifications PERFORMANCE CHARACTERISTICS Light Source Roll (Tilt) Tolerance ± 180° Pitch Tolerance ± 40° Skew (Yaw) Tolerance ± 40° Print Contrast Mini- 15% minimum reflectance Max resolution 1D: 4 mils Resolution Max resolution 2D: 7.5 mils DEPTH OF FIELD (TYPICAL) Symbology Working Ranges 4 mils: 6-17 cm...
- Page 31 Technical Specifications DECODE CAPABILITY 1D BAR CODES GS1 Databar linear codes, UPC/EAN (A,E,13,8), UPC/EAN with P2/ P5 Addons, UPC/EAN Coupons, ISBN, Code128, EAN128, ISBT128, Code39, Code39 Full ASCII, Code39 CIP, Code 32, Codabar, Inter- leaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI, Plessey, Code 93, Follet 2/5 2D / STACKED CODES DataMatrix, MaxiCode and QR Codes (QR, Micro QR and Multiple...
-
Page 32: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s func- tions are programmable, and so may or may not be turned on. - Page 33 LED and Beeper Indications Table 3. Error Indicators INDICATION DESCRIPTION BEEPER The reader is Slow Link Attempt trying to link to Flashes the base Reader and Configura- Base are align- Fast tion Align- ing the param- Flashes ment eters' configuration The reader has 3 beeps of successfully...
- Page 34 LED and Beeper Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. INDICATION DESCRIPTION BEEPER Label Pro- A valid program- Reader sounds blinks gramming ming label has four low fre- continu- Mode Entry been scanned.
-
Page 35: Error Codes
Error Codes Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. Press and release the trigger to hear the FRU indication code. -
Page 36: Datalogic Limited Factory Warranty
90 day period starting from the date of shipment of the repaired product from Datalogic or until the expiration of the original warranty period, whichever is longer. Da-... - Page 37 Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instruc- tions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connec- tion with the return shipment.
-
Page 38: Ergonomic Recommendations
Provide a suitable working environment • Improve work procedures. Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com: For quick access, from the home page click on the search... -
Page 39: Hex-Numeric Keypad
Hex-Numeric Keypad Hex-Numeric Keypad Use the barcodes that follow to enter numbers as you would select digits/characters from a keypad. Quick Reference Guide... - Page 40 Hex-Numeric Keypad Hex-Numeric Keypad (continued) PowerScan™ Retail PBT9501-RT...
- Page 41 Hex-Numeric Keypad Hex-Numeric Keypad (continued) Quick Reference Guide...
-
Page 42: For Hid Variable Pin Code Only
Hex-Numeric Keypad For HID Variable Pin Code only If you make a mistake, scan the CANCEL barcode below to abort and not save the entry string. You can then restart. Cancel an incomplete HID Variable PIN Code Finish by scanning the Exit HID Variable PIN Code label. Exit HID Variable PIN Code PowerScan™... - Page 44 ©2013-2019 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic USA, Inc 959 Terry Street | Eugene, OR 97402 |USA...
