Summary of Contents for Datalogic DS8100A-3002

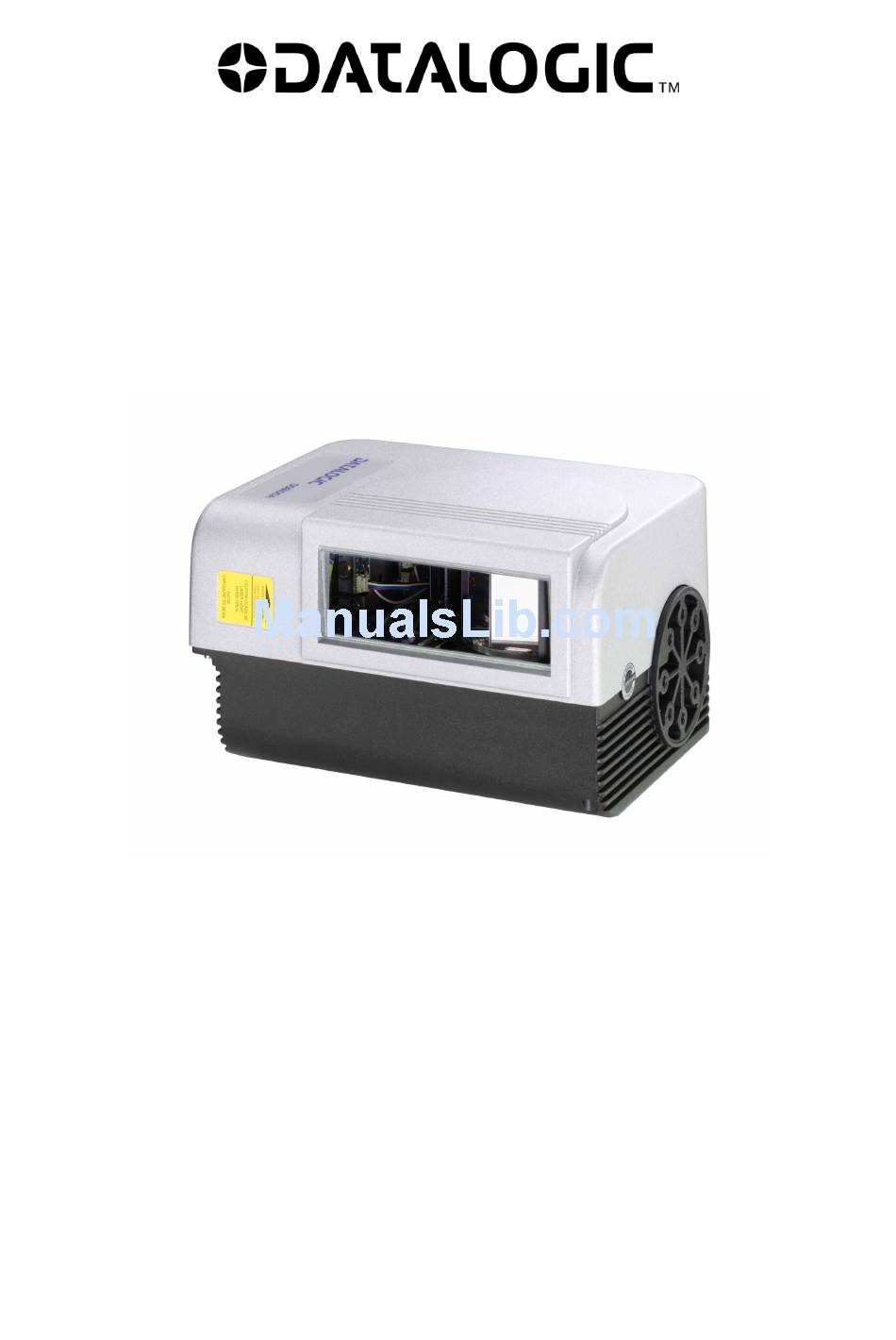

- Page 1 DS8100A-3002 QUICK REFERENCE GUIDE...
-
Page 2: General View
For further details on product installation, see the complete Reference Manual available on the configuration CD-ROM included with this product. NOTE DS8100A-3002 Figure A Laser Beam Output Window Figure B TX Data LED (Green) Network LED (Red) LCD Display Figure C Lonworks 17-pin Male Connector Lonworks 17-pin Female Connector DS8100A-3002 QUICK GUIDE... -
Page 3: Technical Features
PHYSICAL FEATURES Dimensions mm (inch) Weight * IP65 cables and connectors required (CAB-850x or BTK-8500). DS8100A-3002 QUICK GUIDE 20 - 30 Vdc 1.0 to 0.67 A; 20 W typical 1.5 to 1.0 A; 30 W Max. (including startup current) Auxiliary... -
Page 4: Electrical Connections
Supervisor (up to 128 arrays) Datalogic WebSentinel-256 Supervisor (up to 256 arrays) Electrical Connections: Two 17-pin connectors provide access to the scanner’s local Lonworks network used for both input and output connections to build a multi-sided or omni-station system. Function Name... - Page 5 Extended I/O LONWORKS CAB-850x BTK8500 Bus Return CAB-850x CAB-850x up to 3 scanners branch DX8200A-3002 DX8200A-3002 CAB-850x up to 4 branch DS8100A-3002 DS8100A-3002 Typical Layout DS8100A-3002 QUICK GUIDE VAC INPUT ENCODER PS Aux BTK8500 Bus Return CAB-850x DS8100A-3002 DS8100A-3002 SC6000...
- Page 6 DS8100A-3002 DX8200A-3002 Redundancy CAB-PWO 03 Power/Net CAB-SC6013 CAB-SC6003 Extended I/O LONWORKS CAB-850x CAB-850x CAB-850x DS8100A-3002 DX8200A-3002 Example of Redundant System Layout DS8100A-3002 QUICK GUIDE VAC INPUT ENCODER PS Aux BTK8500 CAB-850x DS8100A-3002 VAC INPUT ENCODER PS Aux BTK8500 CAB-850x DS8100A-3002...
- Page 7 DS8100A-3002 QUICK GUIDE Example of Redundant System...
-
Page 8: Mechanical Installation
Mechanical Installation: DS8100A-3002 can be installed to operate in any position. There are 16 screw holes (M6 X 8) on the sides of the scanner for mounting. The following diagrams give the overall dimensions of the reader standard model and mounting bracket. -
Page 9: Reading Diagrams
“Tilt“ angle = 0° Safety Precautions: The scanner is classified as a Class 2 laser product according to EN60825-1 regulations and as a Class II laser product according to CDRH regulations. Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to hazardous laser light. - Page 10 This scanner is intended to be supplied by either a UL Listed power supply marked 'Class 2' or 'LPS', output rated 20 - 30 V dc, minimum 1.5 A or by a UL Listed computer with LPS outputs. DS8100A-3002 must be supplied by a Class II Power Supply Unit conforming to the EN 60950 safety regulation. Patents: This product is covered by one or more of the following patents.
-
Page 11: Declaration Of Conformity
Gerät declare que el DS8100A-XXXX Laser Scanner sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats:...
