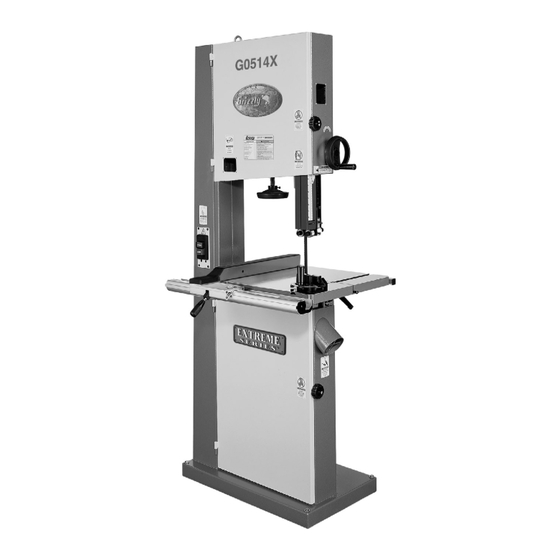

Grizzly EXTREME G0514X2 Owner's Manual

The Model G0514X2/G0514X3 is the same machine as the Model G0514X/G0514X3 except for the cast iron
trunnion assembly, table tilt assembly, and foot brake. Except for details given in this insert, the content in
the Model G0514X/G0514X3 owner's manual is the same for both machines. Before operating your new
machine, you MUST read and understand this insert and the entire Model G0514X/G0514X3 manual to
reduce the risk of injury from improper use or setup.
If you have any further questions about this manual insert or the differences between the Model G0514X2/
G0514X3 and the Model G0514X/G0514X3, contact our Technical Support at (570) 546-9663 or email
techsupport@grizzly.com.
Machine Inventory (See Page 17,
G0514X/G0514X3 Manual)
Items H-K have been added or revised (see
Figure 1). Refer to the full manual for a descrip-
tion of items A-G.
Crate Contents (Figure 1):
H. Foot Brake .................................................. 1
I.
Sliding Plate ............................................... 1
J. Table Tilt Handwheel ................................. 1
K. Guide Post Handwheel .............................. 1
Hardware and Tools (Not Shown):
• Flat Washers 8mm
(Table, Pos. Stop, Fence) .......................... 5
• Hex Bolts M8-1.25 x 25 (Table) ................. 4
• Cap Screws M6-1 x 15 (Foot Brake) ......... 4
• Lock Washers 6mm (Foot Brake) .............. 2
• Hex Bolts M6-1x 10 (Sliding Plate) ............ 2
• Flat Washers 6mm (Sliding Plate) ............. 2
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Qty
Qty
COPYRIGHT © JULY, 2007 BY GRIZZLY INDUSTRIAL, INC.
#BL9290 PRINTED IN TAIWAN
MODEL G0514X2-X3
19" BANDSAW
MANUAL INSERT
H
I
Figure 1. Foot brake and table tilt components.
Table (See Page 21, G0514X/G0514X3
Manual)
Components and Hardware Needed: ........ Qty
Hex Bolts M8-1.25 x 25 .................................... 4
6.
If the table insert is preinstalled, remove it
before changing the blade.

Positive Stop

To install the positive stop:
1. Unlock the table tilt lock lever, tilt the table to
access the positive stop bolt installation loca-
tion, then lock the lever.
J
K
