Chapter 2 Hardware Installation

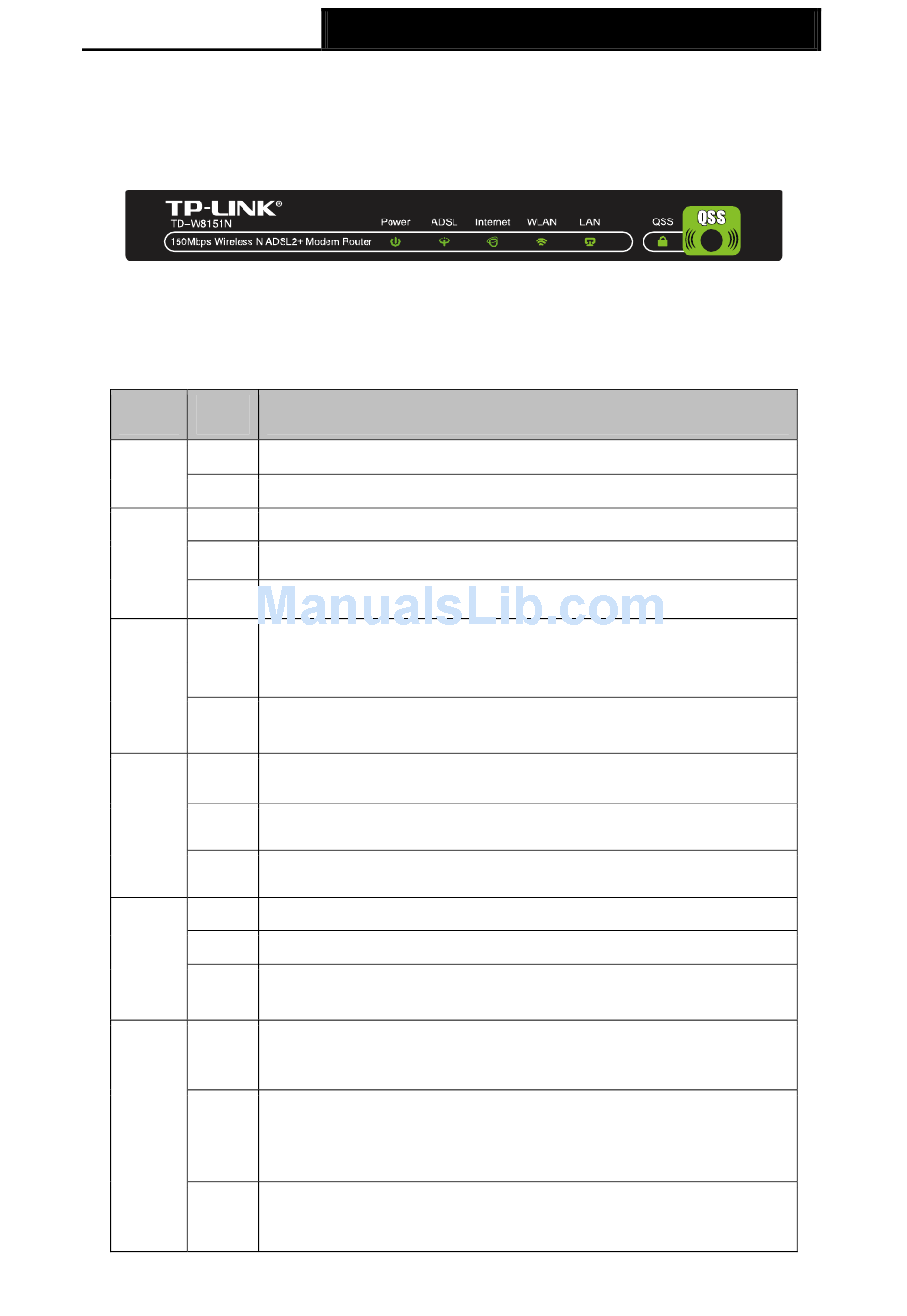

2.1 The Front Panel

The LEDs, locating on the front panel, indicates the device's working status. For details, please
refer to LED Explanation.
LED Explanation:
Name Status
On
Power
Off
On
ADSL Flash
Off
On
Flash
Internet
Off
On
WLAN
Flash
Off
On
Flash
LAN
Off
Flash
QSS
On
Off
150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 2-1
Power is on.
Power is off.
The LINE port is linked up.
The ADSL negotiation is in progress.
The LINE port is linked down.
A successful PPP connection has been built.
Data is being transferred over the Internet.
There is no successful PPP connection or the Router works on
Bridge mode.
The wireless function is enabled but no data is being transmitted.
There is wireless data being transmitted.
The wireless function is disabled.
There is a successful connection on the LAN port but no activity.
Data is being transferred over the LAN port.
There is no connection on the LAN port or the connection is
abnormal.
A wireless device is connecting to the network by QSS function.
This process will last in the first 2 minutes and then turn off.
A wireless device has been successfully added to the network by
QSS function. The QSS LED will keep on for about 5 minutes and
then turn off.
The QSS function is disabled or a wireless device is failed to add
the network.
Indication
4
