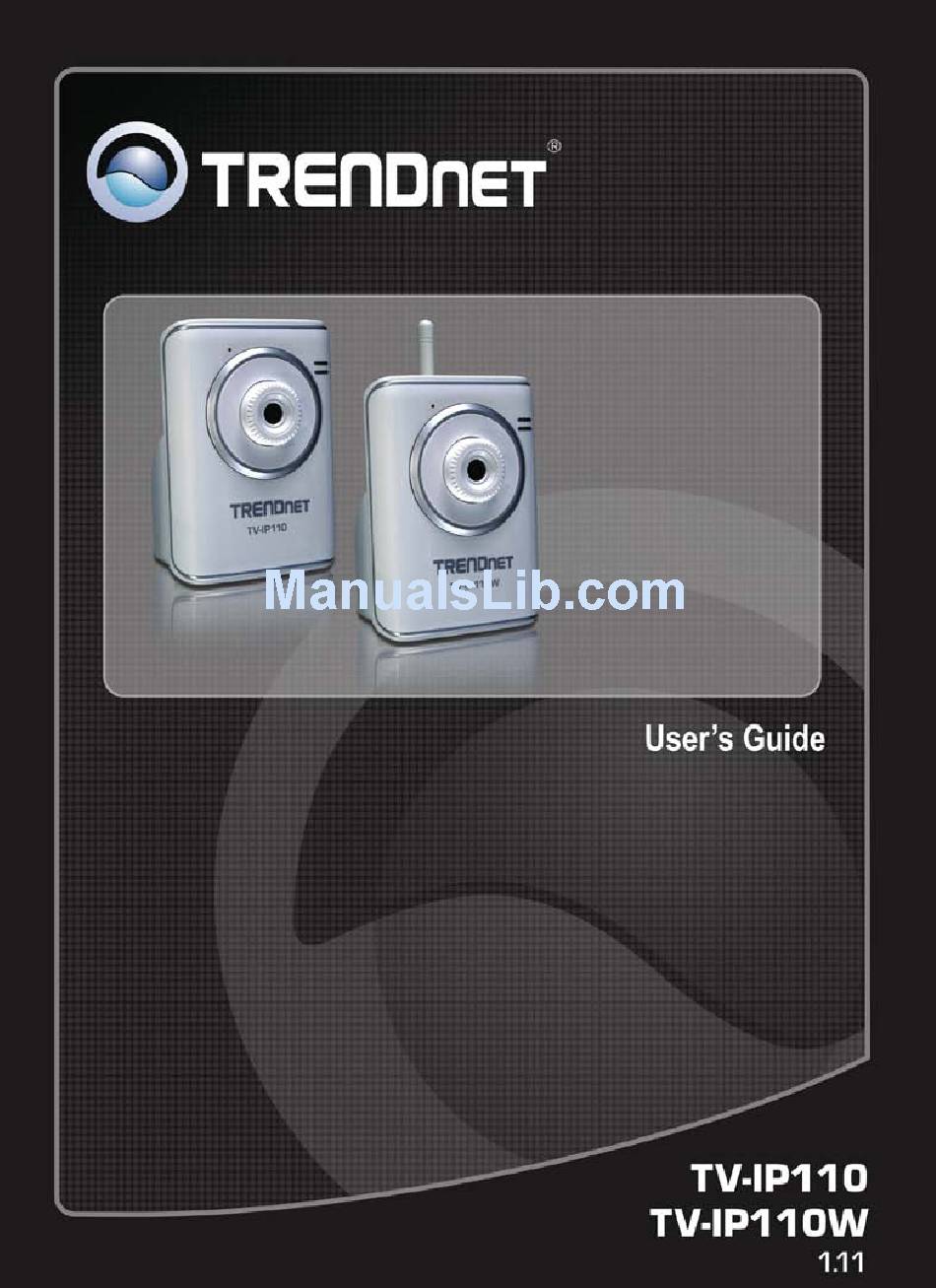

TRENDnet TV-IP110 User Manual

Hide thumbs Also See for TV-IP110:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TV-IP110

Summary of Contents for TRENDnet TV-IP110

  • Page 2: Preface

    REFACE Thank you for purchasing the TV-IP110/TV-IP110W Wire/Wireless Internet Camera Server, a powerful and high-quality image network camera. The camera can be installed as a standalone system within your application environment easily and quickly, and supports remote management function so that you can access and control it using a Web browser on your PC.

  • Page 3: Table Of Contents

    Contents PREFACE ................. 1 CHAPTER 1 ..............4 INTRODUCTION TO YOUR CAMERA ....4 1.1 C ........4 HECKING THE ACKAGE ONTENTS TV-IP110 (F ) ............ 5 RONT TV-IP110W (F ) ..........6 RONT 1.3 F ............. 8 EATURES AND ENEFITS 1.4 S...
  • Page 4 SECURVIEW™ SOFTWARE ........54 5.1 INSTALLATION ............... 54 5.2 USING INSTALLATION ..........59 ................59 TEM FEATURES ..............69 O REMOVE A CAMERA ....... 70 O LINK TO THE EB PAGE OF THE CAMERA ................ 71 O RECORD VIDEO ........76 O CONFIGURE THE RECORDING SETTINGS ..........

  • Page 5: Chapter 1

    HAPTER NTRODUCTION AMERA 1.1 Checking the Package Contents Check the items contained in the package carefully. You should have the following:  TV-IP110/TV-IP110W Network Camera.  Multi-Language Quick Installation Guide  Utility CD-ROM  Detachable External Antenna (for TV-IP110W only) ...

  • Page 6: Tv-Ip110 (Front/Back View)

    1.2 Getting to Know Your Camera TV-IP110 (Front/Back View) - 5 -...

  • Page 7: Tv-Ip110W (Front/Back View)

    TV-IP110W (Front/Back View) - 6 -...
  • Page 8 Power LED: A steady orange light indicates the camera is powered on. Link LED: A flash green light indicates the camera’s network connection correctly. Detachable Antenna (TV-IP110W only): The detachable external antenna allows you to adjust its position to obtain the maximum signal. Camera Stand Connection: Connects the camera with the camera stand.

  • Page 9: Features And Benefits

    1.3 Features and Benefits  Surveillance Supported Enable motion detection and setup automated email alerts and upload FTP for security.  Remote Control Supported By using a standard Web browser or the bundled SecurView software application, the administrator can easily change the configuration of the camera via Intranet or Internet.

  • Page 10: System Requirement

    1.4 System Requirement  Networking LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet. WLAN: IEEE 802.11b/g. (For TV-IP110W)  Accessing the Camera using Web Browser Platform: Microsoft® Windows® 2000/XP/Vista/Windows 7 Macintosh OSX CPU: Intel Pentium III 350MHz or above RAM: 128MB Resolution: 800x600 or above User Interface: Microsoft®...

  • Page 11: Chapter 2

    HAPTER ARDWARE NSTALLATION 2.1 Installing the Camera Stand The camera comes with a camera stand, which uses a swivel ball screw head to lock to the camera’s screw hole. When the camera stand is attached, you can place the camera anywhere by mounting the camera through the three screw holes located in the base of the camera stand.

  • Page 12: Connecting The Camera To Lan

    2.2 Connecting the Camera to LAN Connects an Ethernet cable to the LAN port located on the Camera’s real panel, and then attaches it to the network. Connects an antenna to the antenna connector. (TV-IP110W) Attach the external power supply to the DC power input connector located on Camera’s real Panel, and then connect it to your local power supply.

  • Page 13: Applications Of The Camera

    2.3 Applications of the Camera The camera can be applied in multiple applications, including:  Monitor local and remote places and objects via Internet or Intranet.  Capture still images and video clips remotely.  Upload images or send email messages with the still images attached. The following diagram explains one of the typical applications for your camera and provides a basic example for installing the camera.

  • Page 14: Chapter 3

    HAPTER CCESSING THE AMERA 3.1 Using IP Setup The camera comes with a conveniently utility, IP Setup, which is included in the Installation CD-ROM, allowing you to search the camera on your network easily. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program.
  • Page 15 Click “Browse” to choose the desired destination location. By default, the destination location is C:\Program Files\TRENDnet\IPSetup. Then Click “Next”. Click “Next” to confirm the IPSetup software to be installed to the computer. When the Installation Complete window appears, click “Finish”.
  • Page 16 After installing the IPSetup utility, the application is automatically installed to your computer, and creates a folder in “ Start \Program\TRENDnet\IPSetup”. Click Start > Programs > TRENDnet > IPSetup, and then click IPSetup The IPSetup window will appear. It will search the Camera within the same network.
  • Page 17 Camera Display Area Camera Display Area: It shows the connected camera(s) within the same network. Double click the IP address; it will link to Camera’s Web Configuration page. Change IP: Click this button to bring up the following window. It allows you to change the IP Address.
  • Page 18 : Click this button to search the connected camera in the Search same network.” : Click this button to exit the program. Exit - 17 -...

  • Page 19: Accessing To The Camera

    3.2 Accessing to the Camera Open the Web browser on your computer (example showed in the User’s Guide is based on the Internet Explorer) Type the Camera IP address that DHCP server assigned in the web browser URL (e.g. 192.168.10.30) and then press [Enter]. When the login window appears, enter the default User name (admin) and password (admin) and press OK to access to the main screen of the camera’s Web Configuration.
  • Page 20 NOTE If you are initially access to the camera, you will be ask to install a new plug-in for the camera. Permission request depends on the Internet security settings of your computer. Click Yes to proceed. After you login into the Web Configuration of the camera, the main page will appear as below: Camera Information Zoom In...
  • Page 21 The main page of the Web Configuration provides you with many useful information and functions, including:  – Camera Information Display the camera’s location and the current date & time. The information can be modified in the Web Configuration.  –...

  • Page 22: Configuring The Ip Address Of The Pc

    3.3 Configuring the IP Address of the PC If you are failed to access to the camera, please check the IP address of your computer. When you connect the camera to your computer directly to proceed with configuration of the camera, you need to set up the IP addresses to be in the same segment for the two devices to communicate.

  • Page 23: Chapter 4

    HAPTER ONFIGURING THE AMERA 4.1 Using the Web Configuration You can access and manage the camera through the Web browser or from the SecurView™ software (see chapter 5 in more detail). This chapter describes the Web Configuration, and guides you through the configuration of the camera by using the web browser.

  • Page 24: Using Smart Wizard

    The Web Configuration contains the settings that are required for the camera in the left menu bar, including Smart Wizard, Basic, Network, Video, Event Server, Motion detect, Event Config, Tools, and Information. 4.2 Using Smart Wizard The camera’s Smart Wizard lets you configure your camera easily and quickly.
  • Page 25 Enter Camera name, Location, New Admin password and enter again to confirm Admin password Step 2. IP Settings Select the IP setting according to your network: DHCP, Static IP, or PPPoE. Step 3. Email Settings - 24 -...
  • Page 26 Enter the required information to be able to send email with image. Step 4. Wireless Networking (for TV-110W only) Select Enable to enable the wireless function of the camera, and then complete the required settings. - 25 -...
  • Page 27 Step 5. Confirm Settings This step shows all the setting information. This step shows the configuration of your camera. When you confirm the settings, click Apply to finish the wizard and reboot the camera. Otherwise, click Prev to go back to the previous step(s) and change the settings; or click Cancel to end the wizard and discard the changes.

  • Page 28: Basic Setup

    4.3 Basic Setup The Basic menu contains three sub-menus that provide the system settings for the camera, such as the Camera Name, Location, Date & Time, and User management. Basic >> System - 27 -...
  • Page 29  Basic - Camera Name: Enter a descriptive name for the camera. - Location: Enter a descriptive name for the location used by the camera.  Indication LED This item allows you to set the LED illumination as desired. There are two options: Normal and OFF.
  • Page 30 - TimeZone: Select the proper time zone for the region from the pull- down menu. - Synchronize with PC: Select this option and the date & time settings of the camera will be synchronized with the connected computer. - Synchronize with NTP Server: Select this option and the time will be synchronized with the NTP Server.
  • Page 31  General User - User Name: Enter the user’s name you want to add to use the camera. - Password: Enter the password for the new user. When you are finished, click Add/Modify to add the new user to the camera.

  • Page 32: Network Settings

    4.4 Network Settings The Network menu contains three sub-menus that provide the network settings for the camera, such as the IP Setting, DDNS Setting, IP Filter, and wireless network. - 31 -...
  • Page 33 Network >> Network  IP Setting This item allows you to select the IP address mode and set up the related configuration. - DHCP: Select this option when your network uses the DHCP server. When the camera starts up, it will be assigned an IP address from the DHCP server automatically.
  • Page 34 By the default setting, your camera IP address is assigned from your DHCP server. If you do not have a DHCP server in your network, the IP address will be assigned to 192.168.10.30. Subnet Mask Enter the Subnet Mask of the camera. The default setting is 255.255.255.0.
  • Page 35  Ports Number - HTTP Port: The default HTTP port is 80. NOTE If the camera is behind an NAT router of firewall, the suggested to be used is from 1024 to 65535. Network >> IP Filter The IP Filter setting allows the administrator of the camera to limit the users within a certain range of IP addresses to access the camera.
  • Page 36 The camera supports WLAN while you use the wireless network. Select the Enable option to enable this feature. - Network ID (SSID}: The default SSID setting is “TRENDnet”. To connect the camera to a specified access point, set a SSID for the camera to correspond with the access point’s ESS-ID.
  • Page 37 List of searching results - Wireless Mode: Select the type of wireless communication for the camera: Infrastructure or Ad-Hoc. - Channel: Select the appropriate channel from the list. - Authentication: Select the authentication method to secure the camera from being used by unauthorized user: Open, Shared-key, WPA-PSK, and WPA2-PSK.
  • Page 38 an eight-bit value. Hex format causes each pair of characters you type to be interpreted as an eight-bit value in hexadecimal (base 16) notation. Key Length: Select the WEP key length you use: 64 bits or 128 bits. WEP Key 1/2/3/4: Enter the WEP key(s) in the following boxes. If you select WPA-PSK or WPA2-PSK as the Authentication mode, you need to complete the following settings: Encryption: Select TKIP or AES.

  • Page 39: Setting Up Video

    4.5 Setting up Video The Video contains three sub-menus that provide the video and settings for the camera. - 38 -...
  • Page 40 Video >> Camera  Image Setting - Brightness: Adjust the brightness level from 0 ~ 100. - Contrast: Adjust the contrast level from 0 ~ 100. - Saturation: Adjust the colors level from 0 ~ 100 Click Default to restore the default settings of the three options above.
  • Page 41  MJPEG - Video Resolution: Select the desired video resolution from the three formats: VGA, QVGA and QQVGA. The higher setting (VGA) obtains better video quality while it uses more resource within your network. - Video Quality: Select the desired image quality from five levels: Lowest, Low, Medium, High, and Highest.

  • Page 42: Event Server Configuration

    4.6 Event Server Configuration The Event Server menu contains three sub-menus that allow you to upload images to FTP, send emails that include still images, and store the images to a NAS system. When you complete the required settings for FTP or Email, click Test to test the related configuration is correct or not.
  • Page 43 Event Server Setting>> FTP  - Host Address: Enter the IP address of the target FTP server. - Port Number: Enter the port number used for the FTP server. - User Name: Enter the user name to login into the FTP server. - Password: Enter the password to login into the FTP server.
  • Page 44 Event Server Setting >> Email  Email - SMTP Server Address: Enter the mail server address. For example, mymail.com - Sender Email Address: Enter the email address of the user who will send the email. For example, John@mymail.com - Sender User Name: Enter the user name to login the mail server. - Sender Password: Enter the password to login the mail server.

  • Page 45: Motion Detect

    4.7 Motion Detect The Motion Detect menu contains the command and option that allow you to enable and set up the motion detection feature of the camera. The camera provides two detecting areas. To enable the detecting area, select Window 1 or 2 from the pull-down list, and then select Enable.
  • Page 46 - Name: Assign a name to the detecting area. - Threshold: Move the slide bar to adjust the level for detecting motion to record video. - 45 -...

  • Page 47: Event Config

    4.8 Event Config The Event Config menu contains four sub-menus that provide the commands to configure event profiles. - 46 -...
  • Page 48 Event Configuration >> General Setting - Snapshot/Recording Filename Prefix: You can assign a given prefix to each new captured file. Otherwise, leave this option blank to use the default setting. Event Configuration >> Arrange Schedule Profile This sub-menu displays the scheduled profile(s). To customize the profile, click Add and then enter a descriptive name for the profile in the prompt dialog window.
  • Page 49 - Profile Name: Display the profile name that you select in the Schedule Profiles list. - Weekdays: Select the weekday(s) that you want to separately assign in the schedule profile. The weekday that has been assigned will be displayed with green color. - Time List: Display the time period that you have assigned within the selected weekday.
  • Page 50 Event Configuration >> Motion Detect Trigger Select the Enable option to enable the trigger function of the camera, so that you can send captured images within the detecting area to the FTP server and email receiver. You have to configure corresponding settings, such as FTP server and email server, to enable this feature.
  • Page 51 You can separately configure the schedule for trigger function of the camera by Email or FTP. Select the Enable option on each item, and then select a Schedule Profile from the pull-down list and set the Interval time. - 50 -...

  • Page 52: Tools

    4.9 Tools The Tools menu provides the commands that allow you to restart or reset the camera. You can also backup and restore your configuration, and upgrade the firmware for the camera. - 51 -...
  • Page 53  Factory Reset Click Reset to restore all factory default settings for the camera.  System Reboot Click Reboot to restart the camera just like turning the device off and on. The camera configuration will be retained after rebooting.  Configuration You can save your camera configuration as a backup file on your computer.

  • Page 54: Information

    4.10 Information The Information menu displays the current configuration and events log of the camera.  Device Info Display the Basic, Video, Network, and Wireless settings of the camera.  System Log The Logs table displays the events log recorded by the system. - 53 -...

  • Page 55: Chapter 5

    HAPTER ™ S ECUR OFTWARE This Chapter describes detail instructions on operating SecurView™ software, a useful friendly application for ease of control and navigation requirement. INSTALLATION Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. Click the SecurView from the Auto-Run menu screen.
  • Page 56 NOTE To use SecurView™, you must have Microsoft .NET Framework 2.0 installed in the computer. The setup wizard will detect it and, if the program is not installed yet, ask you to install it during the process of installing SecurView™. - 55 -...
  • Page 57 Then SecurView Setup Wizard will appear. Click “Next” when the Welcome to the SecurView Setup Wizard appears. Click “Browse” to choose the desired destination location. By default, the destination location is C:\Program Files\TRENDnet\SecurView. Then Click “Next”. - 56 -...
  • Page 58 Click “Next” to confirm the SecurView software to be installed to the computer. - 57 -...
  • Page 59 When the Installation Complete window appears, click “Close”. After installing the IPSetup utility, the application is automatically installed to your computer, and creates a folder in “ Start \Program\TRENDnet\SecurView”. - 58 -...

  • Page 60: Using Installation

    USING INSTALLATION To launch the program, click Start > Program > TRENDnet > SecurView, and then click SecruView™. The main screen will appear as below. NOTE Please set the resolution to 1024x768 or above on your computer while using SecurView™; otherwise, the displayed main screen may be distorted.
  • Page 61 - SETTING: Click to enter the Setting screen of SecurView™. Click again to return to the main screen of SecurView™. - PLAY: Click to play the recorded video file using the media player on the computer (for example, Windows Media Player by default). - LOCK: Click to lock the camera controls.
  • Page 62 stop the manual recording camera. For schedule recording, please change the setting on configuration. By default, the ID and Password boxes are “blank.” Click SETTING > Account to change the ID and password of lock/unlock function.  VIEW SELECTION Panel - View mode buttons: SecurView™...
  • Page 63  CAMERA Panel TRIGGER OUT: Click to turn on the trigger out connector of the camera. This button is available only when the connected camera supports the trigger out connector, which is used to control the external device connected to the camera, such as a light. (Not support on these models) - SNAPSHOT: Click to capture a still image using the selected...
  • Page 64  SYSTEM Panel This panel displays the current date and time.  PAN-TILT CONTROL Panel (Not support on these models) When you connect a pan/tilt camera, the system will detect the camera’s function automatically and the PAN-TILT CONTROL buttons will become functional. Otherwise, these buttons are displayed as gray out buttons.
  • Page 65  Video View Window and Camera List Video Viewing Window Camera List - Video Viewing Window: This window displays the video view of the selected camera, which can be divided into 4/9/16 windows according to your selection in VIEW SELECTION panel. - Camera List: This list displays the information of the connected camera(s).
  • Page 66  To add a camera Click SETTING in the CONTROLS panel to display the Setting screen. Click Add New Camera. - 65 -...
  • Page 67 In the pop-up Add New Camera dialog window, you can:  Select the Search tab if you are not sure of the camera’s IP address. Click Search camera to search the available camera within the network. Once the camera is found and is shown in the list, select it and click Add Camera.
  • Page 68 Enter the User name and Password for the camera, and then click OK. The connected camera will be displayed in the Camera List. - 67 -...
  • Page 69 Click SETTING to return to the Video View Window. The video view of the selected camera will be displayed now. - 68 -...

  • Page 70: To Remove A Camera

    To remove a camera Click SETTING in the CONTROLS panel to display the Setting screen. Select a camera from the list and click Delete Camera. Select a camera Delete the camera - 69 -...

  • Page 71: To Link To The Web Page Of The Camera

    To link to the Web page of the camera Click SETTING > Camera List > Camera Configuration and then Link web page to launch the Web browser that displays live view image and Web Configuration of the selected camera. - 70 -...

  • Page 72: To Record Video

    To record video SecurView™ provides three methods to record video clips: one is to click the RECORD/All Record button to record manually; the second is to record by motion detection; the third is to set the recording schedule in Setting > Recording Configuration > Schedule Recording Configuration.
  • Page 73  Trigger recording by motion detection When the motion detection function of the selected camera is enabled, you can configure the camera to start recording triggered by the motion detected. Click SETTING > Motion Configuration, and then select the Recording option to enable the selected camera to record by motion detection.
  • Page 74 - Dates: Select the camera from the pull-down list.. Select a camera Add Schedule - Then, click Add to set the Start/Stop date and time and then click OK to add the recording schedule to the list. - Click Apply to save the settings - 73 -...
  • Page 75 - 74 -...
  • Page 76 Days: First, select the camera from the pull-down list and select Days tab. Then, select the weekday from the day buttons and then set the time period. Click Apply to save the settings. - 75 -...

  • Page 77: To Configure The Recording Settings

    To configure the recording settings To configure the recording settings, including the storage folder and storage options, click SETTING > Recording Configuration.  Recording File Path: To change the destination folder to save the recorded video file, click Browse under the Recording File Path box to assign a new folder.
  • Page 78 half of each camera. Before setting the reserve space on the hard disk drive, you can check the available storage space that is displayed in the HDD Free space field.  Enable Recycle Recording: Click on the camera number to clear the files when the unreserved space of the hard disk drive is full.

  • Page 79: To Playback The Recorded Video

    To playback the recorded video The recorded video clips are saved in your computer, and can be played using the media player on the computer, such as Windows Media Player. To start playback, simply click the PLAY button on the CONTROLS panel, and the following dialog screen will appear, allowing you to select the file to playback.
  • Page 80  Alarm: Select Beep or Music to alert you for the motion detected. When you select Music, you can customize the sound by clicking Browse and then selecting your favorite music (*.wav or *.mp3 file) in the computer.  Recording: Select this option to enable the camera to record by motion detected.
  • Page 81 - Mail Server: Enter the mail server address. For example, mymail.com - Mail From: Enter the email address of the user who will send the email. For example, John@mymail.com - Mail To: Enter the email address of the user who will receive the email.

  • Page 82: Account

    Account Click SETTING > Account to setup the username & password to lock & unlock the main screen of the SecurView. Other Click SETTING > Other to setup the scanning time between cameras. The default setting is 2 seconds. You can set the interval time between 2 ~ 20 seconds.

  • Page 83: Information

    Information Click SETTING > About to display the information of the software application. - 82 -...

  • Page 84: Chapter 6

    HAPTER PPENDIX A.1 Specification  Image Sensor Sensor 1/4” color CMOS Resolution 640x480  Video Compression MJPEG Video resolution VGA/QVGA/QQVGA; 30fps max.  System Hardware Processor ARM9 base 16MB SDRAM 4MB NOR Flash Power DC 5V, 2.5AV  Communication 10/100Mbps Fast Ethernet, auto-sensed, Auto-MDIX WLAN IEEE 802.11b/g...
  • Page 85 LEDs Power LED (orange); Link LED (green)  SecurView™ Software OS Support Windows 2000/XP/Vista Feature playback/recording/configuration features  Web Configuration OS Support Windows 2000/XP/Vista Browser Internet Explorer 6.0 or above  Operating Environment Temperature - Operation: 5°C ~ 45°C - Storage: -15°C ~ 60°C Humidity - Operation: 20% ~ 85% non-condensing - Storage: 0% ~ 90% non-condensing...
  • Page 86 Glossary of Terms NUMBERS 10BASE-T is Ethernet over UTP Category III, IV, or V 10BASE-T unshielded twisted-pair media. 100BASE-TX The two-pair twisted-media implementation of 100BASE-T is called 100BASE-TX. Adaptive Differential Pulse Code Modulation, a new ADPCM technology improved from PCM, which encodes analog sounds to digital form.
  • Page 87 Communication Communication has four components: sender, receiver, message, and medium. In networks, devices and application tasks and processes communicate messages to each other over media. They represent the sender and receivers. The data they send is the message. The cabling or transmission method they use is the medium.
  • Page 88 Ethernet The most popular LAN communication technology. There are a variety of types of Ethernet, including 10Mbps (traditional Ethernet), 100Mbps (Fast Ethernet), and 1,000Mbps (Gigabit Ethernet). Most Ethernet networks use Category 5 cabling to carry information, in the form of electrical signals, between devices.
  • Page 89 Intranet This is a private network, inside an organization or company that uses the same software you will find on the public Internet. The only difference is that an Intranet is used for internal usage only. Internet The Internet is a globally linked system of computers that are logically connected based on the Internet Protocol (IP).
  • Page 90 Local Area Network a computer network that spans a relatively small area sharing common resources. Most LANs are confined to a single building or group of buildings. MJPEG MJPEG (Motion JPEG) composes a moving image by storing each frame of a moving picture sequence in JPEG compression, and then decompressing and displaying each frame at rapid speed to show the moving picture.
  • Page 91 PCM (Pulse Code Modulation) is a technique for converting analog signals into digital form for transmission. Packet Internet Groper, a utility used to determine whether a PING specific IP address is accessible. It functions by sending a packet to the specified address and waits for a reply. It is primarily used to troubleshoot Internet connections.
  • Page 92 Server It is a simple computer that provides resources, such as files or other information. SIP (Session Initiated Protocol) is a standard protocol that delivers the real-time communication for Voice over IP (VoIP), which establishes sessions for features such as and video conferencing.
  • Page 93 The User Datagram Protocol is a connectionless protocol that resides above IP in the TCP/IP suite The USERNAME is the unique name assigned to each person User Name who has access to the LAN. Utility It is a program that performs a specific task. Unshielded twisted-pair.

  • Page 94: Limited Warranty

    If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 95 PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
  • Page 96 - 95 -...
