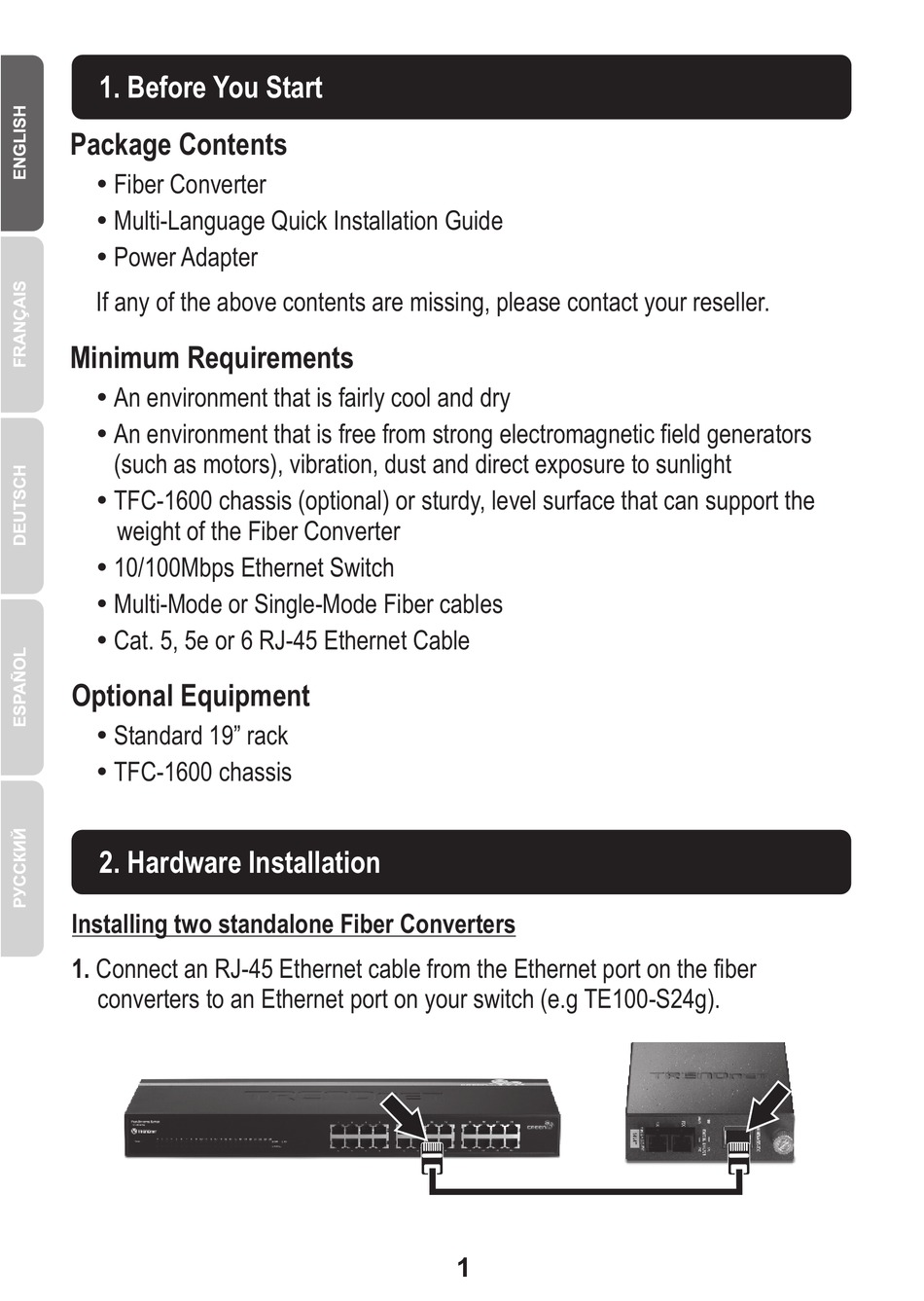

1. Before You Start

Package Contents

Ÿ
Fiber Converter
Ÿ Multi-Language Quick Installation Guide
Ÿ Power Adapter
If any of the above contents are missing, please contact your reseller.
Minimum Requirements
Ÿ
An environment that is fairly cool and dry
Ÿ An environment that is free from strong electromagnetic field generators
(such as motors), vibration, dust and direct exposure to sunlight
Ÿ TFC-1600 chassis (optional) or sturdy, level surface that can support the
weight of the Fiber Converter
Ÿ 10/100Mbps Ethernet Switch
Ÿ Multi-Mode or Single-Mode Fiber cables
Ÿ Cat. 5, 5e or 6 RJ-45 Ethernet Cable
Optional Equipment
Ÿ
Standard 19" rack
Ÿ TFC-1600 chassis
2. Hardware Installation
Installing two standalone Fiber Converters
1. Connect an RJ-45 Ethernet cable from the Ethernet port on the fiber
converters to an Ethernet port on your switch (e.g TE100-S24g).
1
