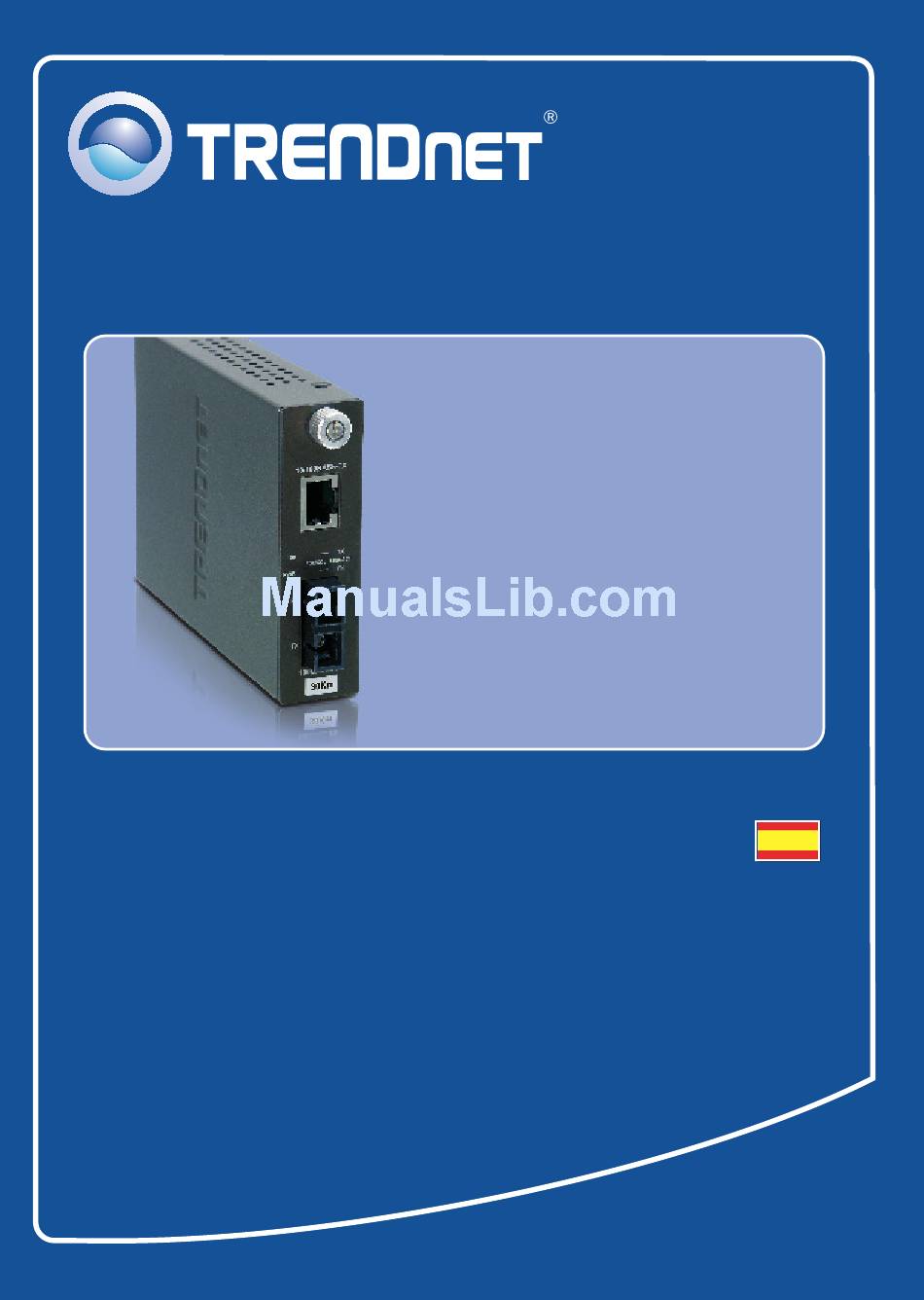

- Page 1 Quick Installation Guide 100Base-FX Fiber Converters...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Español ... 1. Antes de iniciar ... Instalación del Hardware ... Spefications ... Ordering Information... Troubleshooting ... Version 02.02.2009... -
Page 3: Español
1. Antes de iniciar Requisitos mínimos Un ambiente donde no haya generadores de campos electromagnéticos fuertes (como motores), vibraciones, polvo o exposición directa a la luz solar. Un chasis TFC-1600 (opcional) o una superficie firme y nivelada capaz de sostener el peso del Convertidor de fibra. Conmutador Ethernet a 10/100Mbps Cables de fibra para conexiones multimodo o de modo sencillo Cable CAT-5 RJ-45 para ethernet... -
Page 4: Instalación Del Hardware
2. Instalación del Hardware Instalación de 2 convertidores de fibra de forma independiente 1. Conecte el cable de fibra a los convertidores. Para el TFC-110MM/MST/MSC el cable debe ser multimodo. El cable para el TFC-110S15/S30/S60/S100/ S20D3/S20D5/S40D3/S40D5. debe ser de modo sencillo 2. - Page 5 La instalación ha sido completada Para asegurar los más altos niveles de servicio y apoyo al cliente, registre su producto en línea en: Registre su producto www.trendnet.com/register Gracias por elegir TRENDnet Español...
-
Page 6: Spefications
Dimensions: Weight: Power: Power Consumption: Temperature: Humidity: Certifications: IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX & 100BASE-FX 1 TX port, 1 FX port 10/20Mbps for half/full-duplex 100/200Mbps for half/full-duplex 148,800pps TFC-110 series Per Unit: Power; Speed (100) Per Port: FDX/COL, LINK/ACT... -
Page 7: Ordering Information
Ordering Information Model Number Speed Cable/Connector (Mbps) TFC-110MSC 10/100 TFC-110MST 10/100 TFC-110MM 10/100 TFC-110S15 10/100 TFC-110S30 10/100 TFC-110S60 10/100 TFC-110S100 10/100 TFC-110S20D3 10/100 TFC-110S20D5 10/100 TFC-110S40D3 10/100 TFC-110S40D5 10/100 MMF 1300nm TFC-15MS100 Note: MMF (multi-mode fiber); SMR (single-mode fiber) Media Converters Port 1 Speed Max. -
Page 8: Troubleshooting
Wait 15 seconds, then plug the switches and the fiber converters back What is the maximum distance that is supported by the fiber converter? Please reference section 4 for distance information. If you still encounter problems or have any questions regarding the Fiber Converters please contact TRENDnet's Technical Support Department. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
