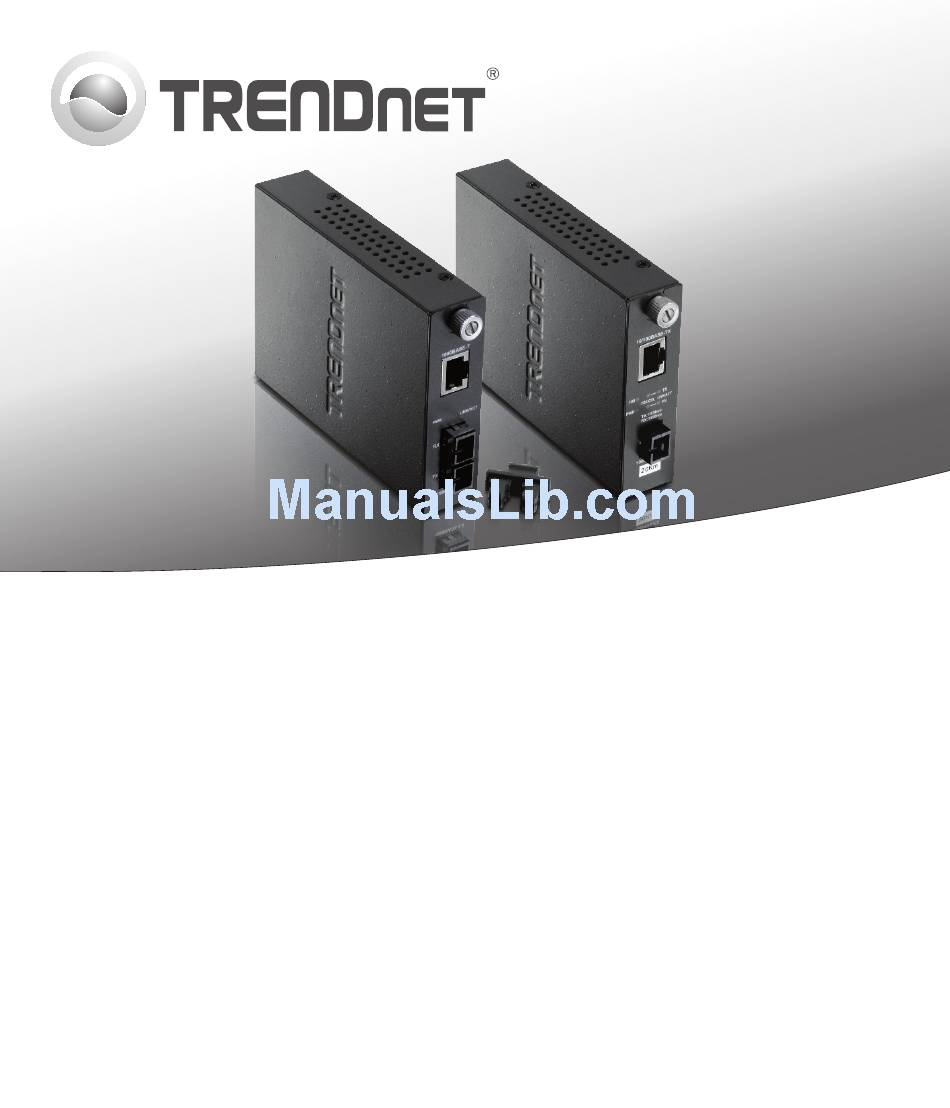

- Page 1 Fiber Converters Quick Installation Guide (1) Fiber Converters /11.15.2012...
-
Page 2: Package Contents
1. Before You Start Package Contents Fiber converter Multi-Language Quick Installation Guide Power adapter Minimum Requirements TFC-1600 chassis (optional) or sturdy, level surface that can support the weight of the Fiber Converter 10/100 Mbps Ethernet switch ... -
Page 3: Hardware Installation

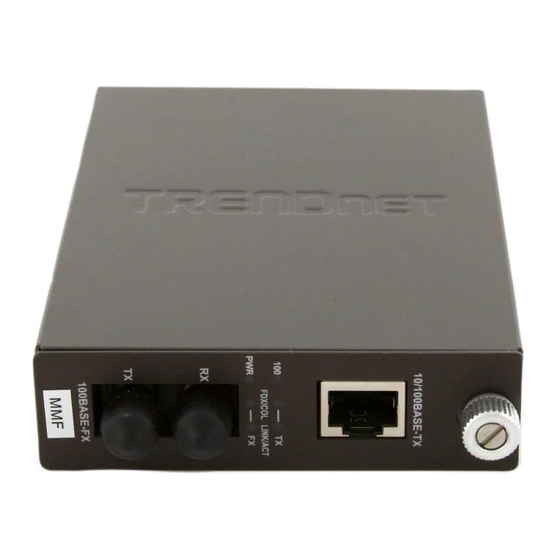

2. Hardware Installation Installing Two Stand Alone Fiber Converters Together 1. Connect an RJ-45 Ethernet cable from the Ethernet port on the fiber converters to an Ethernet port on your switch (e.g TE100-S24g). 2. Connect the fiber cable to the fiber converters. 3. - Page 4 Installing Fiber Converter in a Chassis 1. Unscrew the bay cover from the desired bay on the chassis. 2. Unfasten the thumbscrew and remove the fiber converter from the metal casing. 3. Slide the fiber converter into an available slot and fasten the thumbscrew.
-
Page 5: Leds And Dip Switches
3. LEDs and DIP switches Color Sequence Function TFC-110MM/MST/MSC/ TFC-110S15i/30i/60i TFC-15MS100 110S15/S30/S60/S100/ TFC-110S20D3i/S20D5i/ S40D3/S40D5/S40D3i/S40D5i Device powered On Green Solid (Power) Device powered Off 100/200Mbps (Half/Full Duplex) Connection Green Solid 100M 10/20Mbps (Half/Full Duplex) Connection Green Solid Connection on TX end in full duplex mode FDX / COL Blinking Green... - Page 6 Switch Action Function TFC-110MM/MST/MSC/ TFC-110S15i/30i/60i/20D3i/20D5i/40D3i/40D5i 110S15/S30/S60/S100 Half-Duplex Fiber Half-Duplex Full-Duplex Fiber Full-Duplex TX Forced Mode TX Auto-Negotiation TX 10M TX 100M TX Half-Duplex TX Full Duplex LLR Enable LLR Disable LLR Enable LLR Disable Note: After changing the DIP Switch settings, power cycle the Fiber Converter. ...
-
Page 7: Technical Specifications
TFC-110MSC RJ-45/SC (Duplex) 1300nm (Multi-mode fiber) TFC-110MST RJ-45/ST (Duplex) 1300nm TFC-110MM RJ-45/MT- RJ 1300nm -23.5 -33.5 (typ.) (Duplex) TFC-110S15 RJ-45/SC (Duplex) 1310nm 15km (Single-mode fiber) TFC-110S30 RJ-45/SC (Duplex) 1310nm 30km TFC-110S60 RJ-45/SC (Duplex) 1310nm 60km TFC-110S100 RJ-45/SC (Duplex) 1550nm 100km... - Page 8 TFC-110MSC,TFC-110MST,TFC-110MM,TFC-15MS100,TFC-110S15, TFC-110S30,TFC-110S60,TFC-110S100,TFC-110S15i,TFC-110S30i, TFC-110S60i,TFC-110S20D3i,TFC-110S20D5i,TFC-110S40D3i, TFC-110S40D5i,TFC-15MS100...
- Page 9 License ("GPL") or GNU Lesser General Public License ("LGPL"). These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. The details of the GNU GPL and LGPL are included in the product CD-ROM.
- Page 10 License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto. Favor acessar http://www.gnu.org/licenses/gpl.txt ou http://www.gnu.org/licenses/lgpl.txt para os termos específicos de cada licença.
- Page 11 Fiber Converters Fiber Converters /11.15.2012...
- Page 12 Fiber Converters Fiber Converters /11.15.2012...
