Section  - Installing The Router

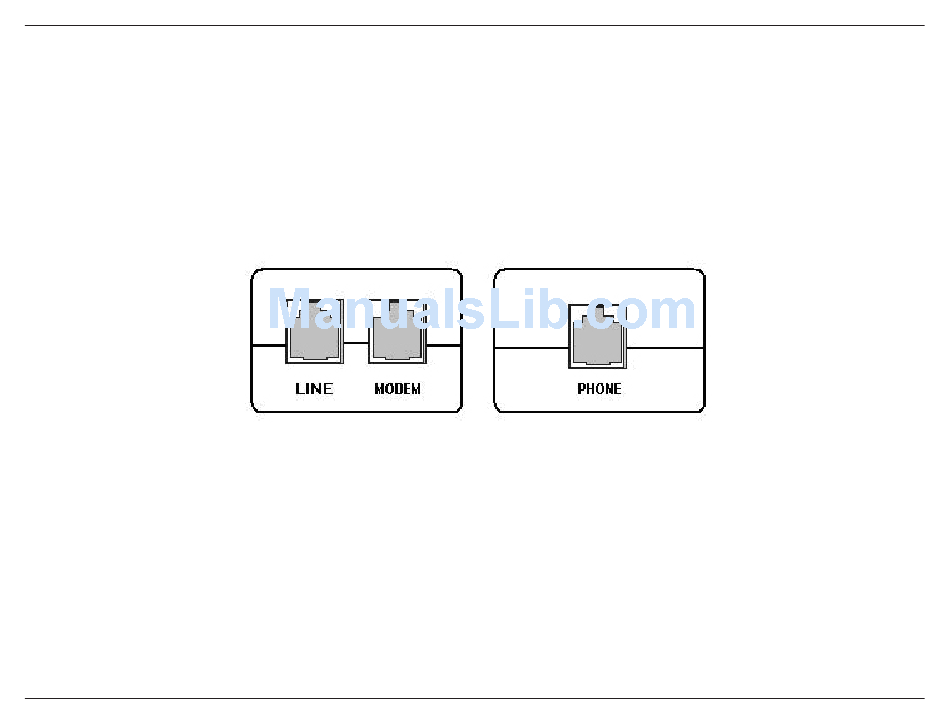

• Connect an RJ-11 cable between the wall phone jack and the line-end of the splitter (see diagram
below).
• Attach another RJ-11 phone cable to the router-end of the splitter and the ADSL port on the rear panel
of the router.
• The phone-end of the splitter will be connected to the telephone using a third RJ-11 phone cable.
• To use the Ethernet connection, connect the Ethernet cable from the computer directly to the router.
Connect one end of the Ethernet cable to the port labeled LAN on the back of the router and attach the
other end to the Ethernet port of your computer.
• If your LAN has more than one computer, you can attach one end of an Ethernet cable to a hub or a
switch and the other to the Ethernet port (labeled LAN) on the router. Note that either a crossover or
straight-through Ethernet cable can be used. The router automatically recognizes the type of connection
that is required.
