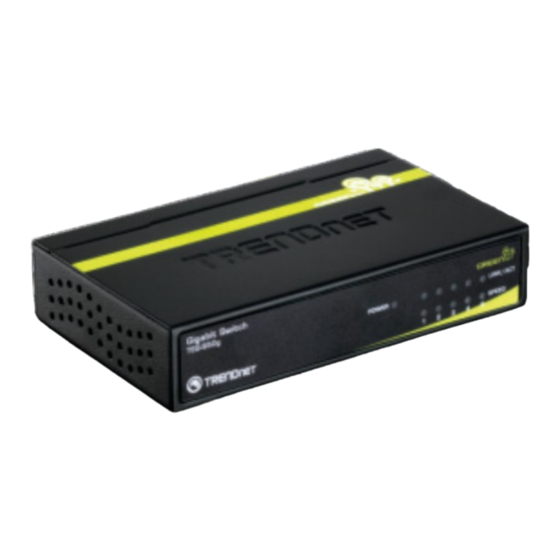

TRENDnet TEG-S50G Quick Installation Manual
Hide thumbs
Also See for TEG-S50G:
- Quick installaion manual (20 pages) ,
- Quick installation manual (20 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for TRENDnet TEG-S50G
Summary of Contents for TRENDnet TEG-S50G

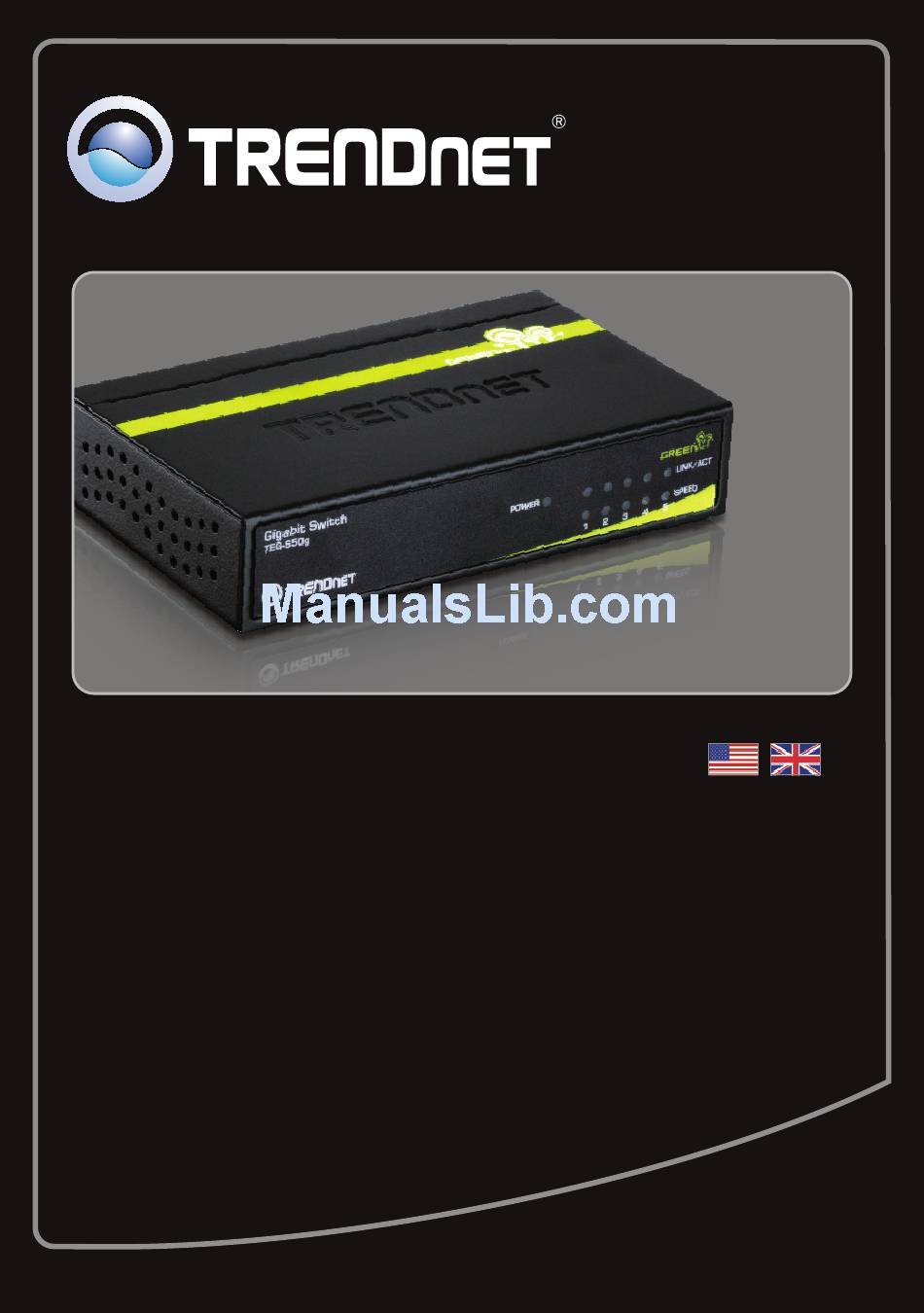

- Page 1 Quick Installation Guide TEG-S50g 3.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. LEDs Technical Specifications Troubleshooting Version 09.28.2010... -
Page 3: English
The surface must support at least 1.5 Kg for the Switch The power outlet should be within 1.82 meters (6 feet) of the Switch Visually inspect the DC power jack to make sure that it is securely connected to the power adapter... - Page 4 Delivers less power to unused ports less power Delivers less power when devices are off less power 100m GREENnet Delivers less power Switch with shorter Full Power cable lengths 100m Regular Switch *Max power savings compared with standard TRENDnet switches.
-
Page 5: Hardware Installation
2. Hardware Installation 1. Connect the Power Adapter to the TEG-S50g and then to a power outlet. 2. Connect a CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port of the TEG-S50g. -
Page 6: Leds
Not Illuminated: Power is off Link/ACT Green(Solid): Link to another device. Green(Blinking): Activity is occurring from the link Not Illuminated: Nothing is detected on the port. Speed Green: Connection for the port is 2000Mbps (Full) Not Illuminated: Connection to the port is 10/20Mbps (Half/Full), 100/200Mbps (Half/Full) or nothing is detected on the port. -
Page 7: Technical Specifications
Diagnostic LEDs Power, Link/ACT, 100Mbps/1000Mbps Power Adapter 5V DC, 1A external power adapter Dimension 116 x 25 x 70mm (4.57 x 0.98 x 2.76 in.) Weight 225 g (7.8 oz) Operating: 0° ~ 40° C (32° ~ 104° F) Temperature Storage: -10°... -
Page 8: Troubleshooting
4. Verify that you have file sharing enabled. Please contact your Operating System support for more information. After I connect my PCs to the Switch, I can only get onto the Internet from one computer. The Switch was not designed to share Internet between multiple computers. You need to get an Internet router such as the TW100-S4W1CA. - Page 9 If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty continues from the original date of purchase.
- Page 10 THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. Governing Law: This Limited Warranty shall be governed by the laws of the state of California. Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License...
- Page 13 Copyright ©2010. All Rights Reserved. TRENDnet.
