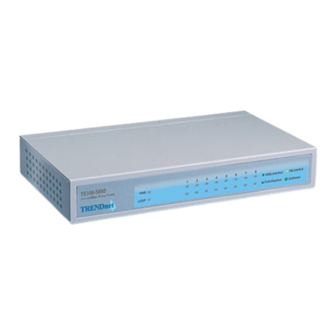

- Page 1 TE100-S55E/S88E 5/8-port 10/100M NWay Fast Ethernet Switch User’s Guide...
-
Page 2: Fcc Warning
This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated commercial environment. -
Page 3: Table Of Contents
A B L E O F O N T E N T S ABOUT THIS GUIDE............III ................URPOSE ..............ERMS SAGE ’ ........VERVIEW OF THIS UIDE INTRODUCTION ..............1 ..........1 THERNET ECHNOLOGY ............. 2 WITCHING ECHNOLOGY ................4 EATURES UNPACKING AND SETUP .......... - Page 4 A. Using straight cable ............ 15 B. Using crossover cable ..........15 ) ......... 16 WITCH TO WITCH OTHER DEVICES A. Using straight cable ............ 16 B. Using crossover cable ..........16 & D ..........17 PEED UPLEX TECHNICAL SPECIFICATIONS........19...
-
Page 5: About This Guide
This manual discusses how to install your 5/8-port 10/100M NWay Fast Ethernet Switch. Terms/Usage In this guide, the term “Switch” (first letter upper case) refers to your 5/8-port 10/100M NWay Fast Ethernet Switch, and ”switch” (first letter lower case) refers to other Ethernet switches. -
Page 6: Overview Of This User's Guide
Overview of this User’s Guide Chapter 1, Introduction. Describes the Switch and its features. Chapter 2, Unpacking and Setup. Helps you get started with the basic installation of the Switch. Chapter 3, Identifying External Components. Describes the front panel, rear panel and LED indicators of the Switch. -
Page 7: Introduction
Fast Ethernet solutions in the years to come. 100Mbps Fast Ethernet is a new standard specified by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps Ethernet standard with the ability to transmit... -
Page 8: Switching Technology
The switch acts as a high-speed selective bridge between the individual segments. The switch, without interfering with any other segments, automatically forwards traffic that needs to go from one segment to another. By doing this the total network capacity is multiplied, while still maintaining the same network... - Page 9 For Fast Ethernet networks, a switch is an effective way of eliminating problems of chaining hubs beyond the “two-repeater limit.” A switch can be used to split parts of the network into different collision domains, making it possible to expand your Fast Ethernet network beyond the 205-meter network diameter limit for 100BASE-TX networks.
-
Page 10: Features
As all ports support 200Mbps, the Switches can be cascaded from any port and to any number of switches. The Switches are a perfect choice for site planning to upgrade to Fast Ethernet in the future. Ethernet... - Page 11 Switches now, and change adapters and hubs anytime later without needing to change the Switches or reconfigure the network. The Switches combine dynamic memory allocation with store-and-forward switching to ensure that the buffer is effectively allocated for each port, while...
- Page 12 Data filtering rate eliminates all error packets, runts, etc., per port at wire-speed for 10Mbps speed. Up to 4K active MAC address entry table per port with self-learning and table-aging for 5-port model, up to 8K active MAC address entry table per port with self-learning and table-aging for 8-port model.
-
Page 13: Unpacking And Setup
This User’s Guide If any item is found missing or damaged, please contact your local reseller for replacement. Setup The setup of the Switch can be performed using the following steps: The surface must support at least 1.5 Kg for the Switch. - Page 14 The power outlet should be within 1.82 meters (6 feet) of the Switch. Visually inspect the DC power jack and make sure that it is fully secured to the power adapter. Make sure that there is proper heat dissipation from and adequate ventilation around the Switch.
-
Page 15: Identifying External Components
This section identifies major external components of the hub. Both the front and rear panels are shown, followed by a description of each panel feature. The indicator panel is described in detail in the next chapter. Front Panel The figure below shows the front panels of the switches. -
Page 16: Rear Panel
Check the technical specification section for information about the AC power input voltage. Since the switch does not include a power switch, plugging its power adapter into a power outlet will immediately power it on. MDI-X Jacks: Use these jacks to connect stations to the hub. - Page 17 Uplink Jack(s) (MDI-II): Use this jack to connect stations to the hub. This is MDI-II (Medium- dependent Interface, straight-wired) jack, which means you can connect the hub to a device with a MDI-X port using an ordinary straight-through cable, making a crossover cable unnecessary.
-
Page 18: Led Indicators
,COL 10/100 (green) (amber) This LED indicator light green when a respective port is in full duplex (FDX) mode. Otherwise, it is OFF for half duplex (HDX) operations. It blinking amber when collisions are occurring on the respective port. 100M Link/Activity,10M Link/Activity... -
Page 19: Connecting The Switch
Category 3, 4, 5 UTP/STP straight cable. The PC (equipped with a RJ-45 10/100Mbps phone jack) should be connected to any of the 5 ports (1x - 5x) for the 5-port model or 8 ports (1x - 8x) for the 8-port model. -
Page 20: Hub To Switch
The connection is accomplished from the hub uplink (MDI-II) port to any of the Switch (MDI-X) ports: 1x - 5x for the 5-port 10/100 Fast Ethernet Switch or 1x - 8x for the 8-port 10/100 Fast Ethernet Switch. A. 10BASE-T Hub... -
Page 21: 100Base-Tx Hub
When using straight cable, the connection can be made from the uplink (MDI-II) port of the Switch to any port of the Hub. B. Using crossover cable When using crossover cable, the connection can be made from any ports of the Switch to any port of the Hub. -
Page 22: Switch To Switch (Other Devices)
Category 3, 4, 5 UTP/STP straight or crossover cable. A. Using straight cable When using straight cable, this is done from the uplink (MDI-II) port of the Switch (Switch A) to any of the 10Mbps or 100Mbps (MDI-X) port of the other switch (switch B) or other devices. -
Page 23: Port Speed & Duplex Mode
Port Speed & Duplex Mode After plugging the selected cable to a specific port, the system uses auto-negotiation determine transmission mode twisted-pair connection: If the attached device does not support auto- negotiation or has auto-negotiation disabled, an auto-sensing process is initiated to select the speed... -
Page 25: Technical Specifications
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Topology Star General Network 10BASET: 2-pair UTP Cat. 3,4,5 (100 m), EIA/TIA- Cables 568 100-ohm STP (100 m) 100BASE-TX: 2-pair UTP Cat. 5 (100 m), EIA/TIA- 568 100-ohm STP (100 m) Number... -
Page 26: Physical And Environmental
Operating: 0 ~ 50 C, Storage: -10 ~ 70 C Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90% Dimensions 171 x 98 x 29 mm (W x H x D) EMI: FCC Class B, CE Mark B, VCCI-II Performance... -
Page 27: Pin Specification
RJ-45 P PECIFICATION The following diagram and tables show the standard RJ-45 receptacle/connector and their pin assignments for the switch-to-network adapter card connection, and the straight / crossover cable for the Switch-to- switch/hub/bridge connection. RJ-45 Connector pin assignment Contact Media Direct Interface Signal... - Page 28 The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/connector The following shows straight cable and crossover cable connection: Straight cable for Switch (uplink MDI-II port) to switch/Hub or other devices connection Crossover cable for Switch (MDI-X port) to switch/hub or other network devices (MDI-X port)
