Summary of Contents for TRENDnet TE100-S5

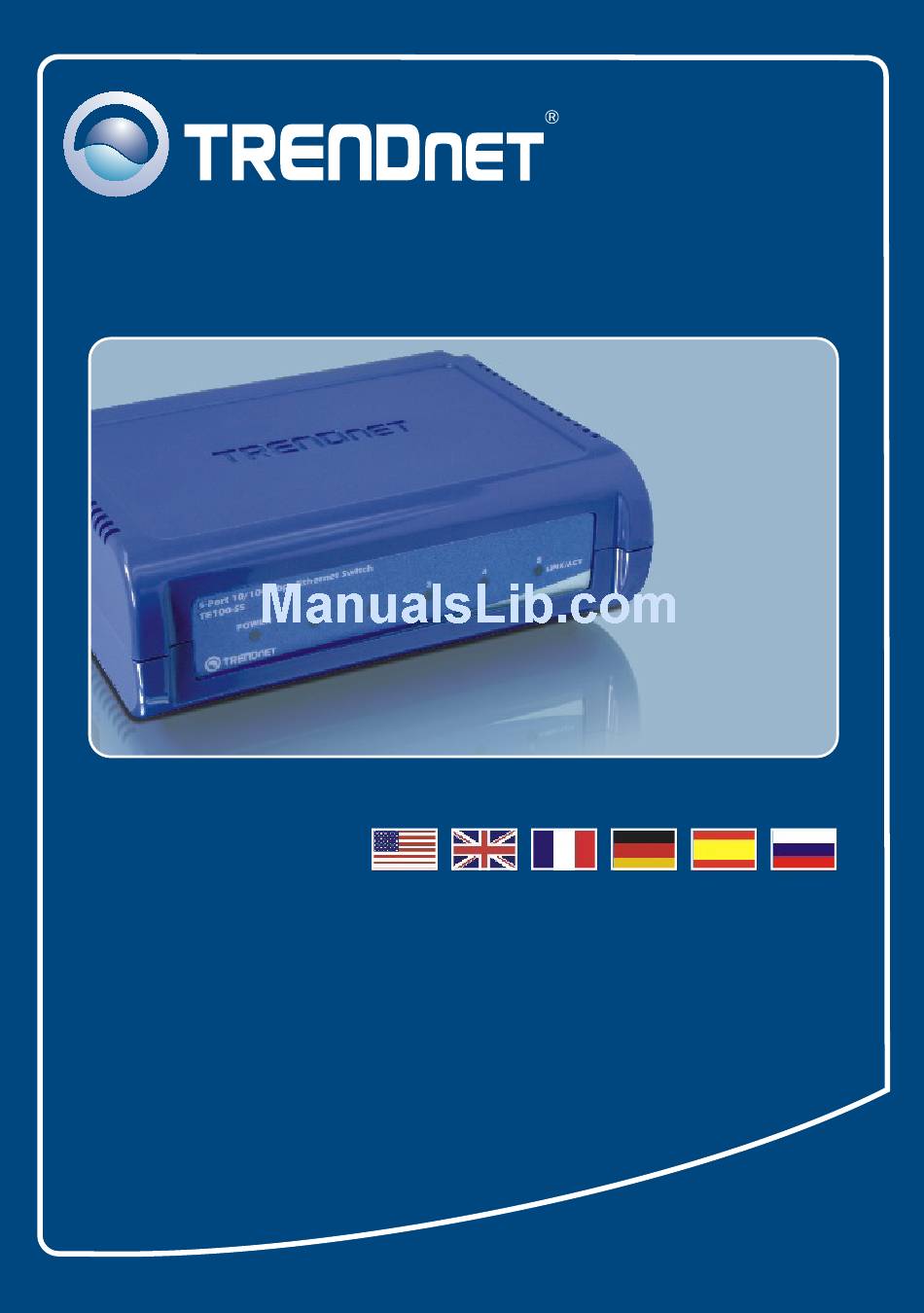

- Page 1 Quick Installation Guide TE100-S5...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Technical Specifications ... Troubleshooting ... Version 11.07.2006... -
Page 3: English
A computer with a network adapter properly installed The surface must support at least 1.5 Kg for the Switch The power outlet should be within 1.82 meters (6 feet) of the Switch Visually inspect the DC power jack to make sure that it is securely... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the AC Power Adapter to the TE100-S5 and then to a power outlet. 2. Connect a CAT-5 RJ-45 network cable from the computer to an available Ethernet port on the TE100-S5. Your installation is now complete. -
Page 5: Technical Specifications
Topology Network Cables Number of Ports LEDs Transmission Method Packet Filtering/ Forwarding Rate MAC Address Learning Switch Fabric Filtering Address Table General IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full-Duplex Flow Control CSMA/CD Ethernet: 10Mbps (Half-Duplex) - Page 6 Physical and Environmental DC inputs Power Consumption Temperature Humidity Dimensions (L x W x H) Weight Certification Switching Power 5V DC, 800mA or Linear Power 7.5V DC, 1A 2.8Watt. (Max.) Operating: 0 ~ 50 C, Storage: -10 ~ 70 C °...
-
Page 7: Troubleshooting
The Switch was not designed to share Internet between multiple computers. You need to get an Internet router, such as the TW100-S4W1CA. If you still encounter problems or have any questions regarding the TE100-S5 please contact Trendnet's Technical Support Department. - Page 8 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 9 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
