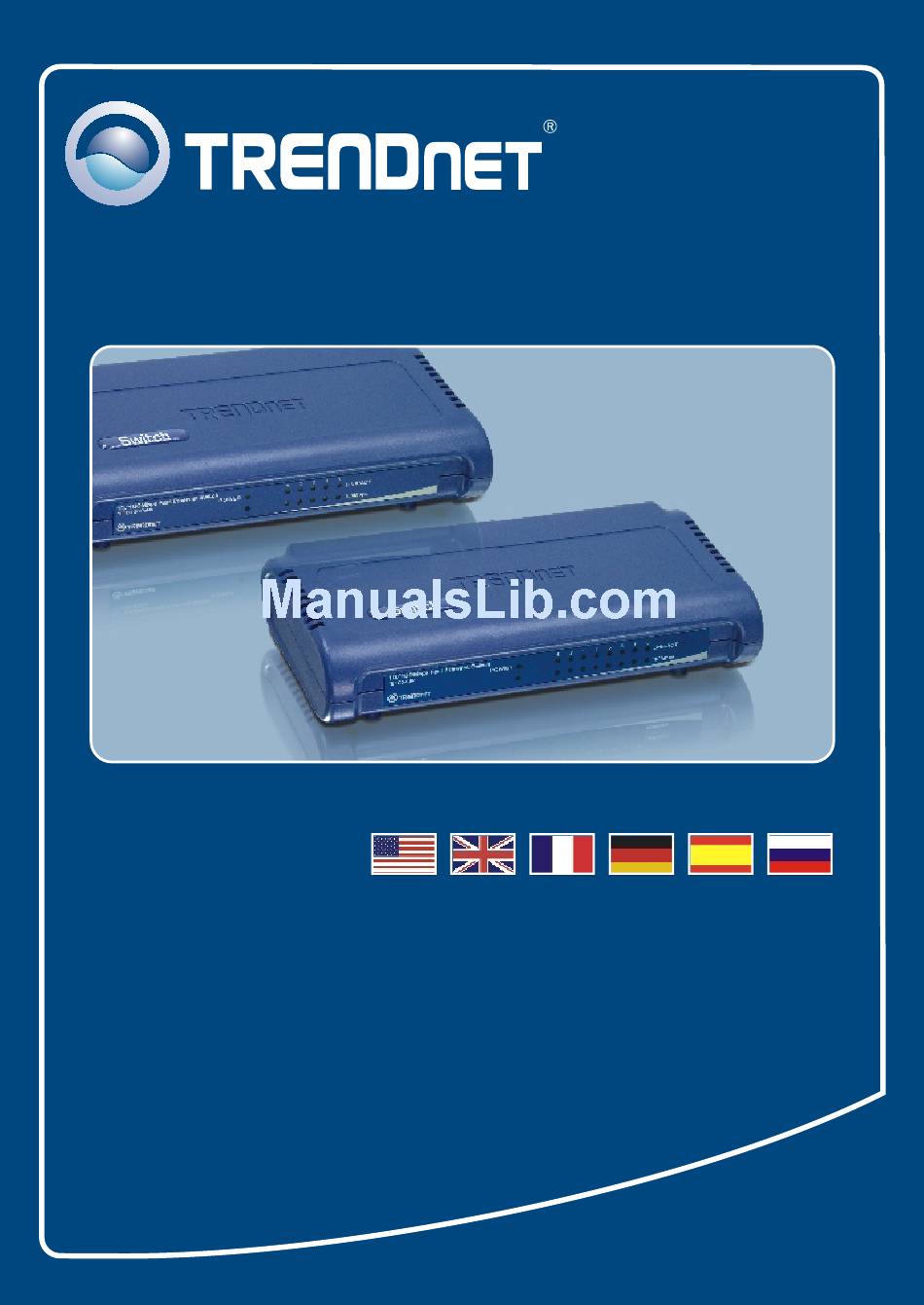

- Page 1 Quick Installation Guide TE100-S5Pplus TE100-S8P...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Español ... 1. Antes de iniciar ... 2. Instalación del Hardware ... Technical Specifications ... Troubleshooting ... Version 07.26.2006... -
Page 3: Español
1. Antes de iniciar Requisitos del sistema Un PC con adaptador de red instalado correctamente. La superficie debe soportar al menos 0.5 Kg para el conmutador. La toma de corriente debe estar a 1.82 metros (6 pies) del conmutador. Inspeccione visualmente el jack de corriente DC para comprobar que está... -
Page 4: Instalación Del Hardware
2. Instalación del Hardware 1. Conecte el adaptador de alimentación AC al TE100-S5Pplus/TE100-S8P y luego a una toma de corriente. 2. Conecte un cable de red RJ-45 CAT-5 del PC a un puerto Ethernet disponible en el TE100-S5Pplus/TE100-S8P. La instalación ha sido completada Español... -
Page 5: Technical Specifications
Technical Specifications Standards Protocol Data Transfer Rates Topology Network Cables Number of Ports Transmission Method MAC Address Table MAC Address Learning General IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 NWay Auto-negotiation IEEE 802.3x Full-Duplex Flow Control CSMA/CD Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex) - Page 6 Physical and Environmental DC inputs Power Consumption Temperature Humidity Dimensions (L x W x H) Weight Certification DC 7.5V 1A TE100-S5Pplus: 2.5W (Max.) TE100-S8P: 2.8W (Max.) Operating: 0 ~ 40 C, Storage: -10 ~ 70 C ° ° Operating: 10% ~ 90%, Storage:5% ~ 90% TE100-S5Pplus: 165 x 73 x 33 mm TE100-S8P: 165 x 73 x 33 mm TE100-S5Pplus: 145g...
-
Page 7: Troubleshooting
After I connect my PCs to the Switch, I can only get onto the Internet from one computer. The Switch was not designed to share Internet between multiple computers. You need to get an Internet router. If you still encounter problems or have any questions regarding the TE100-S5Pplus/TE100-S8P please contact Trendnet's Technical Support Department. - Page 8 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 9 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
