Summary of Contents for LEXIBOOK MD600GB

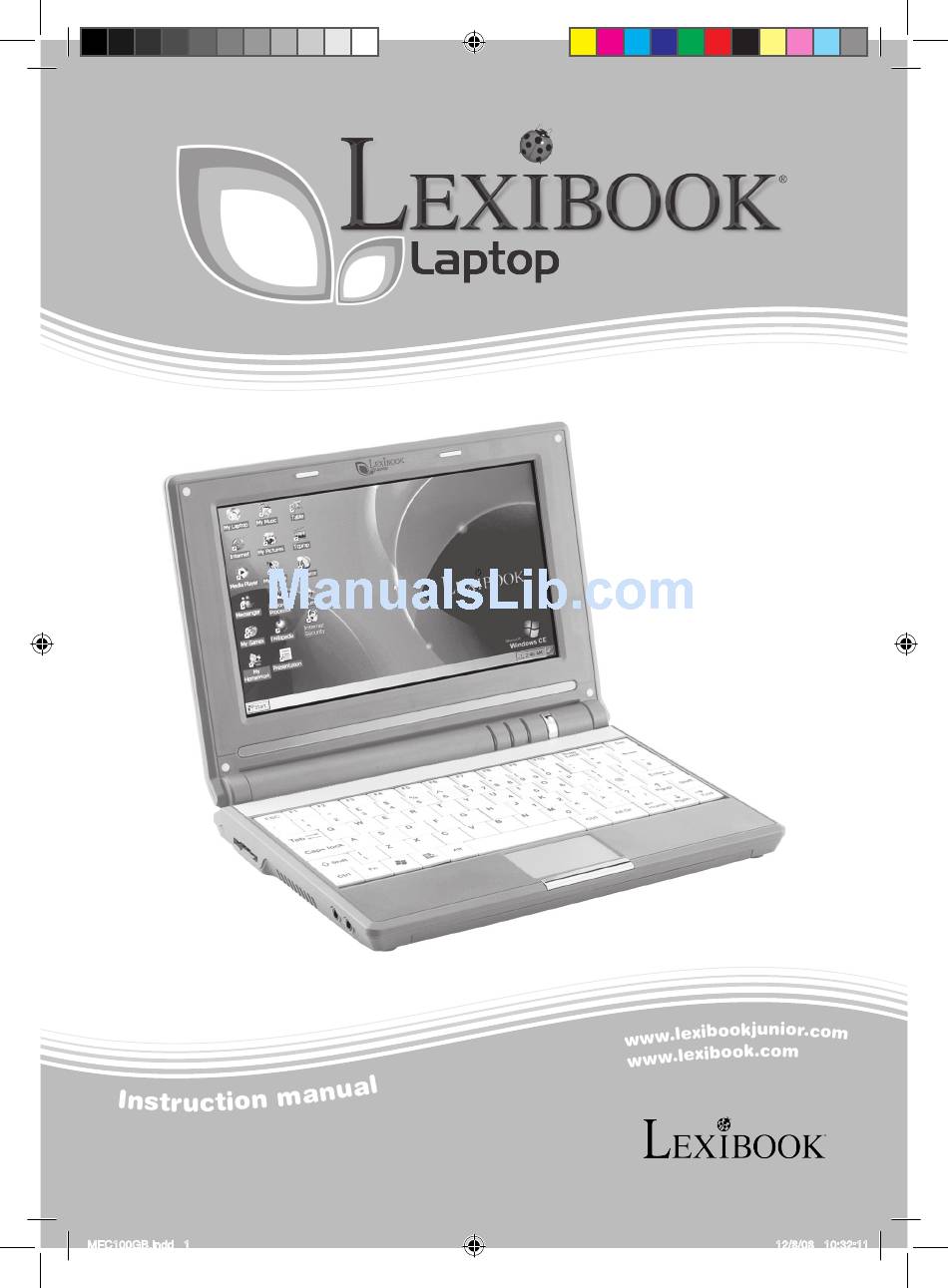

- Page 1 MFC100GB MFC100GB.indd 1 12/8/08 10:32:11...
-
Page 2: Table Of Contents
Thank you for purchasing this Lexibook Laptop MFC00GB. The Lexibook Laptop is more than an educative tool, specially designed for children age 6 and up. It is also a complete laptop with many applications: Word Processor to type reports or essays, integrated mailbox software to send and receive e-mails, Internet Explorer for browsing the net for school projects... -
Page 3: Safety Instructions
. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the product on your lap for more than 30 minutes, with at least a 5 minutes break. 6. Do not use this unit near water. -
Page 4: Start-Up Guide
. Connect the AC adaptor’s DC output plug to the DC IN port on the back side of the computer. 3. Plug the power cord into a wall outlet. The battery charge indicator on the front of the computer should glow. - Page 5 “Windows CE Basics”. . Browse through the topics available to learn how to use Windows® CE. Note: You can also press the F1 key while the desktop is displayed or when using Windows Explorer to open the “Help” dialog box.
-
Page 6: Getting To Know Your Laptop
4. Caps Lock indicator (green): indicates when the caps lock function is turned on or off. 5. Power ON/ Power OFF button: press to turn the laptop on. Press and hold for about 5 seconds to turn off the unit manually. - Page 7 . Kensington lock: anti-theft system. Back side . DC IN 9.8V : the AC adaptor connects to this socket. Use only the AC adaptor supplied with the laptop. Using the wrong adaptor can damage the product. . Mouse-only USB port : use this port to connect a USB mouse (not included).
-
Page 8: Unpacking The Device
INSTALLATION Mouse connection You can use the mouse-only USB port on the back of the laptop to plug in a mouse (reference MFA0, sold separately). Headphones connection On the left side of the unit is a headphones socket, suitable for any normal earphones fitted with a 3.5mm jack plug. -
Page 9: Charging And Using The Built-In Lithium Battery
• Never turn off or reset your Lexibook Laptop while the hard disk is in use, doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off the laptop before turning it back on. -
Page 10: Turning Your Mfc100Gb On And Off 0
The lithium battery is intended to use only with this laptop. Do not disassemble the battery. Do not dispose of the battery in fire or water. To avoid risk of fire, burns, or damage to your battery, do not allow a metal object to touch the battery contacts. -
Page 11: Desktop Icons
The Touch Pad is a rectangular electronic panel located just below your keyboard. To use the Touch Pad, simply touch and move your finger tip across it in the direction you want the cursor to go. The button located below the Touch Pad can be used like the left and right buttons on a mouse. - Page 12 • The “SDCard” drive icon appears when you insert a SD card into the corresponding slot of the laptop. Double-click the icon to display the files stored on the SD card (refer to the “SD Card Reader” section p. 9).
- Page 13 6. Select the files you want to add to the playlist by ticking them, then click “OK”. 7. The new playlist will be displayed on the next screen. Click the “+” icon in the lower part of the window to add other files or click the “PLAY” icon.
- Page 14 . Follow steps and above or double-click the “Tcpmp” icon, or click “Start”, then select “Programs” and click “Tcpmp” to launch the application. 2. To open a video file, click “File”, then the “Open file” option from the drop-down menu. On the next screen, double-click the desired video file to launch the playback.
- Page 15 After you have started the program for the third time, you will be able to tick the “Do not show this dialog box again” option. Note: For updates or detailed information about the features of the “SoftMaker Presentations”...
- Page 16 Use the available options to adjust the volume and the sounds. Wikipedia Double-click this icon to go directly to the Wikipedia homepage. Wikipedia is the biggest multilingual free-content encyclopaedia on the Internet. A useful tool for school projects. MFC100GB.indd 16 12/8/08 10:32:23...
- Page 17 Note: the two integrated USB ports can be used to plug USB keys and a USB mouse. Other USB devices may not be compatible. If two USB keys are plugged at the same time, one of them might not operate properly. In this case, unplug one of the USB key.
- Page 18 “USBDisk” icon disappears and the USB key can be removed safely. INTERNET CONNECTION Use the Ethernet port on the back side of the unit to plug an Ethernet cable (not included) and connect the laptop to internet. MFC100GB.indd 18 12/8/08 10:32:24...
- Page 19 1. If “No filtering” is selected, all web pages can be accessed. . If “Permit access” is selected you can set up a list with allowed web addresses. The user will only be able to access web pages that are on the list. Click “Permit access”, then click “Apply”...
- Page 20 WARNING: Some online email services (such as Hotmail) might not work properly with this application. SD CARD READER You can insert a SD card up to GB (not included) in the integrated SD card reader on the left side of the unit. To access a SD card contents: .
- Page 21 • First charge the battery, connect the adapter to the laptop and then turn on your computer. • Make sure the power indicator is lit up when you use the integrated battery or AC adapter. • If these methods do not work, contact the nearest service center.
- Page 22 Short service time of battery • Make sure the battery is fully charged. • Make sure the battery is not used for an excessive long time after being fully charged. • Recharge the battery before using it again. • Due to the battery’s chemical properties, it’s normal that after frequent use, the battery’s service time shortens.
- Page 23 • Do not put your fingers or sharp objects directly on the surface and never spray cleaner directly onto the display. • Do not press on, or store any objects on the cover when it is closed. Doing so may cause the LCD to break.
- Page 24 Declare under our sole responsibility that the following product: Kind of product: Personal computer Type designation: MFC00GB Complies with both the EMC Directive (004/08/EC) and the Low Voltage Directive (006/95/ EC) and R&TTE Directive (999/5/EC) issued by the Commission of the European Community.
