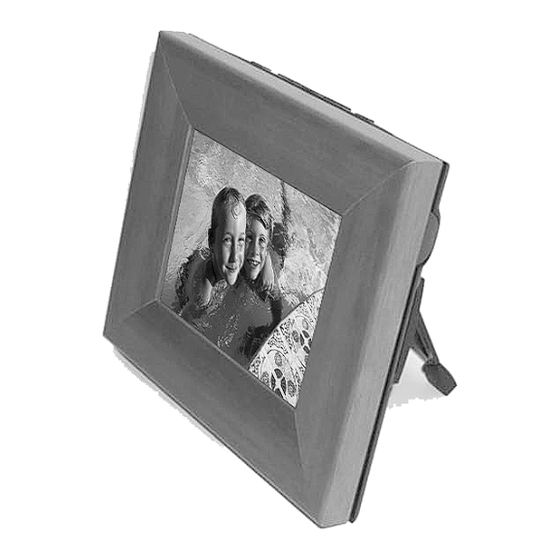

KODAK Smart Picture Frame
User's Guide (non-Networked
Version)
Congratulations! You now can view your favorite pictures in new and exciting
ways. You can:
m Store and view up to 36 pictures in your Smart Picture Frame.
m View pictures from your COMPACTFLASH Card.
m Create custom slide shows, showcasing your favorite pictures.
NOTE: This product is network-capable. However, this configuration does
not support networking features at this time.
Visit Kodak on the World Wide Web at www.kodak.com
Advertisement
Table of Contents
Related Manuals for Kodak EASYSHARE SMART PICTURE FRAME
Summary of Contents for Kodak EASYSHARE SMART PICTURE FRAME
- Page 1 Congratulations! You now can view your favorite pictures in new and exciting ways. You can: m Store and view up to 36 pictures in your Smart Picture Frame. m View pictures from your COMPACTFLASH Card. m Create custom slide shows, showcasing your favorite pictures.
- Page 2 Eastman Kodak Company 343 State Street Rochester, N.Y. 14650 © Eastman Kodak Company, 2001 Kodak is a trademark of Eastman Kodak Company. All other trademarks and service marks are property of their respective owners. P/N 7E3743...
-
Page 3: Table Of Contents
Setting the Time ........5... - Page 4 Disclaimers ........
-
Page 5: Getting Started
Getting Started Unpacking the Box KODAK Smart Picture Frame Documentation Packet AC Power Supply... -
Page 6: Caring For Your Smart Picture Frame
NOTE: Keep the original product packaging in case you need to return the frame or move it to a new location. Choosing a Location Locate your frame where it's easy to see and is away from direct sunlight and exposure to extreme temperatures. Caring for Your Smart Picture Frame m Do not allow liquids to come in contact with the frame. -
Page 7: Getting Connected
Getting Connected NOTE: This product is network-capable. However, this configuration does not support these networking features at this time: m Share! m Set Update Times m Channels m Update Now! m Order Prints m Advanced/Set Dialing Options m Frame Locking... -
Page 8: Learning The Buttons
Turns the frame on and off Pictures/Channels Switches the display between pictures and channels* Toggles the menu on and off; cancels an operation Menu Right/Left Arrows Displays next or previous picture or menu option Selects the current menu option, or a picture Share! Sends pictures*... -
Page 9: Turning The Frame On And Off
The first time you turn on the frame, you are prompted to set the time: Use the arrow buttons on the top of the frame to adjust the hour, then press 2 Use the arrow buttons to set the minutes, then press OK. -
Page 11: Adding Pictures To Your Smart Picture Frame
Adding Pictures to Your Smart Picture Frame The easiest way to transfer pictures from a digital camera to your Smart Picture Frame is by using a COMPACTFLASH Card. The frame has a built-in reader that supports Type I and Type II COMPACTFLASH Cards. -
Page 12: Inserting A Compactflash Card
Inserting a COMPACTFLASH Card Eject the COMPACTFLASH Card from your camera. 2 Insert the card into the slot on the right side of the Smart Picture Frame. NOTE: Make sure that the connectors on the card are facing the Smart... -
Page 13: Copying Pictures From A Compactflash Card
If more than 8 pictures reside on the card, use the Get Next and Get Last 4 Pictures functions. 4 Use the arrow buttons to select a picture you want to copy. Press OK. A check mark appears over the selected picture. - Page 14 NOTE: When you copy a high resolution picture (greater than 640 x 480 pixels) from a card to the frame, the picture is reduced to 640 x 480 pixels. This allows the frame to store the maximum number of images. Due to this compression, these pictures may appear with black bars above and below, or on the sides.
-
Page 15: Enjoying Your Pictures
Viewing Pictures in the Frame Memory Make sure that you are in Picture viewing mode (via the Pictures/Channels button). 2 Use the arrow buttons to move forward and backward through the pictures. If the frame is in Still Picture Mode, the... -
Page 16: Viewing Pictures On A Compactflash Card
Then, the frame scrolls through pictures stored on the frame followed by pictures from the card. 2 Use the arrow buttons to scroll through your pictures, or view them as a part of the slide show. (See “Slide Show Mode” on page 13.) -
Page 17: Still Picture Mode
Press the Menu button. 2 Select Slide Show. Press OK. 3 Use the arrow buttons to select the time you would like each picture to remain on the screen. Press OK. 4 Select Accept Setting. Press OK. -
Page 18: Rotating Pictures
2 Select Rotate. Press OK. Thumbnail views of pictures on the frame are displayed. If more than 8 pictures reside on the frame, use the Get Next and Get Last 4 Pictures functions. 3 Use the arrow buttons to select the picture you want to rotate. -
Page 19: Deleting Pictures
An “X” appears over that image. (To deselect the picture, press OK again.) 3 When all the pictures that you wish to remove are selected, use the arrow buttons to highlight the Continue to Confirm Deletion button. Press OK. 4 When the Delete Confirmation screen appears, press OK, select Delete Pictures, and press OK again. - Page 20 8 pictures reside on the frame, use the Get Next and Get Last 4 Pictures functions. 4 Use the arrow buttons to select the pictures to copy. Press OK to mark each picture for copying. 5 When finished, select Continue to confirm copy. Press OK.
-
Page 21: Customizing Your Smart Picture Frame
2 Select the On/Off Times function. Press OK. 3 Select Change On/Off Times. Press OK. 4 Use the arrow buttons to select the hour for the frame to turn off, followed by the minutes, and AM or PM. Press OK to accept the time. -
Page 22: Keeping Your Picture Frame Secure
Keeping Your Picture Frame Secure If your frame is in a location where theft is a possibility, you can physically lock your frame using a locking cable (not included) from Kensington Technology Group. For more information, see www.kensington.com. The Kensington lock slot is on the back of the... -
Page 23: Troubleshooting
Troubleshooting The KODAK Smart Picture Frame was designed for ease of use and reliability. This chapter will help you resolve the most common challenges. Should you require further assistance, there are extensive resources available online at www.kodak.com/go/SmartFrame and select Technical Support. If you do not have Web access, call 1-800-235-6325. - Page 24 You are viewing high- If, after pressing the right arrow resolution pictures on button, you have to wait more than 5 the COMPACTFLASH minutes for a picture to appear, Card. High-resolution remove the COMPACTFLASH Card pictures can take and try again.
- Page 25 20 Channel AutoDisplay Rate. minutes. 3 Select Never. These features Frame is not Do not try to use these features; the are not connecting to the frame is not configured for network available: network. connection. m Channels...
- Page 26 The manipulated. directories of some To determine if the file or card is older digital cameras corrupt, attempt to display: are not compatible m Another picture from the same with the frame. The...
-
Page 27: Limited Warranty And Regulatory Information
The KODAK Smart Picture Frame should only be used with a UL listed and Kodak approved Class 2 Power Supply with a rated input of 110V ~ 120V @ 50/60Hz while supplying a rated output of 7.5VDC@1.5 Amps to the KODAK Smart Picture Frame. - Page 28 WILL BE ONE YEAR FROM THE DATE OF PURCHASE. No oral or written information or advice given by Kodak, its dealers, distributors, agents or employees shall create a warranty or in any way increase the scope of this warranty. REPAIR OR REPLACEMENT, AT KODAK’S OPTION, WITHOUT CHARGE ARE KODAK'S ONLY OBLIGATIONS UNDER THIS WARRANTY.
-
Page 29: How To Obtain Replacement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 30: Canadian Ices-003 Statement
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: m Reorient or relocate the receiving antenna. - Page 31 Notice: The LOAD NUMBER (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by the device to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the requirement that the sum of the LOAD NUMBERS of all of the devices does not exceed 100.
-
Page 32: Disposal
This manual was developed and published by Kodak. It includes the most current information known at the time of publication. The contents of this manual and the specifications of the KODAK Smart Picture Frame are subject to change without notice. Kodak reserves the right to make changes without... - Page 33 Cleaning 2 Cleaning 2 Unpacking 2 COMPACTFLASH Card Load Number, LN 27 Archiving Pictures 16 Location, Choosing 2 Copy Pictures to Frame 9 Inserting 8 Mode Set Icon Display 12 Landscape 14 Viewing Pictures 12 Portrait 14 Connecting Power Cord 3...
- Page 34 Canadian Electrical 27 Power Cord 3 Electrical 23 Problem Solving 19 Recycling 28 Replacement 25 Rotating Pictures 14 Security 18 Setting On and Off Times 17 Slide Show Mode 13 Still Picture Mode 13 Troubleshooting 19 Unpacking the Box 1...
