Kodak Picture Frame User Manual

Non-networked version
Hide thumbs
Table of Contents

Advertisement

Quick Links

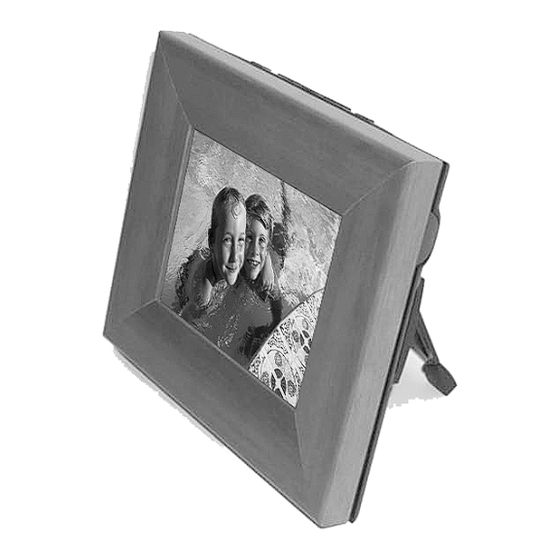

KODAK Smart Picture Frame
User's Guide (non-Networked
Version)
Congratulations! You now can view your favorite pictures in new and exciting
ways. You can:
m Store and view up to 36 pictures in your Smart Picture Frame.
m View pictures from your COMPACTFLASH Card.
m Create custom slide shows, showcasing your favorite pictures.
NOTE: This product is network-capable. However, this configuration does
not support networking features at this time.
Visit Kodak on the World Wide Web at www.kodak.com

Advertisement

Table of Contents
loading

Related Manuals for Kodak Picture Frame

Summary of Contents for Kodak Picture Frame

  • Page 1 Congratulations! You now can view your favorite pictures in new and exciting ways. You can: m Store and view up to 36 pictures in your Smart Picture Frame. m View pictures from your COMPACTFLASH Card. m Create custom slide shows, showcasing your favorite pictures.
  • Page 2 Eastman Kodak Company 343 State Street Rochester, N.Y. 14650 © Eastman Kodak Company, 2001 Kodak is a trademark of Eastman Kodak Company. All other trademarks and service marks are property of their respective owners. P/N 7E3743...

  • Page 3: Table Of Contents

    Unpacking the Box ........1 Caring for Your Smart Picture Frame ....2 2 Getting Connected.
  • Page 4 Setting On and Off Times......17 Keeping Your Picture Frame Secure ....18 6 Troubleshooting .

  • Page 5: Getting Started

    Getting Started Unpacking the Box KODAK Smart Picture Frame Documentation Packet AC Power Supply...

  • Page 6: Caring For Your Smart Picture Frame

    Unpacking Your Frame Always handle your KODAK Smart Picture Frame with care. Though it is designed for durability, the liquid crystal display (LCD) is fragile and could be damaged if it is dropped or struck. Something Missing? Something Damaged? Locate the serial number on the back of your frame, and call 1-800-235-6325 for Kodak Customer Support.

  • Page 7: Getting Connected

    Plug the power cord into the bottom of the frame. NOTE: Even if the power is Power Cord disconnected from the Smart Picture Frame, your stored pictures are safe. 2 Plug the power supply into the Power Supply wall socket.

  • Page 8: Learning The Buttons

    Learning the Buttons Share! Pictures/Channels COMPACTFLASH Card Slot On/Off Pictures/Channels Switches the display between pictures and channels* Menu Right/Left Arrows Displays next or previous picture or menu option Share! * Not supported in this configuration Left Arrow Right Arrow Turns the frame on and off Toggles the menu on and off;...

  • Page 9: Turning The Frame On And Off

    Turning the Frame On and Off On/Off Button Setting the Time The first time you turn on the frame, you are prompted to set the time: Use the arrow buttons on the top of the frame to adjust the hour, then press 2 Use the arrow buttons to set the minutes, then press OK.

  • Page 11: Adding Pictures To Your Smart Picture Frame

    Frame is by using a COMPACTFLASH Card. The frame has a built-in reader that supports Type I and Type II COMPACTFLASH Cards. NOTE: Look for the COMPACTFLASH logo on the card. KODAK COMPACTFLASH Cards are available from a dealer of KODAK products, or from our Web site at www.kodak.com/go/accessories.

  • Page 12: Inserting A Compactflash Card

    Inserting a COMPACTFLASH Card Eject the COMPACTFLASH Card from your camera. 2 Insert the card into the slot on the right side of the Smart Picture Frame. NOTE: Make sure that the connectors on the card are facing the Smart Picture Frame.

  • Page 13: Copying Pictures From A Compactflash Card

    Copying Pictures From a COMPACTFLASH Card Insert a COMPACTFLASH Card into the Smart Picture Frame, and press the Menu button. 2 Select Copy. Press OK. 3 Select From the CF Card to the Frame. Press OK. Thumbnail views of the pictures on your COMPACTFLASH Card are displayed.
  • Page 14 NOTE: When you copy a high resolution picture (greater than 640 x 480 pixels) from a card to the frame, the picture is reduced to 640 x 480 pixels. This allows the frame to store the maximum number of images. Due to this compression, these pictures may appear with black bars above and below, or on the sides.

  • Page 15: Enjoying Your Pictures

    Enjoying Your Pictures Viewing Pictures in the Frame Memory Pictures/Channels Button Make sure that you are in Picture viewing mode (via the Pictures/Channels button). 2 Use the arrow buttons to move forward and backward through the pictures. If the frame is in Still Picture Mode, the picture on the screen remains there until you change it.

  • Page 16: Viewing Pictures On A Compactflash Card

    Viewing Pictures on a COMPACTFLASH Card Insert a COMPACTFLASH Card into the Smart Picture Frame. (See “Inserting a COMPACTFLASH Card” on page 8.) The frame displays the last picture on the card-typically the most recent picture taken. Then, the frame scrolls through pictures stored on the frame followed by pictures from the card.

  • Page 17: Still Picture Mode

    Still Picture Mode To display a single picture, put your Smart Picture Frame in Still Picture Mode. Press the Menu button. 2 Select Slide Show. Press OK. 3 Use the arrow buttons to select Pause Show. Press OK. 4 Use the arrow buttons to select Accept Setting. Press OK.

  • Page 18: Rotating Pictures

    NOTE: You cannot rotate pictures that reside on a card. However, you can copy pictures from the card to the frame (see “Copying Pictures From a COMPACTFLASH Card” on page 9), then follow the above procedure. Your Smart Picture Frame can rotate images to fit the landscape format of the frame.

  • Page 19: Deleting Pictures

    Deleting Pictures NOTE: Pictures deleted from a card or from the frame cannot be recovered. Use caution if you have elected to disable the 'CF' icon. Press the Menu button. Select Delete. Press OK. Thumbnail images of the pictures on your frame and card (if inserted) are displayed.
  • Page 20 Archiving Pictures on COMPACTFLASH Cards You can store your pictures by copying them to a COMPACTFLASH Card. Insert a card into the Smart Picture Frame and follow these steps: Press the Menu button. 2 Select Copy. Press OK. 3 Select From the Frame to the CF Card. Press OK.

  • Page 21: Customizing Your Smart Picture Frame

    Setting On and Off Times You can program your KODAK Smart Picture Frame to turn off when you are asleep or away from home. By default, the Smart Picture Frame turns off at 12 p.m. (midnight) and back on at 6 a.m.

  • Page 22: Keeping Your Picture Frame Secure

    (not included) from Kensington Technology Group. For more information, see www.kensington.com. Kensington Lock The Kensington lock slot is on the back of the Smart Picture Frame and is indicated with a lock symbol. Follow the directions that come with the lock and cable.

  • Page 23: Troubleshooting

    Troubleshooting The KODAK Smart Picture Frame was designed for ease of use and reliability. This chapter will help you resolve the most common challenges. Should you require further assistance, there are extensive resources available online at www.kodak.com/go/SmartFrame and select Technical Support. If you do not have Web access, call 1-800-235-6325.
  • Page 24 Problem Possible Cause Smart Picture There is only one picture in the frame. Frame does not advance to next picture. You are viewing high- resolution pictures on the COMPACTFLASH Card. High-resolution pictures can take some time to display. You are in Still display mode.
  • Page 25 Problem Possible Cause Channel Frame is not display pops connecting to the network. up every 20 minutes. These features Frame is not are not connecting to the available: network. m Channels m Share! m Print Order m Update! Cannot set update times.
  • Page 26 Another picture from the same card m Pictures from another card Further assistance is available online at www.kodak.com/go/SmartFrame and select Technical Support. The frame does not support movie playback nor the display of a thumbnail.

  • Page 27: Limited Warranty And Regulatory Information

    KODAK Smart Picture Frame prior to servicing or modifying the frame. The KODAK Smart Picture Frame should only be used with a UL listed and Kodak approved Class 2 Power Supply with a rated input of 110V ~ 120V @ 50/60Hz while supplying a rated output of 7.5VDC@1.5 Amps to the KODAK...
  • Page 28 POSSIBILITY OF SUCH DAMAGES. Such damage for which Kodak will not be responsible include, but is not limited to, loss of revenue or profit, downtime costs, loss of use of the KODAK Smart Picture Frame, cost of any substitute equipment, facilities or services, or claims of your customers for such damages.

  • Page 29: How To Obtain Replacement

    To obtain repair or replacement, call 1-800-235-6325 for Kodak Customer Support. When returning a KODAK Smart Picture Frame, pack the KODAK Smart Picture Frame in the original packaging materials. A problem report should also be enclosed with the KODAK Smart Picture Frame. If the original packaging materials has been discarded or is not available, packaging will be at the owner's expense.

  • Page 30: Canadian Ices-003 Statement

    Regulatory Engineering Department. Changes or modifications made without written approval may void the user's authority to operate this equipment. Responsible Party: Eastman Kodak Company Rochester, NY 14650 USA www.kodak.com Canadian ICES-003 Statement This Class B digital apparatus complies with all requirements of the Canadian Interference Causing Equipment Regulations.
  • Page 31 Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring of a building or home associated with a single line of service may be extended by means of a certified connector assembly (telephone extension cord).

  • Page 32: Disposal

    This manual was developed and published by Kodak. It includes the most current information known at the time of publication. The contents of this manual and the specifications of the KODAK Smart Picture Frame are subject to change without notice. Kodak reserves the right to make changes without...
  • Page 33 Box Contents 1 Button Overview 4 Cable Lock 18 Caution Canadian Electrical 27 Electrical 23 CF Symbol 12 Choosing a Location 2 Cleaning 2 COMPACTFLASH Card Archiving Pictures 16 Copy Pictures to Frame 9 Inserting 8 Set Icon Display 12 Viewing Pictures 12 Connecting Power Cord 3 Contents of the Box 1...
  • Page 34 Deleting 15 Rotating 14 Slide Show Mode 13 Still Picture Mode 13 View From Card 12 View From Memory 11 Portrait Mode 14 Power Cord 3 Problem Solving 19 Recycling 28 Replacement 25 Rotating Pictures 14 Security 18 Setting On and Off Times 17 Slide Show Mode 13 Still Picture Mode 13 Troubleshooting 19...
