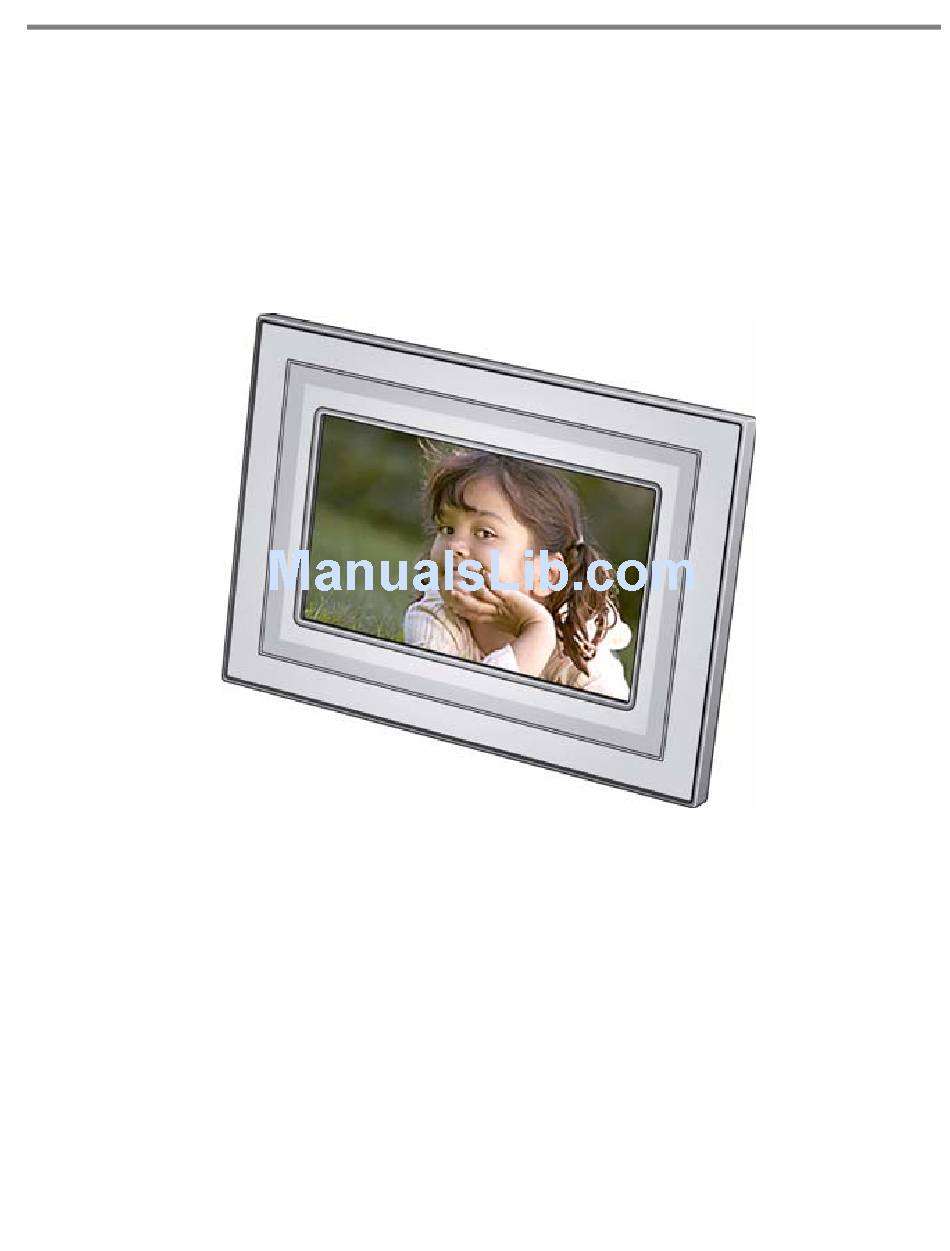

Page 1: Digital Photo Frame
Kodak EasyShare digital photo frame Extended user guide P520/P720/P820 www.kodak.com For help with your frame, www.kodak.com/go/digitalframesupport... - Page 2 Eastman Kodak Company Rochester, New York 14650 © Eastman Kodak Company, 2008 All screen images are simulated. Kodak and EasyShare are trademarks of Eastman Kodak Company. P/N 4F8178_en...
-
Page 3: Product Features
Product features Front View 1 LCD screen 2 Quick Touch Border (right side, tap only) Kodak EasyShare P520 digital frame 3 Quick Touch Border (bottom, tap/slide) To use the Quick Touch Borders, see page 3. Kodak EasyShare P720/P820 digital frames... - Page 4 2 Stand attachment slot 6 Wall mounting holes, 3 (see page 3 Frame stand (see page 7 USB connector (to camera/USB device) 4 Memory card slot - SD, MS, xD, MMC 8 Memory card slot - SD/SDHC 9 Power connector www.kodak.com/go/support...
-
Page 5: Table Of Contents
Setting your language ................... 4 Enjoying your pictures immediately! .............. 4 Inserting a memory card................5 Connecting a digital camera or other USB device ........... 6 Changing your frame orientation ..............7 Mounting your frame on the wall ..............7 2 Viewing pictures ..................8... - Page 6 Table of contents Learning more about your frame..............25 4 Troubleshooting and support ..............26 Picture frame problems ................26 Screen messages..................28 5 Appendix .....................30 Digital frame specifications................30 Important safety instructions ............... 31 Upgrading your software and firmware............31 Additional care and maintenance ..............
-
Page 7: Getting Started
Getting started Welcome to your Kodak EasyShare digital frame. Viewing your pictures couldn’t be simpler! Setting up your frame Attaching the frame stand Make sure the tab is secure in the slot. Slot Your frame displays pictures in landscape orientation. To change to portrait... -
Page 8: Turning Your Frame On And Off
Getting started Attaching the power cable CAUTION: Do not use this power cable with other devices, including digital cameras. Your power cable may look different from the one pictured. Use the plug that accommodates your type of power outlet. Turning your frame on and off Turn on. -
Page 9: Using Your Frame's Quick Touch Borders
Slide to scroll: Scroll through images—Like turning the pages of a book, slide left ← to go forward, slide right → to go back. For faster scrolling through larger numbers of pictures, touch and hold (3 seconds), then slide to the end of the border. -
Page 10: Setting Your Language
USB device (see page If you are at the Home screen, see page 8 to start your slide show. NOTE: There may be preloaded Kodak images on your frame. They will play when there is no other picture source connected. www.kodak.com/go/support... -
Page 11: Inserting A Memory Card
P820 digital frame To insert a card in: – top card slot, push the card firmly into the slot until it clicks into place. – side card slot, push the card firmly into the slot until it stops. To remove a card from: –... -
Page 12: Connecting A Digital Camera Or Other Usb Device
Getting started Connecting a digital camera or other USB device USB devices: camera, flash drive, card reader, etc. (sold separately) P520/P720 digital frame USB cable included with your USB device P820 digital frame www.kodak.com/go/support... -
Page 13: Changing Your Frame Orientation
4 Slide to highlight Portrait, then tap OK. 5 Tap to exit. Mounting your frame on the wall Use 3 mm (1/8 inch), or larger, wall-anchoring hardware (not included) to anchor your frame securely to your wall. Secure power cable Wall mounting holes... -
Page 14: Viewing Pictures
Viewing pictures Accessing your pictures Tap Home to access pictures from your memory card and all connected devices (see page 6). Use the touch borders to make your selections (see page 1 Tap (Home). All connected sources and the Settings icon are displayed. -
Page 15: Running A Slide Show
There are three ways to start a slide show on your frame: Insert a memory card or USB device, then turn on your frame. Turn on the frame, then insert a card or connect a USB device—a new slide show starts automatically, replacing a currently running slide show or single view picture. -
Page 16: Viewing A Single Picture
You can change the arrangement, or sort order, by date or alphabetically by filename. NOTE: If a picture source with numerous images (greater than 500) takes too long to load, change the order to play by filename. To change the sort order: 1 For P720 or P820 frames—display thumbnails (see... -
Page 17: Copying Pictures
Viewing pictures -Date, newest to oldest 4 Tap Save. Copying pictures Copy pictures from your current viewing location to another connected device. For example, insert a USB flash drive (see page 6) and insert a card (see page 5) in your frame, then copy pictures from the flash drive to the card. -
Page 18: Selecting Multiple Pictures
4 Tap (Close) to close the menu. Selecting multiple pictures Use the multi-select feature to copy or delete two or more pictures or to play a slide show of selected pictures. 1 In multi-up (thumbnails) view, slide your finger along the bottom touch border to find a picture, then tap (Select). -
Page 19: Copying From Your Computer
Use Kodak EasyShare digital display software to drag and drop pictures easily from your computer to a removable device (memory card or other USB device, like a flash drive or camera). Then insert the device into your frame and play a slide show right away. -
Page 20: Copying Pictures From Easyshare Software
Viewing pictures 6 In the Viewer pane, select the pictures you want to copy, then drag and drop them to the copy location (memory card or USB device) in the Drag and Drop Zone. The pictures are copied to the memory card or USB device. - Page 21 6 Browse to the location to which you are copying. The memory card, card reader, and USB device appear as removable drives. 7 Select Best For Picture Frame to resize the pictures you are copying. Full resolution is unnecessary and quickly fills up the frame’s memory.
-
Page 22: Doing More
Doing more P520—Changing frame and slide show settings For P520 frames, use the Settings menu to customize your frame and your slide show options. 1 Tap (Home), then (Settings). 2 Slide, or tap below the slider arrows, to highlight a setting, then tap OK. - Page 23 (page 10). Slide duration—specify how long each picture is displayed in a slide show, from 3 seconds to 1 hour. (The default is 5 seconds.) Transitions—specify the transition style between pictures in a slide show. See screen for options. The default is Random.
-
Page 24: P720/P820-Changing Frame And Slide Show Settings
Doing more P720/P820—Changing frame and slide show settings For P720 and P820 frames, use the Settings menu to customize your frame. Use Slide Show Options to customize how you view your slide shows. Settings menus 1 Tap (Home), then (Settings). - Page 25 Options Set up viewing options Slide duration—specify how long each picture is displayed in a slide show, from 3 seconds to 1 hour. (The default is 5 seconds.) Transitions—specify the transition style between pictures in a slide show. See screen for options. The default is Random.
-
Page 26: Slide Show Options
1 From thumbnails view or a full screen single view, tap (Slide show options). 2 Slide, or tap below the slider arrows, to highlight a setting, then tap OK. 3 Follow the on-screen instructions. Tap OK to accept your selections. -
Page 27: Setting The Clock And Timer
The current time is displayed and the hour field is highlighted. 4 Set the Turn on time. Slide to adjust the hour. Tap the right arrow to highlight the next setting (minutes), then slide to adjust it. Repeat to set Turn off time. -
Page 28: Upgrading Your Firmware
2 Follow the screen directions to download the frame firmware to your computer. 3 Copy the IMG file to the root directory of a memory card or USB flash drive, then insert into the frame. The frame recognizes the upgrade file on the inserted device and makes the Firmware Upgrade option available in the Settings menus. -
Page 29: Installing The Software
2 Place the EasyShare software CD into the CD-ROM drive. 3 If the Install Wizard does not appear, choose Run from the Start menu and type d:\setup.exe where d is the drive letter that contains the CD. -
Page 30: Customizing Your Frame
IMPORTANT: Always disconnect the power before cleaning. Do not use water, cleaning solutions, or other adhesives on the frame or any of its parts. Gently wipe the frame, LCD, faceplate, or matte with a clean, dry, lint-free cloth (included). For fingerprints on the frame, apply light pressure. -
Page 31: Learning More About Your Frame
Doing more Learning more about your frame www.kodak.com/go/digitalframes Frame accessories, including decorative faceplates and custom mattes www.kodak.com/go/digitalframesupport Interactive troubleshooting and repairs Interactive tutorials FAQs Downloads Product registration www.kodak.com/go/support... -
Page 32: Troubleshooting And Support
USB device is Make sure the USB cable that was included with your camera or USB connected. page 6 device is connected securely (see... - Page 33 The Home screen appears. The time is reset and the automatic on/off times (if set) are re-enabled. It is not necessary to reset the on/off times. NOTE: If you exit the set time screen without setting the time, you can manually reset the clock and re-enable the automatic on/off times (see page 21).
-
Page 34: Screen Messages
Screen messages Screen message Try one or more of the following Create file failed. The device (memory card, USB drive, camera, etc.) you are trying to copy to is protected. See your device documentation to remove write protection. Insert or connect a different device. - Page 35 Unplug the power cable from the frame. Wait 5 seconds, then reconnect the cable. Press and hold the directory. power button (for about 2 seconds), then release. If the Error duplicate filename. problem persists, contact customer support help, at www.kodak.com/go/digitalframesupport.
-
Page 36: Appendix
For more specifications, visit www.kodak.com/go/digitalframesupport. Kodak EasyShare P520, P720, P820 digital frames Color display P520 12.7 cm (5 in.) diagonal analog LCD, 320 x 234 pixels, 4:3 aspect ratio, 103 x 75 mm (4.0 x 2.9 in.) viewable area P720 17.8 cm (7 in.) diagonal analog LCD, 480 x 234 pixels, 16:9 aspect... -
Page 37: Important Safety Instructions
If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer support. The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, visit www.kodak/go/accessories. -
Page 38: Limited Warranty
If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. -
Page 39: Your Rights
The option of repair, replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. -
Page 40: Fcc Compliance And Advisory
FCC compliance and advisory Kodak EasyShare P520/P720/P820 digital frame This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 41: Canadian Doc Statement
à la norme NMB-003 du Canada. Waste Electrical and Electronic Equipment labeling EU: It is the final user’s responsibility to discard this equipment into an approved, segregated collection scheme to enable its suitable treatment/disposal and to improve human/environmental protection. For more information, see your retailer, local authority, or www.kodak.com/go/recycle. - Page 42 Appendix China RoHS Licensing Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), streaming applications (via Internet, intranets and/or other networks), other content distribution systems...
- Page 43 8 number, 17, 19 cleaning frame, 24, 31 cleaning, 24 clock and timer, setting, 17, 19, 21, 27 customizing, 24 copying setup, 1 from computer, 13 specifications, 30 from EasyShare software, 14...
- Page 44 Index selecting more than one, 12 installing software, 23 sorting, 10 viewing, 8 internal memory, not available, 30 portrait, set orientation, 7, 17, 19 power landscape, set orientation, 7, 17, 19 connecting cable, 2 language turning on, 2 setting, 17, 19...
- Page 45 30 stand, attaching, 1 support zoom picture, 10 troubleshooting, 26 Web links, 25 thumb drive. See flash drive, 6 thumbnails, 9 time, setting, 17, 19 touch borders, screen, 3 transitions, slide show, 17, 19, 20 troubleshooting error messages, 28...
