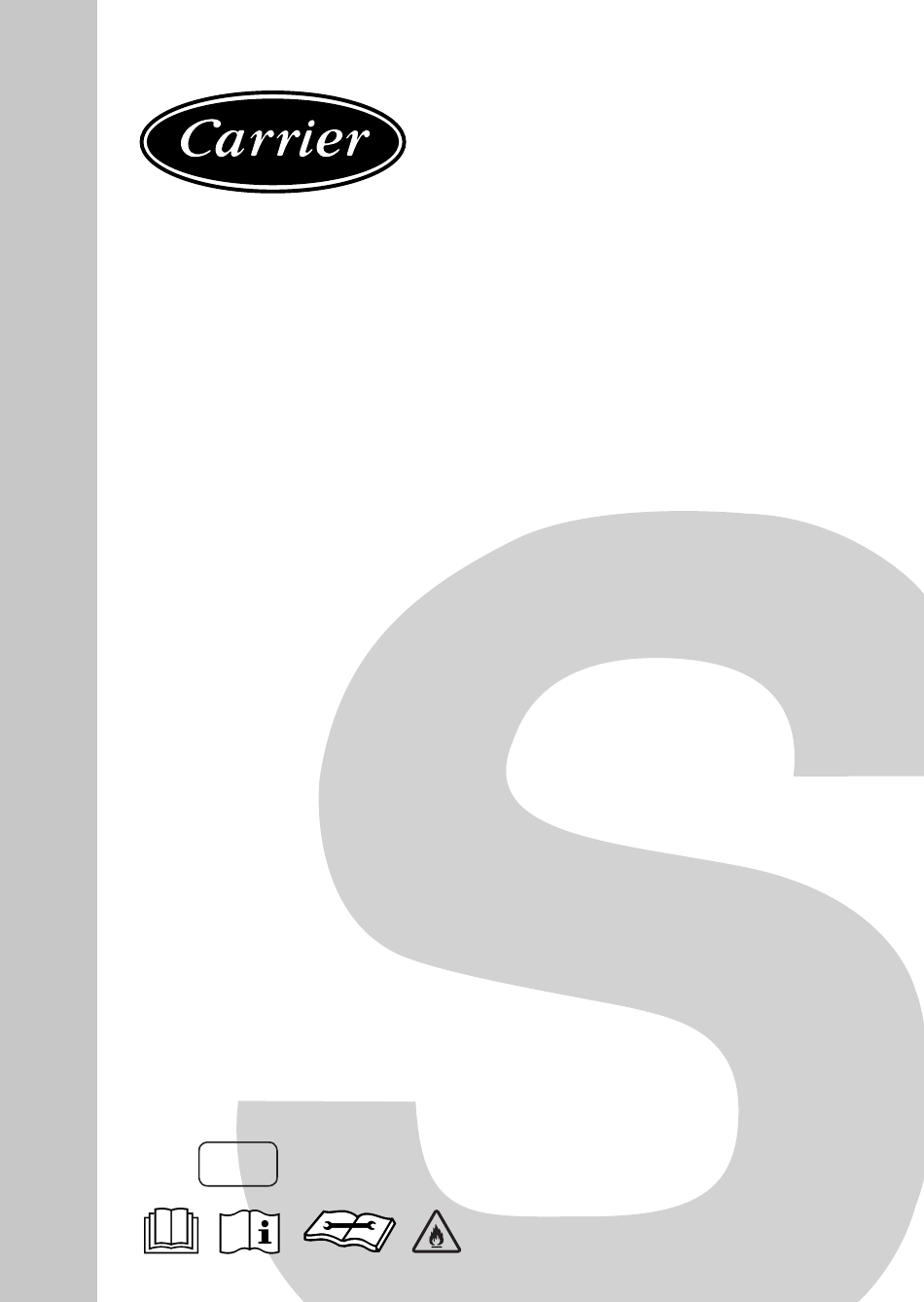

SERVICE MANUAL
INDOOR UNIT
Ceiling Type
42TGF0131CP
42TGF0181CP
42TGF0241CP
42TGF0301CP
42TGF0361CP
42TGF0401CP
42TGF0481CP
42TGF0601CP
R32
AIR-CONDITIONER
FILE NO. SVM-21043
(SPLIT TYPE)
April, 2021

Advertisement

Table of Contents
loading

Related Manuals for Carrier 42TGF0131CP

Summary of Contents for Carrier 42TGF0131CP

  • Page 1 FILE NO. SVM-21043 SERVICE MANUAL AIR-CONDITIONER (SPLIT TYPE) INDOOR UNIT Ceiling Type 42TGF0131CP 42TGF0181CP 42TGF0241CP 42TGF0301CP 42TGF0361CP 42TGF0401CP 42TGF0481CP 42TGF0601CP April, 2021...

  • Page 2: Table Of Contents

    Adoption of New Refrigerant This Air Conditioner is a new type which adopts a new refrigerant HFC (R32) instead of the conventional refrigerant R22 in order to prevent destruction of the ozone layer. WARNING Cleaning of the air filter and other parts of the air filter involves dangerous work in high places, so be sure to have a service person do it.
  • Page 3 7. OUTLINE OF SPECIFICATION ..............33 7-1. Control Specification ..................33 7-2. Optional Connector Specifications of Indoor P.C. Board ....... 40 7-3. Indoor Print Circuit ..................... 41 8. TROUBLESHOOTING ................42 8-1. Summary of Troubleshooting ................42 8-2. Troubleshooting ....................44 SETUP AT LOCAL SITE AND OTHERS ..........

  • Page 4: Safety Caution

    Toshiba Carrier Corporation or, alternatively, he or she has been instructed in such matters by an individual or individuals who have been trained and is thus thoroughly acquainted with the knowledge related to this work.
  • Page 5 Definition of Protective Gear When the air conditioner is to be transported, installed, maintained, repaired or removed, wear protective gloves and ‘safety’ work clothing. In addition to such normal protective gear, wear the protective gear described below when undertaking the special work detailed in the table below.
  • Page 6 Warning Indications on the Air Conditioner Unit [Confirmation of warning label on the main unit] Confirm that labels are indicated on the specified positions If removing the label during parts replace, stick it as the original. Warning indication Description WARNING WARNING ELECTRICAL SHOCK HAZARD ELECTRICAL SHOCK HAZARD...
  • Page 7 Precaution for Safety The manufacturer shall not assume any liability for the damage caused by not observing the description of this manual. DANGER Before carrying out the installation, maintenance, repair or removal work, be sure to set the circuit breaker to the OFF position. Otherwise, electric shocks may result. Before opening the intake grille of the indoor unit or service panel or valve cover of the outdoor unit, set the circuit breaker to the OFF position.
  • Page 8 WARNING Use wiring that meets the specifications in the Installation Manual and the stipulations in the local regulations and laws. Use of wiring which does not meet the specifications may give rise to electric shocks, electrical leakage, smoking and/or a fire. The appliance shall be installed in accordance with national wiring regulations.
  • Page 9 The refrigerant used by this air conditioner is the R32. Check the used refrigerant name and use tools and materials of the parts which match with it. For the products which use R32 refrigerant, the refrigerant name is indicated at a position on the outdoor unit where is easy to see.
  • Page 10 Once the repair work has been completed, check for refrigerant leaks, and check the insulation resistance and water drainage. Then perform a trial run to check that the air conditioner is running properly. After repair work has finished, check there is no trouble. If check is not executed, a fire, electric shock or injury may be caused.
  • Page 11 Refrigerant (R32) This air conditioner adopts HFC type refrigerant (R32) which does not deplete the ozone layer. 1. Safety Caution Concerned to Refrigerant The pressure of R32 is high 1.6 times of that of the former refrigerant (R22). Accompanied with change of refrigerant, the refrigerating oil has been also changed. Therefore, be sure that water, dust, the former refrigerant or the former refrigerating oil is not mixed into the refrigerating cycle of the air conditioner with refrigerant during installation work or service work.
  • Page 12 4. Tools 1. Required Tools for R32 Mixing of different types of oil may cause a trouble such as generation of sludge, clogging of capillary, etc. Accordingly, the tools to be used are classified into the following three types. 1) Tools exclusive for R32 (Those which cannot be used for conventional refrigerant (R22)) 2) Tools exclusive for R32, but can be also used for conventional refrigerant (R22) 3) Tools commonly used for R32 and for conventional refrigerant (R22) The table below shows the tools exclusive for R32 and their interchangeability.

  • Page 13: Specifications

    1. SPECIFICATIONS Indoor Unit Ceiling Type <Single type> Indoor unit 42TGF0131CP 42TGF0181CP 42TGF0241CP Models Outdoor unit 38TGF0131A1 38TGF0181A1 38TGF0241A1 Cooling capacity (kW) 3.90 5.50 7.10 Indoor unit 1 Phase, 220V~50Hz. (supplied by outdoor unit) Power supply Outdoor unit 1 Phase, 220V~50Hz.
  • Page 14 Indoor unit 42TGF0301CP 42TGF0361CP Models Outdoor unit 38TGF0301A1 38TGF0361A1 Cooling capacity (kW) 8.80 10.6 Indoor unit 1 Phase, 220V~50Hz. (supplied by outdoor unit) Power supply Outdoor unit 1 Phase, 220V~50Hz. Running current 14.5 12.0 Power consumption (kW) 3.09 2.56 Electrical characteristics Power factor 3.43 3.44...
  • Page 15 Indoor unit 42TGF0361CP 42TGF0481CP 42TGF0601CP Models Outdoor unit 38TGF0361A3 38TGF0481A3 38TGF0601A3 Cooling capacity (kW) 10.6 15.6 17.5 Indoor unit 1 Phase, 220V~50Hz. (supplied by outdoor unit) Power supply 3 Phase, 380V~50Hz. outdoor unit Running current 5.50 9.90 9.50 Power consumption (kW) 3.09 5.60...

  • Page 16: Construction Views (External Views)

    2. CONSTRUCTION VIEWS (EXTERNAL VIEWS) 42TGF0131CP, 42TGF0181CP - 16 -...
  • Page 17 42TGF0241CP, 42TGF0301CP - 17 -...
  • Page 18 42TGF0361CP, 42TGF0401CP, 42TGF0481CP, 42TGF0601CP - 18 -...

  • Page 19: Systematic Refrigerating Cycle Diagram

    3. SYSTEMATIC REFRIGERATING CYCLE DIAGRAM Indoor Unit • Single type (Combination of 1 indoor unit and 1 outdoor unit) (Indoor unit) Distributor (Strainer incorporated) Strainer Air heat exchanger TC sensor Cooling Refrigerant Refrigerant pipe at liquid pipe at gas side side (Outer dia : ØA) (Outer dia : ØB)

  • Page 20: Wiring Diagram

    4. WIRING DIAGRAM Indoor Unit Ceiling Type - 20 -...

  • Page 21: Specifications Of Electrical Parts

    5. SPECIFICATIONS OF ELECTRICAL PARTS Indoor Unit Parts name Type Specifications Fan motor (0131, 0181 type) ICF-340WD94-1 WDF-340WD94-2A Fan motor (0241, 0301 type) Fan motor (0361, 0401, 0481, 0601 type) ICF-340WD139-2 Output (Reted) 139W Thermo. Sensor (TA-sensor) 518mm Heat exchanger sensor (TC-sensor) - 21 -...

  • Page 22: Refrigerant R32

    6. REFRIGERANT R32 This air conditioner adopted the refrigerant HFC 6. When an air conditioning system charged with a (R32) which does not damage the ozone layer. large volume of refrigerant is installed in a small room, it is necessary to exercise care so that, The working pressure of the refrigerant R32 is 1.6 even when refrigerant leaks, its concentration times higher than conventional refrigerant...
  • Page 23 Table 6-2-1 Thicknesses of annealed copper pipes Thickness (mm) Nominal diameter Outer diameter (mm) 0.80 0.80 0.80 0.80 12.7 0.80 0.80 15.9 1.00 1.00 19.0 1.00 1.00 1. Joints For copper pipes, flare joints or socket joints are used. Prior to use, be sure to remove all contaminants. a) Flare Joints Flare joints used to connect the copper pipes cannot be used for pipings whose outer diameter exceeds 20 mm.
  • Page 24 c) Insertion of Flare Nut d) Flare Processing Make certain that a clamp bar and copper pipe have been cleaned. By means of the clamp bar, perform the flare processing correctly. Use either a flare tool for R32 or conventional flare tool. ØD Flare processing dimensions differ according to the type of flare tool.
  • Page 25 Fig. 6-2-2 Relations between flare nut and flare seal surface 2. Flare Connecting Procedures and Precautions a) Make sure that the flare and union portions do not have any scar or dust, etc. b) Correctly align the processed flare surface with the union axis. c) Tighten the flare with designated torque by means of a torque wrench.

  • Page 26: Tools

    6-3. Tools 6-3-1.Required Tools Refer to the “4. Tools” (Page 12) 6-4. Recharging of Refrigerant When it is necessary to recharge refrigerant, charge the specified amount of refrigerant according to the following steps. Recover the refrigerant, and check no refrigerant remains in the equipment. When the compound gauge’s pointer has indicated –0.1 Mpa (–76 cmHg), place the handle Low in the fully closed position, and turn off the vacuum pump’s...

  • Page 27: Brazing Of Pipes

    1) Be sure to make setting so that liquid can be charged. 2) When using a cylinder equipped with a siphon, liquid can be charged without turning it upside down. Accordingly, when charging refrigerant from the refrigerant cylinder to the equipment, charge it turning the cylinder upside down if cylinder is not equipped with siphon.
  • Page 28 2. Characteristics required for flux 6-5-3. Brazing • Activated temperature of flux coincides with As brazing work requires sophisticated techniques, the brazing temperature. experiences based upon a theoretical knowledge, it • must be performed by a person qualified. Due to a wide effective temperature range, flux is hard to carbonize.

  • Page 29: Instructions For Re-Use Piping Of R22 Or R407C

    6-6. Instructions for Re-use Piping of R22 or R407C Instruction of Works: 6. Check the oil when the existing air conditioner was The existing R22 and R407C piping can be removed after refrigerant had been recovered. reused for our digital inverter R32 products In this case, if the oil is judged as clearly different installations.
  • Page 30 6-6-5. Final Installation Checks Is there no scratch or dent on the existing pipes? Existing pipe: NO ∗ Use a new pipes. Is it possible to operate the existing air conditioner? ∗ After the existing air conditioner operated in cooling mode for approx.
  • Page 31 6-6-6. Handling of Existing Pipe Piping necessary to change the flare nut/ machining size due to pipe compression. When using the existing pipe, carefully check it for the 1) Flare nut width: H (mm) following: Copper pipe Ø6.4 Ø9.5 Ø12.7 Ø15.9 Ø19.0 Wall thickness (within the specified range)

  • Page 32: Replenishing Refrigerant

    6-7. Replenishing refrigerant In order to assure the reliability of the appliance, the amount of refrigerant to be replenished shall be subject to the following restrictions. Follow the margin of excess replenished refrigerant, which is equivalent to the current R22. Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in failure, explosion of the product, or personal injury.

  • Page 33: Outline Of Specification

    7. OUTLINE OF SPECIFICATION 7-1. Control Specification Item Outline of specification Remarks When power 1) Distinction of outdoor unit supply is reset When the power supply is reset, the outdoors are distinguished and the control is selected according to the distinguished result. 2) Setting of indoor fan speed and existence of air direction adjustment Based on EEPROM data, select setting of the...
  • Page 34 Item Outline of specification Remarks Operation 2) Cooling operation mode selection Compressor, outdoor fan and indoor unit operation display lamp are controlled as below, Note : DT = Room temp - Preset temp. 3) Dry operation Compressor, outdoor fan and indoor unit operation display lamp are controlled as below.
  • Page 35 Item Outline of specifications Remarks Air speed selection 1) Operation with (HH), (H), (L) or [AUTO] mode is carried HH > H+ > H > L+ > out by the command from the remote controller. L > UL 2) When the air speed mode [AUTO] is selected, the air speed varies by the difference between Ta and Ts.
  • Page 36 Item Outline of specifications Remarks Air speed CODE No. Standard Type 1 Type 3 selection Selection of high [5d] (Continued): ceiling type SW501 (1)/(2) OFF/OFF ON/OFF OFF/ON CODE No.: COOL COOL COOL [5d] or selection of high ceiling on P .C. board SW501 H+, H Fan revolution speed (RPM)
  • Page 37 Item Outline of specifications Remarks Freeze Freezing prevention by Indoor unit micro controller Tc : Indoor heat exchanger preventive control temperature sensor The cooling operation (including Dry operation) (Low temperature is performed as follows based on the detected release) temperature of Tc sensor. The compressor and outdoor unit fan motor (both motor) are controlled as show in figure below.
  • Page 38 Item Outline of specifications Remarks Louver control 1) Louver position setup • When the louver position is changed, the position moves necessarily to downward discharge position once to return to the set position. • The louver position can be set up in the following operation range. In cooling/dry operation •...
  • Page 39 Item Outline of specifications Remarks Filter sign display 1) The operation time of the indoor fan is calculated, the filter reset [FILTER ] goes on. (Except wireless signal is sent to the remote controller when the specified time type) (2500H) has passed, and it is displayed on LCD. 2) When the filter reset signal has been received from the remote controller, time of the calculation timer is cleared.

  • Page 40: Optional Connector Specifications Of Indoor P.c. Board

    7-2. Optional Connector Specifications of Indoor P.C. Board - 40 -...

  • Page 41: Indoor Print Circuit

    7-3. Indoor Print Circuit Board <MCC-1643> “1:1 model” EEPROM IC503 Connection inter CN50 Remote controller CN41 Power cable from WP-034 Float SW CN34 TC sensor CN101 TA sensor CN104 External input/output CHK(CN71) DC fan output CN210 (UART) CN521 CN61 DISP(CN72) Receiving unit Ventilation output CN32 CN214...

  • Page 42: Troubleshooting

    8. TROUBLESHOOTING 8-1. Summary of Troubleshooting <Wired remote controller type> 1. Before troubleshooting 1) Require tools/instruments • screwdrivers, spanners, radio cutting pliers, nippers, push pins for reset switch • Tester, thermometer, pressure gauge, etc. 2) Confirmation points before check a) The following operations are normal. 1.
  • Page 43 <Wireless remote controller type> 1. Before troubleshooting 1) Require tools/instruments • screwdrivers, spanners, radio cutting pliers, nippers, etc. • Tester, thermometer, pressure gauge, etc. 2) Confirmation points before check a) The following operations are normal. 1. Compressor does not operate. •...

  • Page 44: Troubleshooting

    8-2. Troubleshooting 8-2-1. Outline of judgment The following method can be done to check whether the problem occurred in indoor or outdoor unit. The error is indicated by indication lamp on the display of the indoor unit. (sensors of the receiving part) The indoor unit monitors the operating status of the air conditioner, and the blocked contents of self-diagnosis are displayed restricted to the following cases if a protective circuit works.
  • Page 45 Error mode detected by indoor unit Operation of diagnostic function Judgment and measures Check Status of Cause of errors Condition code air conditioner 1. Check cables of remote controller and communication adapters. No communication from remote Stop Displayed when Remote controller LCD display OFF (Disconnection) controller (including wireless) and (Automatically error is detected...
  • Page 46 Error mode detected by remote controller or central controller (TCC-LINK) Operation of diagnostic function Judgment and measures Status of Check code Cause of errors Condition air conditioner Power supply error of remote controller, Indoor EEPROM error 1. Check remote controller inter-unit wiring. No communication with master indoor unit 2.
  • Page 47 8-2-3. Diagnostic Procedure for Each Check Code (Indoor Unit) Check code [E01 error] Correct inter-unit cable Is inter-unit cable of A and B normal? of remote controller Is there no disconnection or Correct connection of connector. contact error of connector on harness Check circuit wiring.
  • Page 48 [E08, L03, L07, L08 error] E08: Duplicated indoor unit No. L03: There are 2 or more master units in a group control. L07: There is 1 or more group address [Individual] in a group control. L08: The indoor group address is unset. (CODE No. 99) If the above error is detected when power supply turned on, the mode enters automatically in the automatic address set mode.
  • Page 49 [P10 error] Is connection of float switch connector Correct connection (Indoor control board CN34) of connector. normal? Check indoor P.C. board (MCC-1643). Does float switch work? Is circuit wiring normal? Defect → Replace Check and correct wiring and wire circuit. Does drain pump work? Replace drain pump Is power of...
  • Page 50 [P12 error] Power off. Is not connection error or Repair the connector disconnection on the connector connection. CN210 of indoor unit P.C. board? Disconnect the connector CN210 to the indoor P.C. board Does the Replace the indoor fan turn smoothly when fan motor.
  • Page 51 [F02 error] Is connection of TC sensor connector Correct connection of connector. (CN101 on Indoor P.C. board) correct? Are characteristics of Replace TC sensor. TC sensor resistance value normal? ∗ Refer to Characteristics-2. Check indoor P.C. board (MCC-1643). Defect → Replace - 51 -...
  • Page 52 [E03 error] (Header indoor unit) [E03 error] is detected when the indoor unit cannot receive a signal from the remote controller (also central controller). Check A and B remote controllers and communication lines of the central control system U3 and U4. As communication is impossible, this check code [E03] is not displayed on the remote controller and the central controller.
  • Page 53 8-2-4. Diagnostic Procedure for Each Check Code Temperature sensor Temperature – Resistance value characteristic table TA, TC sensors Representative value Resistance value (kΩ Ω Ω Ω Ω ) Temperature (°C) (Minimum value) (Standard value) (Maximum value) 32.33 33.80 35.30 19.63 20.35 21.09 12.23...

  • Page 54: Setup At Local Site And Others

    9. SETUP AT LOCAL SITE AND OTHERS 9-1. Function Selection Setup <Procedure> Perform setting while the air conditioner stops. TEST Push buttons simultaneously for 4 seconds or more. The first displayed unit No. is the master indoor unit address in the group control. In this time, fan and louver of the selected indoor unit operate.
  • Page 55 Function selection CODE No. (DN) list Item Contents At shipment from factory Filter sign lighting time 0002: 2500H 0003: 5000H According to type 0004: 10000H 0005: Clogging sensor used 0000: Standard Filter stain level 0000: Standard 0001: Heavy stain (Half of standard time) 0001: No.1 unit 0064: No.64 unit Central control address...
  • Page 56 Item Contents At shipment from factory 0000: None 0001: 0.5 h ~ 0012: 6.0 h Set when compressor-ON time is 10 to 60 minutes. Self-clean operation time 0002: 1.0 h When ON-time is 60 minutes or more, the double of this operation time setting is set. 0000: None •...
  • Page 57 9-1-1. Wiring and Setting of Remote Controller Control 2-remote controller control <Wired remote controller> (Controlled by 2 remote controllers) How to set wired remote controller This control is to operate 1 or multiple indoor units as sub remote controller are operated by 2 remote controllers. Change DIP switch inside of the rear side of the (Max.
  • Page 58 9-1-2. Monitor Function of Remote Controller Switch Calling of sensor temperature display <Contents> Each data of the remote controller, indoor unit and outdoor unit can be shown by calling the service monitor mode from the remote controller. <Procedure> TEST Push buttons simultaneously for 4 seconds to call the service monitor mode.
  • Page 59 Wireless remote controller (A-B selection) Using 2 wireless remote controllers for the respec- tive air conditioners, when the 2 air conditioners are closely installed. Wireless remote controller B setup 1. Start the air conditioner. 2. Point the wireless remote controller at the indoor unit.

  • Page 60: Calling Of Error History

    9-2. Calling of Error History <Contents> The error contents in the past can be called. <Procedure> TEST Push buttons simultaneously for 4 seconds or more to call the service check mode. TEMP. ON / OFF Service Check goes on, the CODE No. is displayed, and then the content of the latest alarm is displayed.
  • Page 61 Indoor unit power-ON sequence Power ON • The unit without power feed waits entirely → Waiting status is released by system start • Reboot when power is fed on the way <By feed unit> <Automatic address judgment> Gr construction check 3 minutes elapse Normal ∗...

  • Page 62: Address Setup

    10. ADDRESS SETUP 10-1. Address Setup Procedure When an outdoor unit and an indoor unit are connected, or when an outdoor unit is connected to each indoor unit respectively in the group operation even if multiple refrigerant lines are provided, the automatic address setup completes with power-ON of the outdoor unit.

  • Page 63: Address Setup & Group Control

    10-2. Address Setup & Group Control <Terminology> Indoor unit No. : N - n = Outdoor unit line address N (Max. 30) - Indoor unit address n (Max. 64) Group address : 0 = Single (Not group control) 1 = Master unit in group control 2 = Sub unit in group control Master unit (= 1) : The representative of multiple indoor units in group operation sends/receives signals to/from the remote controllers and sub indoor units.

  • Page 64: Remote Controller Wiring

    10-3. Remote Controller Wiring Strip off approx. 9 mm the wire to be connected. Wiring diagram For single system, use non polarity, 2 core wire is used for wiring of the remote Terminal block for remote Terminal block controller.(0.5 mm² to 2.0 mm² wires) controller wiring of indoor unit For the synchronous twin, triple system, use Remote...

  • Page 65: Confirmation Of Indoor Unit No. Position

    TEST Push buttons simultaneously for 4 seconds or more. (← Line address) Using the temperature setup buttons, to the CODE No. Using timer time buttons, set the line address. Push button. (OK when display goes on.) (← Indoor unit address) Using the temperature setup buttons, set to the CODE No.
  • Page 66 2. To know the position of indoor unit body by address To confirm the unit No. in the group control (Follow to the procedure during operation) (in this procedure, the indoor units in group control stop.) <Procedure> The indoor unit numbers in the group control are successively displayed, and fan, louver, and drain pump of the corresponding indoor unit are turned on.

  • Page 67: Detachments

    11. DETACHMENTS Indoor Unit DANGER CAUTION Before carrying out the repair or removal Be sure to put on the gloves at work, be sure to set the circuit breaker to disassembling work; otherwise an injury the OFF position. will be caused by a part, etc. Otherwise, electric shocks may result.
  • Page 68 Part name Procedure Remarks Electric parts 1. Detachment 1) Perform works of 1 of 2) Remove the screws of electric parts box. 3) Draws out forward after the electric box is moved in the direction of the arrow, and the back of the part electric part box is hung on the edge of the main body.
  • Page 69 Procedure Remarks Part name Fan, ⑤ Square hole Fan case, Quantity of fan Shaft Model Support plate 0131-0181 0241-0301 0361-0601 1. Detachment NOTE Front side screw It explains the following content by 0241 to 0601 type. 1) Perform works of 1 of ① and ②. 2) Remove the support plate.
  • Page 70 No. Part name Procedure Remarks 2. Attachment 1) The fan is installed in the shaft so that Shaft the tightening screw may come at the right of the fan toward the heat exchanger. 2) Insert the fan in the shaft while adjusting to match the installation mark to the Groove of the fan groove of the fan.
  • Page 71 Procedure Remarks No. Part name ⑥ Bearing 1. Detachment Fan case NOTE Side cover It explains the following content by 0241 to 0601 type. 1) Perform works of 1 of ⑤.（0241 to 0601 type) 2) Bearing press from the side cover side.
  • Page 72 Part name Procedure Remarks Fan motor 1. Detachment 1) Perform works of 1 of 2) Remove connectors for fan motor wiring from control P.C. board. CN210 : Fan motor (5P, White) NOTE Rein forced pate First unlock the housing and then (0241 to 0601 type only) remove the connectors.
  • Page 73 Part name Procedure Remarks Side cover 1. Detachment 1) Perform works of 1 of 2) Remove the screws of the side cover. (One side: Ø4 x 10, 1 pcs.) 3) Slide to the air discharge side, remove the side cover. Screw 2.
  • Page 74 Part name Procedure Remarks Under panel 1. Detachment 1) Perform works of 1 of 2) Remove the support plate. (0241-0601 type only) (Ø4 x 10, Square hole Front side screw 1 pcs.) The screw on a front side is removed, and it detaches it from the square hole on the back side.
  • Page 75 Part name Procedure Remarks Drain pan 1. Detachment 1) Perform works of 1 of 2) Remove the drain cap and then extract the drain water accumulated in the drain pan. NOTE Drain cap When removing the drain cap, be sure to receive drain water using a bucket, etc.
  • Page 76 No. Part name Procedure Remarks Heat 1. Detachment exchanger 1) Recover the refrigerant gas and then remove the refrigerant pipe of the indoor unit. 2) Perform works of 1 of Pull out sensor wires from the holder. 3) The screw that is the fixing of the piping support is removed, and the piping support is removed.

  • Page 77: Exploded Views And Parts List

    11. EXPLODED VIEWS AND PARTS LIST Indoor Unit 42TGF0131CP, 42TGF0181CP - 77 -...
  • Page 78 Location Part No. Description 42TGF0131CP 42TGF0181CP 43T21397 STEPPING-MOTOR 43T02301 ASM-P-SIDE-R 43T02302 ASM-P-SIDE-L 43T07313 ASM-SUP-FLAP 43T07314 SUP-SHAFT 43T07315 HINGE-GRILLE 43T07316 HOOK-GRILLE 43T08420 LED-BASE 43T08426 PANEL-LED 43T09493 SUCTION-GRILLE 43T00638 ASM-COAT-P-UP 43T00641 ASM-COAT-P-UD 43T11326 ASM-FORM-UP 43T11329 ASM-FORM 43T11330 ASM-FORM 43T20338 ASM-FAN-MLB 43T22327 ASM-FAN-CASE-D...
  • Page 79 42TGF0241CP, 42TGF0301CP - 79 -...
  • Page 80 Location Part No. Description 42TGF0241CP 42TGF0301CP 43T21397 STEPPING-MOTOR 43T02301 ASM-P-SIDE-R 43T02302 ASM-P-SIDE-L 43T07313 ASM-SUP-FLAP 43T07314 SUP-SHAFT 43T07315 HINGE-GRILLE 43T07316 HOOK-GRILLE 43T08420 LED-BASE 43T08426 PANEL-LED 43T09493 SUCTION-GRILLE 43T00639 ASM-COAT-P-UP 43T00642 ASM-COAT-P-UD 43T11327 ASM-FORM-UP 43T11329 ASM-FORM 43T11330 ASM-FORM 43T20338 ASM-FAN-MLB 43T22327 ASM-FAN-CASE-D 43T22328 ASM-FAN-CASE-U 43T22329...
  • Page 81 42TGF0361CP, 42TGF0401CP, 42TGF0481CP, 42TGF0601CP - 81 -...
  • Page 82 Location Part No. Description 42TGF0361CP 42TGF0401CP 42TGF0481CP 42TGF0601CP 43T21397 STEPPING-MOTOR 43T02301 ASM-P-SIDE-R 43T02302 ASM-P-SIDE-L 43T07313 ASM-SUP-FLAP 43T07314 SUP-SHAFT 43T07315 HINGE-GRILLE 43T07316 HOOK-GRILLE 43T08420 LED-BASE 43T08426 PANEL-LED 43T09494 SUCTION-GRILLE 43T00640 ASM-COAT-P-UP 43T00643 ASM-COAT-P-UD 43T11328 ASM-FORM-UP 43T11329 ASM-FORM 43T11330 ASM-FORM 43T20338 ASM-FAN-MLB 43T22327 ASM-FAN-CASE-D 43T22328...
  • Page 83 Electric Parts C N521 C N20 C N210 L 01 CN22 S W501 C N34 C 08 B LK R 02 S G01 C N10 C R01 C N01 42TGF Location Part No. Description 0131CP 0181CP 0241CP 0301CP 0361CP 0401CP 0481CP 0601CP 43T50420...
  • Page 84 WARNINGS ON REFRIGERANT LEAKAGE Check of Concentration Limit The room in which the air conditioner is to be installed requires a design that in the event of refrigerant gas leaking out, its concentration will not exceed a set limit. The refrigerant R32 which is used in the air conditioner is safe, without the toxicity or combustibility of ammonia, and is not restricted by laws to be imposed which protect the ozone layer.
