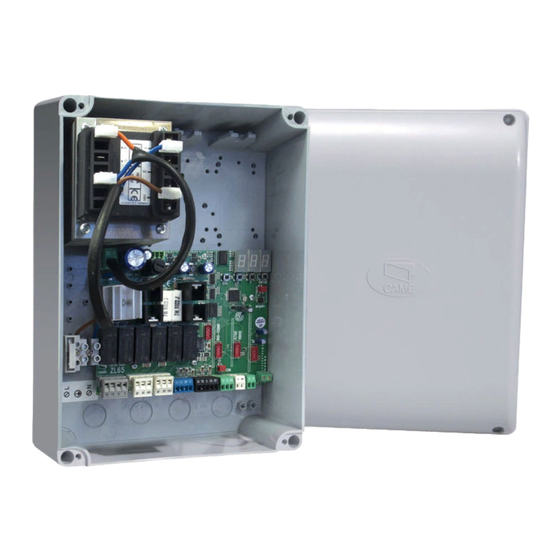

Control panel for 24 v gearmotors
Hide thumbs Also See for ZL60:
Table of Contents

Advertisement

Quick Links

Download this manual
CONTROL PANEL
FA02007-EN
FOR 24 V GEARMOTORS
ZL60
INSTALLATION MANUAL
EN English

Advertisement

Table of Contents
loading

Related Manuals for CAME ZL60

Summary of Contents for CAME ZL60

  • Page 1 CONTROL PANEL FA02007-EN FOR 24 V GEARMOTORS ZL60 INSTALLATION MANUAL EN English...

  • Page 2: Important Safety Instructions

    • All the components (e.g. actuators, photocells and sensitive edges) needed for the final installation to comply with the Machinery Directive (2006/42/EC) and with the reference harmonised technical standards are specified in the general CAME product catalogue or on the website www.came.com.
  • Page 3 • The manufacture date is provided in the production batch printed on the product label. If necessary, contact us at https://www.came.com/global/en/contact-us. • The general conditions of sale are given in the official CAME price lists.
  • Page 4 ☞ This symbol shows which parts to tell users about. The measurements, unless otherwise stated, are in millimeters. DESCRIPTION ZL60 – Control panel for one or two-leaf swing gates, with DIP switch settings, on-board radio decoding and safety device self-diagnostics. Intended use For private homes and apartment buildings.
  • Page 5 Description of parts 1. Line fuse 10. AF card connector 2. Power supply terminals 11. Antenna terminals 3. Transformer terminal 12. Safety-device terminals 4. Transformer 13. R800 card connector 5. RGP1 module terminal 14. Control-device terminals 6. Trimmer 15. Keypad selector terminal 7.
  • Page 6 GENERAL INSTRUCTIONS FOR INSTALLING ⚠ Only skilled, qualified staff must install this product in full compliance with the law in force. ⚠ Caution! Before working on the control panel, cut off the mains power supply and remove any batteries. The control panel is set up for: - connecting the RGP1 module for reducing energy consumption;...

  • Page 7: Input Voltage

    INSTALLING Fastening the control panel  Fasten the control panel in a protected area; use rounded cross head screws with maximum 6 mm diameter.  Perforate the punched holes.  The holes have different diameters: 23, 29 and 37 mm. ⚠...
  • Page 8 24 0 + STB - Connecting the gearmotor to the Encoder  Apply a ferrite to the gearmotor cables inside of the control panel. It should be a FAIR-RITE type material 31 mod. 2631102002, and is not supplied. 1 2 3P 7 10 TS 2 CX CY A B GND S1 GND A B 1 E 5 M1 N1 ENC1 M2 N2 ENC2 M2 closes second...

  • Page 9: Safety Devices

    Safety devices 1 2 3P 7 10 TS 2 C1 CX Photocells connection (NC contact), see the functions programming section. Reopening during closing photocells connection (NC contact) see functions programming. Photocells safety connection (services test) Photocells Configure contact C1 or CX (NC), input for safety devices such as photocells. 10 TS 2 C1 CX See functions programming of input C1 or CX in: - C1 reopening while closing.

  • Page 10: Functions Menu

    Functions menu  Start programming by first running the following functions: Motor type, Number of motors, TOTAL STOP and self-learning. DIP-SWITCH Description of functions Motor type By default, the control panel controls OPP001 and FTL20DGC-series gearmotors. For controlling OPS001, BXL04AGS-series gearmotors. select the DIP-switches as shown and press the PROG button on the control board.
  • Page 11 Partial opening or pedestrian opening (contact 2-3P) By default, the opening is set to pedestrian mode. To enable in partial opening: select the DIP-switches as shown and press the PROG button on the control board. The LED stays lit and the buzzer sounds once.
  • Page 12 Saving the trimmer value Use the trimmers to set the automatic closing time (A.C.T.), the opening and closing latching points, the second motor's closing-delay speed, the slow-down speed (SDS) and the sensitivity (SENS.). To save the values: select the DIP-switches as shown and press the PROG button on the control board. The PRG LED stays lit and the buzzer sounds once.
  • Page 13 Auto-learning of the gate-leaf travel With the Encoder enabled (the default setting) Select the DIPs and press the PROG key on the board as shown in features programming. The operator will perform a series of maneuvers to establish the starting slow-down and limit-switch points. A = 25% of the movement area at slowed down speed when opening.
  • Page 14 Adjusting the functions A.C.T. APP./O.T. 2M DELAY SPEED SLOW SENS. Trimmer Description of functions Automatic Closing Time A.C.T. It sets the open gate's waiting time. Once this time elapses, the shutter automatically closes. The waiting time can be adjusted to between 1 and 180 seconds. Latching point - with Encoder enabled - or operating time - with Encoder disabled.

  • Page 15: Final Operations

    FINAL OPERATIONS Fastening the cover Once finished with the electrical connections and powering up, fit the cover and secure it using the supplied screws. TROUBLESHOOTING ALERTS POSSIBLE CAUSES FIXES THE PROG LED flashes • The control board does not work •...
  • Page 16 The contents of this manual may change, at any time, and without notice. CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941 info@came.com - www.came.com...
