QSC KW Series User Manual

KW Series SUS KIT 122
User Manual
Contents:
Pull Back Bar, KW122 – 1 each
M10 Eyebolt – 3 each
KW122 Pull Back Gasket – 1 each
M10 Nut – 1 each

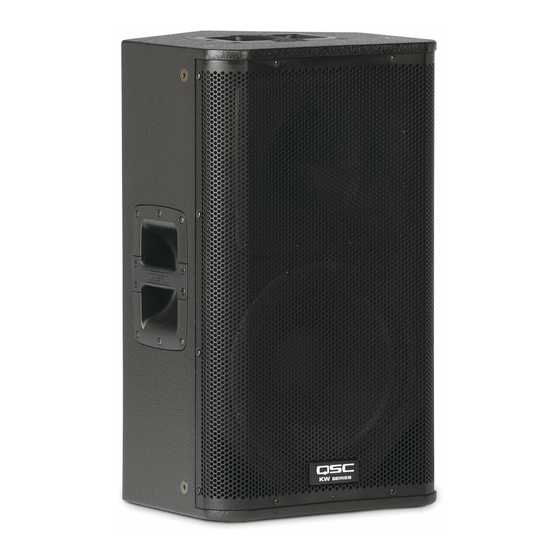

This suspension kit is required for horizontal suspension of the QSC KW122 Loudspeaker System. This kit can also be used to suspend the KW122,
KW152 or KW153 Loudspeaker Systems vertically, and the KW152 and KW153 horizontally. All loudspeaker systems must be suspended from a
solid structure.
This kit contains hardware to suspend one loudspeaker system.
IMPORTANT SAFETY PRECAUTIONS AND EXPLANATION OF SYMBOLS
Install in accordance with QSC Audio Product's instructions and under the supervision of a licensed Professional Engineer.
Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, enclosures, transducers, brackets
and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the
strength of the installation or placement. Correct any such condition immediately so as not to severely reduce the safety of the installation.
Use only properly rated hardware for the loading conditions of the installation, and any possible short-term, unexpected overloading.
Never exceed the rating of the hardware or equipment.
Consult a licensed, Professional Engineer regarding physical equipment installation. Ensure you understand and adhere to all local, state
and national regulations regarding the safety and operation of equipment.
Use only load-rated hardware to attach to the eyebolts or Pull Back Bar when suspending these products.
Do not suspend these products from any structural element on the loudspeaker enclosure other than the load rated M10 suspension
points as described in this document.
Use proper lifting techniques / technologies.
Safety Precautions and Explanation of Terms and Symbols
WARNING! The term "WARNING!" indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily
injury or death.
CAUTION! The term "CAUTION!" indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it
may result in damage to the equipment that may not be covered under the warranty.
IMPORTANT! The term "IMPORTANT!" indicates instructions that are vital to the successful completion of the operation.
NOTE: The term NOTE is used to indicate additional useful information.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and mainte
nance (servicing) instructions in this manual.
The intent of the lightning flash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous"
voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans.
Weight (Net)
Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, LLC is not liable for any damage to amplifiers or any other equipment that is caused by negligence or improper installation and/
or use of this loudspeaker product.
WARNING!
KW122
49 lbs (22.2 kg)
Contents:
M10 Lock Washer – 1 each
M10 Flat Washer – 2 each
M10 Button Head, Hex Socket, Screw – 1 each
Instruction Sheet, KW SUS KIT 122 – 1 each
KW152
62 lbs (28.1 kg)
KW153
87 lbs (39.5 kg)
-
