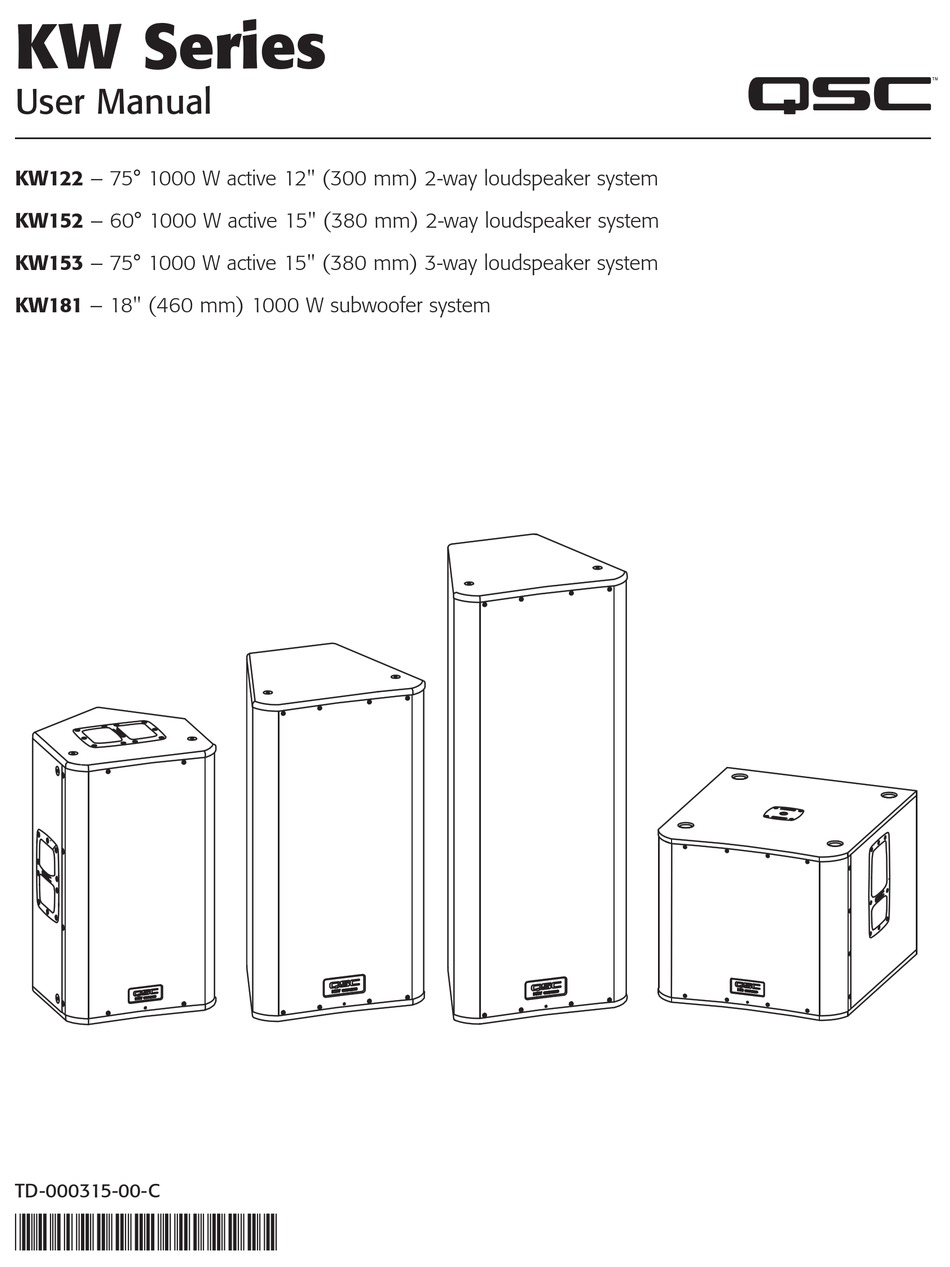

KW Series
User Manual
KW122 – 75° 1000 W active 12" (300 mm) 2-way loudspeaker system
KW152 – 60° 1000 W active 15" (380 mm) 2-way loudspeaker system
KW153 – 75° 1000 W active 15" (380 mm) 3-way loudspeaker system
Kw181 – 18" (460 mm) 1000 W subwoofer system
TD-000315-00-C
*TD-000315-00*
Advertisement
Table of Contents
Related Manuals for QSC KW181
Summary of Contents for QSC KW181
-
Page 1: User Manual
KW Series User Manual KW122 – 75° 1000 W active 12" (300 mm) 2-way loudspeaker system KW152 – 60° 1000 W active 15" (380 mm) 2-way loudspeaker system KW153 – 75° 1000 W active 15" (380 mm) 3-way loudspeaker system KW181 –... - Page 2 12. CAUTION: Use only attachments/accessories specified by QSC Audio Products, LLC. 13. CAUTION: Use only with hardware, brackets, stands, and components sold with the loudspeaker or by QSC Audio Products, LLC. 14. CAUTION: Unplug the loudspeaker during lightning storms or when unused for long periods of time.
-
Page 3: Fcc Statement
QSC Audio Products 3 Year Limited Warranty QSC Audio Products, LLC (“QSC”) guarantees its products to be free from defective material and/or workmanship for a period of three (3) years from the date of sale and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installa- tion and use –... -
Page 4: Package Contents
Package Contents KW181 KW122, KW152, KW153 (1) Subwoofer system (1) Loudspeaker system (1) Locking NEMA 5-15 power cable (1) Locking NEMA 5-15 power cable (1) Locking CEE 7/4 power cable (1) Locking CEE 7/4 power cable (1) User Manual CD (1) User Manual CD (1) Wiring hookup diagram (1) Wiring hookup diagram... - Page 5 KW152 – 15", 2-Way Loudspeaker System 1. Birch plywood enclosure 2. Steel grille 3. Front LED 4. Cast aluminum handles (2) 5. 1000 W Class D power module 6. M10 rigging points (11) 7. Tilt-Direct™ dual angle pole socket 8. Slip-resistant feet...
- Page 6 KW153 – 15", 3-Way Loudspeaker System 1. Birch plywood enclosure 2. Steel grille 3. Front LED 4. Cast aluminum handles (2) 5. 1000 W Class D power module 6. M10 rigging points (11) 7. 35 mm pole socket 8. Slip-resistant feet...
- Page 7 KW181– Single 18" Subwoofer 1. Birch plywood enclosure 2. Steel grille 3. Front LED 4. Cast aluminum handles (2) 5. 1000 W Class D power module 6. M20 threaded pole receptacle 7. 3" heavy duty casters 8. Slip-resistant feet 9. Feet cups for stacking...
- Page 8 The KW122, KW152, and KW153 are equipped with a 35 mm pole socket that allows use on a speaker stand or on a pole over a KW181 subwoofer. The pole socket on the KW122 and KW152 features the QSC Tilt-Direct™ system for tilting the enclosures down 7.5° while on a pole. The pole socket on the KW153 does not allow tilting.
- Page 9 Installation Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation or placement. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term, unexpected overloading.
- Page 10 As shipped from the factory, each installation point has a flat head screw installed to acoustically seal the loudspeaker system and retain the sleek look of the enclosure. These installation points are designed for use with the QSC forged shoulder eyebolts included in the available accessory kit, model number KW M10 KIT.
-
Page 11: Input Connections
AC mains power cord is properly attached to the loudspeaker and plugged into the AC source outlet. Verify the outlet is functioning properly. If the AC mains cord is serviceable and the AC mains outlet is operating properly, but the loudspeaker fails to operate, the loudspeaker may require servicing. Contact QSC’s Technical Services department. System Power Sequencing Proper power-on/power-off sequencing can help prevent unexpected sounds from being produced by the system (pops, clicks, thumps). -
Page 12: Balanced Inputs
Channel A Channel A accepts either microphone or line level inputs. The MIC/LINE IN A inputs can use either a: • Male XLR connector, or a • Male 1/4" phone jack (TS or TRS type). The KW122, KW152, and KW153 feature a 4-position rotary switch (MIC/LINE GAIN) to provide input gain flexibility. •... - Page 13 Unbalanced Inputs Connect to the plug as shown. If a 3 conductor (TRS) plug is used to connect an unbalanced source, Pin 3 and pin 1 must be connected with a jumper as shown. Ground 1 = Shield (ground) — 2 = Plus (+) Inverting Input 3 = Minus (-)
-
Page 14: Output Connections
Output Connections KW122, KW152, KW153 1. Channel A Line Level Discrete Output 2. Channel B Line Level Discrete Output 3. LINE OUT (POST GAIN – MIX) 4. Channel A GAIN Knob 5. Channel B GAIN Knob Both Channel A and Channel B have discrete, direct outputs on female XLR connectors. The signal on this output is exactly equivalent to the signal from the corresponding input. - Page 15 KW181 Both Channel A and Channel B have discrete, direct outputs on female XLR connectors. The signal on this output is exactly equivalent to the signal from the corresponding input. The level of the output signal is not affected by the gain set on the subwoofer gain knob. If a unit is OFF, any signal present on MIC/LINE IN A or LINE IN B passes through to the respective discrete outputs.
- Page 16 These functions include crossovers, time alignment, limiting and protection, thermal management and a number of proprietary features. QSC has designed exclusive DSP functions that greatly enhance the capabilities and performance of the KW Series systems.
- Page 17 High-frequency EQ On the KW122, KW152 and KW153 there are two high-frequency settings. From the factory, the switch is set to FLAT. This means that the loudspeaker system is producing a flat response through the vocal band. This is the standard setting for most applications. In voice-only reproduction, the switch can be set to the VOCAL BOOST setting.
-
Page 18: Additional Features
Additional Features Standby All KW Series models are equipped with an automatic standby feature to conserve energy when the systems are not in use. If no signal is present on any input, or the gain knob is turned to off for five minutes, the power amplifier goes into standby and the green STBY LED illuminates. In this mode, the amplifier is powered down. - Page 19 Remote Gain Attenuator A 3-pin “Euro” connector is provided to attenuate the volume of the KW Series loudspeaker or put the system into standby from a remote location. The Remote Gain connector can only attenuate the output signal level below the level set by the Channel A and Channel B Gain knobs.
- Page 20 Input Hookup...
- Page 21 Output Hookup...
- Page 22 Output Hookup...
- Page 23 Common Standalone Small System (Mono)
- Page 24 Common Stereo System LEFT RIGHT LEFT RIGHT...
- Page 25 Dimensions 15.4" 391 mm 15" 381 mm 26" 662 mm KW122 Dimensions 15.2" 386 mm 17.5" 445 mm 15.2" 386 mm 32.1" 816 mm KW152 Dimensions...
- Page 26 16.8" 427 mm 18.5" 469 mm 43.1" 1096 mm KW153 Dimensions 29.9" 761 mm 23.4" 595 mm 20.1" 510 mm KW181 Dimensions...
- Page 27 KW122 KW152 KW153 KW181 Configuration 12" 2-way multipurpose loudspeaker 15" 2-way trapezoidal loudspeaker 15" 3-way trapezoidal loudspeaker 18" subwoofer Transducers Low-frequency 12" cone transducer 15" cone transducer 15" cone transducer 18" cone transducer Mid-frequency — — 6.5" mid range cone transducer —...
- Page 28 © 2010 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other countries. Tilt-Direct, DMT, Intrinsic Correction, DEEP and GuardRail are all trademarks of QSC Audio Products, LLC. All other trademarks are the property of their respective owners. Patents may apply or be pending.
