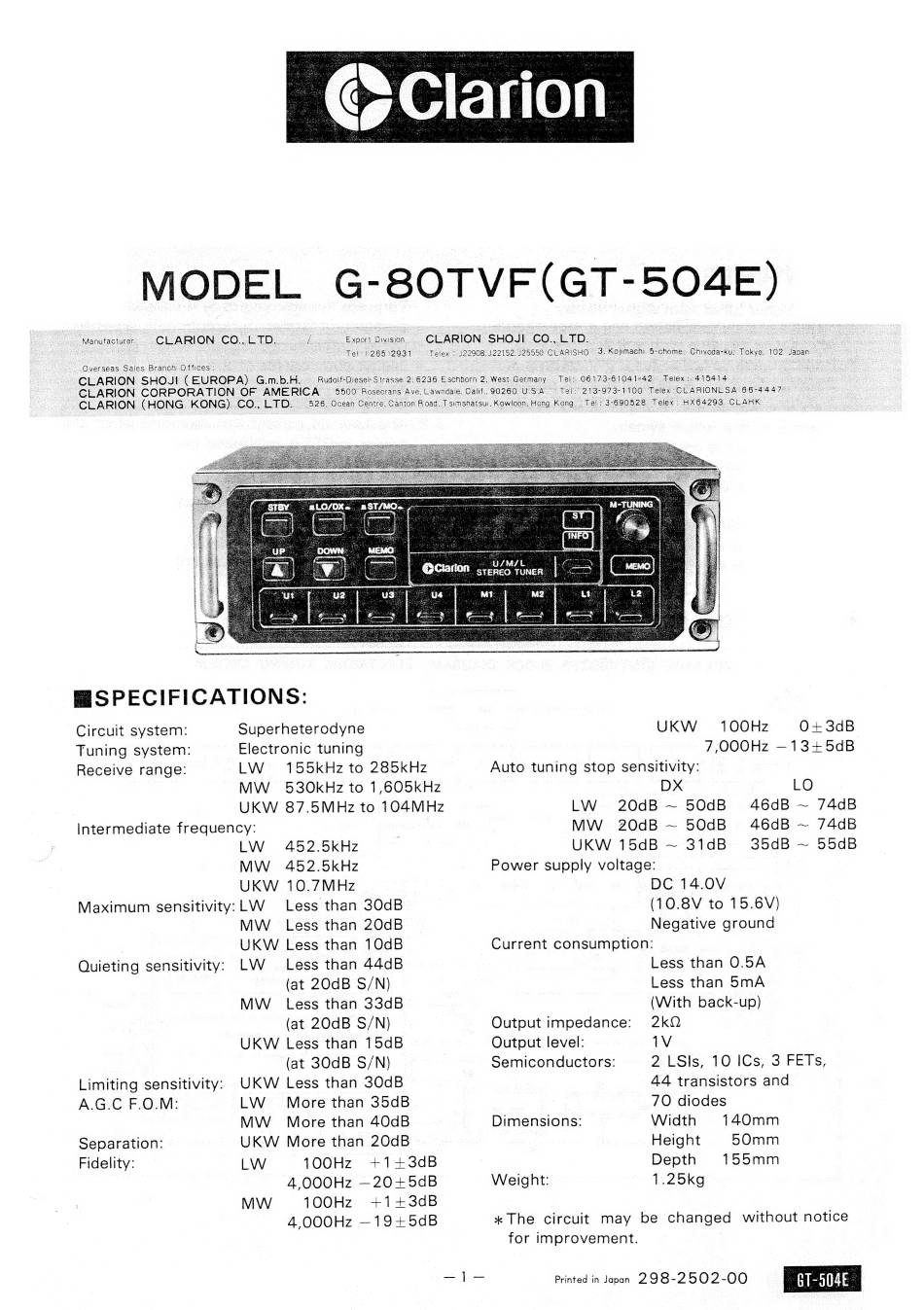

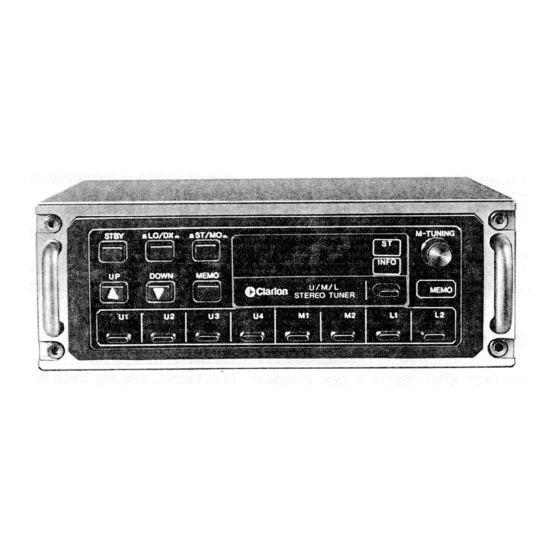

Clarion G-80TVF Service Manual

. 26. Ocean Centre, Canton Road. Tsimshatsu. Kowloon, Hong. kong Tel e)
Circuit system:
Tuning system:
Receive range:
Superheterodyne
Electronic tuning
LW 155kHz to 285kHz
MW 530kKHz to 1,605kHz
UKW 87.5MHz to 104MHz
Intermediate frequency:
Maximum sensitivity:
Quieting sensitivity:
Limiting sensitivity:
A.G.C F.O.M:
Separation:
Fidelity:
LW 452.5kHz
MW 452.5kHz
UKW 10.7MHz
LW Less than 30dB
MW _ Less than 20dB
UKW Less than 10dB
LW Less than 44dB
(at 20dB S/N)
MW _ Less than 33dB
(at 20dB S/N)
UKW Less than 15dB
(at 30dB S/N)
UKW Less than 30dB
LW More than 35dB
MW More than 40dB
UKW More than 20dB
LW 100Hz +1+3dB
4,000Hz —20+5dB
MW
100Hz
+1+3dB
4,000Hz —19+5dB
UKW
100Hz
O+3dB
7,000Hz —13+5dB
Auto tuning stop sensitivity:
DX
LW 20dB ~ 50dB
MW 20dB ~ 50dB
UKW 15dB ~ 31dB
Power supply voltage:
DC 14.0V
LO
46dB ~ 74dB
46dB ~ 74dB
35dB ~ 55dB
(10.8V to 15.6V)
Negative ground
Current consumption:
Less than 0.5A
Less than 5mA
(With back-up)
Output impedance: 2k0Q
Output level: 1V
Semiconductors:
2 LSils, 10 ICs, 3 FETs,
44 transistors and
70 diodes
Dimensions: Width 140mm
Height 50mm
Depth 155mm
Weight: 1.25kg
for improvement.
Printed in Japan 298-2502-00
