Summary of Contents for Clarion DUZ385SAT
- Page 1 Owner’s manual Mode d’emploi Manual de instrucciones DUZ385SAT CD/USB/MP3/WMA/AAC RECEIVER WITH CeNET CONTROL AUTORADIO CD/USB/MP3/WMA/AAC / AVEC COMMANDE CeNET RECEPTOR CD/USB/MP3/WMA/AAC CON CONTROL CeNET...
- Page 2 Si este equipo causa interferencias perjudiciales en la recepción de radio o de televisión, lo cual podrá determinarse conectando y desconectando la alimentación del equipo, se aconseja al usuario que consulte al abastecedor o que pida ayuda a un técnico en radio/televisión experimentado. DUZ385SAT Bottom View of Source Unit Fond de l’appareil pilote...
-
Page 3: Table Of Contents
Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. -
Page 4: Features
3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. DUZ385SAT CAUTION USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. -
Page 5: Handling Compact Discs
• Do not use any solvents, such as commercially available cleaners, anti-static spray, or thinner to clean compact discs. • After using special compact disc cleaner, let the compact disc dry off well before playing it. DUZ385SAT... -

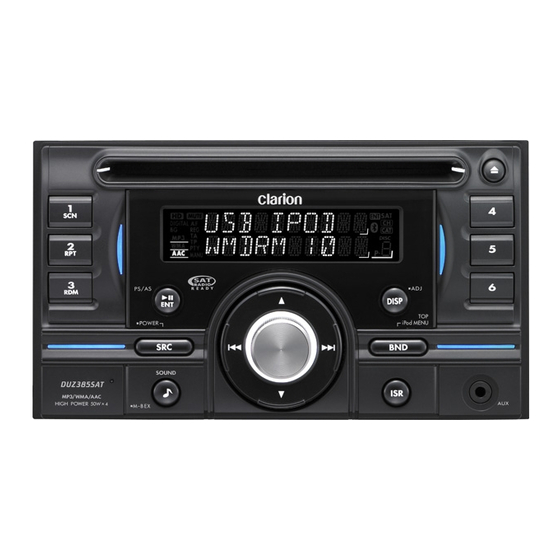

Page 6: Controls
• Perform repeat play while in the CD/MP3/ WMA/AAC mode. • Press and hold the button for 1 second or longer to perform folder repeat play while in the MP3/WMA/AAC mode. DUZ385SAT [CD SLOT] [w], [z] [ISR] [x], [v] [SCN] button •... - Page 7 EXTEND mode. [SRC] button • Press the button to turn on the power. • Press and hold the button for 1 second or longer to turn off the power. • Switch the operation mode among the radio mode, etc. DUZ385SAT...
-
Page 8: Display Items
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DUZ385SAT Operation status indication Source, titles, frequency, setting, clock, etc. are displayed. -
Page 9: Remote Control
• In the Satellite Radio mode, press once to perform category scan; hold depressed for 1 second or longer to perform preset scan. ● CD/MP3/WMA/AAC and USB/MTP modes [BND] button • Press to play the first track. DUZ385SAT... - Page 10 [RDM] button • Press to perform random play. • Press and hold the button for 1 second or longer to perform disc random play. DUZ385SAT ● iPod mode [x], [v] buttons • Press to move the tracks up and down.
-
Page 11: Inserting The Battery
• When replacing the battery, insert properly, with +/– polarities oriented correctly. • Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. Insertion guide DUZ385SAT... -
Page 12: Operations
The system check starts within the unit. Then press the [SRC] button again, the unit turn to the radio mode. DUZ385SAT Selecting a mode 1. Press the [SRC] button to change the operation mode. -
Page 13: Sound Adjustment
TREB G : The factory default setting is “0”. (Adjustment range: +7 to –7) TREB F : The factory default setting is “10K”. (Adjustment range: 10K/12.5K/ 15K/17.5K) 3-6. Press the [ ] button to return to the previous mode. ] button for 3 to +3. – – DUZ385SAT... -
Page 14: Adjusting The Balance
• During SOUND adjustment mode, if no operation is performed for more than 10 seconds, this mode can be cancelled and return to previous mode. DUZ385SAT Setting the MAGNA BASS EXTEND The MAGNA BASS EXTEND does not adjust the low frequencies like the normal sound... -
Page 15: Radio Operations
The stations with good reception are stored automatically to the preset channels. ∗ If auto store is performed in the FM bands, the stations are stored in FM3 even if FM1 or FM2 was chosen for storing stations. DUZ385SAT... -
Page 16: Preset Scan
• Be careful not to press and hold the [ for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DUZ385SAT Instant station recall (ISR) Instant station recall is a special radio preset that instantly accesses a favorite radio station at a touch of a button. -
Page 17: Xm Satellite Radio Operations
5 seconds. Channel selection 1. Channels are selected with the [x] or [v] button. For details, see the following operation descriptions. Note: The audio output is muted and other button operations are not accepted during channel selection. DUZ385SAT ”... -
Page 18: Tuning Mode
2. Press the [w] or [z] button to change the category item and press the [ switch to another categoty. DUZ385SAT 3. Press the [x] or [v] button to tune in a station and press the [ another channel. -
Page 19: Cd/Mp3/Wma/Aac Operations
MP3/WMA/ AAC data. ∗ When VBR files are played, the play time display may differ the play location. ∗ When MP3/WMA/AAC files are played, a little no sound part is caused between tunes. DUZ385SAT... - Page 20 • When playing CCCD (copy-control CDs), set to CD type. DUZ385SAT 1. Press and hold the [BND] button for 1 second or longer. Each time the button is held pressed in this way, the playback type alternates between CD type and MP3/WMA/AAC type.
-
Page 21: Displaying Cd Titles
1. Press and hold the [x] button for 1 second or longer. ∗ For MP3/WMA/AAC discs, it takes some time until the start of searching and between tracks. In addition, the playing time may have a margin of error. DUZ385SAT... -
Page 22: Folder Select
1. Press the [RPT] button to perform repeat play. “REPEAT” appears in the display for 2 seconds. DUZ385SAT ● Folder repeat play This function allows you to play a track currently being played in the MP3/WMA/AAC folder repeatedly. 1. Press and hold the [RPT] button for 1 second or longer to perform folder repeat play. -
Page 23: Operations Common To Each Mode
1 second, For example: Setting the anti-theft function (CATS) “CATS” is the acronym of “Clarion Anti-Theft System”. When you set a PIN code (called as “Personal Code”), a theft is prevented by disabling the operation of the unit at the theft. - Page 24 • The [RESET] button was pressed. Note: • If you have lost your Personal Code, please contact Clarion customer service. 1. Enter your Personal Code currently set. 2. When the correct Personal Code is entered, the unit will restart from the initial startup screen.
- Page 25 2-1. Select “SYSTEM CHECK”. 3-1. Press and hold the [ second or longer. “SYSTEM CHECK” appears in the display, then the unit returns to the previous operation mode. ] button for 1 DUZ385SAT...
-
Page 26: Entering Titles
10.Press and hold the [ ] button for 2 seconds or longer to store the title into memory. DUZ385SAT Clearing titles 1. Select and play a CD in the CD changer or tune in to a TV station or Radio for which you want to clear the title. -
Page 27: Accessories
For information regarding supported portable audio players, consult your nearest Clarion dealer, or visit Clarion’s website. CAUTION • Insert and remove a USB memory/MTP device only when the device is not being accessed. - Page 28 ∗ When the “MTP” mode is selected, the AAC files on the MTP device can not be played. DUZ385SAT To stop play 1. Press the [SRC] button and switch the function to a source other than the USB memory.
-
Page 29: Ipod Operations
• The unit will not operate, or may operate improperly with unsupported versions. • For a list of compatible Apple iPod unit with this model, please contact your clarion dealer or www.clarion.com. Connecting an iPod When an iPod is connected to the USB cable, “Shuffle”... - Page 30 [x] button will return to the currently playing folder name display. 5. Use the [w] and [z] buttons to select a track within a category. DUZ385SAT Selecting category using preset memory 1. Press and hold the [BND] button for 1 second or longer to select the iPod menu mode.
-
Page 31: Sirius Satellite Radio Operations
There are two channel selection modes: quick tuning mode and step tuning mode. ● Quick tuning 1. Press and hold the [x] or [v] button for 1 second or longer. ● Step tuning 1. Press the [x] or [v] button. DUZ385SAT... - Page 32 • If no operation is performed whithin 7 seconds, the category selection mode is canceled, and resumes to the channel mode. DUZ385SAT Presetting a category A category can be preset by registering specific categories in [DIRECT] buttons 1 to 6. Then the desired category can be recalled by pressing the corresponding [DIRECT] button.
-
Page 33: Cd Changer Operations
1. Press and hold the [RDM] button for 1 second or longer. “ALL RDM” appears in the display and disc random play starts. ● To cancel play 1. Press the operating button previously selected. DUZ385SAT... -
Page 34: Dvd Changer Operations
12 V video cassette player (VCP) or video cassette recorder (VCR) to the TV tuner input terminal. ∗ The factory default setting is “TV DUZ385SAT Note: • The following operations are the same as for CD and CD Changer modes: ∗Pause ∗Track selection... - Page 35 3. Press the [w] or [z] button to set to “ON” or “OFF”. • ON: Sets the diver setting to ON. • OFF: Sets the diver setting to OFF. 4. Press the [DISP] button to return to the previous mode. DUZ385SAT...
-
Page 36: Troubleshooting
Wrong filename File system is not correct. DUZ385SAT Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase. - Page 37 Disconnect the device and reconnect. If the device is still not recognized, try replacing with a different device. Disconnect the device and reconnect. Try reversing the connection direction of the device (usually the brand name surface should be facing left). Replace with a new device. DUZ385SAT...
-
Page 38: Error Displays
If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DUZ385SAT Cause This is a failure of CD deck’s mechanism and consult your store of purchase. -
Page 39: Specifications
7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 100 (H) ✕ 155 (D) mm] Power Output : 20 W RMS x 4 Channels at 4 Ω and 1 % THD+N Signal to Noise Ratio: 90 dBA (reference: 1 W into 4 Ω ) DUZ385SAT... -
Page 40: Others
Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. DUZ385SAT... - Page 41 Clarion Co., Ltd. PE-3051B All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. 2007/12 280-8581-00 Printed in China / Imprimé en Chine / Impreso en China...
