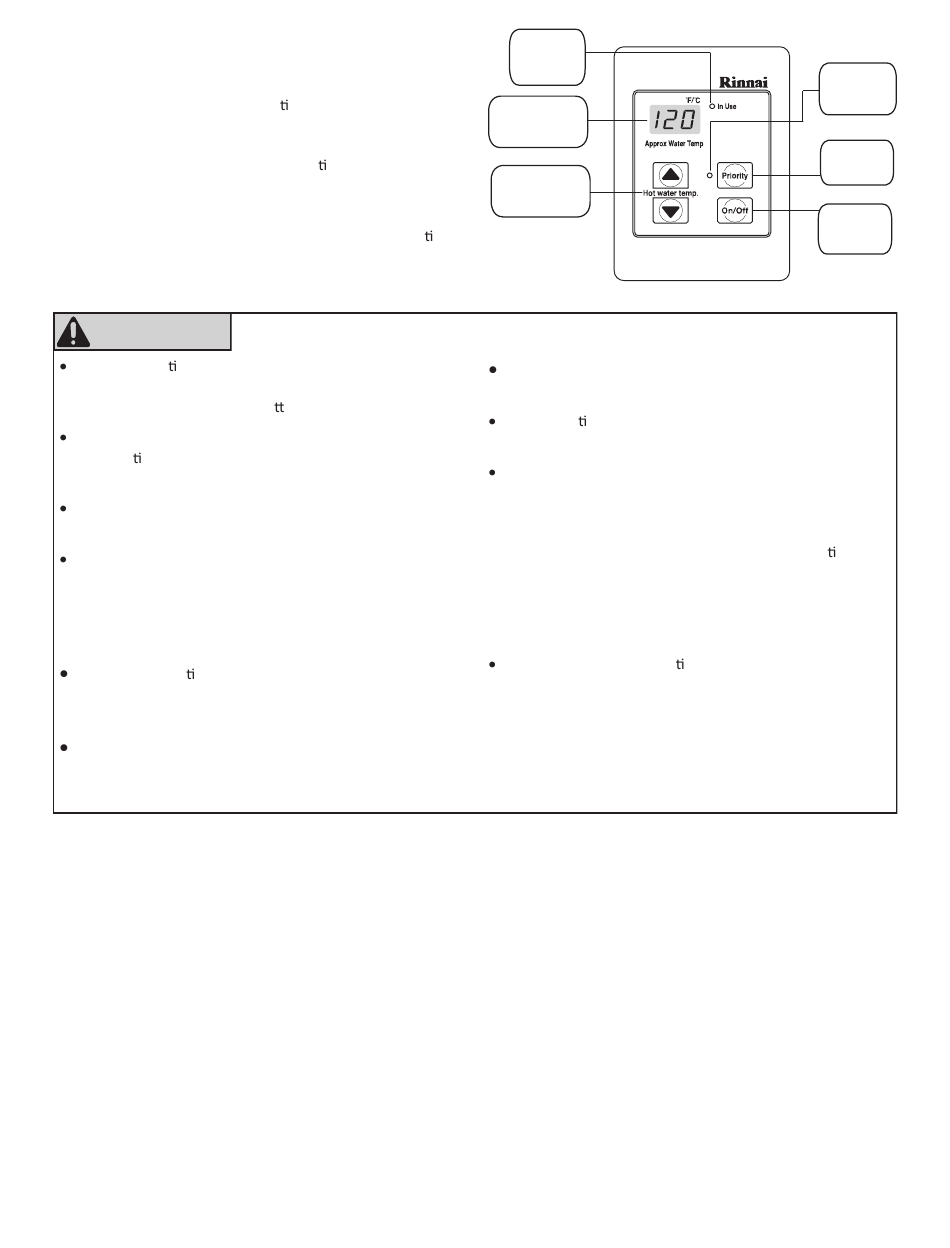

Page 1 Always check the water temperature before entering a water must be treated and/or the heat exchanger shower or bath. ﬂushed regularly. Rinnai provides a “Scale Control System” that oﬀers superior lime scale preven on and Do not use this appliance if any part has been under corrosion control by feeding a blend of control water.
Page 2 How to Set the Temperature This water heater requires a minimum ﬂow rate to operate. This rate can be found on the speciﬁca on page in this manual. In some cases when you are not ge ng hot water or if the water alternates between hot and cold, it is due to the water ﬂow being below or close to the minimum ﬂow rate.
Page 3 Temperatures Available with a Controller The water heater can deliver water at only one temperature se ng at a me. The available temperatures are provided below. A temperature lower than 98° F (37° C) can be obtained at the tap by mixing with cold water. To change the temperature scale from Celsius to Fahrenheit or vice versa, press and hold the “On/Oﬀ”...
Page 4 endless comfort and performance TANKLESS WATER HEATING SOLUTIONS FOR THE HOME...
Page 5 Family-friendly, earth-friendly Rinnai Tankless Water Heaters let us all live greener and cleaner. Our efficient and compact technology helps conserve natural resources, including water, while producing less waste in landfills. And with higher standards for lower emissions, your family can breathe easier, too.
Page 6 ELECTRICITY 0.95 $555 TANKLESS TECHNOLOGY FUEL TYPE/ENERGY SOURCE EF (ENERGY FACTOR) ANNUAL OPERATING COSTS* Rinnai’s line of digital controllers allows HIGH-EFFICIENCY NON-CONDENSING TANKLESS NATURAL GAS 0.82 $199 you to set water temperature precisely for multiple locations in your home. HIGH-EFFICIENCY NON-CONDENSING TANKLESS PROPANE 0.82...
Page 7 The best part is, Rinnai can offer this solution of adding an additional line. This technology regardless of your current plumbing configuration.
Page 8 REMOTE DIAGNOSTICS AND MAINTENANCE Ready for hot water? So is your system. Available as an added feature, the Rinnai Control-R™ Wi-Fi Many Rinnai tankless models come standard module and mobile app for Rinnai Tankless Water Heaters • Select a monitoring dealer with recirculation technology, a built-in take control and flexibility to a new level.
Page 9 95% - 96% WI-FI READY AVAILABLE IN NATURAL GAS OR PROPANE INDOOR AND OUTDOOR VERSIONS AVAILABLE RECIRCULATION SOLUTION MADE POSSIBLE WITH CIRC-LOGIC TECHNOLOGY ISOLATION VALVES THERMACIRC360 — (RECIRC WITH OR WITHOUT DEDICATED LINE) Learn more at rinnai.us Learn more at rinnai.us...
Page 10 1-800-621-9419 • rinnai.us ©2016 Rinnai America Corporation. Rinnai America Corporation continually updates materials, and as such, content is subject to change without notice. Local, state, provincial, federal and national fuel gas codes must be adhered to prior to and upon installation.
Page 11 Direct Vent Tankless Water Heater Installation and Operation Manual FOR INDOOR APPLICATIONS ONLY RUC80i ....REU-KBD2530FFUD-US RUC90i ....REU-KBD2934FFUD-US RUC98i ....REU-KBD3237FFUD-US FOR OUTDOOR APPLICATIONS ONLY RU80e ....REU-KB2530WD-US RU90e ....REU-KB2934WD-US RU98e ....REU-KB3237WD-US Low Lead Content SANITATION NSF/ANSI 372 ANSI Z21.10.3 ●...
Page 12: Table Of Contents
If you have any questions or feel that the manual is incomplete contact Rinnai at 1-800-621-9419 Important Safety Information Safety Definitions This is the safety alert symbol.
Page 13: Safety Behaviors And Practices For The Consumer And Installer
Safety Behaviors and Practices for the Consumer and Installer WARNING   Before operating, smell all around the appliance Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not area for gas.
Page 14: Installation Instructions
Training in installation of tankless water heaters. under the appliance. The pan must not restrict (Training can be accessed on-line at combustion air flow. www.trainingevents.rinnai.us)  Do not obstruct the flow of combustion and Type of installation ventilation air. Combustion air shall not be ...
Page 15: Prepare For Installation
General Instructions (continued) Prepare for installation  The appliance must be isolated from the gas supply Parts included piping system by closing its individual manual  Tankless water heater shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or ...
Page 16: Determine Installation Location
Rinnai offers Southeastern Filtration’s “ScaleCutter Damage and repair due to corrosive compounds in the Water Conditioning System” that offers superior lime air is not covered by warranty.
Page 17 Direct Vent Terminal Clearances (Indoor Units) For indoor models, you must install a vent termination to bring in combustion air and expel exhaust to the outside. TERMINATION INSIDE CORNER DETAIL Clearance in Ref. A also applies to anticipated snow line SNOW FIXED CLOSED...
Page 18 Other Than Direct Vent Terminal Clearances (Outdoor Units) INSIDE CORNER DETAIL Clearance in Ref. A also applies to anticipated snow line FIXED CLOSED OPERABLE FIXED CLOSED OPERABLE AIR SUPPLY INLET VENT TERMINAL AREA WHERE TERMINAL IS NOT PERMITTTED Canadian Installations US Installations Description (CSA B149.1)
Page 19 Additional clearances RU80e, RU90e, RU98e Check to determine whether local codes supersede these clearances.  Avoid termination locations near a dryer vent.  Avoid termination locations near commercial cooking exhaust. (50 mm) between (0.91 m) to ventilated  terminals at same level Avoid termination locations near any air inlets.
Page 20: Freeze Protection
Unit clearances Freeze Protection to top Make sure that in case of freezing weather the water heater and its water lines are protected to prevent freezing. Damage due to freezing is not covered by the warranty. to front With electrical power and gas supplied, the water heater will not freeze when the outside air temperature is as cold as –22°F (-30°C) for indoor to side...
Page 21 Example: If you have one elbow then your Maximum vent length maximum vent length is 35 feet (10.7 m). Maximum Vent Length with Concentric Venting If your actual length is greater than 15 ft (4.6 m) then move SW1 in DIPSW 1 to 1.
Page 22 Refer to the guidelines and tables below to find the maximum vent length based on the number of elbows.  Comply with the exhaust clearances found in the Rinnai Installation and Operation Manual.  Only one appliance can be attached to the vent system.
Page 23: Checklist To Determine Installation Location
Mount to Wall Checklist to Determine Installation Location □ The water heater is not exposed to corrosive compounds in the air. □ The water heater location complies with the wall installation clearances. brackets □ For indoor models, the planned venting will not exceed the maximum length for the number of elbows used.
Page 24: Installation Of Venting (Indoor Models Only)
Refer to the vent manufacturer’s technical literature for specific part numbers and instructions. Approved Vent Manufacturers and Products Listed and Tested Vertical Horizontal Manufacturer Contact Vent Products Termination Termination Rolux Condensing www.rinnai.us Ubbink 184162PP 223176PP, 223177PP Vent System 800-621-9419 InnoFlue Vent System www.centrotherm.us.com Centrotherm (single wall SW, 3 ICRT3539...
Page 25 Do not use cellular core PVC/CPVC. If it becomes necessary to access an enclosed vent  system for service or repairs, Rinnai is not responsible Do not use Radel, ABS, or galvanized material to for any costs or difficulties in accessing the vent vent this appliance.
Page 26: Determining Vent Configuration
Determining Vent Configuration NOTICE 2. Remove exhaust adapter ring.  Prior to the installation of the vent system, the unit must be properly adjusted for the venting configuration selected for the application.  Any issues resulting from improper installation will not be covered by warranty. ...
Page 27 Determining Vent Configuration (continued) Twin Pipe PVC/CPVC Configuration (3”or 4”) 3. Install the intake pipe. Ensure it is properly seated. 4. Secure the intake pipe to the unit with the supplied screw (in the carton box). Intake Cap to be removed and discarded for twin pipe PVC/CPVC configuration.
Page 28 Flue Installation with Concentric Venting (indoor models only) Install the venting termination according to the diagrams and instructions below. Horizontal Termination Slope the venting 1/4” per foot toward the appliance according to the vent manufacturers installation instructions. Dispose of condensate per local codes. Vertical Termination Slope the venting 1/4”...
Page 29 Flue Installation with Centrotherm Venting (indoor models only) Install the venting termination according to the diagrams and instructions below.  Comply with the exhaust clearances found in the Rinnai Installation and Operation Manual.  Only one appliance can be attached to the vent system.
Page 30: Twin Pipe Pvc/Cpvc Vent Installation
Twin Pipe PVC/CPVC Vent Installation This newly certified vent system is comprised of PVC/CPVC pipes, fittings and either the IPEX System Low Profile Termination Kit Assembly (System 636), snorkel termination, or tee termination. WARNING Installations must comply with local requirements and with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 for U.S. installations or CSA B149.1 for Canadian installations.
Page 31 The exhaust and air piping must be installed as instructed in this manual. The chimney chase must be used only for the Rinnai Water Heater(s) vent chase. NO OTHER appliance or fireplace can be connected to the chimney chase. Exhaust and air piping materials must comply with this instruction. The chimney chase must be fitted with a sealed access opening to facilitate interior inspection.
Page 32 IMPORTANT CONSIDERATIONS FOR LOCATION: separate vent system.   If common venting is required, refer to Rinnai Locate the vent outlet where flue gases will not harm Common Vent Installation Manual (latest revision) for surrounding plants and/or cooling equipment. instructions on specific allowable venting method as ...
Page 33 IMPORTANT CONSIDERATIONS FOR LOCATION (continued): below. When determining equivalent combustion air and Exhaust and Combustion Air Intake Pipe Diameters and vent length, add 5 feet for each 90° elbow, 2.5 feet for each Maximum Lengths: 45° elbow.  For PVC/CPVC vent systems reduce the maximum allowable length for each elbow and termination type Example of calculation (assume 3”...
Page 34 OPTION 2: Maximum Equivalent Vent Length Tables: Determine the number of 90 degree elbows in the vent system. (two 45 degree elbows count as one 90 degree elbow.) Refer to the tables below to find the maximum vent length based on the number of elbows and termination style. Natural Gas Units Total Equivalent Vent Length (Intake/outlet) for Twin Pipe 3"...
Page 35 Maximum Equivalent Vent Length Tables (continued): Propane Units Total Equivalent Vent Length (Intake/outlet) for Twin Pipe 3" PVC/CPVC 41 Feet Maximum Vent Length IPEX or Royal IPEX or Royal Snorkel Side Wall Tee Termination Type Concentric Vent Low Profile Termination Termination Termination Termination Equivalent Length in feet...
Page 36 Installation of PVC/CPVC Vent and Intake Air Piping: Adapter Installation Configurations: Note the correct position of the combustion air inlet and gas flue outlet, as these are NOT interchangeable. For the correct position and design of the twin pipe gas flue outlet and combustion air inlet refer to the installation instructions in this manual.
Page 37 Certified PVC/CPVC Vent Termination Options Vent Termination Configurations WARNING There are 4 configurations for vent terminations that are Danger of fire or bodily injury – Solvent cements and approved for use with the RUC series water heaters: primers are highly flammable. Provide adequate Concentric Termination (IPEX Concentric Vent Kit) ventilation and do not assemble near a heat source or -Allows for only one penetration through a wall or roof.
Page 38 Certified PVC/CPVC Vent Termination Options (continued) IPEX Concentric Vent Kit Assembly (System 636): MECHANICALLY FASTENED RAIN CAP: Once the proper location has been determined, cut a The Rain Cap must be installed with the supplied Stainless hole in the roof or wall large enough to Steel screw and lock nut, and in accordance with the accommodate the outer pipe.
Page 39 IPEX CONCENCTRIC VENT KIT (CVK) CLEARANCES: ACCEPTABLE VENTING CLEARANCES FOR IPEX CONCENCTRIC VENT KIT (CVK) TERMINATION TOP CROSS SECTIONAL VIEW WALL 24” MIN to next CVK Two or More Vent Terminals on same level Soffit Reference “General Clearance Ceiling Requirements” section of this manual for important considerations for locating vent termination under a soffit (ventilated or unventilated),...
Page 40 Table 8: Approved PVC/CPVC Vent Configurations This configuration requires the use of the This configuration requires the use of the IPEX or Royal Concentric Vent Termination IPEX or Royal Concentric Vent Termination 3" or 4" PVC/ 3" or 4" PVC/ CPVC IPEX CPVC IPEX System 636 or...
Page 41 Certified PVC/CPVC Vent Termination Options (continued) Kit Contents 3” and 4” Low Profile Vent Termination Kits Item Description The following information should be used in conjunction with the IPEX System 636 Installation Guide: Base (Two Holes)  Termination kits are to be tested and certified for use Cap (One Hole) with the brand of pipe-fitting-cement system that is to be utilized in the application.
Page 42 Certified PVC/CPVC Vent Termination Options (continued) Twin Pipe (PVC/CPVC) Terminations PVC/CPVC Sidewall (Tee and Snorkel) Terminations: Locate the vent and intake air termination using the following guidelines: The total length of the vent or intake air piping must 12” Exhaust Vent not exceed the limits given in maximum equivalent vent length tables.
Page 43 Certified PVC/CPVC Vent Termination Options (continued) NOTE Vent Termination All figures shown in this section is in reference to flat roofs. Combustion air termination For heights of venting passing through a pitched roof, refer 12” above to NFPA 54/ANSI Z223.1-09 (table and figure 12.7.2), CSA 12”...
Page 44 Certified PVC/CPVC Vent Termination Options (continued) Apply a thin coat of cement evenly in the socket. NOTE Quickly apply a heavy coat of cement to the pipe and To prevent the possibility of condensate freeze-up, do not insert pipe into fitting with a slight twisting motion install vent kits one above the other.
Page 45 Parts Information Types of Acceptable PVC/CPVC Elbows for Venting System ACCEPTABLE ACCEPTABLE NOT ACCEPTABLE 90° Elbows, Female Unthreaded 90° Elbows, Female Unthreaded 90° Elbows, Female Unthreaded Socket Ends: (Long Turn) Long Socket Ends: (1/4 Bend) Short Socket Ends: Close Turn Sweep Sweep WARNING...
Page 46 Parts Information (continued) Vent Components and Assigned Equivalent Lengths: condensing products: The following fittings and accessories (by others) are certified for use with the above mentioned Approved Termination Component Equivalent Lengths Equivalent OEM # or Cert. Product Description Diagram Lengths (Ft.) 196006 /197009 (3 Inch) PVC/CPVC- FGV IPEX (Purchased...
Page 47 PVC/CPVC Equivalent Vent Length Calculation Sheet Equivalent Vent Length Calculation Sheet Number of Equivalent Vent Total Equivalent Fitting / Termination Type fittings Length Length 90 elbow 45 elbow IPEX Low Profile Termination IPEX 4" Concentric Termination IPEX 3" Concentric Termination Royal 3”...
Page 48: Condensate (Indoor Models Only)
 A condensate neutralizer kit, 804000074, is  All condensate must drain and be disposed of available from Rinnai. The kit allows condensate according to local codes. to flow through neutralizing media that raises the  Use only corrosion resistant materials for the...
Page 49: Installation Of Plumbing
Isolation valves are included with this water heater.  Do not place any other type valve or shutoff device Rinnai strongly recommends the installation of between the relief valve and the water heater. isolation valves on the cold and hot water lines...
Page 50 Isolation Valves and Pressure Relief Valve (PRV) The isolation valves provide the ability to isolate the water heater from the structure’s plumbing and allow quick access to flush the heat exchanger. Check with local codes to determine if a pressure and temperature relief valve is required.
Page 51 Piping Diagram for Basic Installation Cold water Water inlet drain plug connection Condensate Condensate Hot water drain line trap drain plug outlet The condensate drain pipe (along its entire length) must be at least the same diameter as the drain line, (1/2 inch NPT). Refer to the Condensate section in the venting instructions...
Page 52: Checklist For Plumbing
Check for proper water pressure to the water corrosion or stress cracking, the piping shall be heater. Minimum water pressure is 50 psi. Rinnai rinsed with water after testing, unless it has been recommends 60-80 psi for maximum determined that the leak test solution is non- performance.
Page 53  Any compound used on the threaded joint of the Pipe Sizing Table - Natural Gas gas piping shall be a type that resists the action of Schedule 40 Metallic Pipe liquefied petroleum gas (propane / LPG). Inlet Pressure: less than 2 psi (55 inches W.C.) ...
Page 54: Connect Electricity
Connect Electricity Adjustment for High Altitude Installations WARNING Set SW2 and SW3 in DIPSW 1 to the values shown in Do not use an extension cord or an adapter plug with table below for your altitude. The default setting for this appliance.
Page 55: Installation Of Temperature Controller
120 volt potential next to the temperature Controllers cannot be wired in series. controller connections inside the unit. Do not connect the temperature controller to the Maximum 4 Controllers Rinnai 120VAC terminals provided for the optional solenoid Water drain valves. Heater Indoor models have their controller built into the front panel.
Page 56 Mounting the controller 1. Make three holes in the wall as shown. Outline of Remote securing screw 1-21/32" wiring hole 3-5/16" securing screw 2. Run the cable between the controller and the water heater or the controller and another controller. 3.
Page 57: Final Checklist
Final Checklist □ Confirm that the water heater is rated for the gas □ type supplied. The water heater is not subject to corrosive □ compounds in the air. Confirm that the electricity is supplied from a 120 □ VAC, 60 Hz power source, is in a properly The water supply does not contain chemicals or grounded circuit, and turned on.
Page 58: Technical Data
Technical Data Specifications RUC80i RUC90i RUC98i RU80e RU90e RU98e Minimum Gas Consumption Btu/h 15,200 Maximum Gas Consumption Btu/h 152,000 180,000 199,000 152,000 180,000 199,000 0.26 - 8.0 GPM 0.26 - 9.0 GPM 0.26 - 9.8 GPM 0.26- 8.0 GPM 0.26 - 9.0 GPM 0.26 - 9.8 GPM Hot water capacity (Min - Max) * (1.0 - 25 L/min)
Page 59: Dimensions
Dimensions Inches (millimeters) RUC80i, RUC90i, RUC98i ø 5.5 (140.2) All Models 5.9 (150) 10.1 (257.7) 1.2 (31.2) DIMENSION Inches (mm) 8.7 (222) 2.8 (70.1) A (GAS) 1.6 (40.2) A (COLD) 2.0 (50.2) A (HOT) 1.6 (41.2) RU80e, RU90e, RU98e A (CONDENSATE 0.9 (22.4) 10.1 (257.5) 0.6 (15)
Page 60: Pressure Drop And Water Flow Curves
RU98e Water Flow (gpm) The chart below only applies to incoming water temperatures of 70°F (21°C) or less. For NOTICE incoming water temperatures greater than 70°F (21°C) please contact Rinnai. RUC98i, RU98e RUC90i, RU90e RUC80i, RU80e delta T - Temperature Rise (°F)
Page 61: Ladder Diagram
Ladder Diagram KBD Series Manual...
Page 62: Recirculation Mode
Recirculation Mode 4. Adjust the dip switch by moving the SW4 in The Rinnai water heater has the ability to control a DIPSW 2 to ON. recirculation pump. Two modes are available, For Economy mode, set SW8 in DIPSW 2 to OFF Economy and Comfort, which recirculate the water in (default).
Page 63 °F Mode Mode Pump recirculation begins when the water heater is turned on. The Rinnai inlet and outlet thermistors measure the water temperature. The water heater produces hot water at the temperature setting. If the inlet thermistor detects abnormal temperature then diagnostic code 51 is generated and the pump will turn off.
Page 64: Operation Instructions
RU98e ....REU-KB3237WD-US Important Facts about your Water Heater Thank you for purchasing a Rinnai Tankless Water Heater. For proper operation and safety, it is important to follow the instructions and adhere to all safety precautions. Read all of the instructions and the warranty thoroughly before operating this water heater. Keep this manual in a safe place.
Page 65: Consumer Operation Guidelines For The Safe Operation Of Your Water Heater
Consumer Operation Guidelines for the Safe Operation of your Water Heater FOR YOUR SAFETY READ BEFORE OPERATING WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. ...
Page 66: How To Use The Temperature Controller
 Always check the water temperature before entering a water must be treated and/or the heat exchanger shower or bath. flushed regularly. Rinnai provides a “Scale Control System” that offers superior lime scale prevention and  Do not use this appliance if any part has been under corrosion control by feeding a blend of control water.
Page 67: How To Set The Temperature
How to Set the Temperature This water heater requires a minimum flow rate to operate. This rate can be found on the specification page in this manual. In some cases when you are not getting hot water or if the water alternates between hot and cold, it is due to the water flow being below or close to the minimum flow rate.
Page 68 Temperatures Available with a Controller The water heater can deliver water at only one temperature setting at a time. The available temperatures are provided below. A temperature lower than 98° F (37° C) can be obtained at the tap by mixing with cold water. To change the temperature scale from Celsius to Fahrenheit or vice versa, press and hold the “On/Off”...
Page 69: Diagnostic Codes
Temperature Options Without a Temperature Controller The default temperature setting for this appliance installed without a temperature controller is 120° F (49° C). If desired, the temperature setting can be changed to 140° F (60° C) by adjustment of a switch. Set SW5 in DIPSW 1 to ON to obtain 140°...
Page 70 Diagnostic Codes and Remedies WARNING Some of the checks below should be done by a licensed professional. Consumers should never attempt any action that they are not qualified to perform. Code Definition Remedy Power interruption during Bath Fill (Water will not flow when Turn off all hot water taps.
Page 71 LC2,…) Off button on the temperature controller 5 times. Repeated LC codes will eventually lockout “LC”) the water heater. Please call Rinnai technical department. Maintenance has been Indicates a licensed professional performed maintenance or corrected an issue. performed Clean inlet water supply filter.
Page 72: Required Maintenance
Required Maintenance The appliance must be inspected annually by a licensed professional. Repairs and maintenance shall be performed by a licensed professional. The licensed professional must verify proper operation after servicing. WARNING To protect yourself from harm, before performing maintenance: ...
Page 73: Freeze Protection And Winterization
catch any water that is contained inside the unit. Freeze Protection. The unit may be drained manually. Unscrew the water filter. Rinse the filter to remove However, it is highly recommended that: any debris. Install the filter and open the isolation ...
Page 74: Flushing The Heat Exchanger
An LC0~LC9 or “00” or 58 diagnostic code indicates the unit is beginning to lime up and must be flushed. Failure to flush the appliance will cause damage to the heat exchanger. Damage caused by lime build-up is not covered by the unit’s warranty. Rinnai strongly recommends installation of isolation valves to allow for flushing of the heat exchanger.
Page 75: Manual Draining Of The Water Heater
Manual Draining of the Water Heater WARNING To avoid burns, wait until the equipment cools down before draining the water. The water in the appliance will remain hot after it is turned off. If the water heater is not going to be used during a period of possible freezing weather, it is recommended that the water inside the water heater be drained.
Page 76: State Regulations
State Regulations NOTICE BEFORE INSTALLATION This direct-vent appliance must be installed by a licensed professional. If you are not properly trained, you must not install this unit. IMPORTANT: In the State of Massachusetts (248 CMR 4.00 & 5.00) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...
Page 77: Replacement Parts
Replacement Parts The Technical Sheet that is located inside the front cover of the water heater contains a complete Gas Control Assembly Electrode / Flame Rod illustrated parts list. Tech Sheet Item No. Gas Control Assembly Electrode / Flame Rod Kit 116, 117 Fan Assembly / Motor Heat Exchanger...
Page 78: Warranty
/ thermostat, or timer, or an on-demand system is 12 years for residential applications and 5 years for commercial applications. [3] Period of coverage is reduced to 5 years from date of purchase if the Rinnai water heater temperature setting exceeds 160° F (71° C).
Page 79 Limitation on Warranties No one is authorized to make any other warranties on behalf of Rinnai America Corporation. Except as expressly provided herein, there are no other warranties, expressed or implied, including, but not limited to warranties of merchantability or fitness for a particular purpose, which extend beyond the description of the warranty herein.
Page 80 Ultra Series RUC80i, RUC90i, RUC98i, RU80e, RU90e, RU98e REGISTRATION REQUIRED* Rinnai is providing the opportunity to extend your Rinnai Standard Limited Warranty on labor only on Ultra Series models Products not registered RU80, RU90, RU98, RUC80, RUC90, and RUC98 if you register within 30 days of purchase of your unit.
