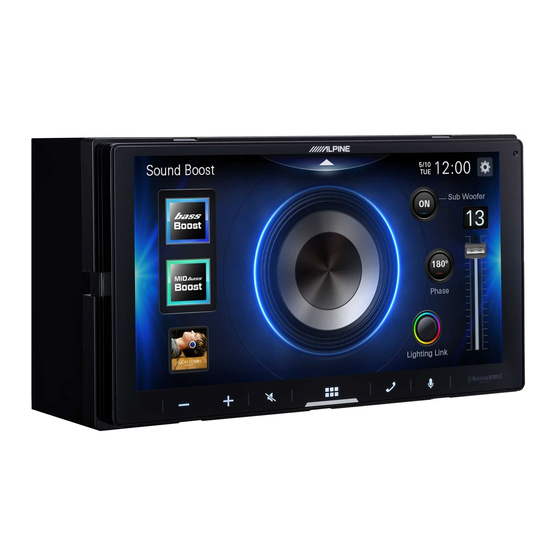

7-INCH AUDIO/VIDEO RECEIVER
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
Thank you for purchasing this Alpine product. Please take a moment to protect your purchase by
registering your product now at the following address: www.alpine-usa.com/registration.
You will be informed of product and software updates (if applicable), special promotions, news
about Alpine.
Merci d'avoir acheté ce produit Alpine. Nous vous invitons à consacrer un moment à la protection
de votre achat en enregistrant votre produit dès maintenant à l'adresse suivante :
www.alpine-usa.com/registration.
Vous serez tenu informé des mises à jour des produits et des logiciels (le cas échéant), des
promotions spéciales et de l'actualité d'Alpine.
Gracias por adquirir este producto Alpine. Con solo unos pocos pasos podrá proteger su producto,
registrándolo a través de la siguiente dirección: www.alpine-usa.com/registration.
Recibirá información sobre nuevos productos y software, promociones especiales y novedades
sobre Alpine.
ALPS ALPINE NORTH AMERICA, INC.
1500 Atlantic Blvd,
Auburn Hills, Michigan 48326, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
iLX-W670
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
EN
FR
ES
Designed by ALPINE Japan

Advertisement

Table of Contents
loading

Related Manuals for Alpine iLX-W670

Summary of Contents for Alpine iLX-W670

  • Page 1 • MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil. Thank you for purchasing this Alpine product. Please take a moment to protect your purchase by registering your product now at the following address: www.alpine-usa.com/registration. You will be informed of product and software updates (if applicable), special promotions, news about Alpine.

  • Page 2: Table Of Contents

    Contents USB Flash drive (Optional) Playback ..............15 Fast-forwarding/Fast-reversing Operating Instructions (USB Audio/Video) ..........15 Repeat Play (USB Audio/Video) ......15 Shuffle Play (USB Audio/Video) ......15 PRECAUTIONS Searching for a Desired Song/Video/Photo ..15 Slide Show (USB Photo) .........15 IMPORTANT INFORMATION ......5 About USB List ............15 WARNING iPod mode on iPhone (Optional) Playback ..............16...
  • Page 3 Phone Book Function ..........23 Sound Setup Synchronizing the Phone Book ......23 Setting the Fader/Balance ........33 Adjusting the Bass/Middle/Treble .....33 Bluetooth® Audio Adjusting the Graphic Equalizer Playback ..............24 Curve (EQ) ............33 Repeat Play ...............24 Setting an Equalizer ..........34 Shuffle Play ...............24 Setting the Subwoofer .........35 Adjusting the Crossover Settings (X-Over) ..35 AUX Operation (Optional)
  • Page 4 Installation and Connections WARNING ............48 CAUTION ............48 Precautions ............ 48 Accessory List ............49 Installation ...............49 Caution concerning the installation location ..............49 Mounting the Microphone .........49 Installation example using the Original Mounting Bracket ..........49 Connections .............50 If an ACC power supply is not available ...52 System Example ............53 OEM Steering Wheel Control Rentention ..54 LIMITED WARRANTY...

  • Page 5: Operating Instructions

    KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE They contain instructions on how to use this product in a safe and effective manner. Alpine cannot be responsible for problems NOISES WHILE DRIVING. resulting from failure to observe the instructions in this manual.

  • Page 6: Caution

    Failure to do so may cause personal injury or damage to the Doing so may cause heat to build up inside and may result in fire. product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

  • Page 7: Notice

    NOTICE CAUTION Alpine accepts no responsibility for lost data, etc., even if data, etc., is Product Cleaning lost while using this product. Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything On Handling USB Flash drive else has the chance of dissolving the paint or damaging the plastic.
  • Page 8 Android 6.0 or higher, and the Android Auto app. • The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under license.

  • Page 9: Getting Started

    Getting Started Turning Power On or Off Some of this unit’s functions cannot be performed while the vehicle is in motion. Be sure to stop your vehicle in a safe location and apply the Location of Controls parking brake, before attempting these operations. Turn the ignition key to the ACC or ON position.

  • Page 10: Touch Screen Operation

    Radio Displays the Radio main screen (page 12). Touch Screen Operation Apple CarPlay You can use Apple CarPlay (page 13). You can operate the system by using the touch panel on the screen. Android Auto You can use Android Auto (page 13). •...

  • Page 11: About The Indicator Display

    About the Indicator Display The Indicator Bar at the top of the screen displays various types of information, like the current time. A Sound Boost. You can turn theSound Boost (page 26). B Lights up when connected to a Bluetooth compatible device.

  • Page 12: Radio

    Radio Radio Basic Operation Radio main screen example Listening to the Radio Touch the (HOME) button and select radio mode. The display shows the radio mode screen. Select the desired band from [FM1] / [FM2] / [FM3] / [AM1]/[AM2]. Touch [ ], [ ], [ ] to adjust the radio...

  • Page 13: Apple Carplay (Optional)

    Apple CarPlay Android Auto (Optional) (Optional) Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with your iPhone while What is Android Auto driving and puts them right on the unit. You can get directions, make calls, send and receive messages, and listen to music, all in a way that Android Auto is designed to make it easier to use apps from your phone allows you to stay focused on the road.

  • Page 14: Usb Flash Drive (Optional)

    USB Photo mode screen USB Flash drive (Optional) You can play back music files (WAVE.WMA.AAC.MP3.OGG.FLAC. APE), video files (AVI,MPEG 1/2,MPEG4,WMV,Flash,QuickTime,ASF, Matroska Video,TS Stream,3GP) and photo files (JPG,JPEG,PNG,BMP) stored in a USB flash drive on the internal player of this system. WARNING It is dangerous for the driver to watch video while driving the vehicle.

  • Page 15: Playback

    Playback Shuffle Play (USB Audio/Video) Touch the (HOME) button and select USB mode. Touch [ The display shows the USB mode screen. • The [ ] button displays the currently selected mode. Touch [ ] (Search). Shuffle mode is only valid in [ Select the desired mode.

  • Page 16: Ipod Mode On Iphone (Optional)

    iPod mode on iPhone Playback (Optional) Touch the (HOME) button and select iPod mode. The display shows the iPod mode screen. Touch [ ] or [ ] or to select the desired track (file). Before using this function, plug in your iPhone using a Lightning-USB cable (supplied with iPhone) to the unit, Returning to the beginning of the previous track (file): •...

  • Page 17: Searching For A Music File

    Searching for a Music File Shuffle Play <Music Search Menu> Touch [ Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4 • The [ ] button displays the currently selected mode. Radio — — — Shuffle mode is only valid in[ Playlists Songs —...

  • Page 18: Siriusxm® Satellite Radio Operation (Optional)

    SiriusXM® Satellite Receiving Channels with the SiriusXM Tuner Radio Operation About SiriusXM Satellite Radio Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus (Optional) the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio.

  • Page 19: Checking The Sirius Xm Radio Id Number

    List by ALL Channel Checking the Sirius XM Radio ID Number Touch [ To subscribe to the SiriusXM Satellite Radio service, it is necessary to All Channels will be displayed in a list. locate and identify the Radio ID of your SiriusXM Tuner. You can check the Radio ID on the bottom surface of the SiriusXM Tuner box.

  • Page 20: Bluetooth® Operation

    About Bluetooth then connect that Bluetooth compatible device to this unit. The device name of this unit is “iLX-W670” and the initial number of the passcode Bluetooth is a wireless technology allowing communication between a is “0000. ” Also refer to the Owner’s Manual of the connected device(s).

  • Page 21: Answering A Call

    Answering a Call Calling Making a phone call using the Phone Menu An incoming call triggers the ringtone and an incoming call display. Entering a Phone Number to Make a Call Phone Incoming screen example Touch [Keypad]. The number input screen (Keypad) appears. Touch [ ] (Call).

  • Page 22: Siri

    Touch the phone number. The Phone Operation screen is displayed. Touch the number you want to call. The phone call is started Siri Establish iPhone Bluetooth connection and wake up Siri from phone , below interface will pop up and the voice output is from the unit.

  • Page 23: Phone Operation Screen

    Synchronizing the Phone Book Phone Operation Screen Touch [ Synchronization of the phone books starts. • You can store up to 1,000 registered name in the phone book. • You can store up to 5 phone numbers by one person’s name. Bluetooth®...

  • Page 24: Playback

    AUX Operation Playback (Optional) Touch the (HOME) button and select Bluetooth Audio mode. The display shows the Bluetooth Audio mode screen. Touch [ ] or [ ] to select the desired track (file). AUX Operation Returns the beginning of the previous file: Touch [ •...

  • Page 25: Camera Operation (Optional)

    Camera Operation About the Rear Camera Guide (Optional) Indication mark meaning When the car is put into reverse gear, the monitor switches to the rear view camera image. Guides appear to help visualize the car’s width and distance from the rear bumper. Camera screen example Car width extension marks (red, yellow and green in order of Setting item:...

  • Page 26: Sound Boost And Lighting Link (Optional)

    Lighting Link Setting Operation Other Color When operating the Lighting color of the system model with Lightinglink, it is necessary to connect a model that supports Lightinglink. Check the Alpine website for compatible models. Touch [ Touch [ ]Display Sound Boost screen...

  • Page 27: Lighting Link Settings Colors

    Lighting Link settings Colors • Lighting Link has 8 modes. Other Premium Direct color select Lighting Link Dynamic colors LED OFF Setting Colors Mode Blue Green Amber White 7 colors Lighting Link & Sound boost Blue Green Amber White Rainbow1 Rainbow2 background, Sub.W Ring Color...

  • Page 28: Setup

    Setup Setup Operation To display the Setup Menu screen: Your vehicle must be parked with the ignition key in the ACC or ON position. To do this, follow the procedures below. Touch the required setting list, then touch the setting 1 Bring your vehicle to a complete stop at a safe location.

  • Page 29: Language Setup

    SiriusXM Setup Language Setup [Language] is selected on the System Setup Menu screen. The Setup menu, feedback information, etc. for this unit can be changed to appear in the selected language. Setting item: Language Setting contents: English (US),French,Spanish,Portuguese • The currently selected language is displayed. Time Adjust Setup Change Passcode [Time Adjust] is selected on the System Setup Menu screen.

  • Page 30: Clear Locked All

    Clear Locked All Product Information Setting item: Clear Locked All Setting contents: Off (Initial setting) / On • Touch the switch,enter the current passcode then touch [OK]. • All stations will be cleared when Off. Locking again will change to ON automatically Changing the Lock Passcode Setting item:...

  • Page 31: Software License

    Software License Steering Wheel Control [Software License] Displaying the open source software license. Some Vehicles may require a 3rd party module to achieve steering wheel control functions (Sold Separately) Connection Status Setting item: Steering Wheel Control key learning Setting contents: Vol.

  • Page 32: Screen/Lighting Setup

    Screen/Lighting Setup Screen Color Setting item: Setting item: Background Picture Screen/Lighting Setting contents: Setting contents: You can set blue, red, amber, green, white five colors or other background Dimmer,ScreenBrightness(Day),ScreenBrightness(Night), Screen Color, Key pictures, you can also select the background picture to be set from the USB Color flash drive Setting item:...

  • Page 33: Sound Setup

    Adjusting the Bass/Middle/Treble Sound Setup [Sound] is selected on the Setup menu screen. You can set up items related to the sound quality. <Setting item> Fader/Balance (page 33) Bass/Treble (page 33) EQ Setting (page 33) Preset EQ (page 34) X-Over (page 35) Touch [ ] or [ ] for each item to be adjusted.

  • Page 34: Setting An Equalizer

    Adjustable frequency bands: Setting an Equalizer Band1: 50 Hz Band2: 80 Hz 6 typical equalizer settings are preset at the factory for a variety Band3: 125 Hz of musical source material. You can also preset an equalizer by Band4: 200 Hz customizing.

  • Page 35: Setting The Subwoofer

    Setting the Subwoofer Adjusting the Crossover Settings (X-Over) Before performing the following procedures, see “About the Crossover” (page 36). Turning Subwoofer ON/OFF If an optional subwoofer is connected to the unit, make the following Selecting the Front HPF setting. Setting item: Setting item: Front HPF Sub Woofer...

  • Page 36: Setting The Speaker Level

    Adjusting to a frequency range outside that recommended may cause damage to the speakers. For the recommended crossover frequencies of Alpine speakers, refer to the respective Owner’s Manual. We are not responsible for damage or malfunction of speakers caused...

  • Page 37: About Time Correction

    Example 2. Listening Position: All Seats About Time Correction Adjust the time correction level of each speaker to almost the same The distance between the listener and the speakers in a car vary widely level. due to the complex speaker placement. This difference in the distances from the speakers to the listener creates a shift in the sounds image and Sit in the listening position (driver’s seat, etc.) and frequency characteristics.

  • Page 38: Volume Setup

    Pairing the Bluetooth Device Volume Setup Touch [ ] to enter [Search] screen to search for Devices. Volume Setup Select a device and follow the on-screen prompts to [Volume] is selected on the Setup menu screen. connect devices Screen prompts 6 character Numeric passkey to pair When the device registration is complete, a message appears and the device returns to [Device List].

  • Page 39: Displaying Bluetooth Information

    Displaying Bluetooth Information Rear Camera Setup [Info] is selected on the Bluetooth Setup Menu screen. [Camera] is selected on the Setup Menu screen. You can display the Bluetooth device name and device address of this You can set up items related to the Rear Camera. unit.

  • Page 40: Video Setup

    Lighting Link ON/OFF Video Setup [Lighting link] is selected on the Setup menu screen. Adjusting Brightness Setting item: Lighting Link Setting item: Brightness Setting contents Setting contents: Lighting link icon displayed on sound boost screen -10 to 10 (Initial setting: 0) Off: •...
  • Page 41 Distance guidance mark <Situation of the car> Actual distances The distance guides represent the ground level distance from the rear bumper. It is difficult to accurately estimate the distance to objects above ground level. In the following example, the distance to A is 0.5 m and the distance to B is 1 m.

  • Page 42: Information

    MPEG (USB Flash drive) Information Filename : .mp1 Container: MPEG PS Audio Coding: MP1 Filename: .mp2,.mpa About the Supported Formats Container: MPEG PS Audio Coding: MP2 Filename : .mp3 Container: MPEG PS CAUTION Audio Coding: MP3 Except for private use, duplicating audio data or * Support Tag:ID3V1 ID3v2.3 : only distributing, transferring, or copying it, whether for TPE1, TALB, TCONTIT2, TYER...

  • Page 43: About Photo Format

    Format: Flash Maximum files numbers of folders: File Name:.flv USB Flash drive (Auido/Video/Photo):999 Video Coding: Sorenson H.263(FLV1), H.264 IPod:No folder , only a playlist is available with up to 100 files Audio Coding: MP3, AAC-LC, ADPCM Android MSC: Same as USB File Name:.swf Maximum folders numbers of device: Video Coding: Sorenson H.263(FLV1), H.264...

  • Page 44: In Case Of Difficulty

    • If the area you are in is a primary signal area, the antenna may properly connected, or then consult your authorized not be grounded and connected properly. Alpine dealer. - Check your antenna connections; make sure the antenna is properly grounded at its mounting location.

  • Page 45: If This Message Appears

    If this Message Appears SiriusXM Check Tuner Various messages are displayed on the screen during operation. In • The SiriusXM Tuner is disconnected or the unit is having trouble addition to the messages telling you the current status or providing communicating with the Tuner.
  • Page 46 Bluetooth No Bluetooth device were found • The Bluetooth audio device was not connected correctly. - Check the settings for the unit and the Bluetooth audio device and reconnect Phone Empty • The phone book is empty. Phone book access is not authorized •...

  • Page 47: Specifications

    Bluetooth SECTION Specifications Bluetooth Specification Bluetooth V5.0 Output Power < +4dBm Ave. (Power class 2) MONITOR SECTION Profile HFP (Hands-Free Profile) PBAP (Phone Book Access Profile) Screen Size 6.75” A2DP (Advanced Audio LCD Type Normally white, Transmissive Distribution Profile) Operation System a-Si TFT active matrix AVRCP (Audio/Video Remote Number of Picture Elements 1,152,000 pcs.

  • Page 48: Installation And Connections

    When in doubt, consult your Alpine dealer. electrical wiring. Failure to take such precautions may result in fire.

  • Page 49: Accessory List

    Accessory List Main unit ......................1 Microphone Power cable......................1 RCA cable ......................1 GPS antenna ....................1set Cable clamp (sold separately) Microphone ....................... 1 USB extension cable ..................1 Screw ........................4 Countersunk screw ..................4 Quick Reference Guidance ................1 Card note1 ......................

  • Page 50: Connections

    Connections...
  • Page 51 A Radio Antenna Receptacle Y Rear Output RCA Connectors Can be used as Rear Output RCA Connectors. RED is right and B GPS Antenna Receptacle WHITE is left. C Power Antenna Lead (Blue) Z Front Output RCA Connectors Connect this lead to the +B terminal of your power antenna, if Can be used as Front Output RCA Connectors.

  • Page 52: If An Acc Power Supply Is Not Available

    • Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.

  • Page 53: System Example

    System Example Connection of an iPhone When connecting to an iPhone with a Lightning connector USB connector iPhone with a Lightning connector (sold separately) USB extension cable (included) Lightning to USB Cable KCU-471i (sold separately) • Do not leave an iPhone in a vehicle for a long time. Heat and humidity may damage the iPhone, and you may not be able to play it again. Connection of a USB Flash Drive USB connector USB extension cable (included)

  • Page 54: Oem Steering Wheel Control Rentention

    If the vehicle does not have restisive steering and uses data controlled steering wheel controls then a 3rd party Steering Wheel Interface with a female 3.5mm connection to be hardwired to the iLX-W670 steering wheel control wires is needed. (Sold Separately) Please check what kind of Steering Wheel controls you have before install.

  • Page 55: Limited Warranty

    ALPINE ELECTRONICS OF AMERICA, INC. (“Alpine”), is dedicated to quality craftsmanship and is pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.
  • Page 56 680: “Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. ” Don’t forget to take a moment to protect your purchase by registering your product now at the following address: www.alpine-usa.com/ registration.
  • Page 57 To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. Detailed license notice, full license texts and machine readable copy of the corresponding source code are readily available on our OSS website (*) * http://www.alpine.com/e/oss/download...
